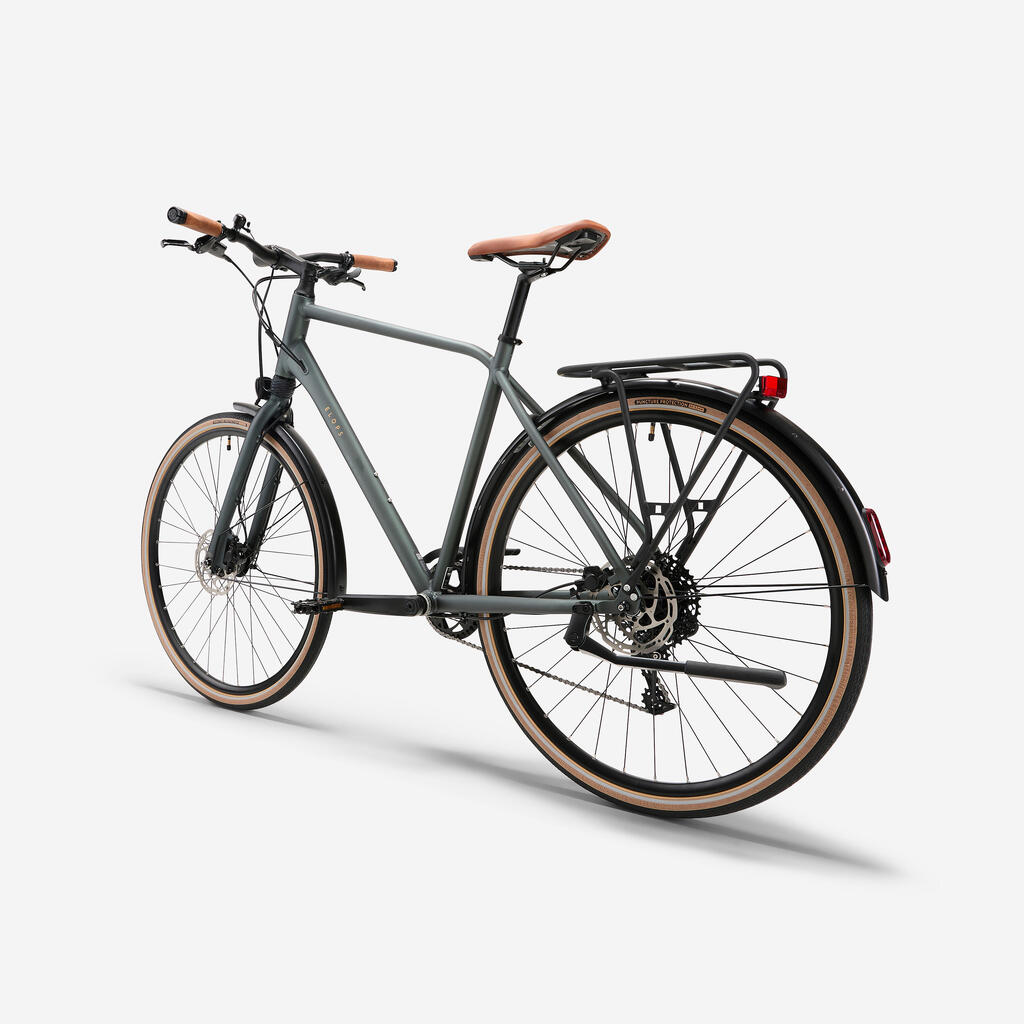

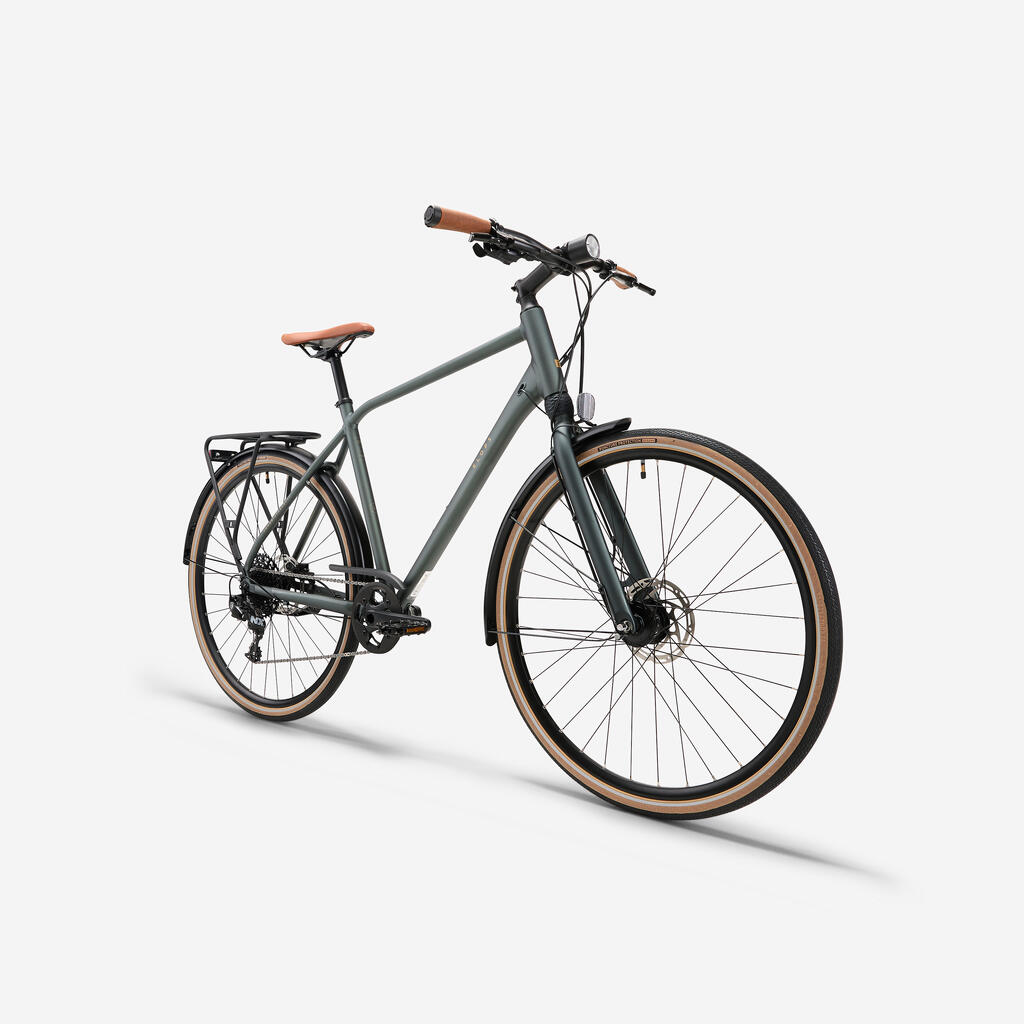

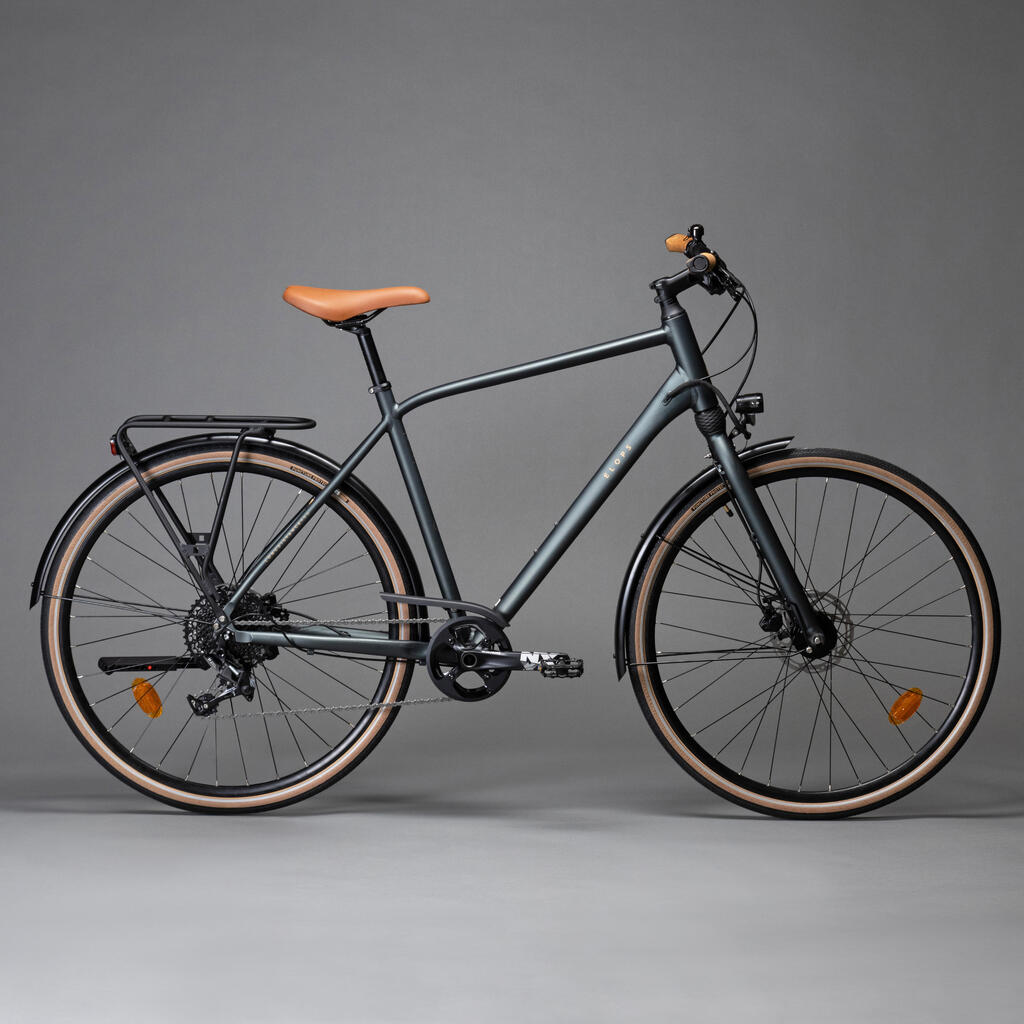

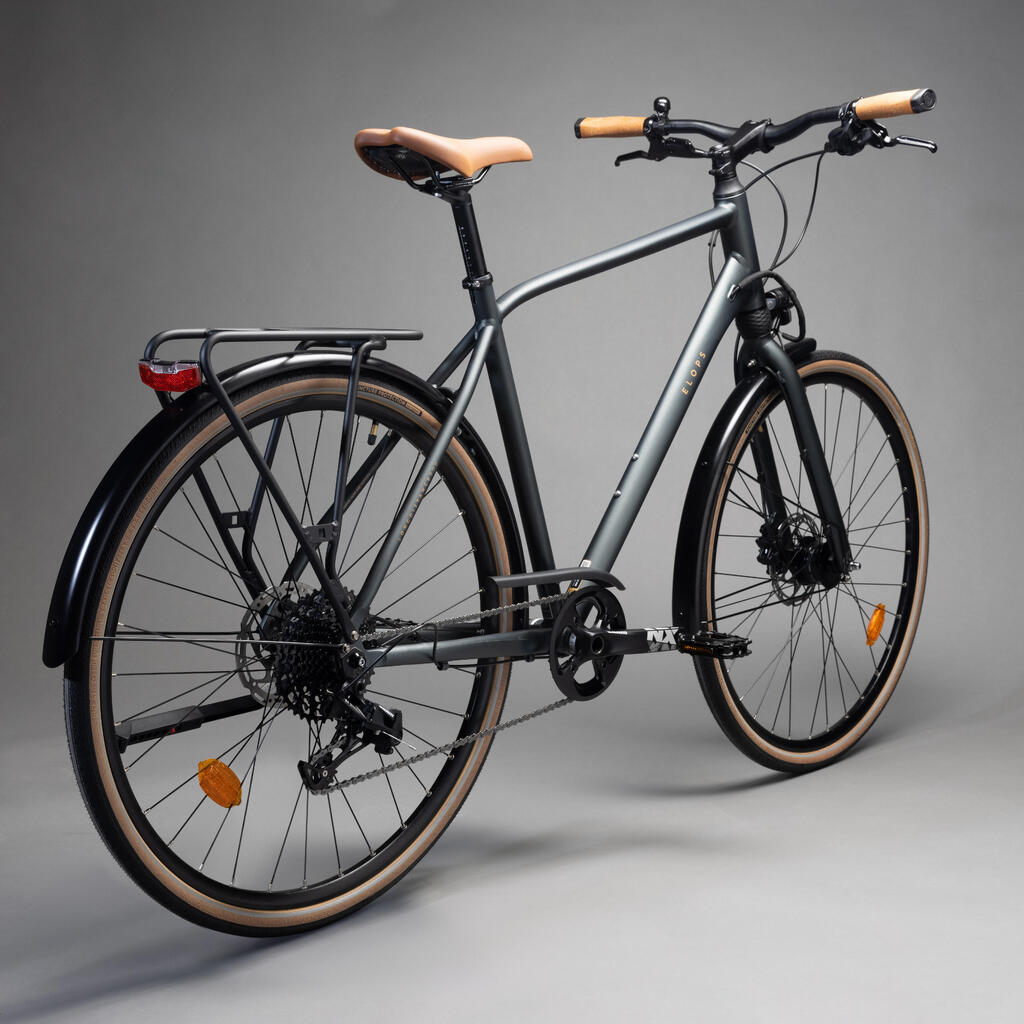

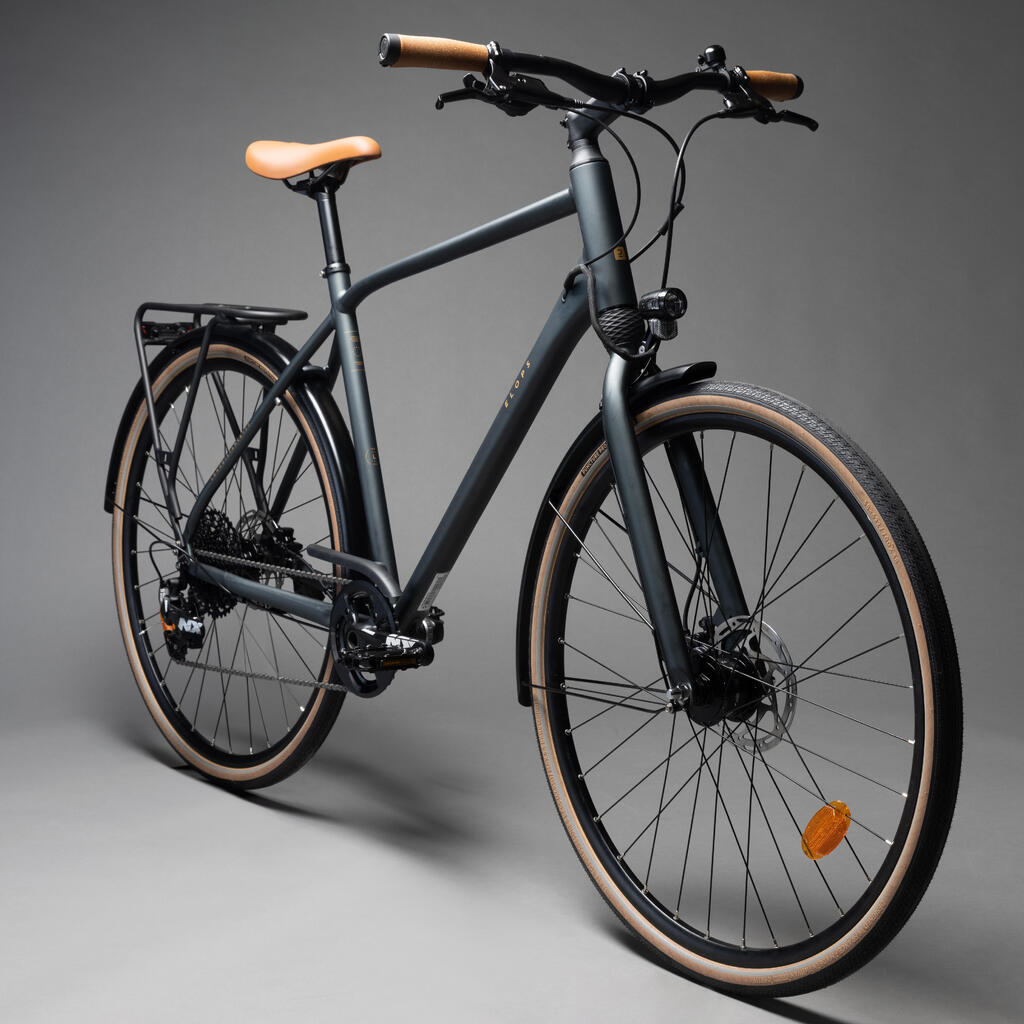

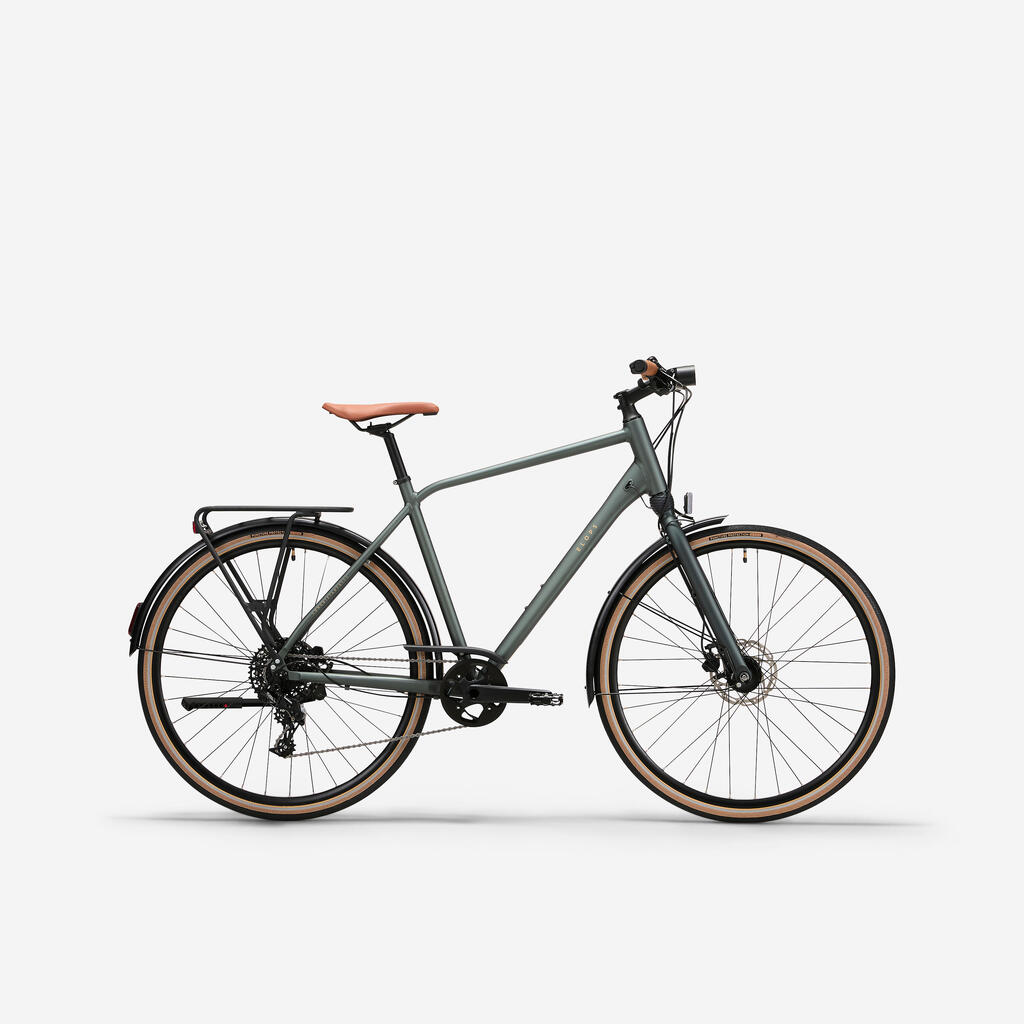

Long Distance Step-Over City Bike 900
This bike is designed for daily commutes around town and road rides.
If you're looking for a simple, light, comfortable city bike that'll eat up the miles, or that
you can use on a slightly hilly route, this bike is just what you need.
BENEFITS
Ease of use
Fully equipped city bike. Quick, simple 1 x 11-speed drivetrain.
Lightweight
14.3 kg (size M): one of the lightest bikes in its category.
Visibility

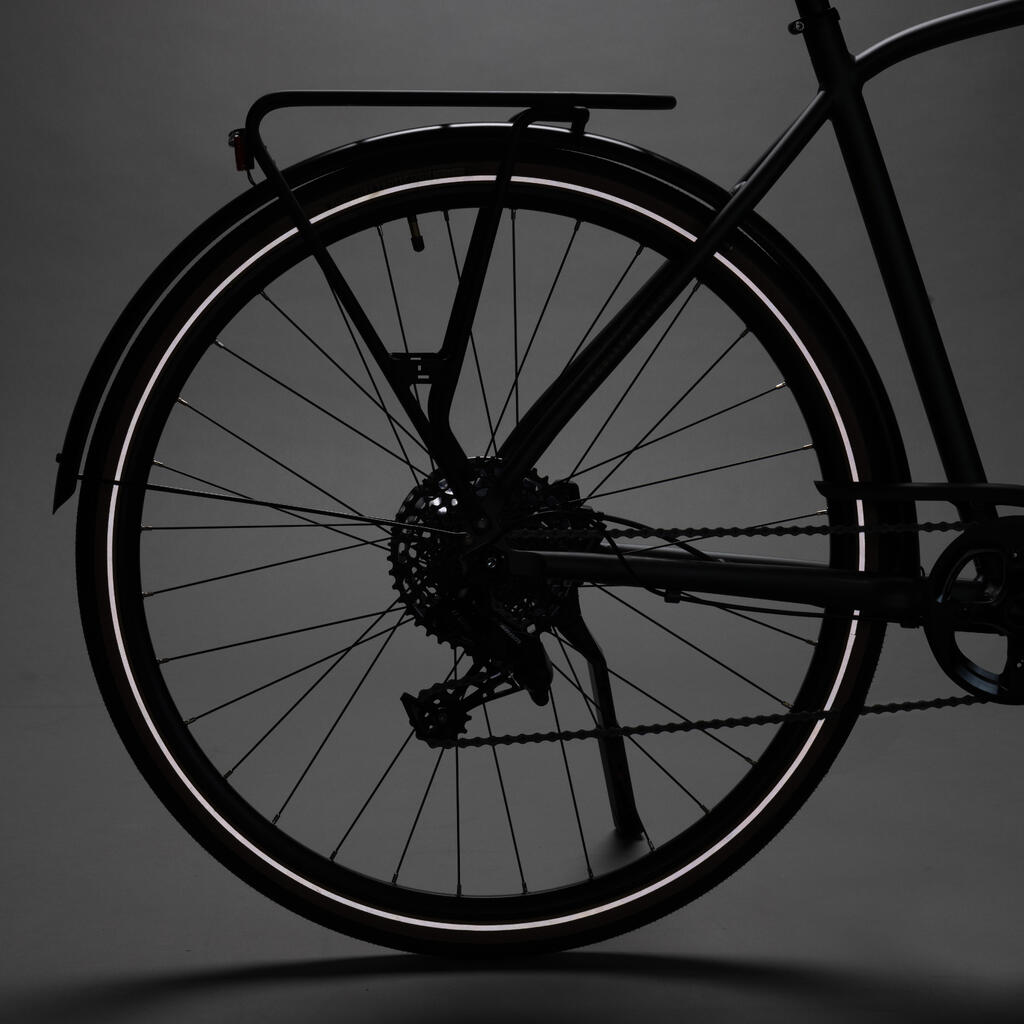

Battery-powered lights for seeing and being seen. Tyre with a reflective side.
Efficiency
Alu frame, lightweight components. Optimised geometry for the best performance.
Cycling comfort
Semi-sporty position. Suspension fork for added comfort.
Braking power
Hydraulic disc brakes for powerful, progressive braking.
Instructions
DownloadTECHNICAL INFORMATIONS
WHAT OUR TEAM HAS TO SAY
Fully designed and developed in our design offices in Lille.
The ELOPS team designed this bike with one thing in mind: PERFORMANCE. We wanted your daily commutes to be simple and pleasant, whether on flat or slightly hilly roads.
The light suspension fork and the saddle and grips add an extra touch of comfort.
The high-end components make this bike reliable and resistant.

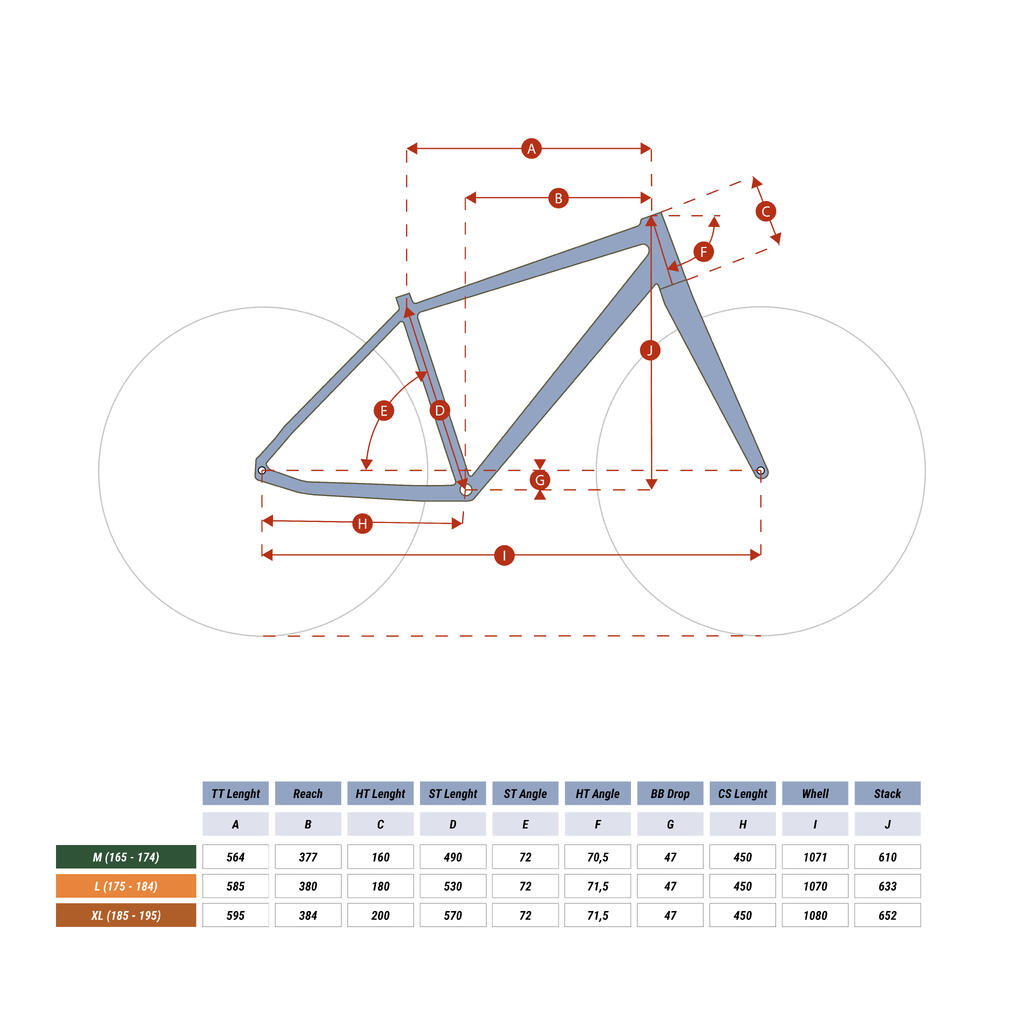

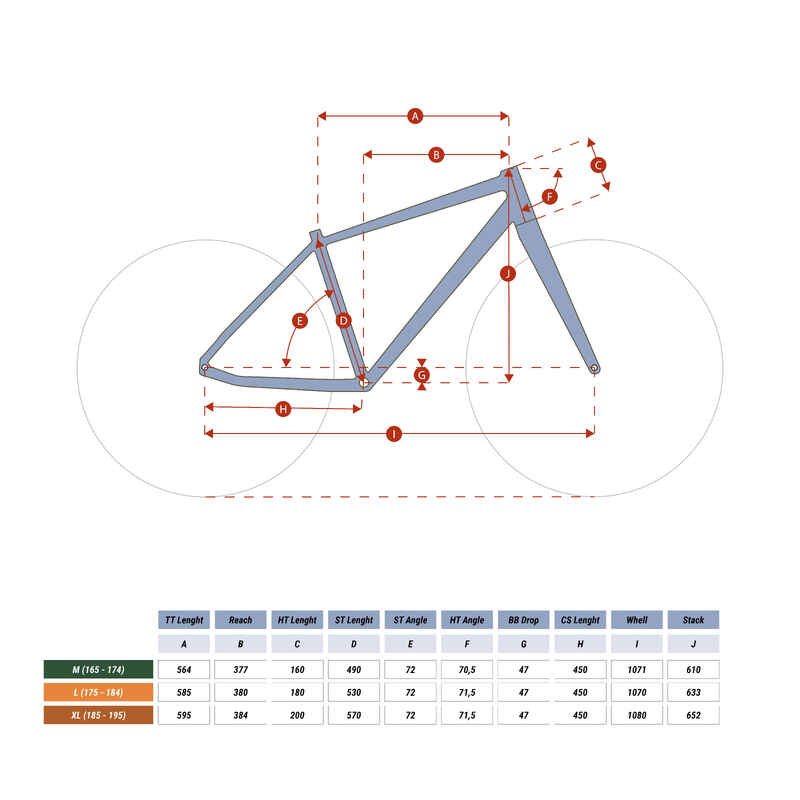

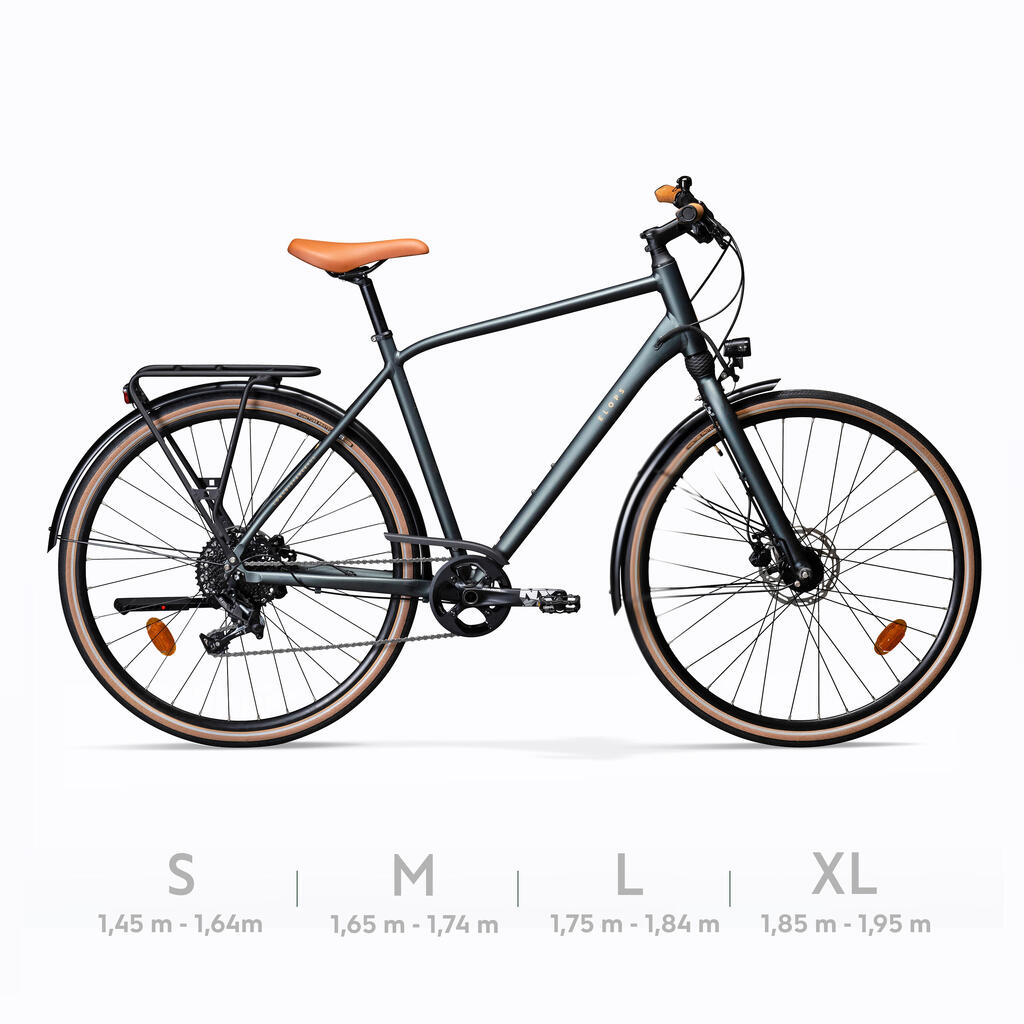

Choosing your size
M: between 1.65m and 1.74m
L: between 1.75m and 1.84m
XL: between 1.85 m and 1.95 m
If you're between sizes, the smaller size will be easier to handle, while the bigger size will be more stable.
WEIGHT / PERFORMANCE
Weighing in at 14.2 kg (size M), this bike offers exceptional performance for commuters.
The riding position, with a chest angle of around 60°, is slightly more raised than on other models. This gives you the right balance between performance and comfort.
The exclusive tyre design and their low weight also help make this bike very fast.
Frame

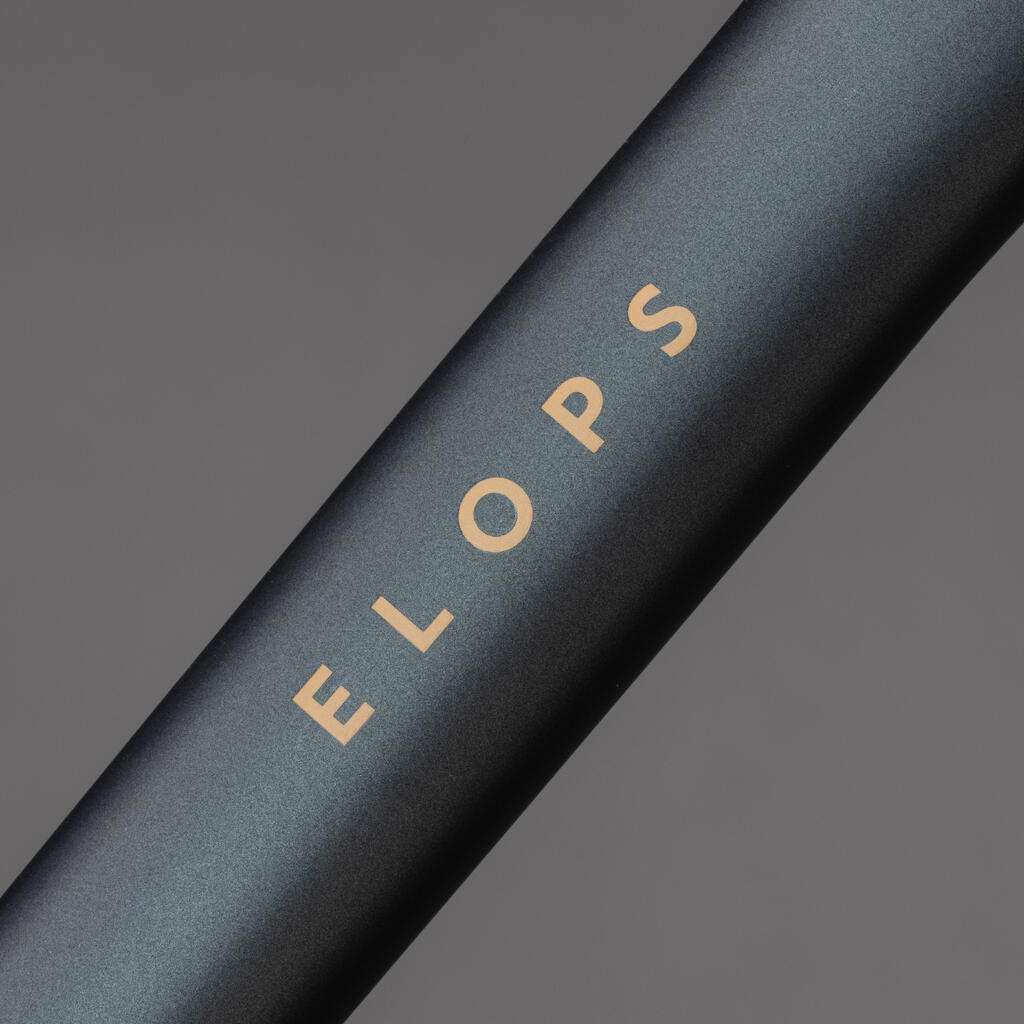

6061 butted aluminium frame for less weight

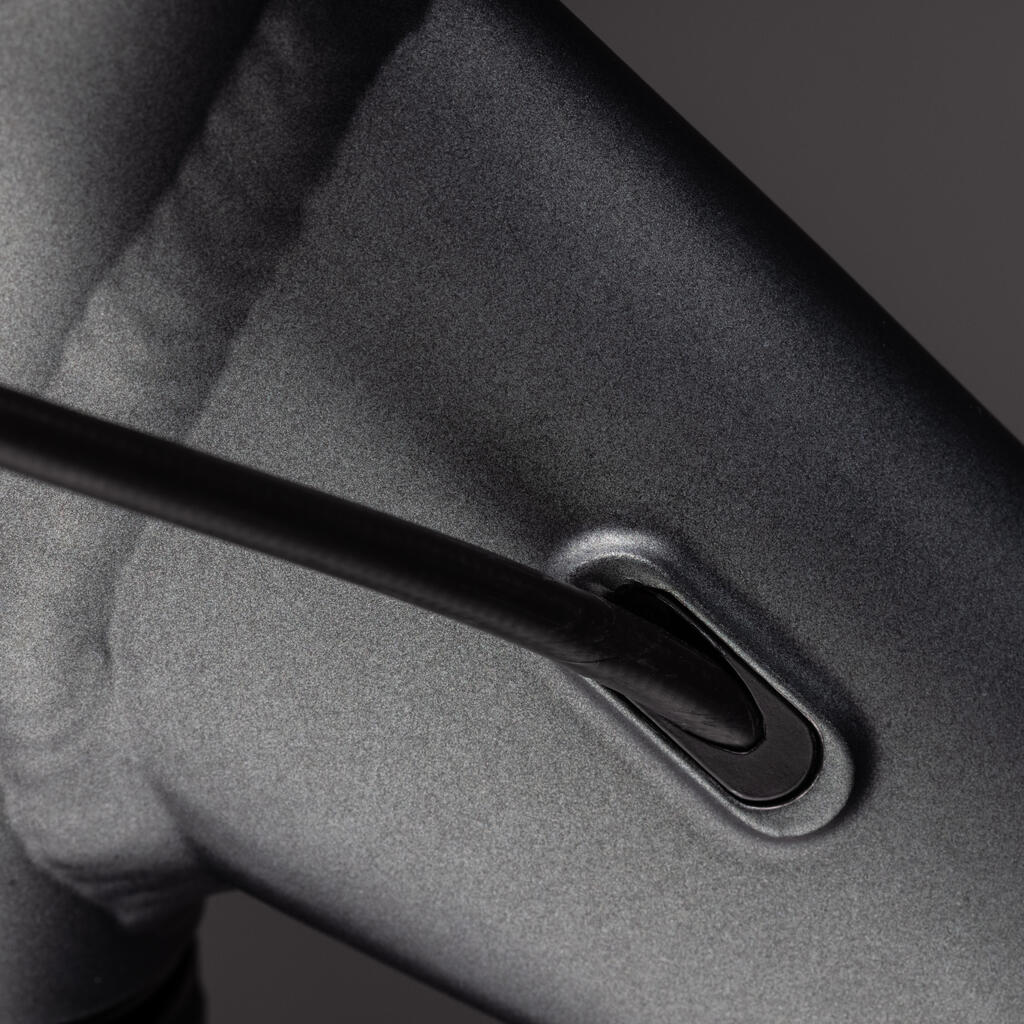

Internal cable routing for better integration.
Removable derailleur hanger that can be replaced with a spare part from our after-sales department if it gets damaged.
Frame weight: 1800 g (in size M).

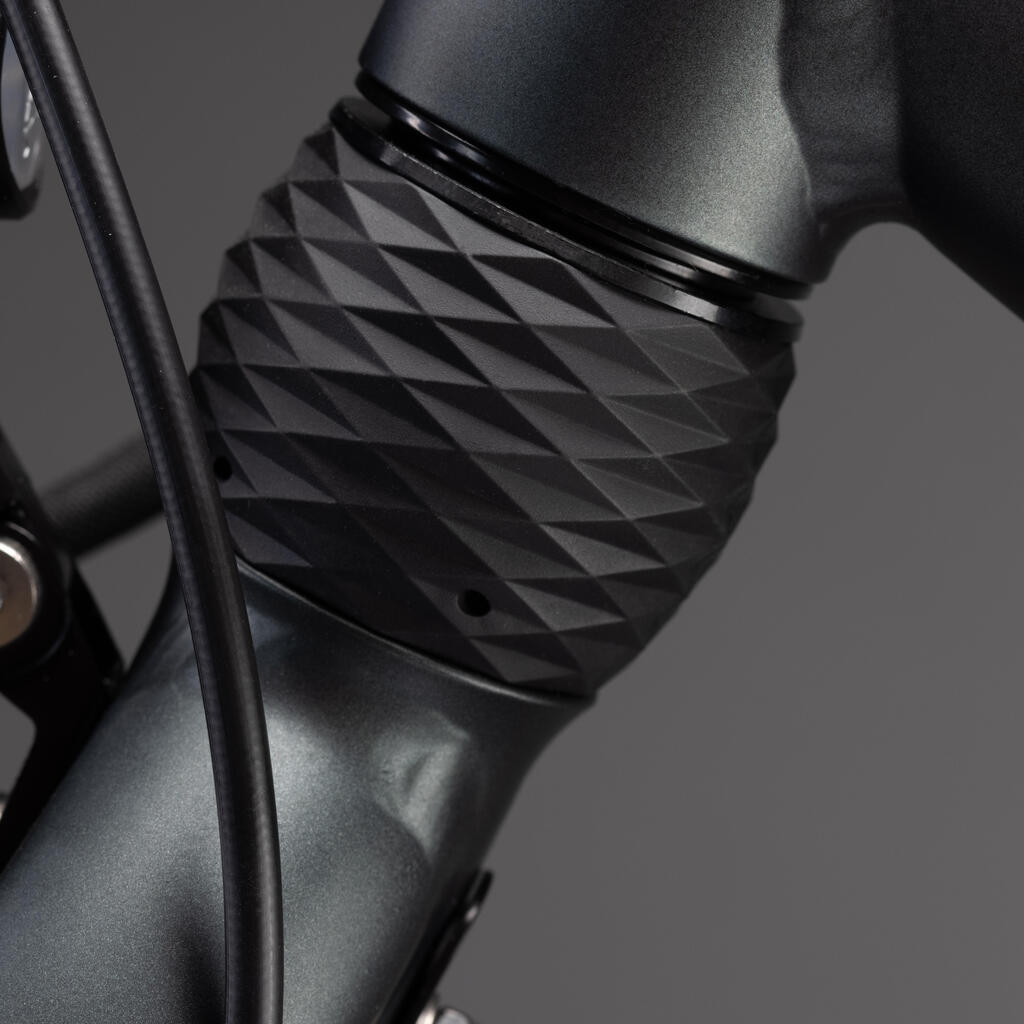

Fork
"Headshock" suspension fork with 30 mm of travel.
This fork technology saves a significant amount of weight compared with a conventional fork and avoids the issue of bobbing as you ride.
The shock has enough travel to dampen any bumps in the road for additional comfort in the saddle.
Fork weight: 1600 g.

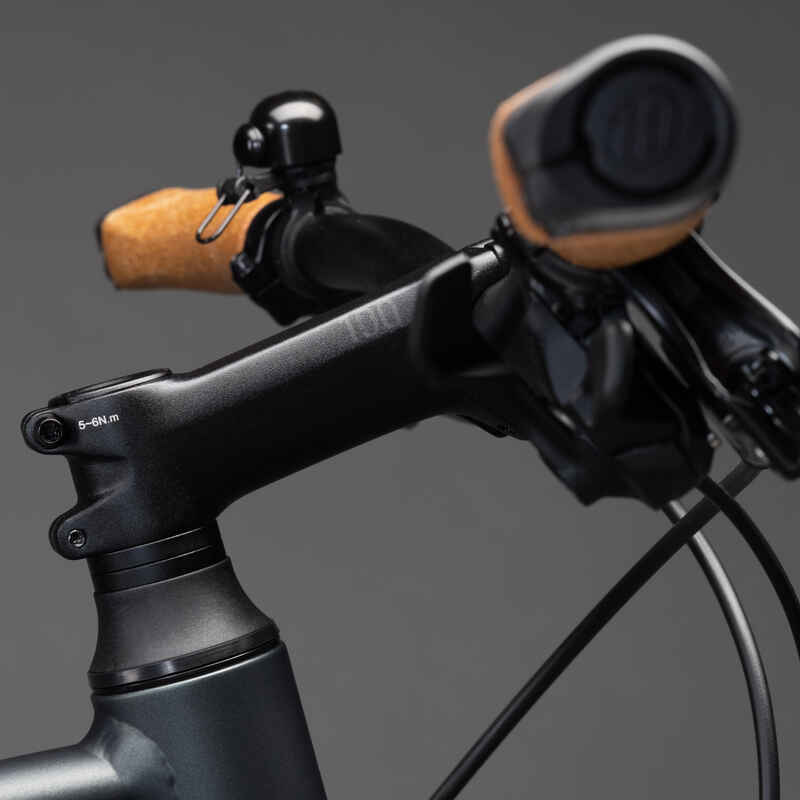

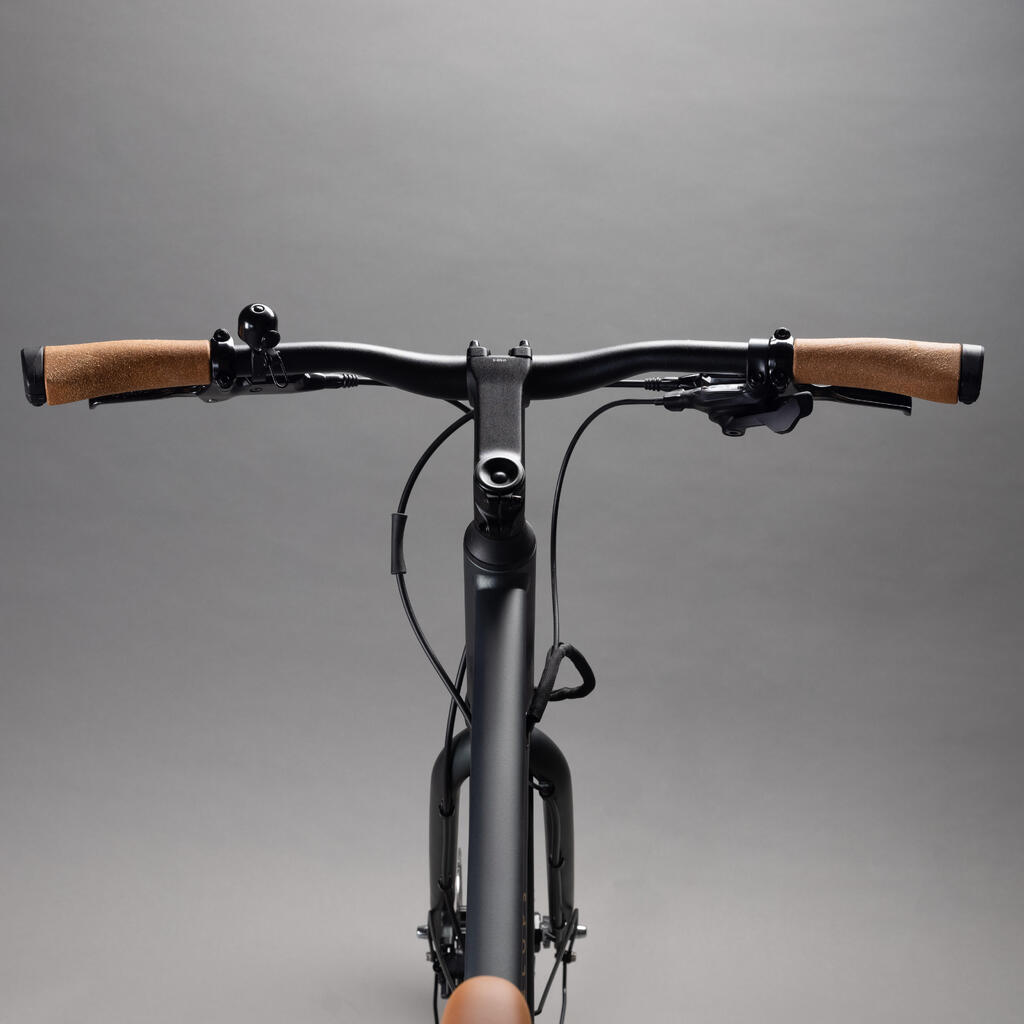

Handlebar / stem / steering.

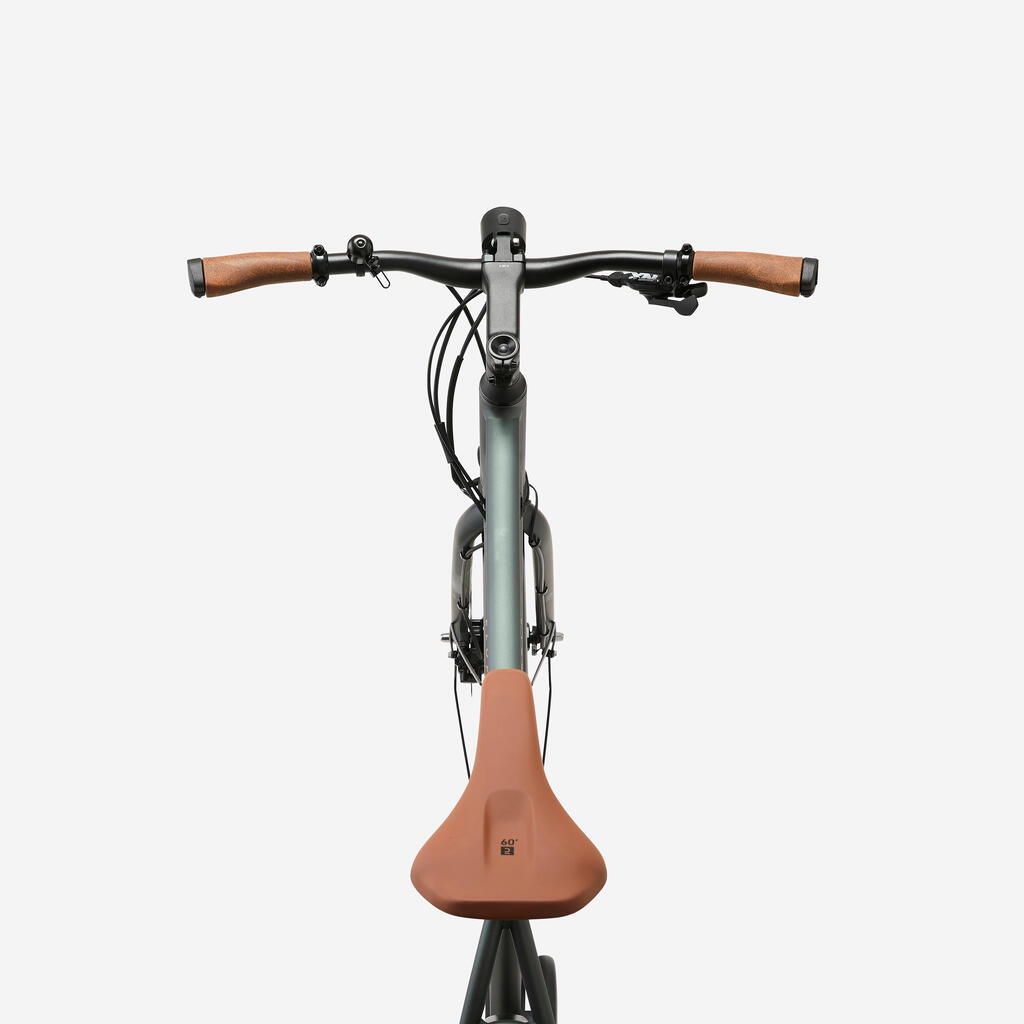

Semi-raised, oversize, lightweight alloy handlebar (31.8 mm).
Handlebar width: 62 cm.
Oversize forged aluminium stem (31.8 mm), 1 1/8" with an angle of +8°
Semi-integrated 1 1/8" aheadset.

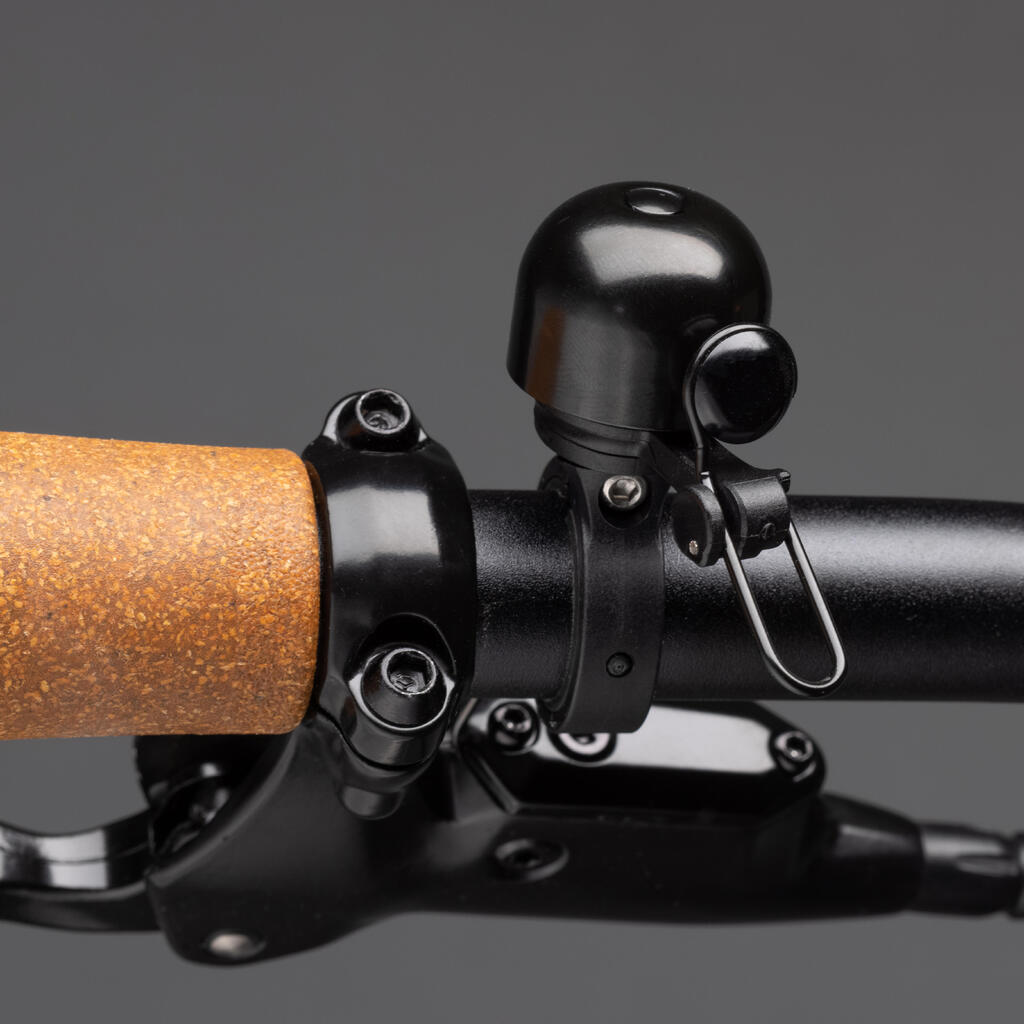

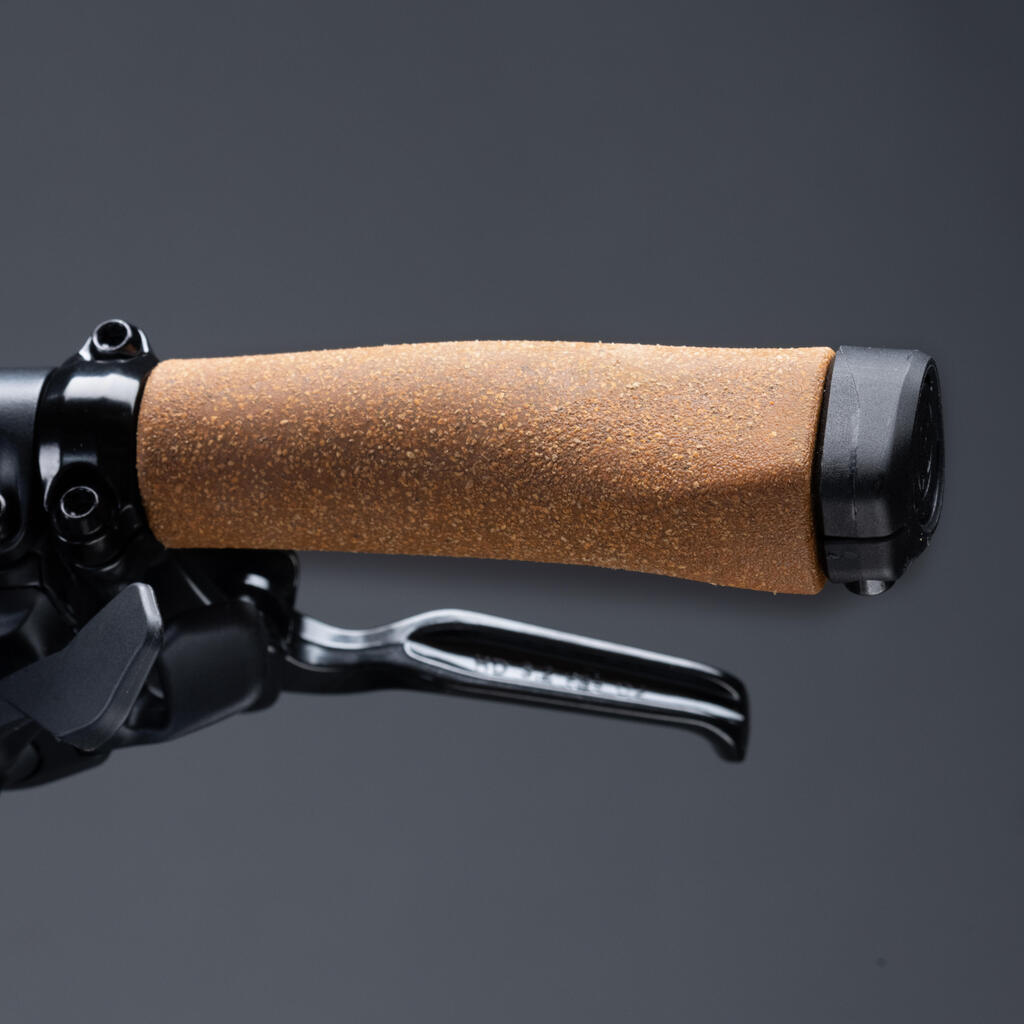

Ergonomic grips made partly from cork for a pleasant, even more comfortable feel.
Stem length:
S: 60 mm
M: 80mm
L/XL: 100mm
Drive train

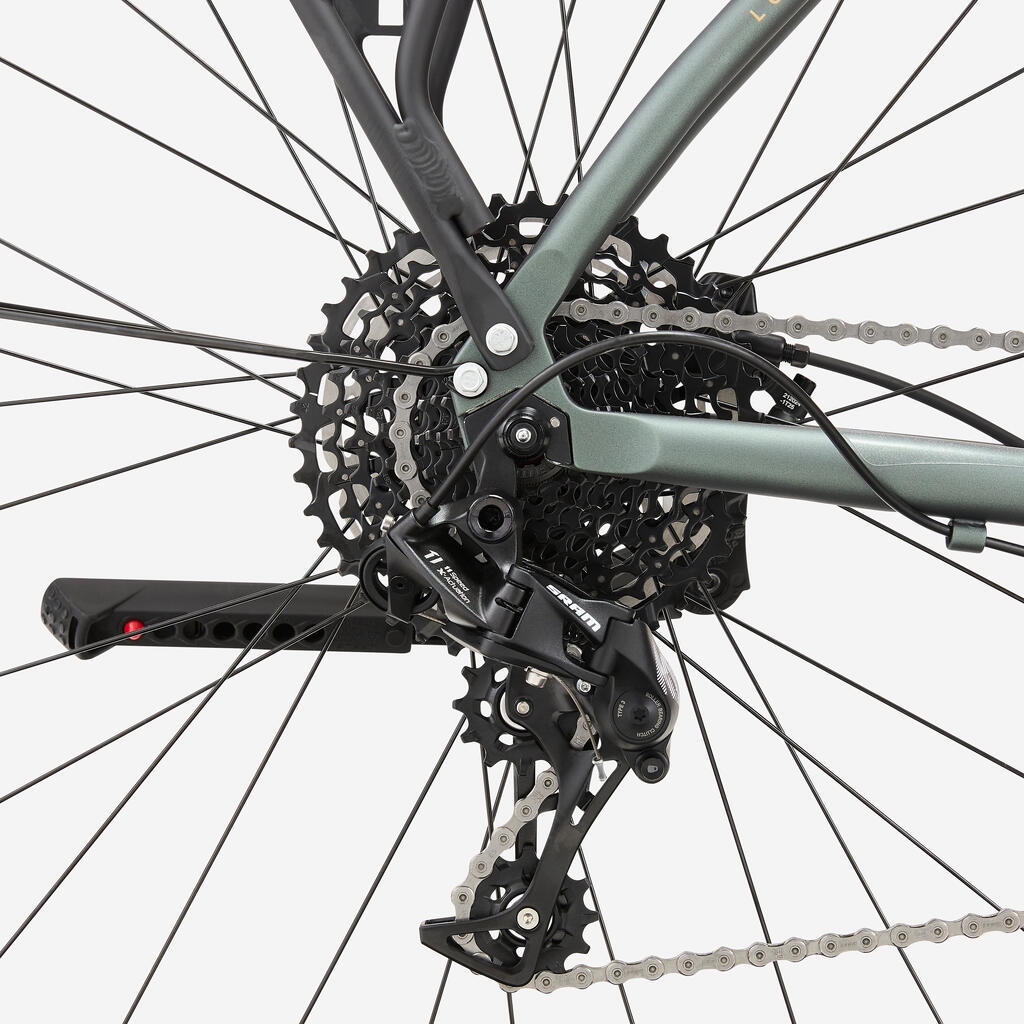

Our sram 1 x 11-speed indexed drivetrain reduces the weight and helps you shift with just one hand.
Inspired by the world of mountain biking, the increments between gears are equivalent to a triple chainring drivetrain so that you can ride anywhere.

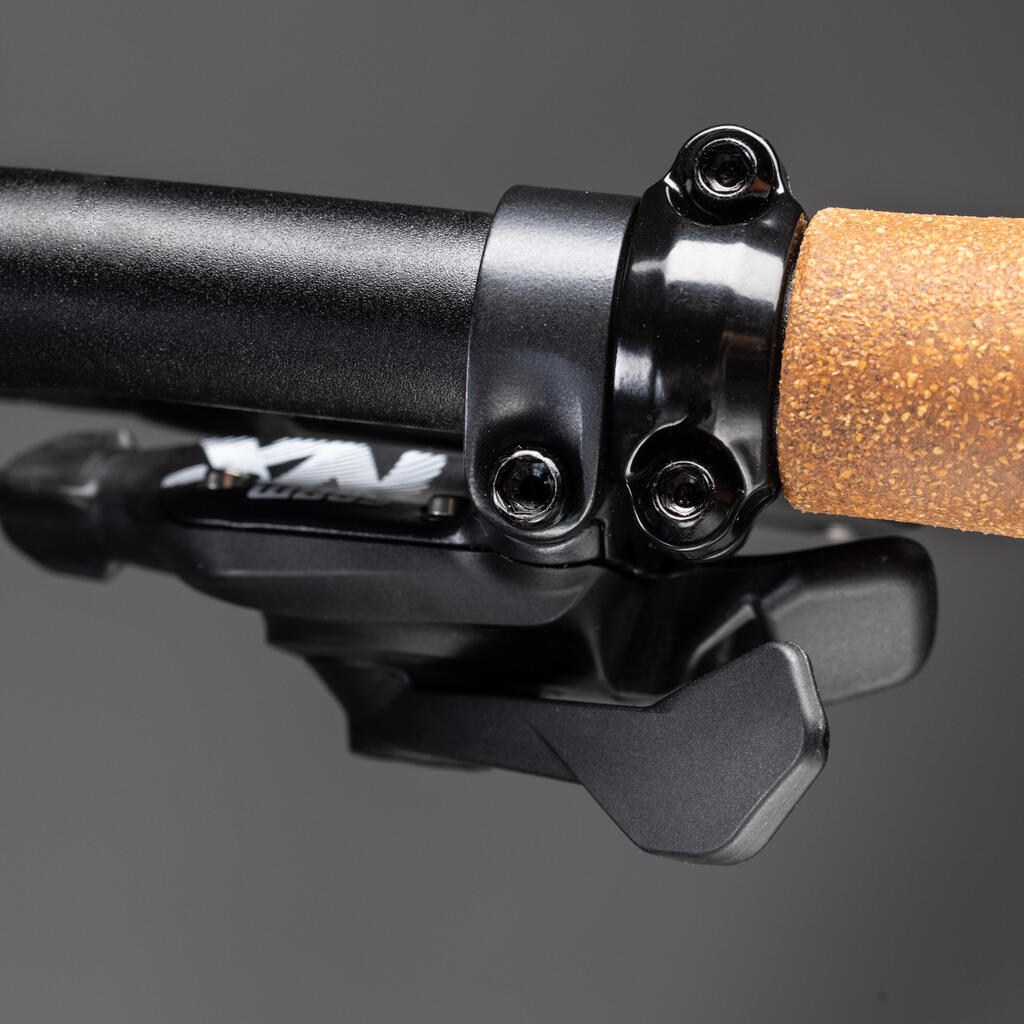

- SRAM NX indexed trigger
- SRAM NX 11/42 11-speed cassette
- Single chainring: 36 T anti-derailment.
- SRAM chain with quick-release.

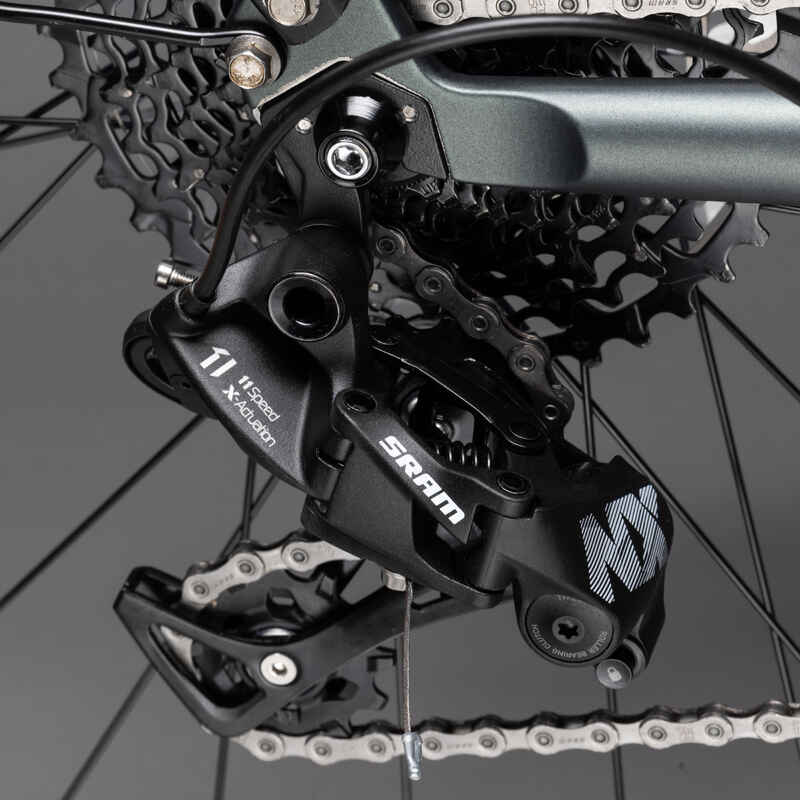

- Rear derailleur: SRAM NX.

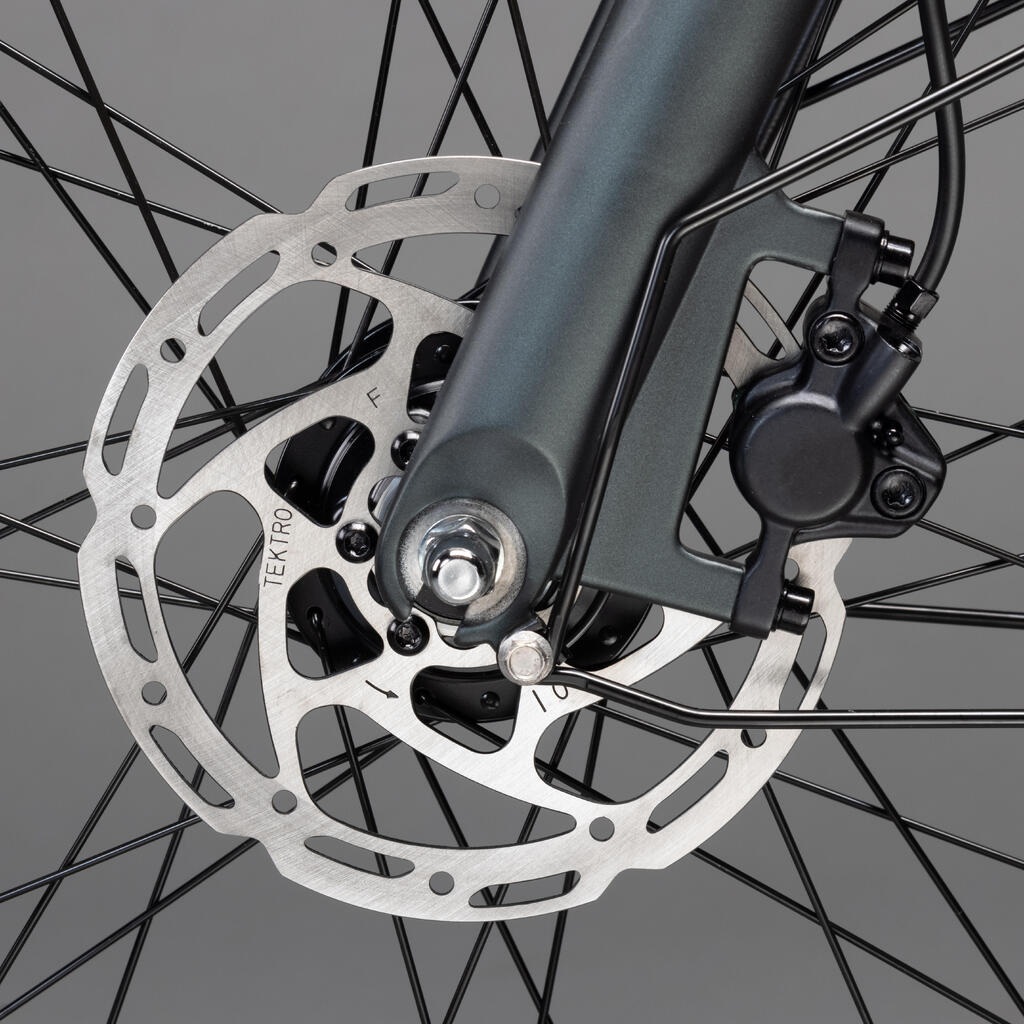

Brakes.

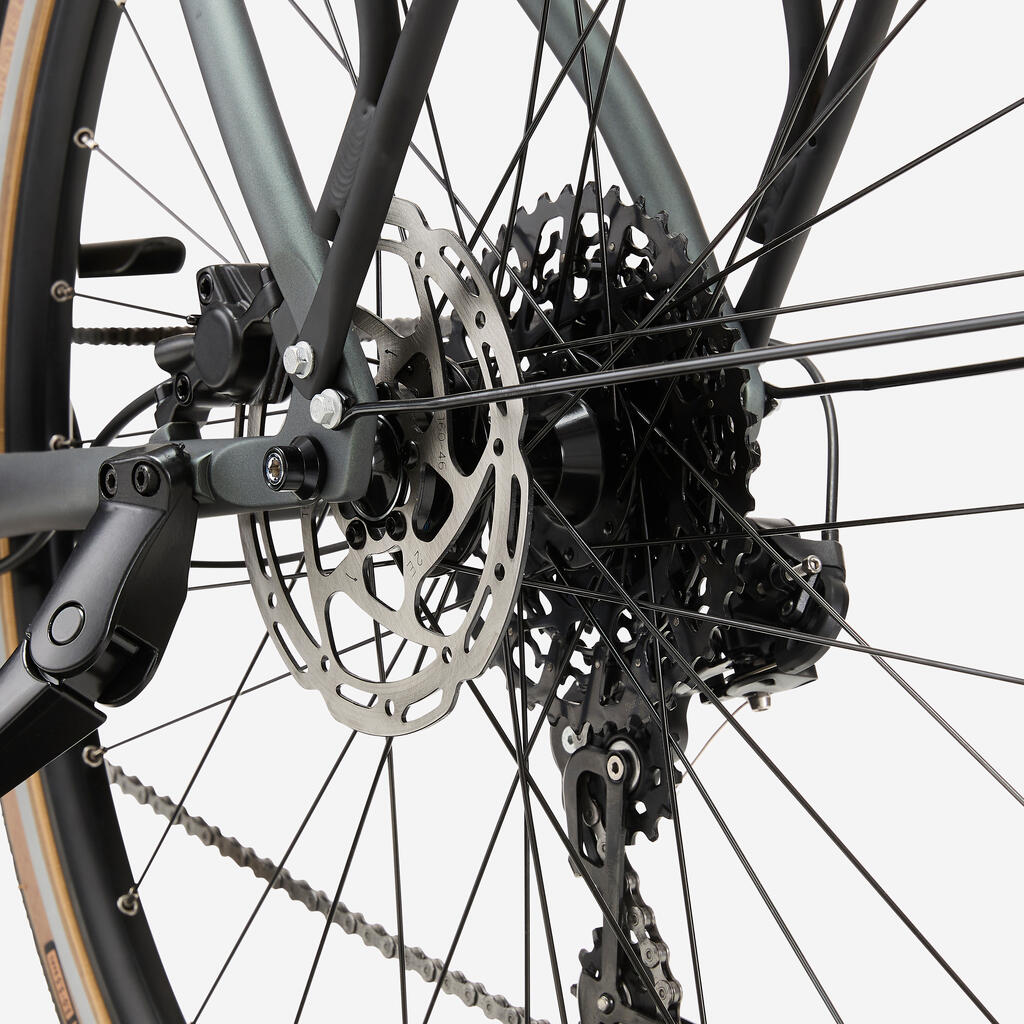

BTwin by TEKTRO TKD32 hydraulic disc brakes.
These brakes are also used for mountain biking, guaranteeing easy, powerful, progressive braking in all weather conditions.
Aluminium levers
Disc diameters: 160 mm.
Wheels
The double-walled aluminium rims (28-622) are sturdy in the face of impacts and guarantee a great performance.
Wheel diameter: 28 pouces, largeur de la jante 19 mm
Moyeux étanches vous assurant un roulage plus efficace et une résistance accrue.
Screw-on front and back mounting system to limit opportunistic theft
- 32-spoke front and rear wheels.

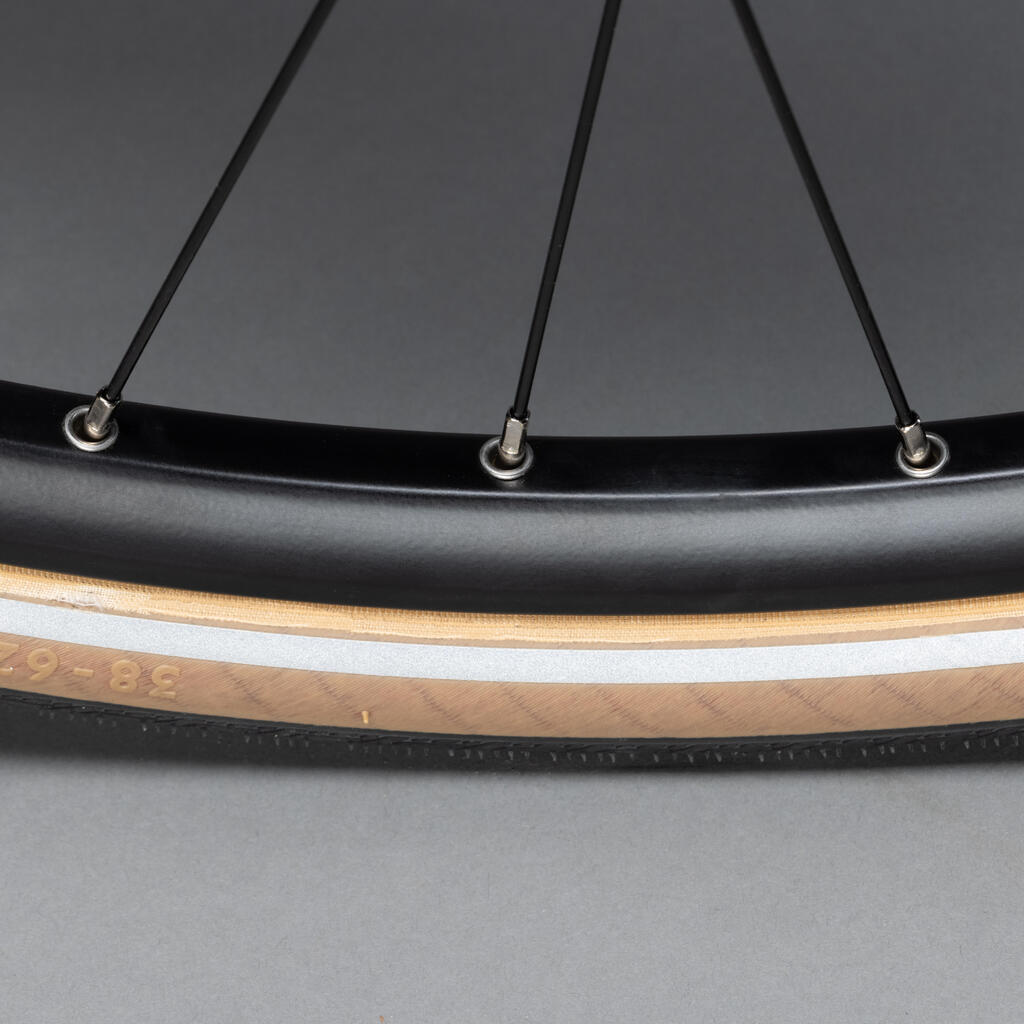

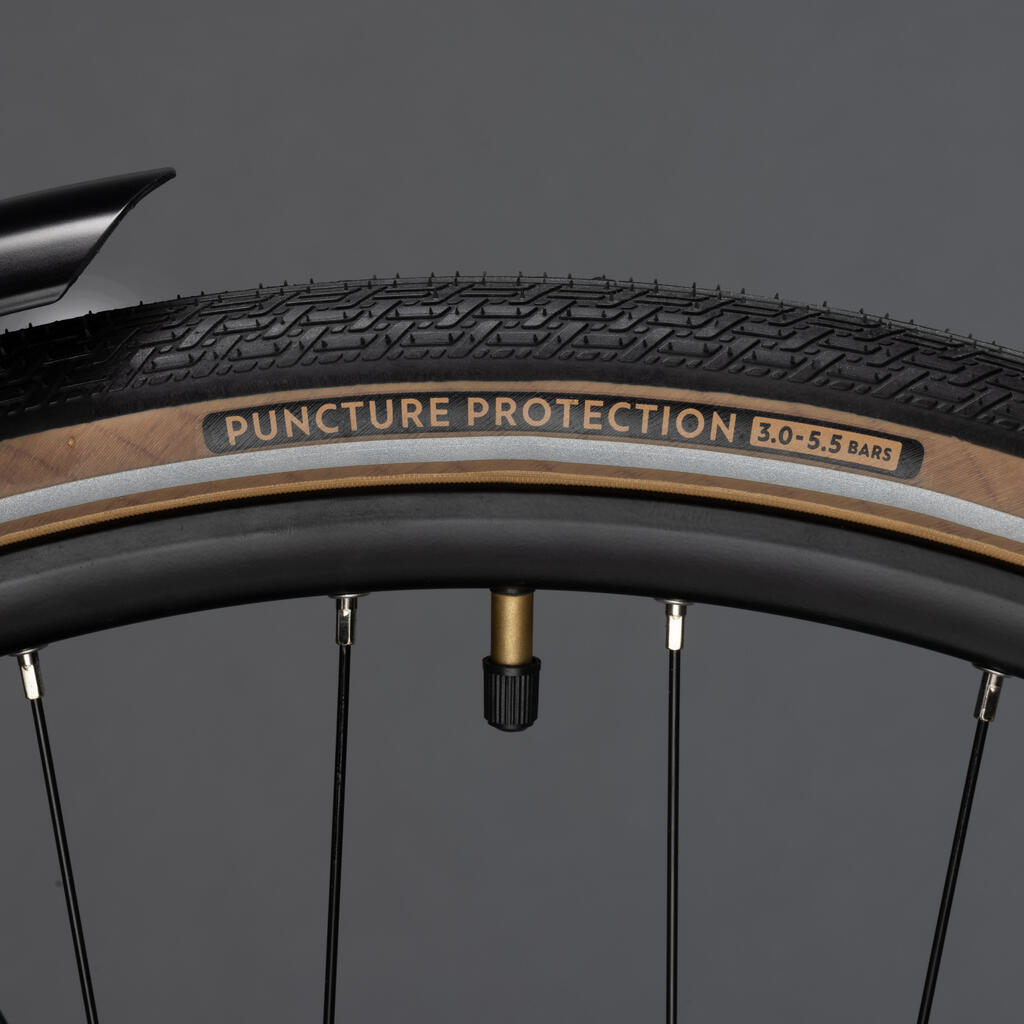

TYRES

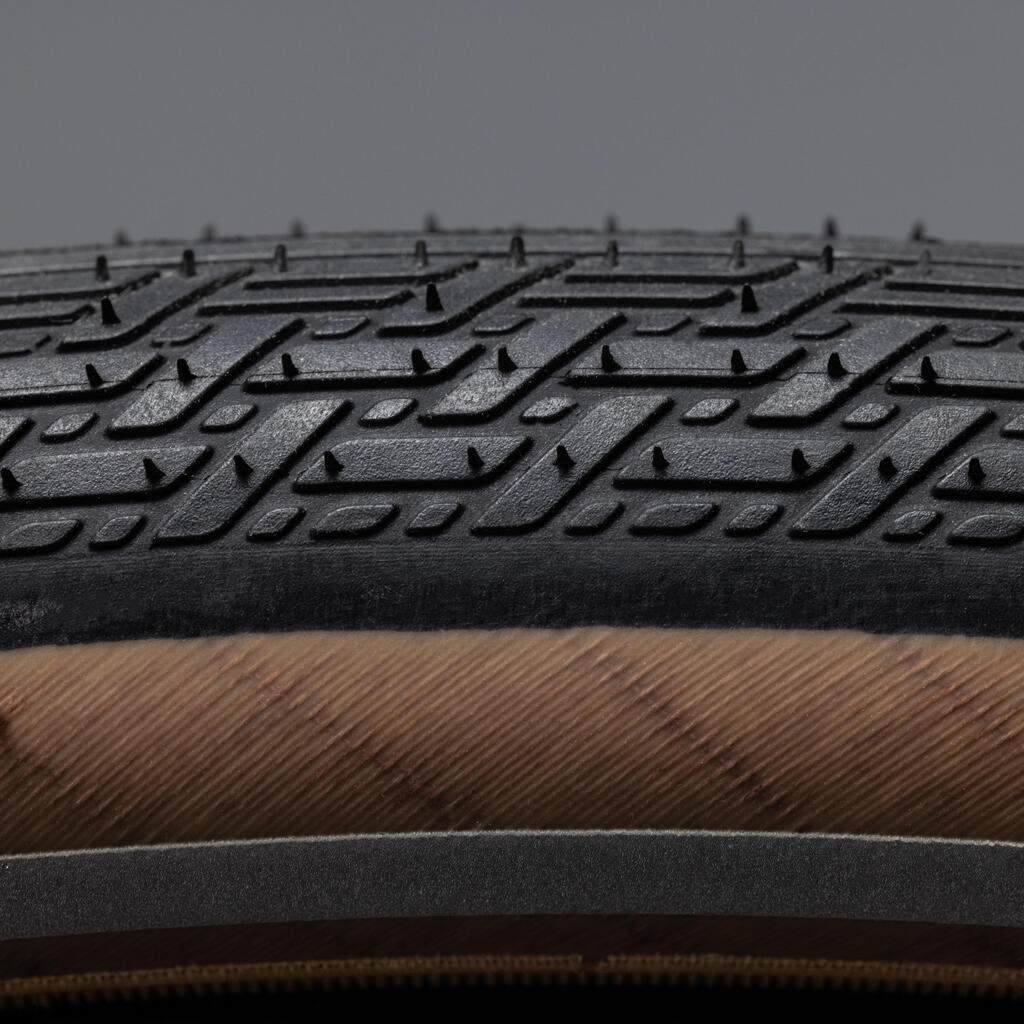

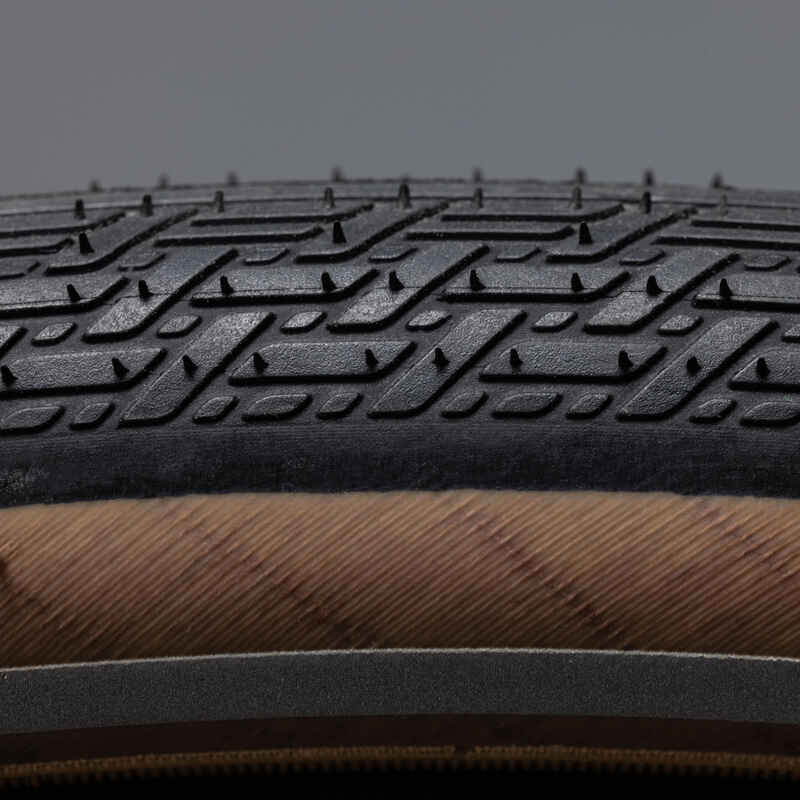

The long-distance city tyres have an exclusive tread design that makes them both fast and grippy on dry and wet roads.
"Skinwall" folding bead tyres for even less weight.
The nylon "bead to bead" puncture-resistant tread, the Kevlar insert and the additional rubber band effectively protect the entire tyre from punctures and pinch punctures.
Tyre dimensions: 38-622 / 700 x 38C
Weight: 612 g.
SADDLE / SEAT POST

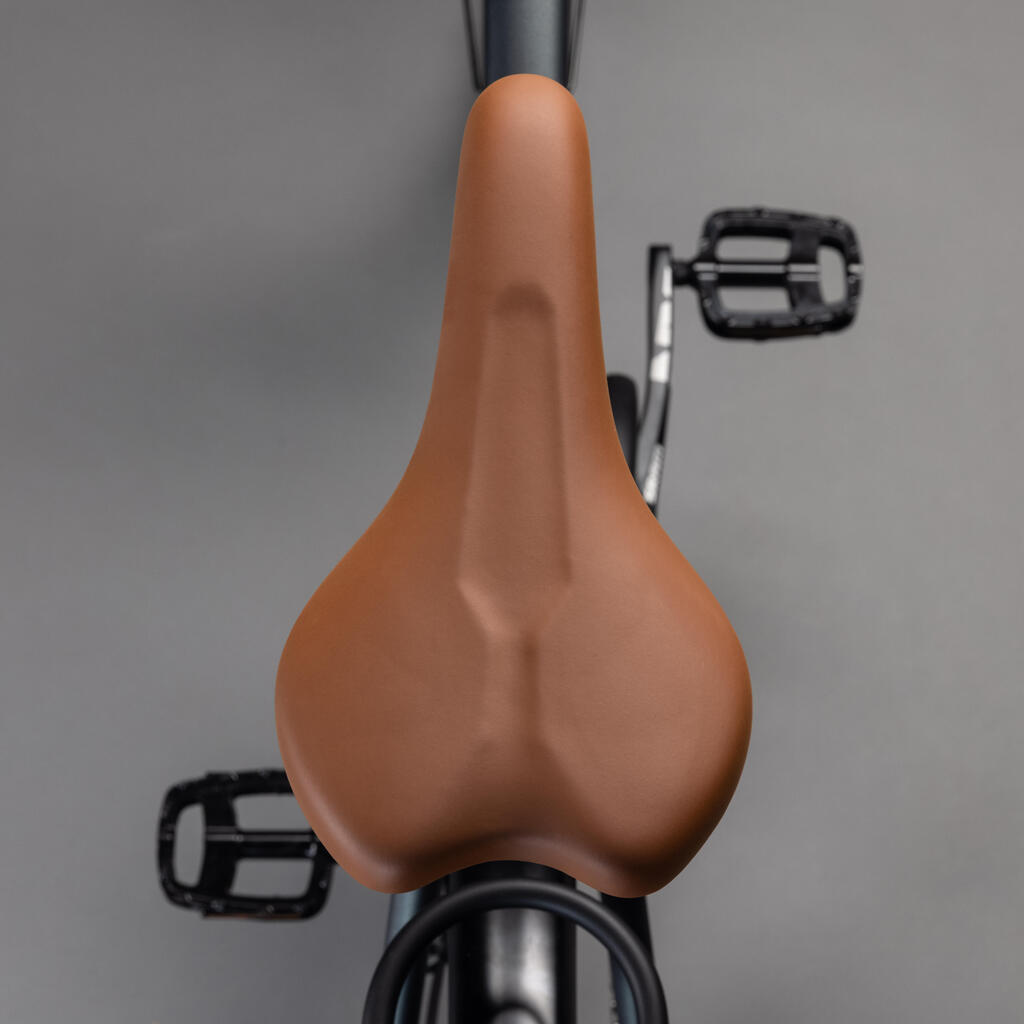

The B'TWIN SPORT 500 memory foam saddle makes your trips even more comfy.
Aluminium seat post, graduated for easier adjustment.
Seat post height = 350 mm
Clamp diameter = 32 mm.
Seat post diameter = 27.2 mm.
Screw-on seat post to limit the risk of opportunist theft.
Bottom bracket / pedals

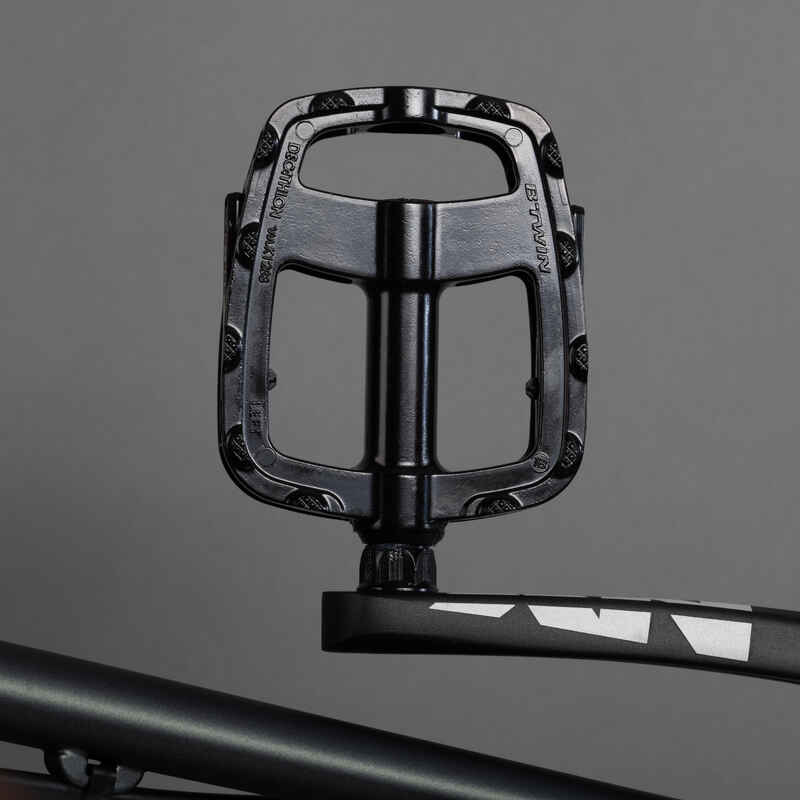

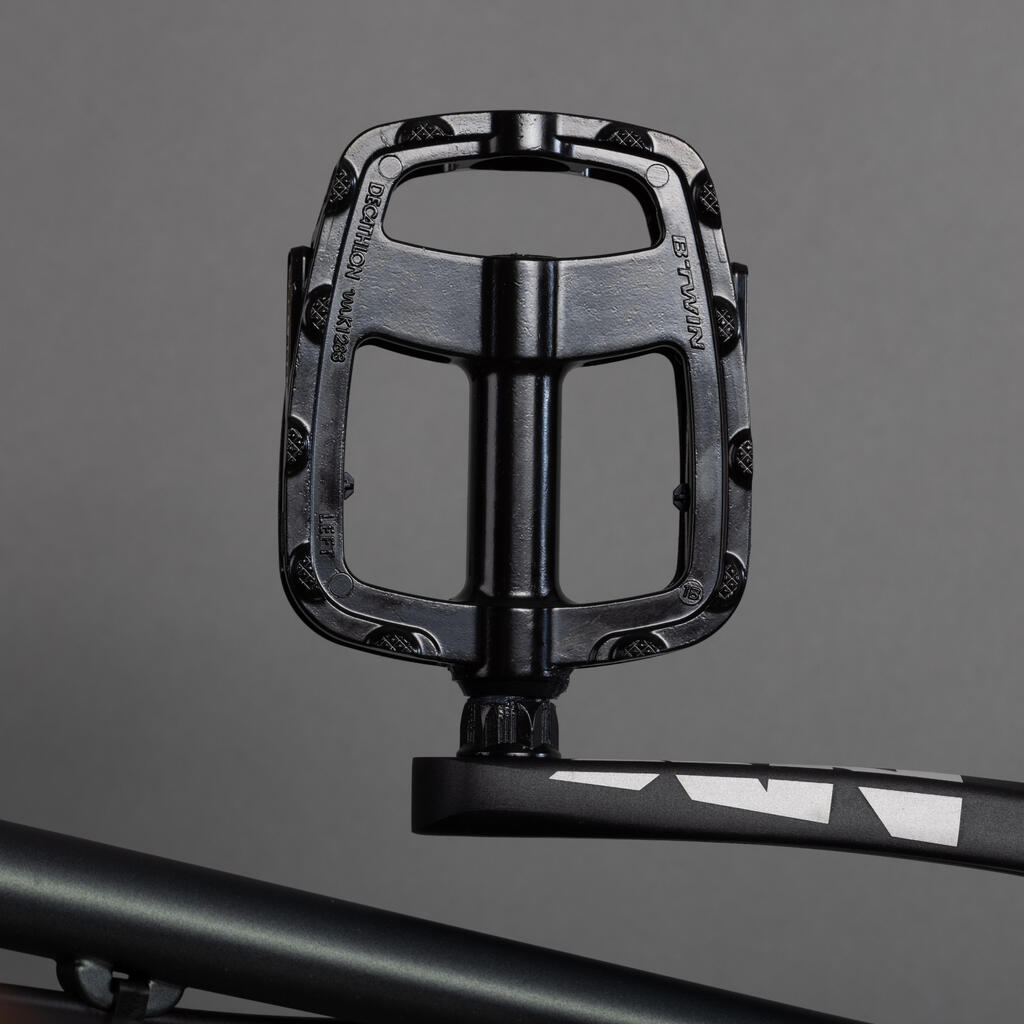

Light, sturdy aluminium city pedals.
Wide underfoot surface designed for comfort and grip.
SRAM ISIS 170 mm aluminium cranks.
BB GXP TM MTB68 ROAD WA73SP 68 mm threaded external bearing bottom bracket.
Light, discreet chain guard that effectively protects your clothing.

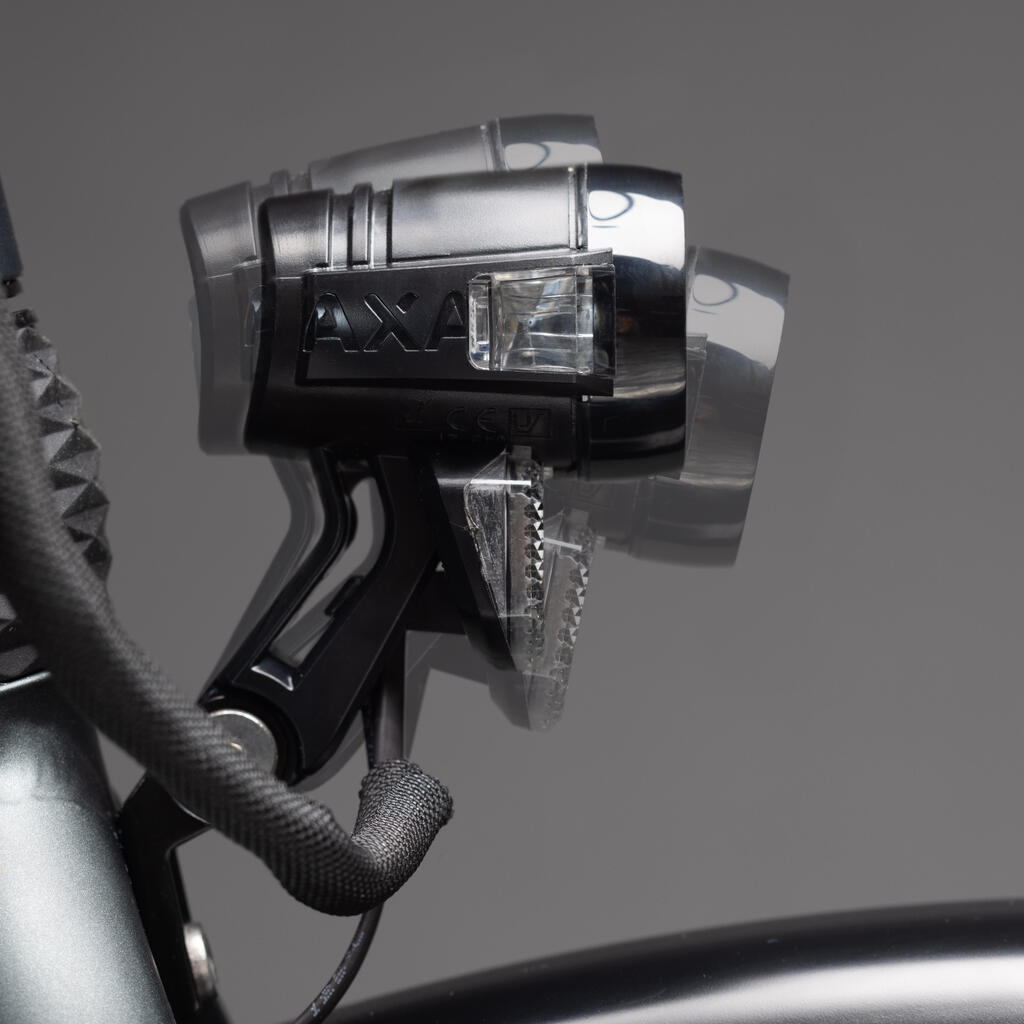

LIGHTS.
L'éclairage puissant 30 lux alimenté par dynamo moyeux vous garantie de voir et d'être vu en toutes circonstance afin de rouler en toute sécurité.

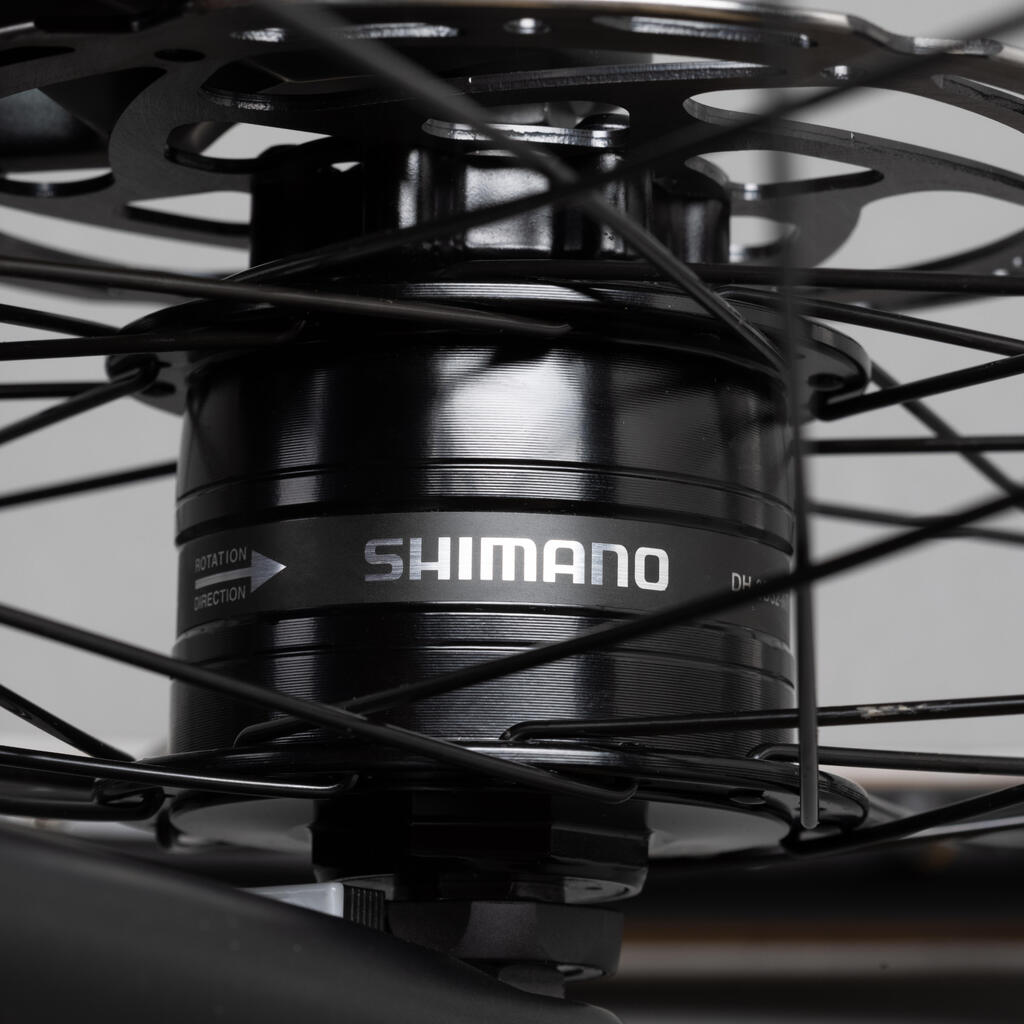

SHIMANO NEXUS 6 Volt, 3 W dynamo hub.

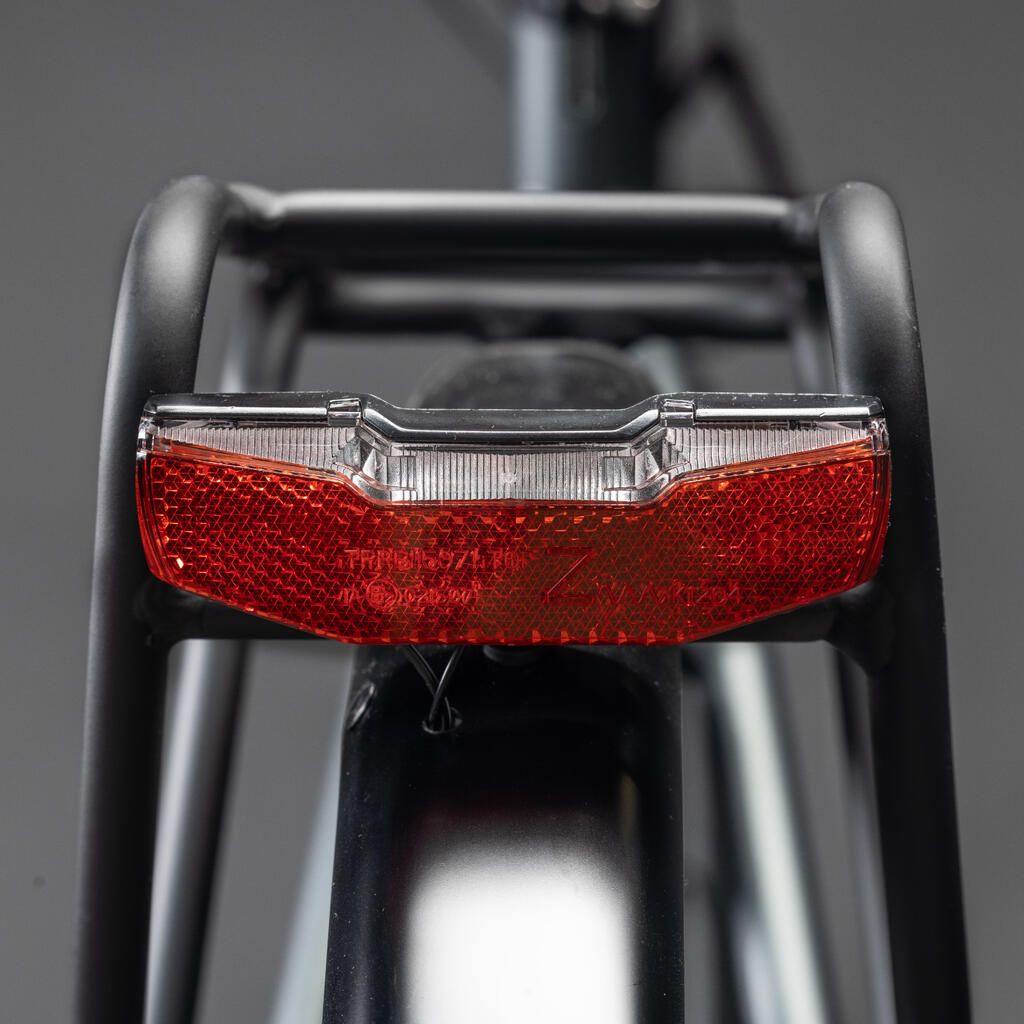

L'ajout d'un condensateur permet au vélo de rester éclairé à l'arrière pendant 4 minutes à l'arrêt.
Le vélo peut arriver avec 2 versions d'éclairage selon l'approvisionnement.
Soit un éclairage sur la fourche, soit un éclairage au niveau de la potence.
Les deux ont une performance similaire.

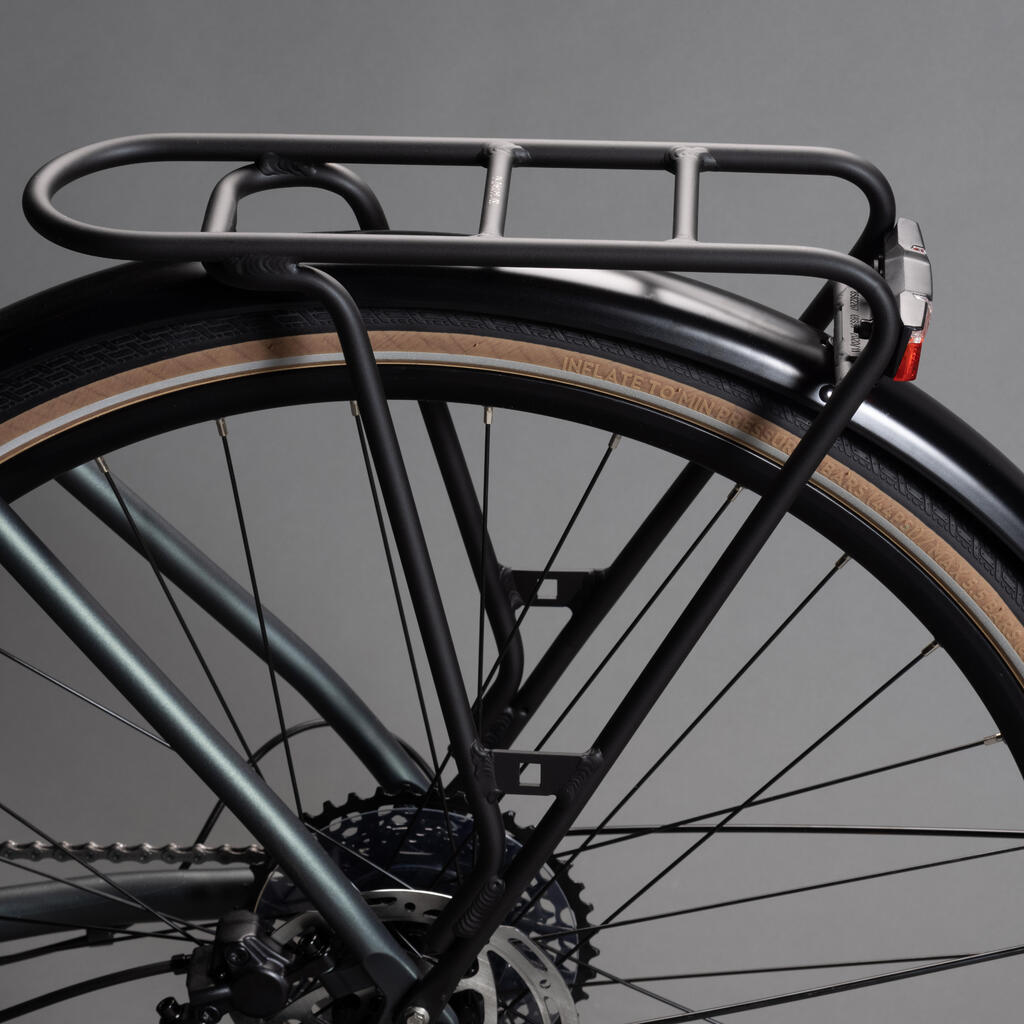

Pannier rack / mudguard
So that you can carry your belongings and stay clean and dry in any situation, the bike is equipped with a pannier rack and mudguard that have been designed exclusively for this range of bikes.
The pannier rack can carry up to 27 kg, including a child seat. The 12 mm diameter tubes make it compatible with the entire Elops baggage range available at DECATHLON.
Mudguards with a screw-on double stay for maximum stability and solidity.

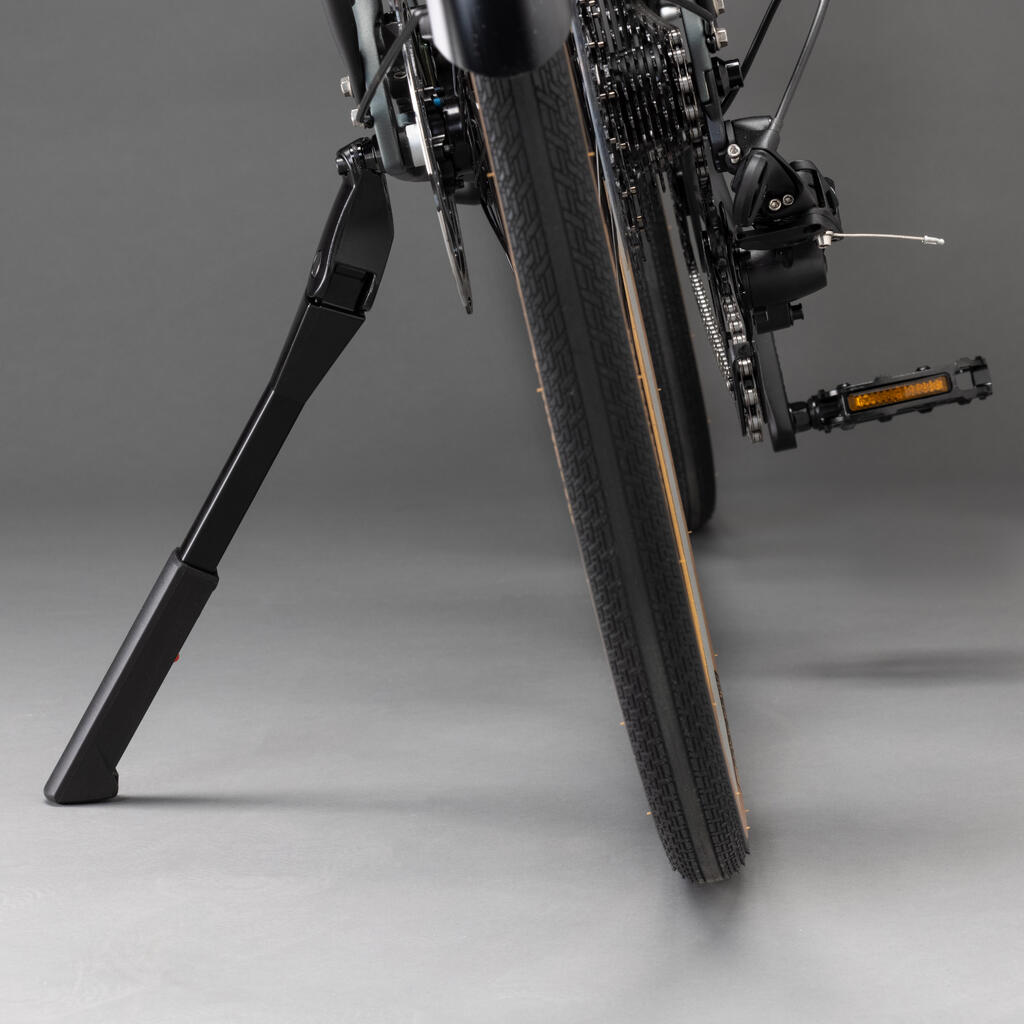

Stand.
The aluminium rear stand can take loads of 35 kg to keep it stable when laden with pannier bags.
The rear stand doesn't touch the cranks when you push the bike forwards or backwards when stopping.
Compatible accessories.
The frame is equipped with bolts for attaching a folding lock and a ring lock-type frame lock that blocks the wheel.
The pannier rack can hold 27 kg, including a child seat and all of our ELOPS bags.
MAXIMUM WEIGHT
Maximum load: 140 kg, including bike, cyclist and belongings.
Breaking in disc pads.
Disc brake pads require a break-in period to achieve full effectiveness and proper fit. To do this, we advise you to carry out ten or so series of progressive brake applications on each brake.
On the other hand, braking too hard on new pads can cause them to glaze over, rendering them inoperable.
Cette phase est indispensable pour garantir un freinage efficace et résistant.
COMPOSITION
composition
Bike frame: 100.0% Aluminium
Tips for storage and maintenance
Storage tips
Store your bike in a dry, cool place. If riding near the sea, clean your bike regularly to protect it from salt damage.<br /> Wash with water. Do not use a pressure washer.<br /> Grease the drivetrain regularly.
TESTS AND WARRANTY
Warranty
2 Years
Agree by
Our testers / ambassadors have spent several months criss-crossing the cities of France, Belgium and Germany every day.
