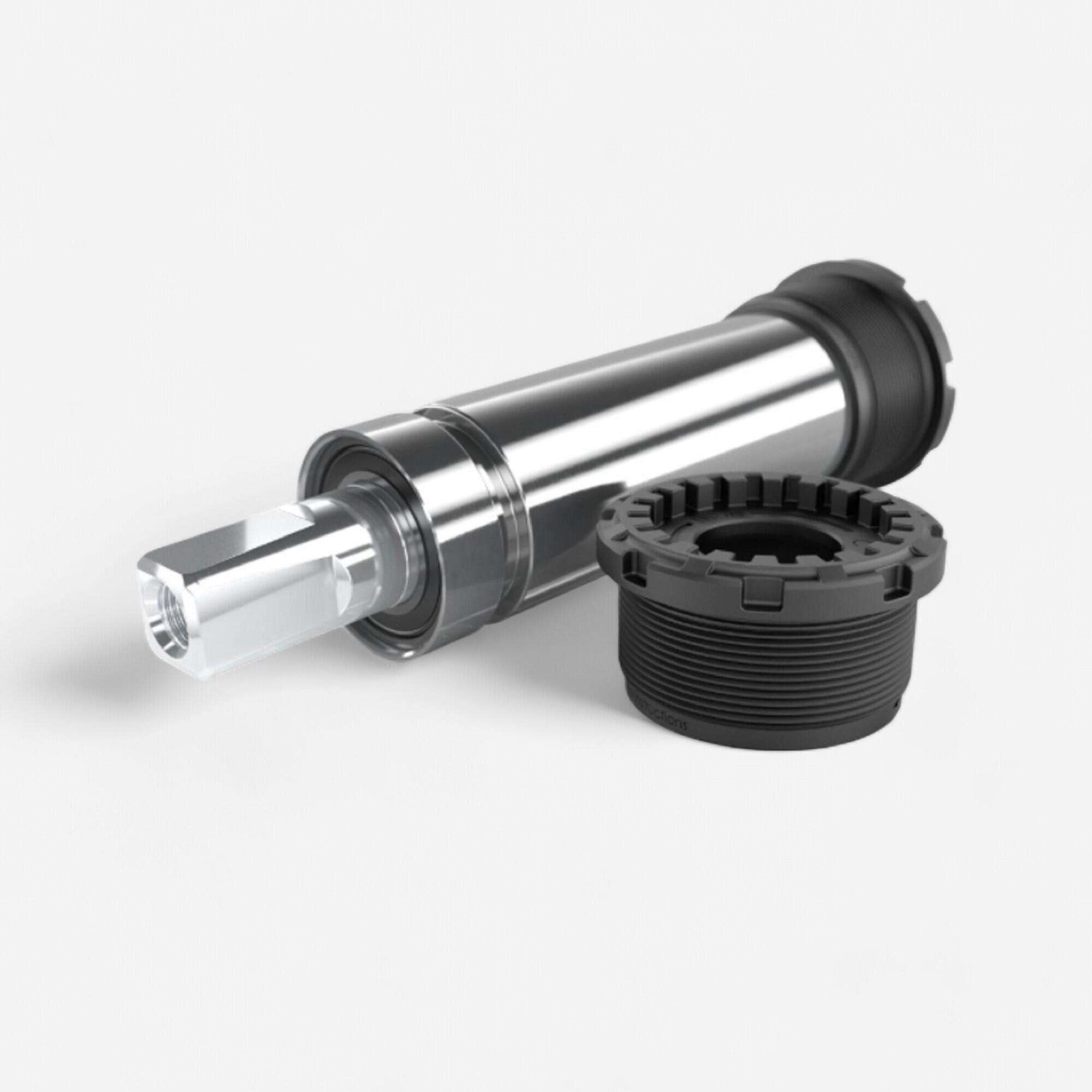

Bottom Bracket Jive 3.0 ML 73mm
designed for replacing your bottom bracket
Original bracket from the Touring 520
BENEFITS
Compatibility
Designed for bottom brackets with a square axle
Maintain
Repair your product and give your equipment a second life!
TECHNICAL INFORMATIONS
Technical features
Can be installed on a frame with a 73mm Euro-type square-taper bottom bracket (with English threading).
Bottom bracket width: 73 mm
Available in 123 mm
Bearing material: Steel
Type: Square
Bottom bracket type: BSC/BSA (English, Euro)
Assembly tips
Bracket tightening torque: 50-70N.m
Crank tightening torque: 35-50N.m
Grease the threads of the bracket for easier installation and removal.
Care advice
Do not use a high-pressure cleaner on the bearings
NEED HELP?
The technicians at your Decathlon store workshop are available to help you replace the parts of your bike. Feel free to ask them for help!
useful information
no screws included
COMPOSITION
composition
Main part: 3.02% Polyamide, 92.83% Steel, 4.15% Polyamide
TESTS AND WARRANTY
Warranty
2 Years
