Technical features
Size: 27.5"
Wheel axle: 15x100 mm

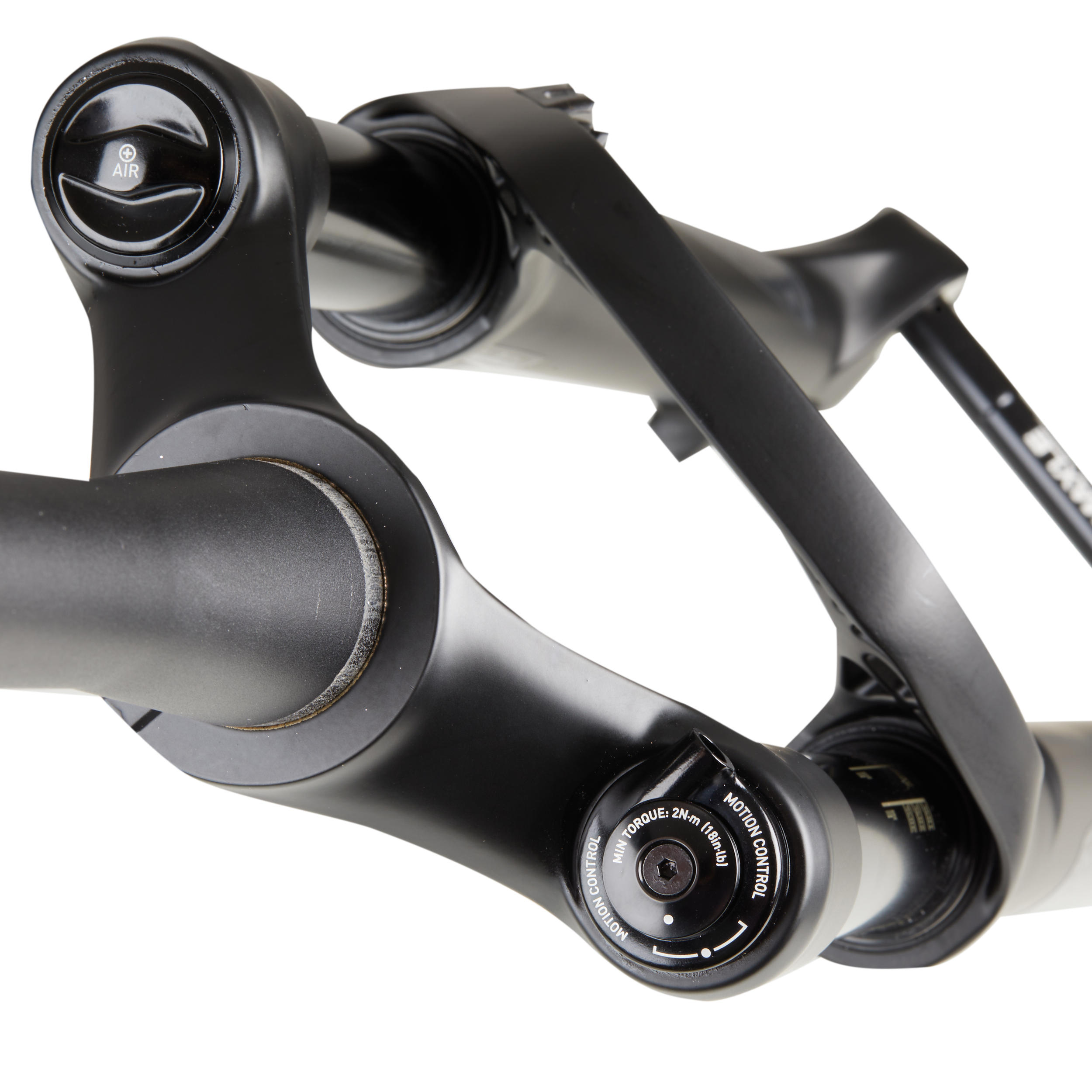

Motion Control cartridge.
Solo Air spring
Aluminium steerer tube: Tapered 1-1/8"-1.5"
Stanchions: 32 mm anodised anti-friction (with travel markings)
Lockout: yes, using the dial on the handlebar
Max disc size: 220 mm
Max tyre width: 62 mm.
Care tips
In the interest of performance, safety, and keeping your fork working for as long as possible, we recommend regularly checking it over, making sure the axle and wheel are screwed on tightly, and servicing it as recommended by the manufacturer. If you need help, our workshops are at your service and offer great prices on all bike servicing jobs.
Assembly instructions
Remember to use a new star nut in your fork. When cutting the steerer tube, use a pipe cutter or a guide to get a straight cut. For your safety, we recommend having no more than 30 mm of spacers under your stem.
NEED HELP?
The technicians at your Decathlon store workshop are available to help you replace the parts of your bike. Feel free to ask them for help!
