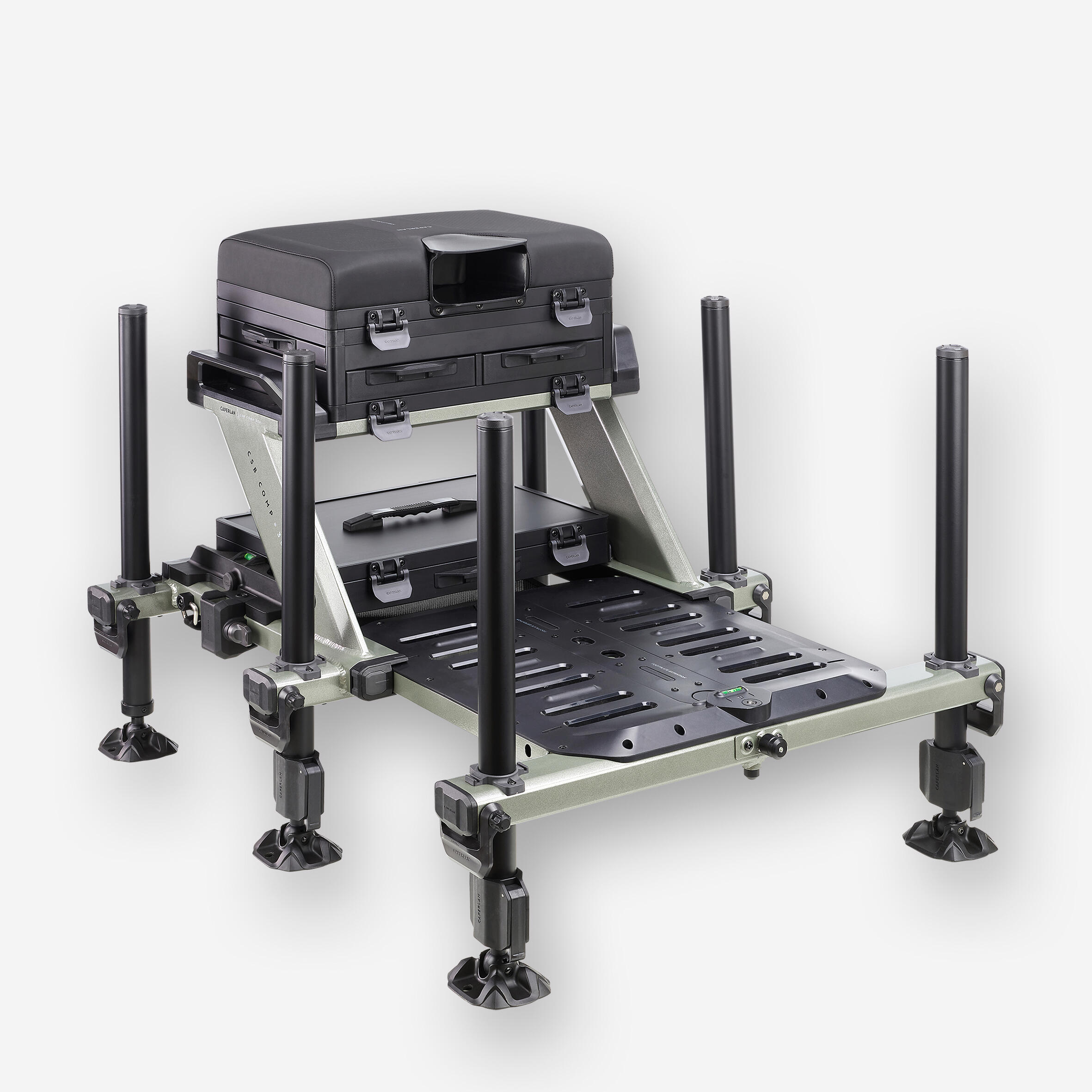

COMPOSITION 1/2

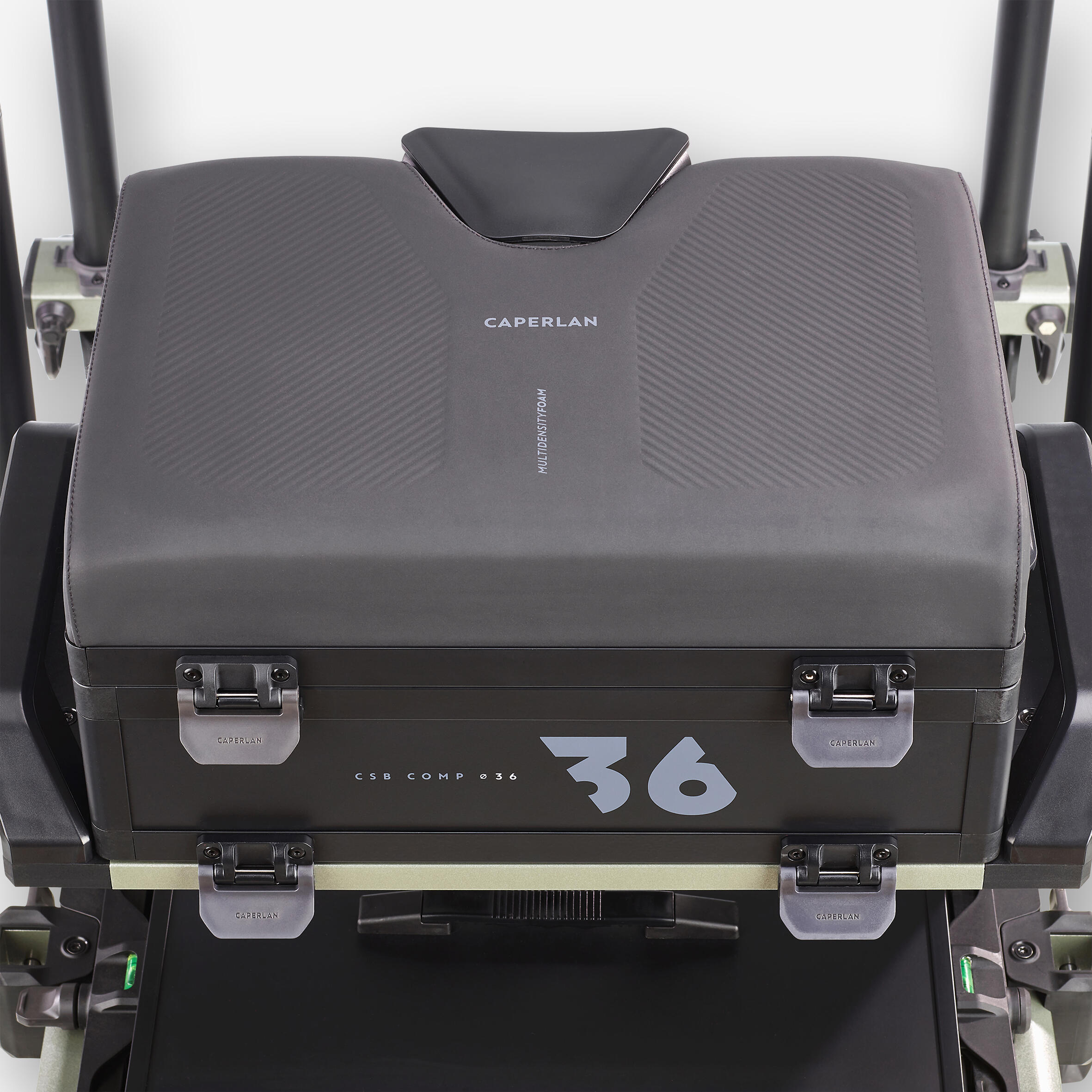

- 1 seat with two foams that combine elasticity and comfort (user comfort foam with a density of 79 kg/m3 and comfort foam with a density of 109 kg/m3)
- Butt support built into the chair
- 2 side handles at the top of the chassis for easy unloading from a car
- 1 portable box and cover in the lower part

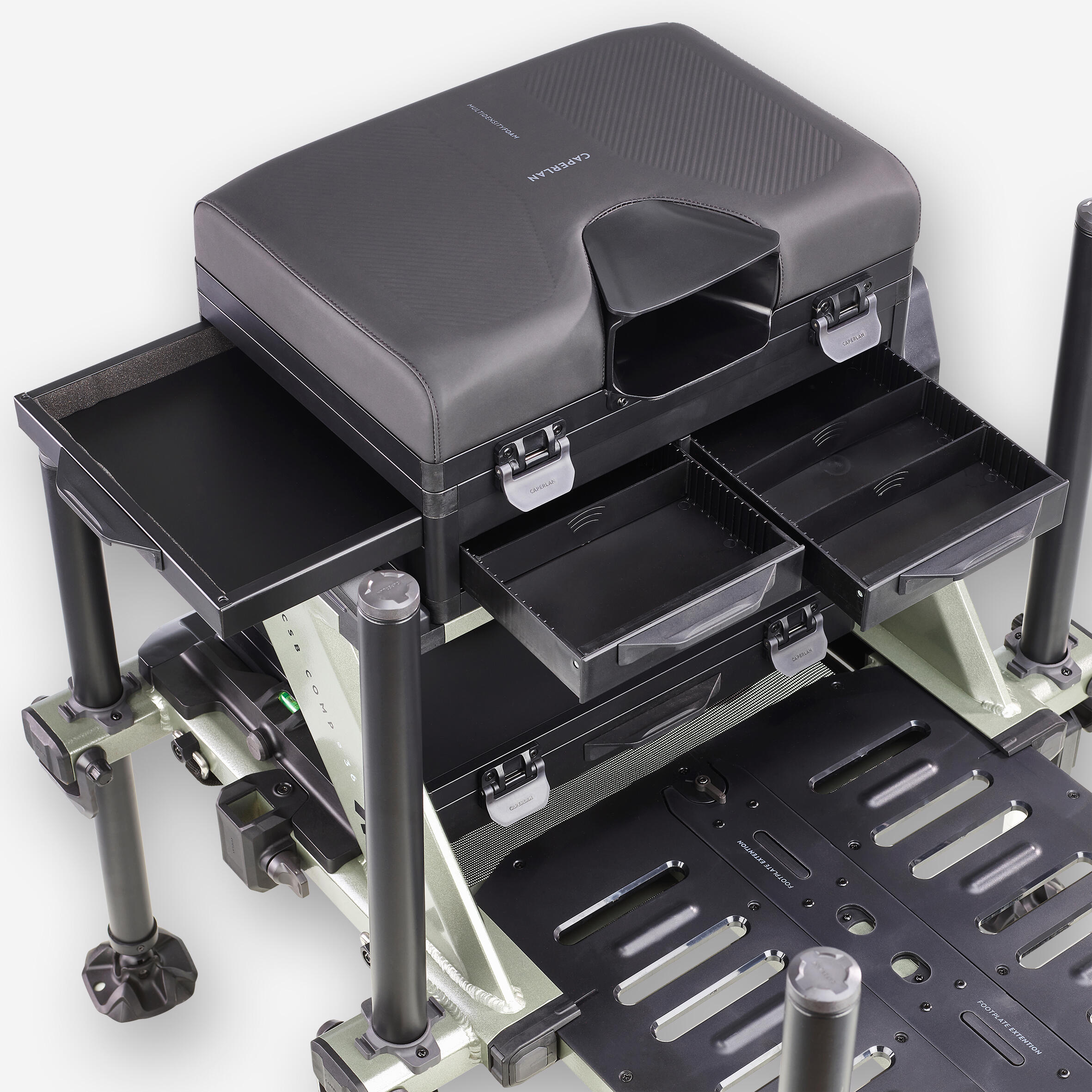

- 1 box and 3 drawers with interior partitions in the top part (1 side and 2 front)
- New-generation closing mechanisms on the boxes (compatible with the old ones)
COMPOSITION 2/2
- 2 wheel support inserts on the side of the station
- 1 platform with insert for the front trolley
- Platform with side extension built into the top
- Raised platform for legs
- 1 keepnet support on platform

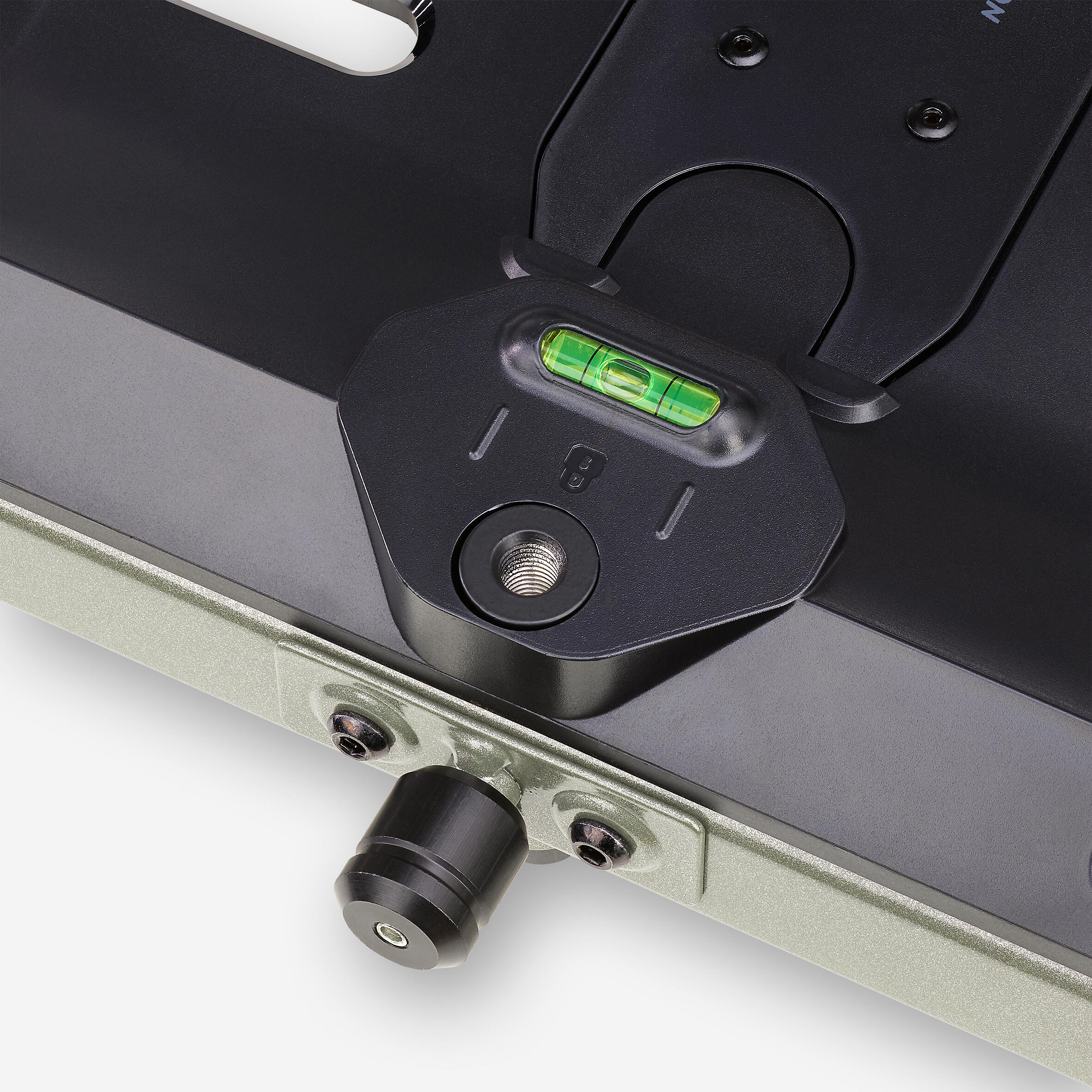

- 4 levels (at the front of the platform, 3 on the 3 sides of the chassis)
- 4 telescopic legs that can extend by 57 to 89 cm
- 2 fixed 57 cm legs
- Leg diameter 36 mm (2 with umbrella support and 4 with built-in screw threads)

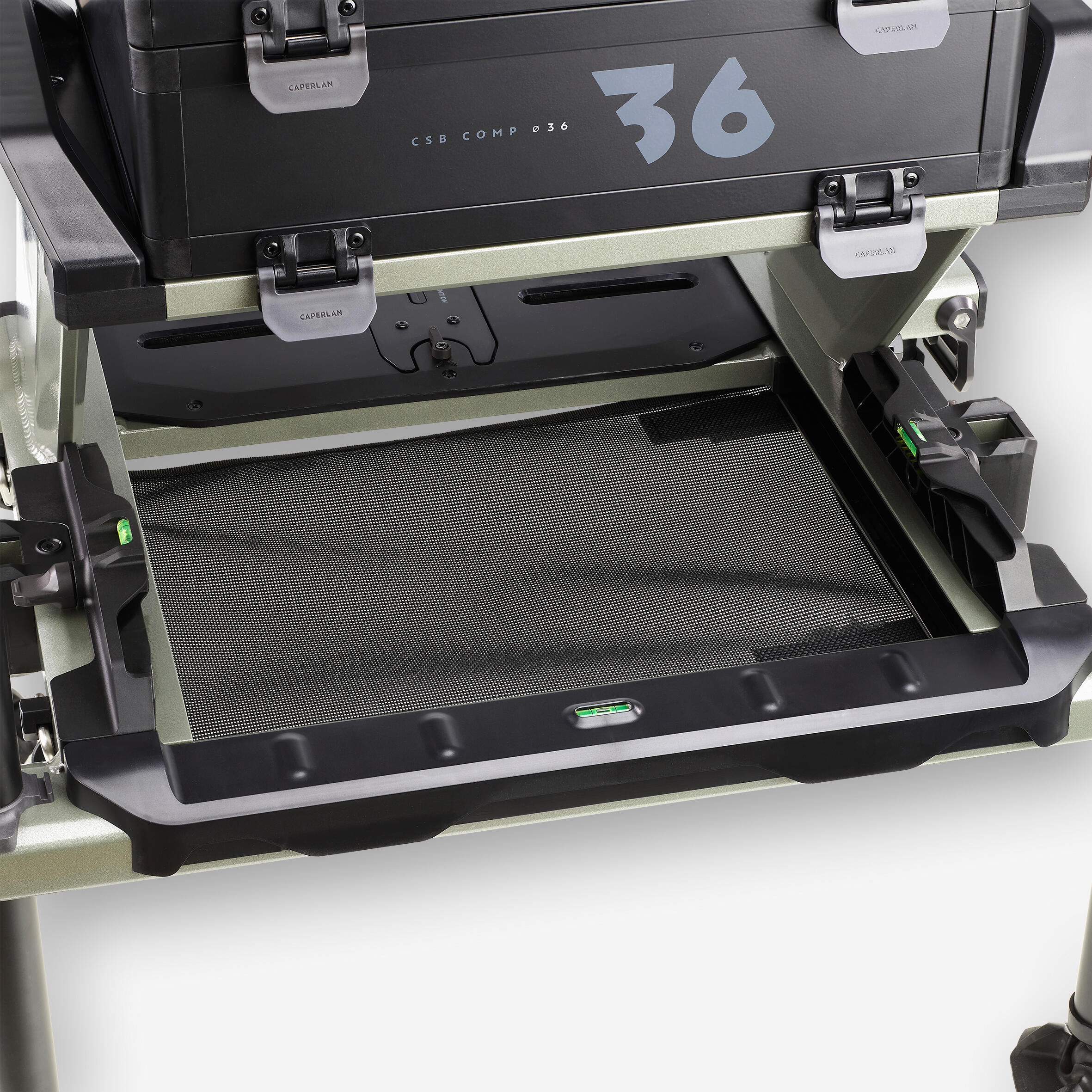

- Soft storage net under the station

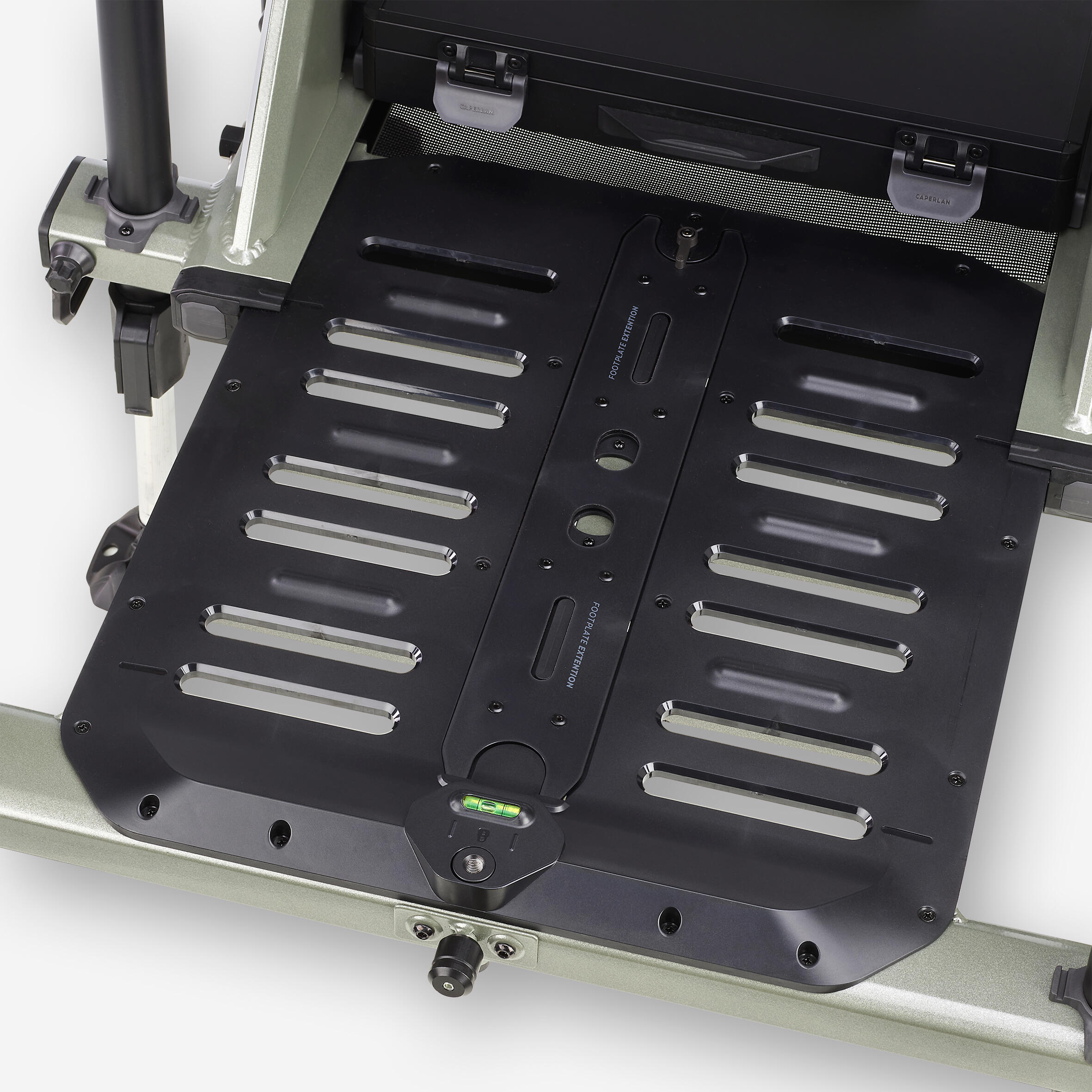

PLATFORM
The platform measures 50 cm when open, offering genuine comfort for your legs and feet.

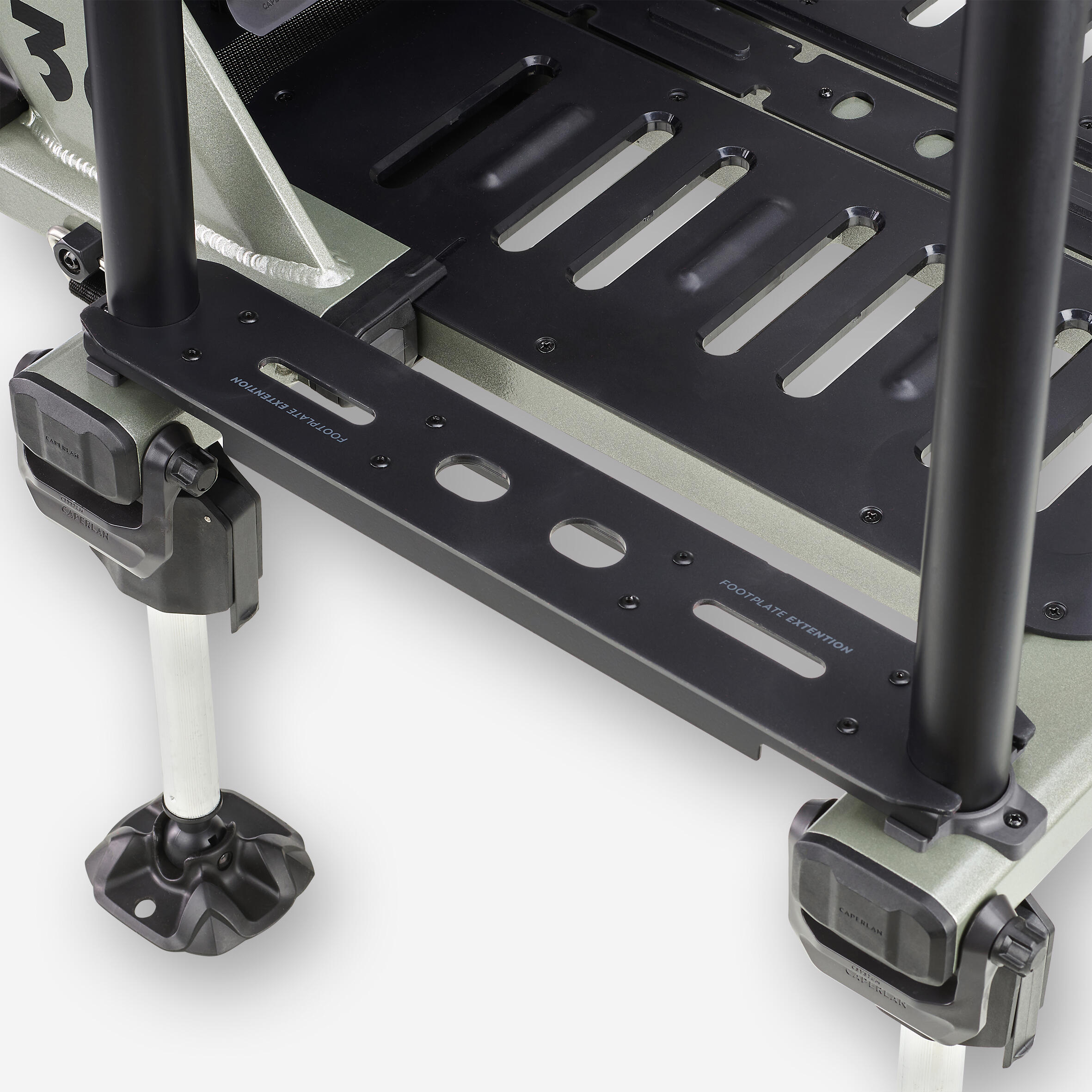

The real bonus is the 42 cm side extension that can be installed on the right or the left, between the 2 side legs of the platform, in order to fish on the sides.
The platform has a pressure latch that locks it in the closed or open position.
The front insert is used for the keepnet support and the front trolley support.
ERGONOMIC OPTIMISATION
Following the study by Tom B. in 2020, we worked on a seat height for optimal ergonomics for the average height of the male population in Europe.
The height of the optimised seat is 42 cm (height of the platform/top of the cushion).
We chose a height of 44 cm on the station, because we considered that, for an average weight, the seat will sink by about 2 cm to reach the target of 42 cm for fishing.

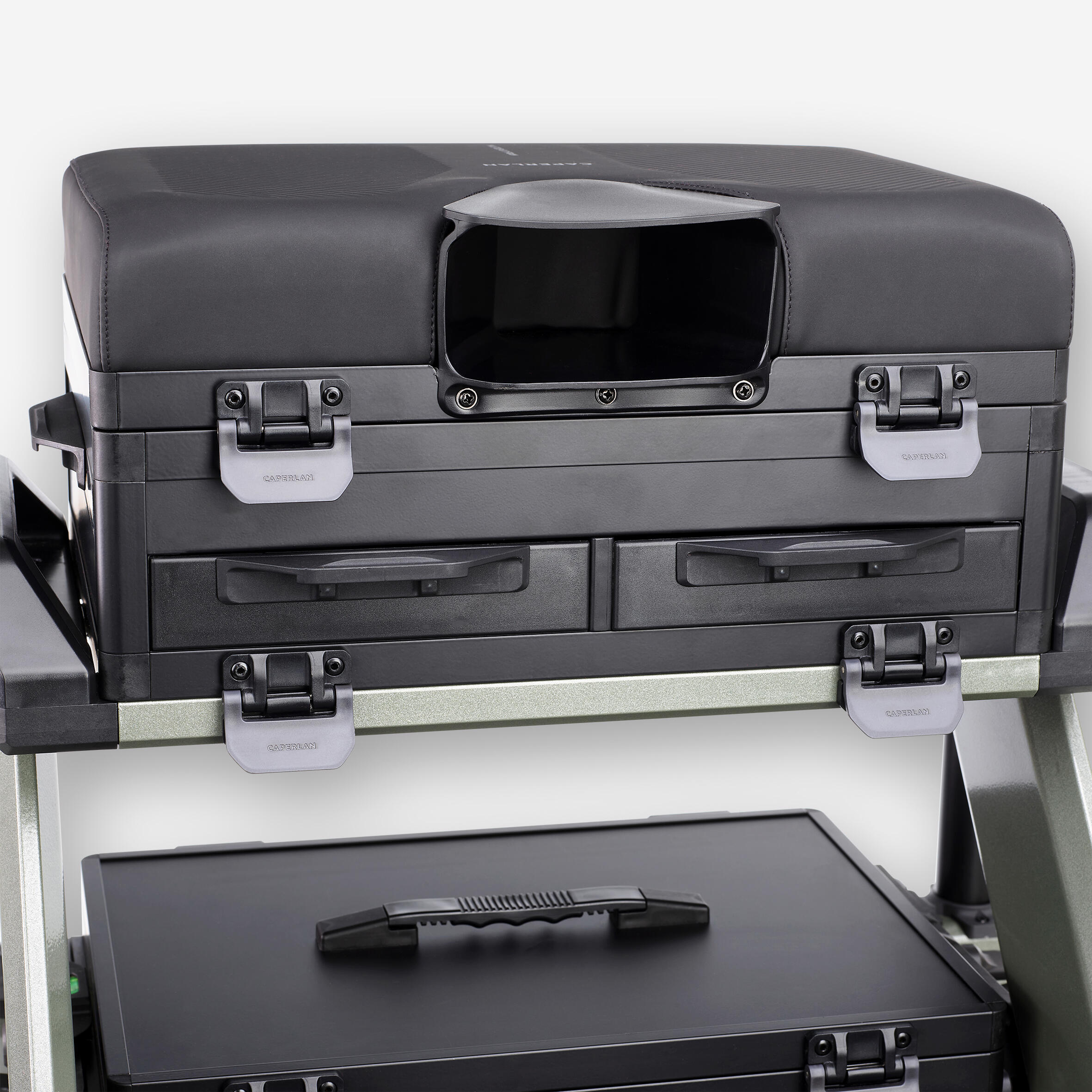

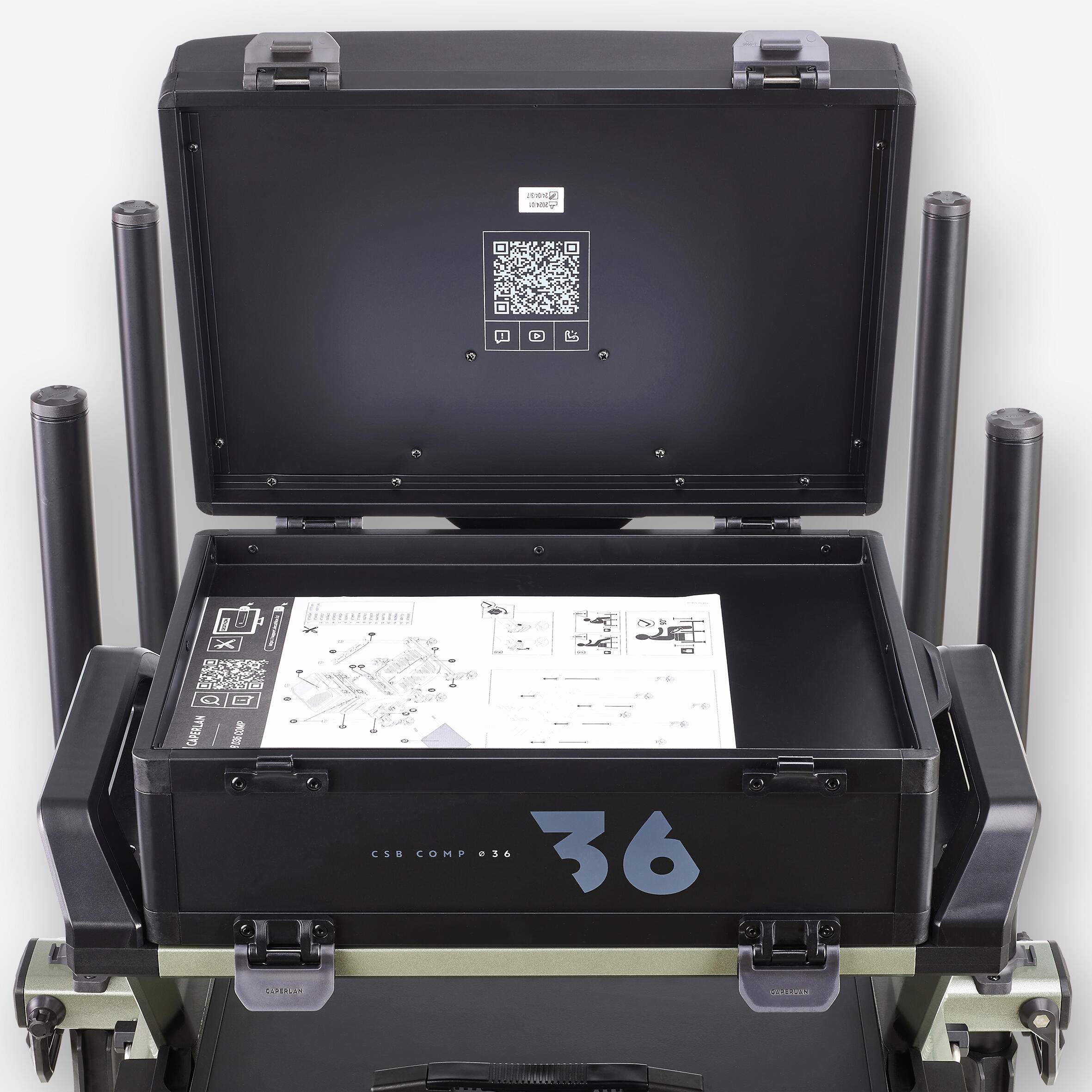

COMPARTMENTS AND DRAWERS
It allows you to store all your accessories for pole, match or feeder fishing.
Detachable partitions in the 3 drawers for greater modularity.

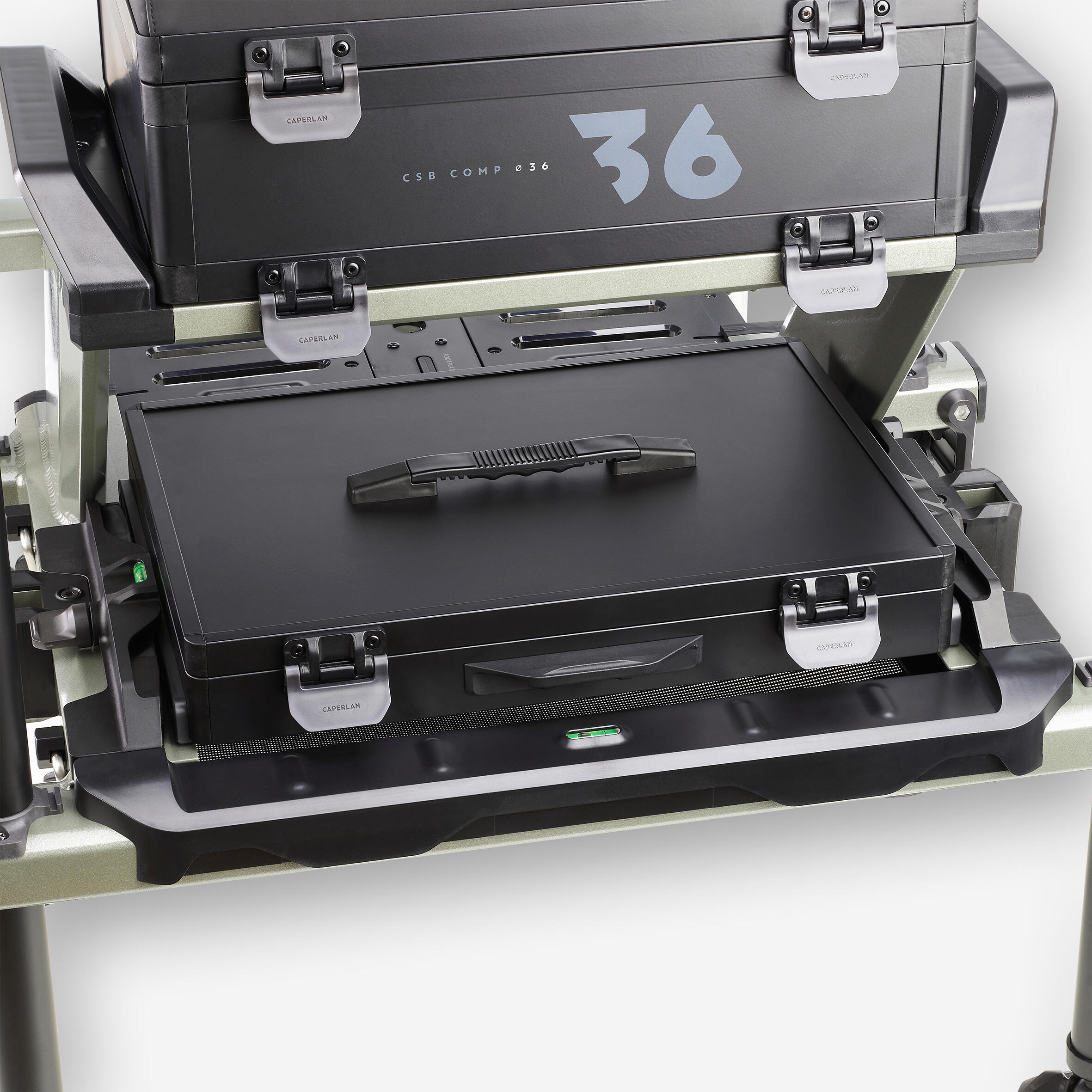

The bottom box (front/rear) is detachable so you can keep your equipment within reach without getting up.
A safety catch on the side prevents it from moving during transport.
This catch also allows you to put your boxes facing the rear of the station.

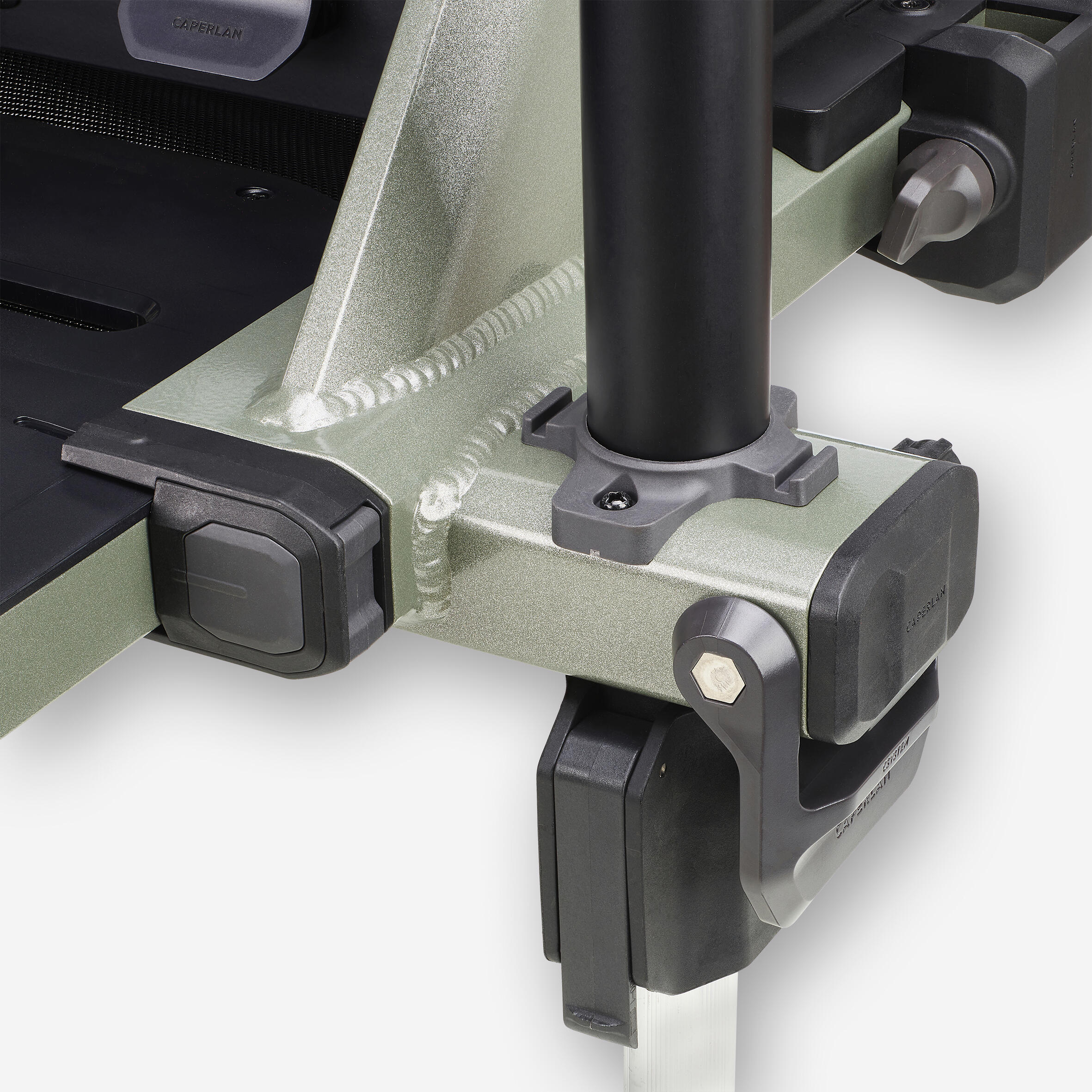

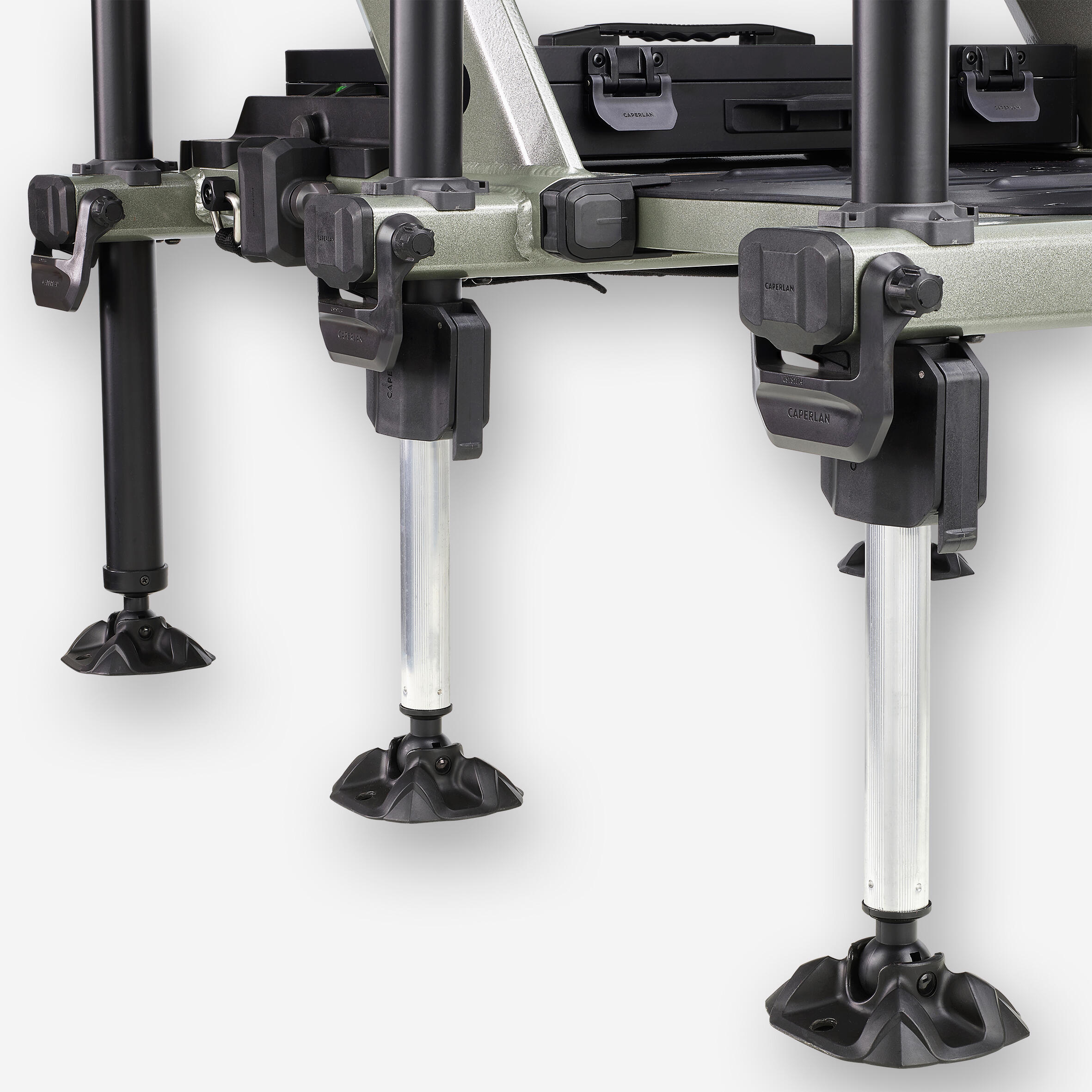

LEGS

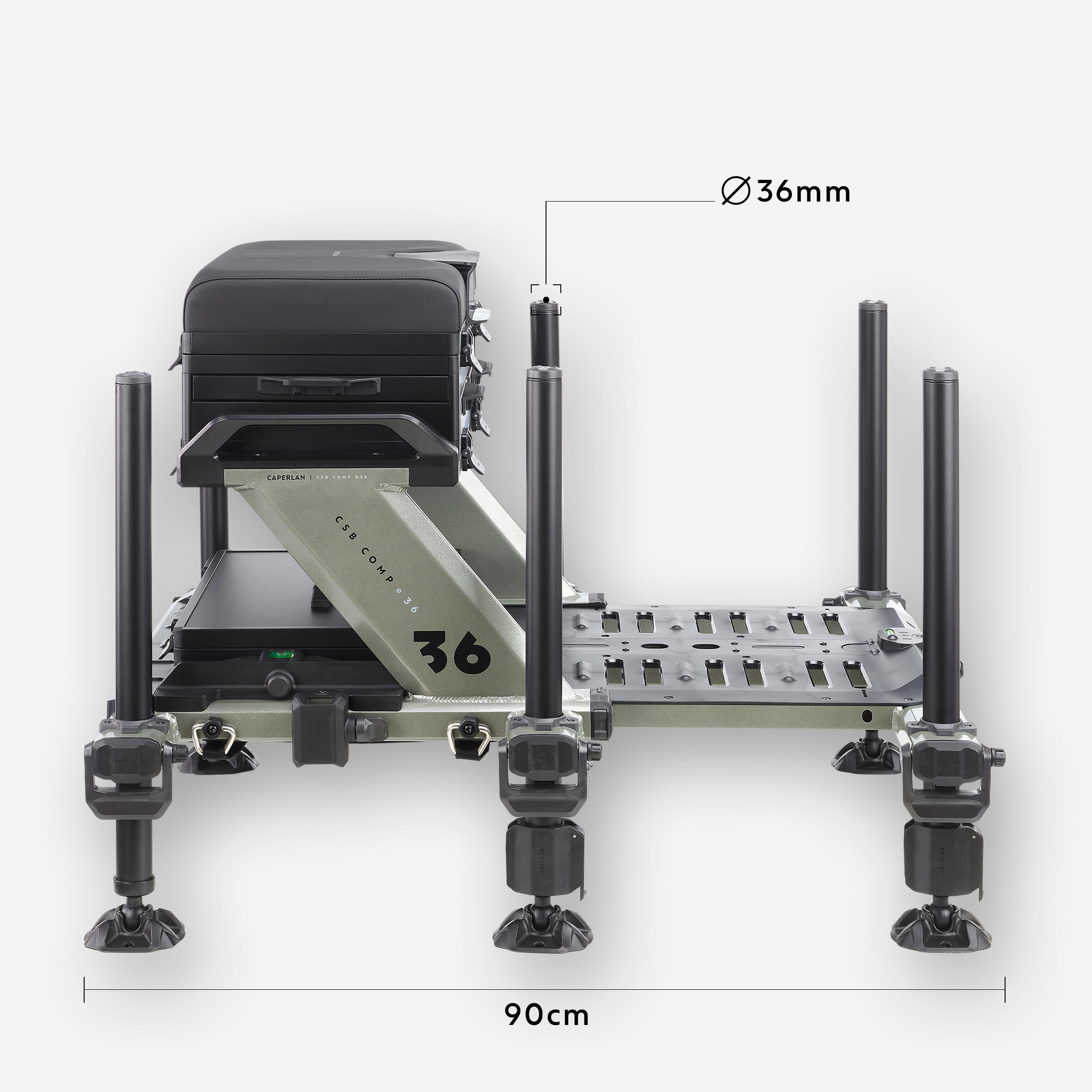

Diameter: 36 mm
4 telescopic legs: 57/89 mm

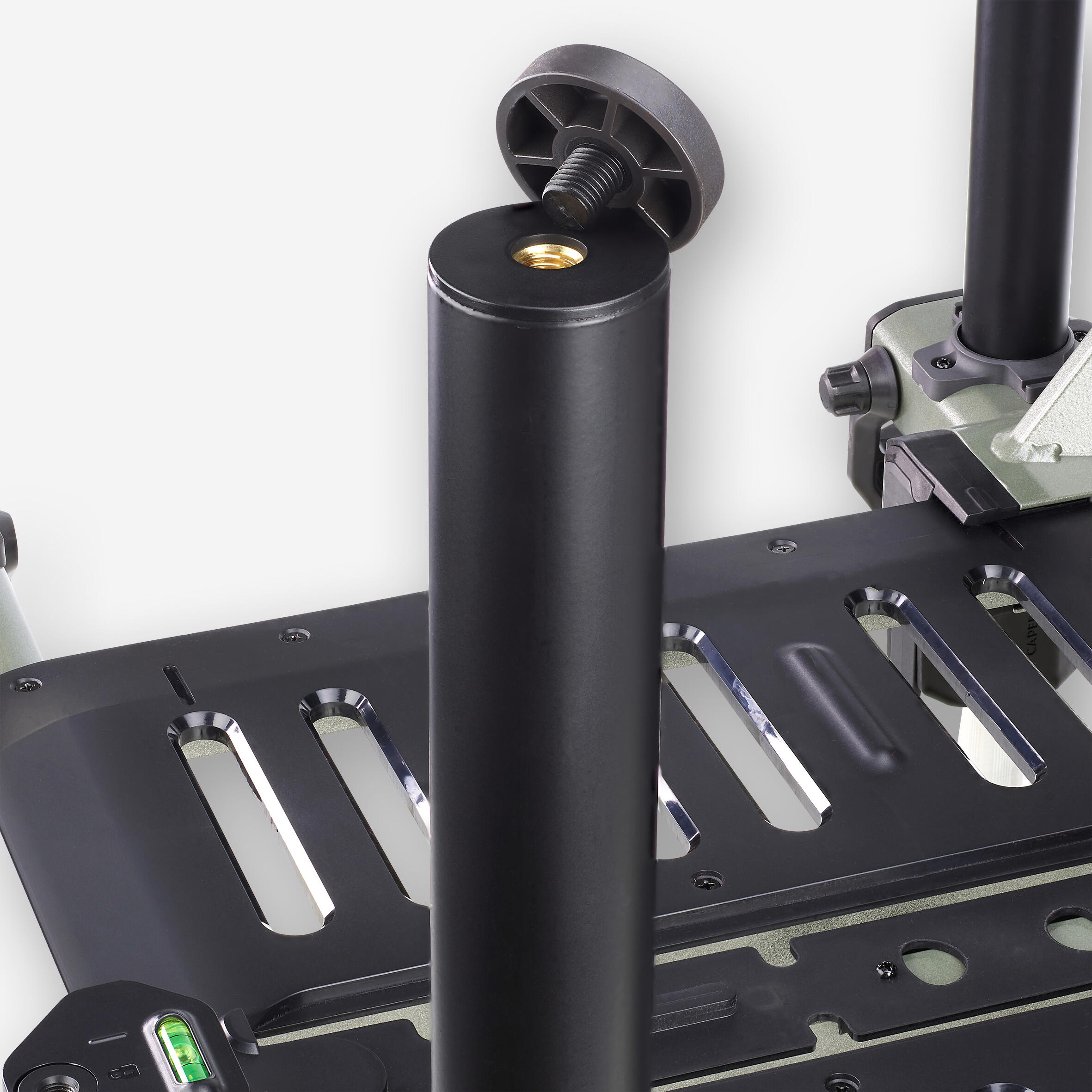

=> with the possibility of attaching accessories on the universal thread screw
2 fixed 57 cm legs with an umbrella support
This leg diameter adds more stability and strength (meets the EN58112_1&2 140 kg camping standards)
Compatible with all CSB CS accessories with a D25/D36 connector
FEATURES

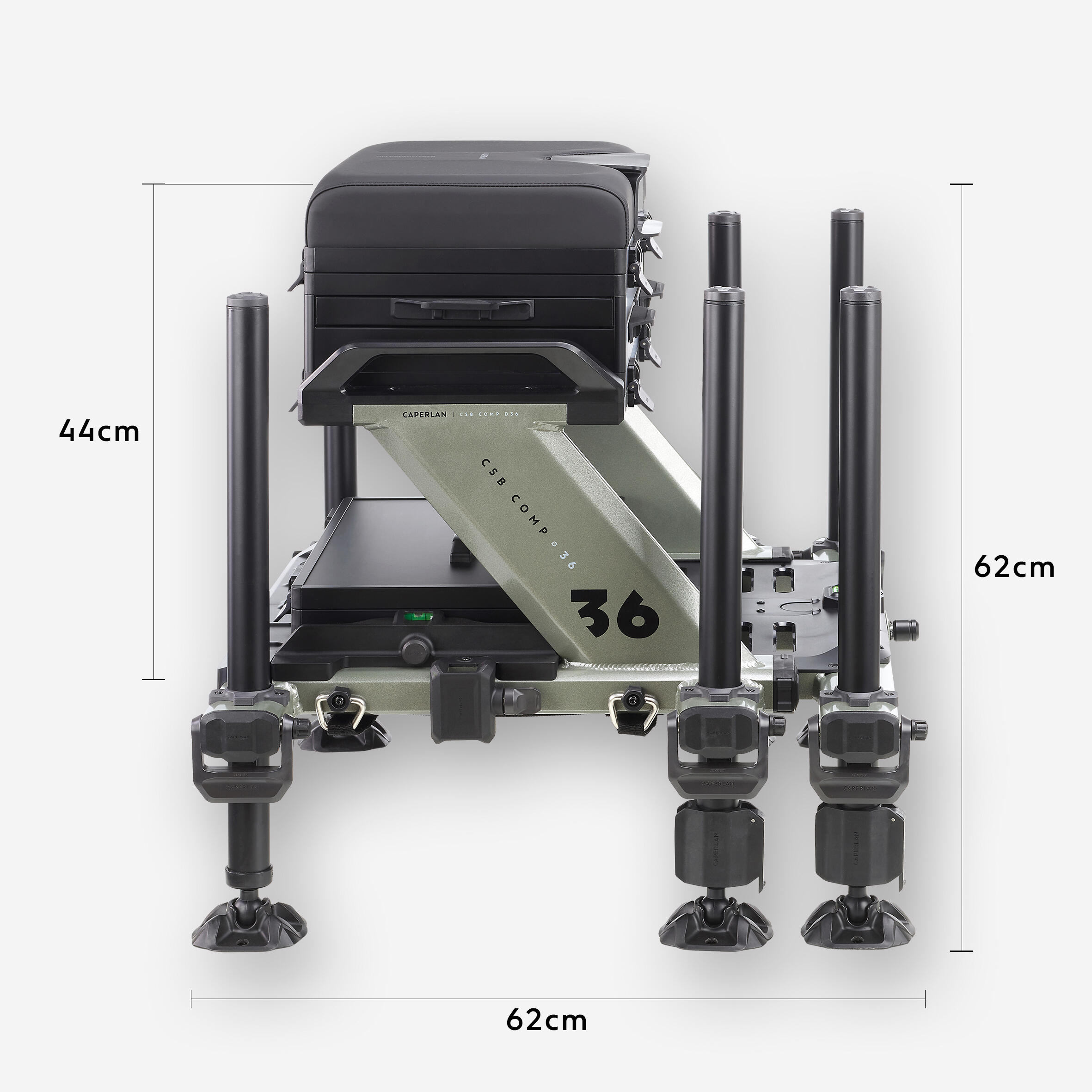

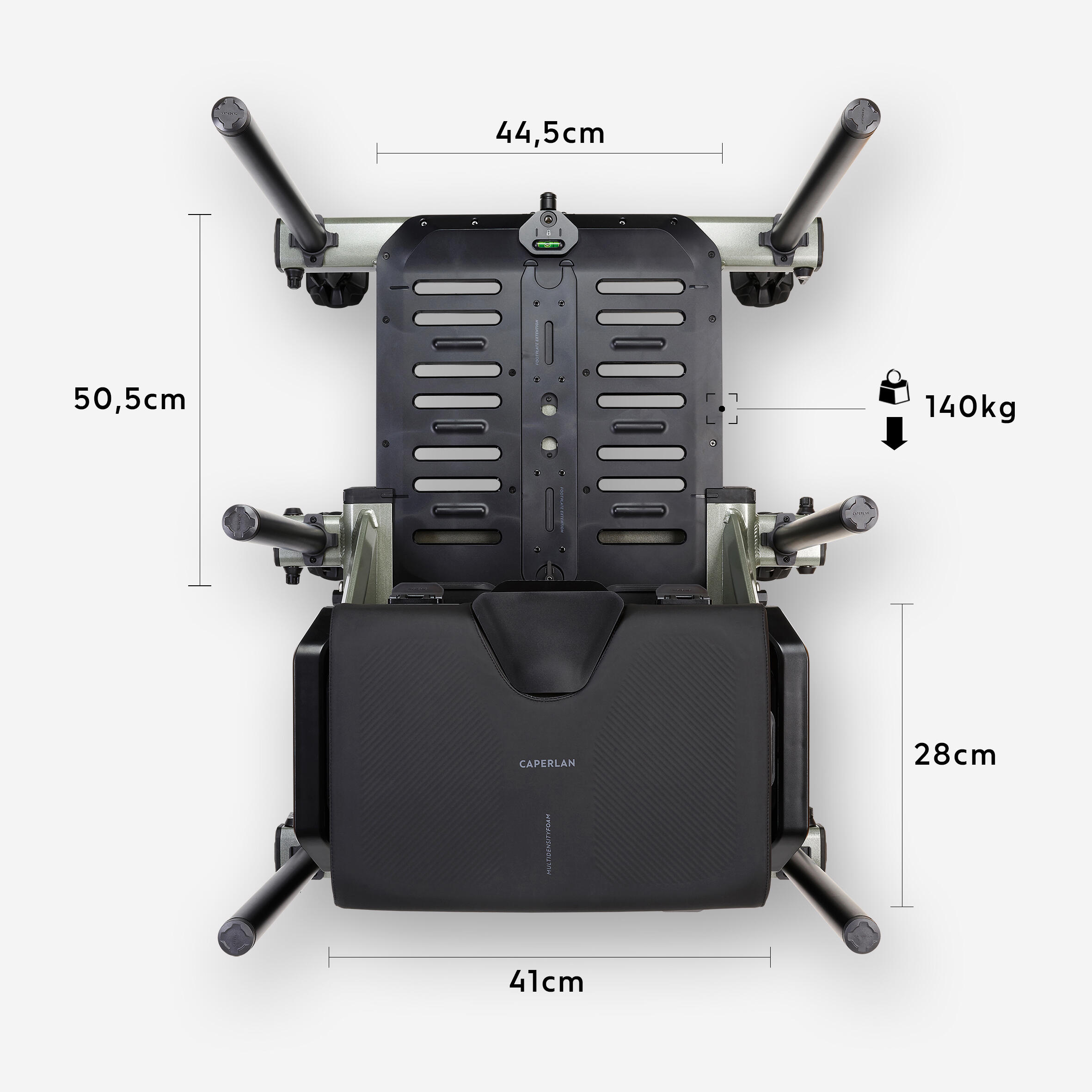

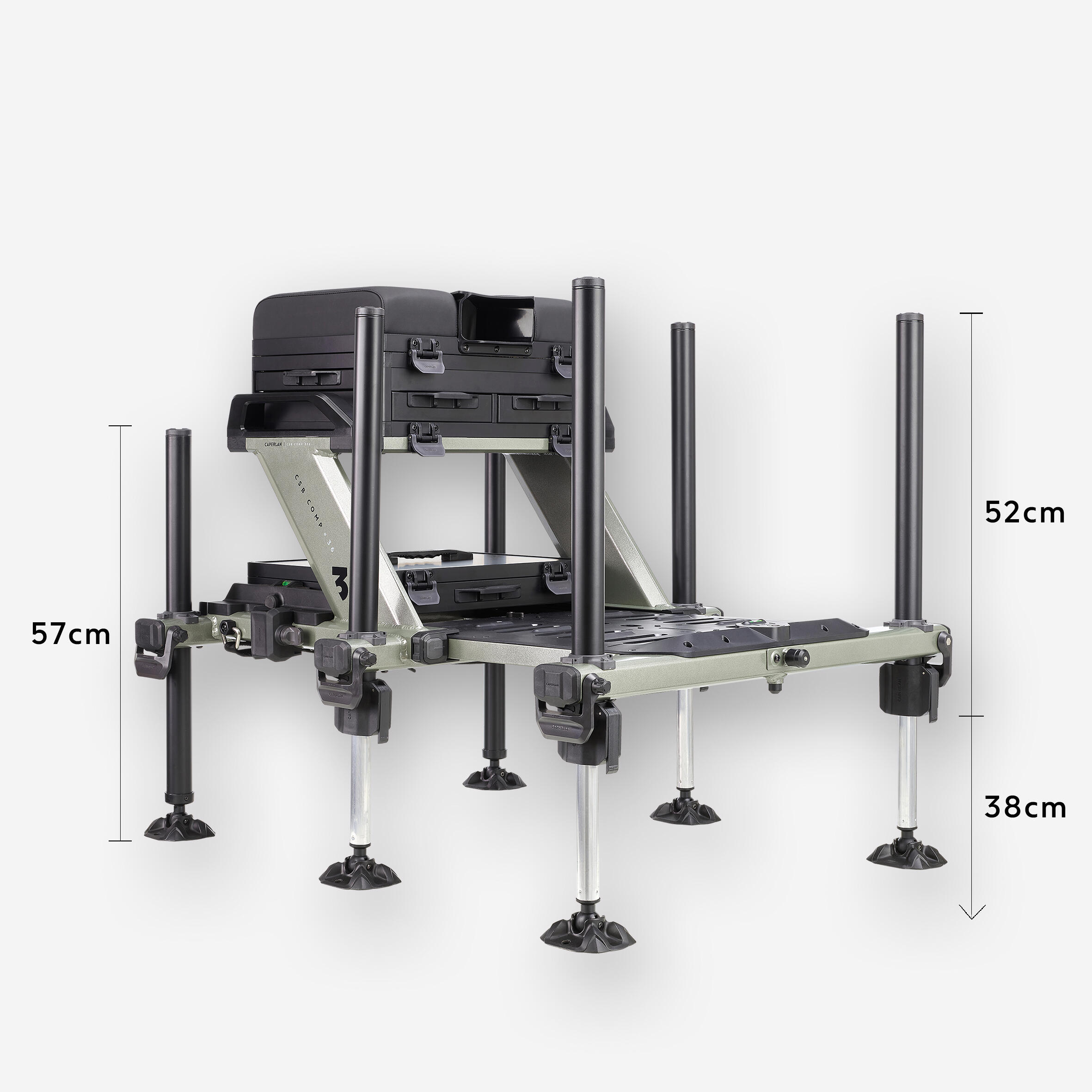

DIMENSIONS
- Height: 57 cm ( height of the folded legs)

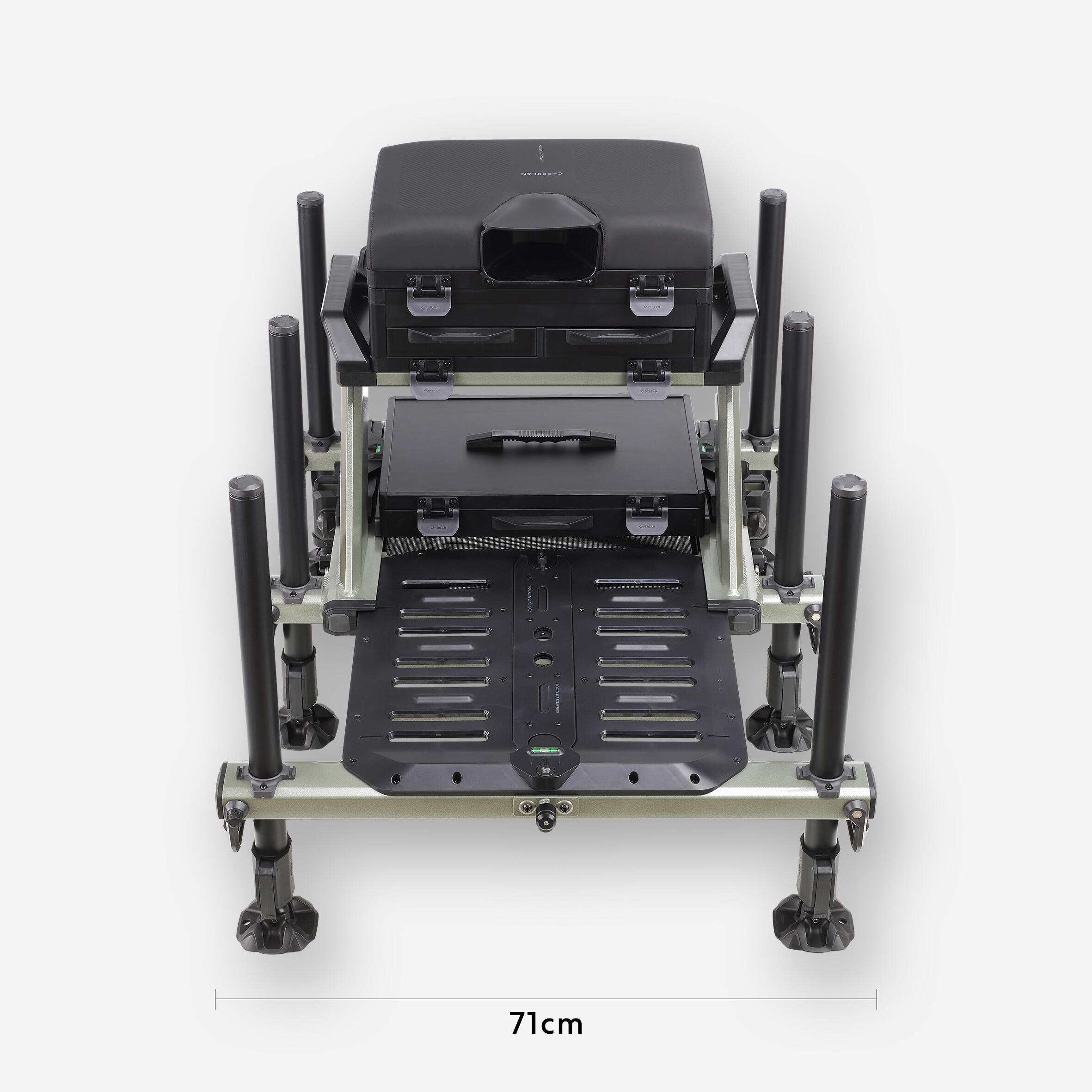

- Width: 71 cm
- Platform depth: 50.5 cm
- Side extension of the platform: 42x7 cm
- Seat height 60 cm
- Height between the platform and the seat: 44 cm
SIZE
- Folded: 62.5 cm
- Unfolded: 89.5 cm

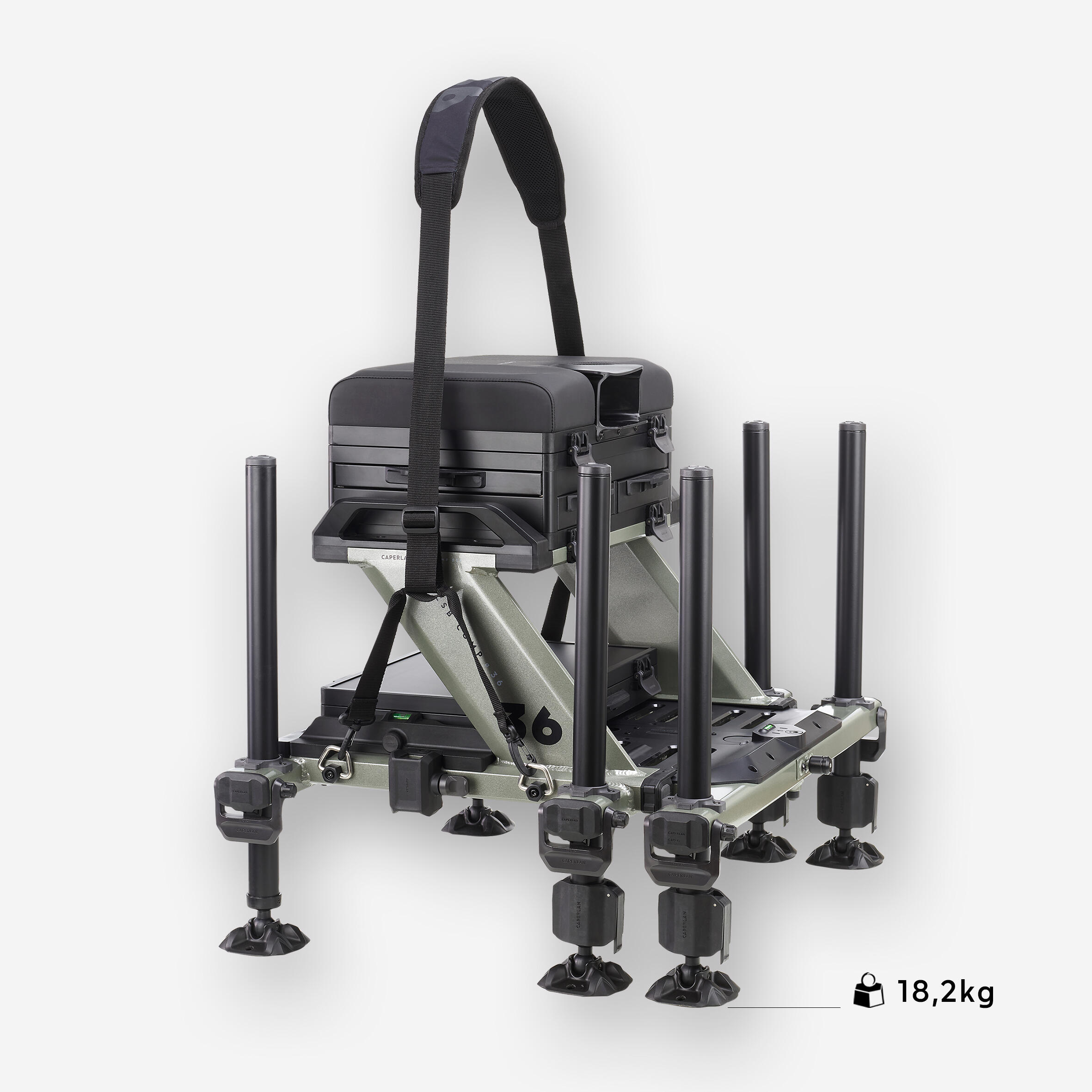

Weight of the station with its 3 drawers: 18.2 kg
Weight of the detachable accessories:
- Cover + detachable box: 1.8 kg
- Platform extension: 0.5 kg
- Carry strap: 0.15 kg
SPARE PARTS 1/2
Available to order :
8759037 SPARE CUSHION FOR CSB D25/D36 500
8759907 SPARE CSB BUTT SUPPORT FOR STATION CUSHION
8861692 SPARE LEG CAP FOR CSB D36 STATION X2
8759039 SPARE WHEEL SUPPORT GUARD FOR 500 STATION
8759030 SPARE CHASSIS BLOCK CONNECTION FOR CSB D36
8759914 SPARE CSB BOX COVER 2024
8809613 SPARE CSB PLATFORM BLP BLOCK FOR PLATFORM LOCK
8809606 SPARE LBT BLOCK FOR BOTTOM BOX LOCK
8759024 SPARE CSB TELESCOPIC LEG D36 57/89 cm
8759023 SPARE CSB TELESCOPIC LEG D36 65/111 cm
SPARE PARTS 2/2
8808433- SPARE CSB PLE SIDE PLATFORM EXTENSION
8759021- SPARE CSB PLATFORM FOR STATION D36 20
8827631- SPARE CSB ST BOTTOM BOX WITH RUNNER
8861700- SPARE CSB STATION HANDLES
8861701- SAV CSB STORAGE NET
8861693- SAV SPARE REAR STATION GUARD and FITTINGS
ACCESSORIES COMPATIBILITY
CSB D36 COMP station compatible with all the accessories in the CSB CS range equipped with the D25 D36 adapter.
