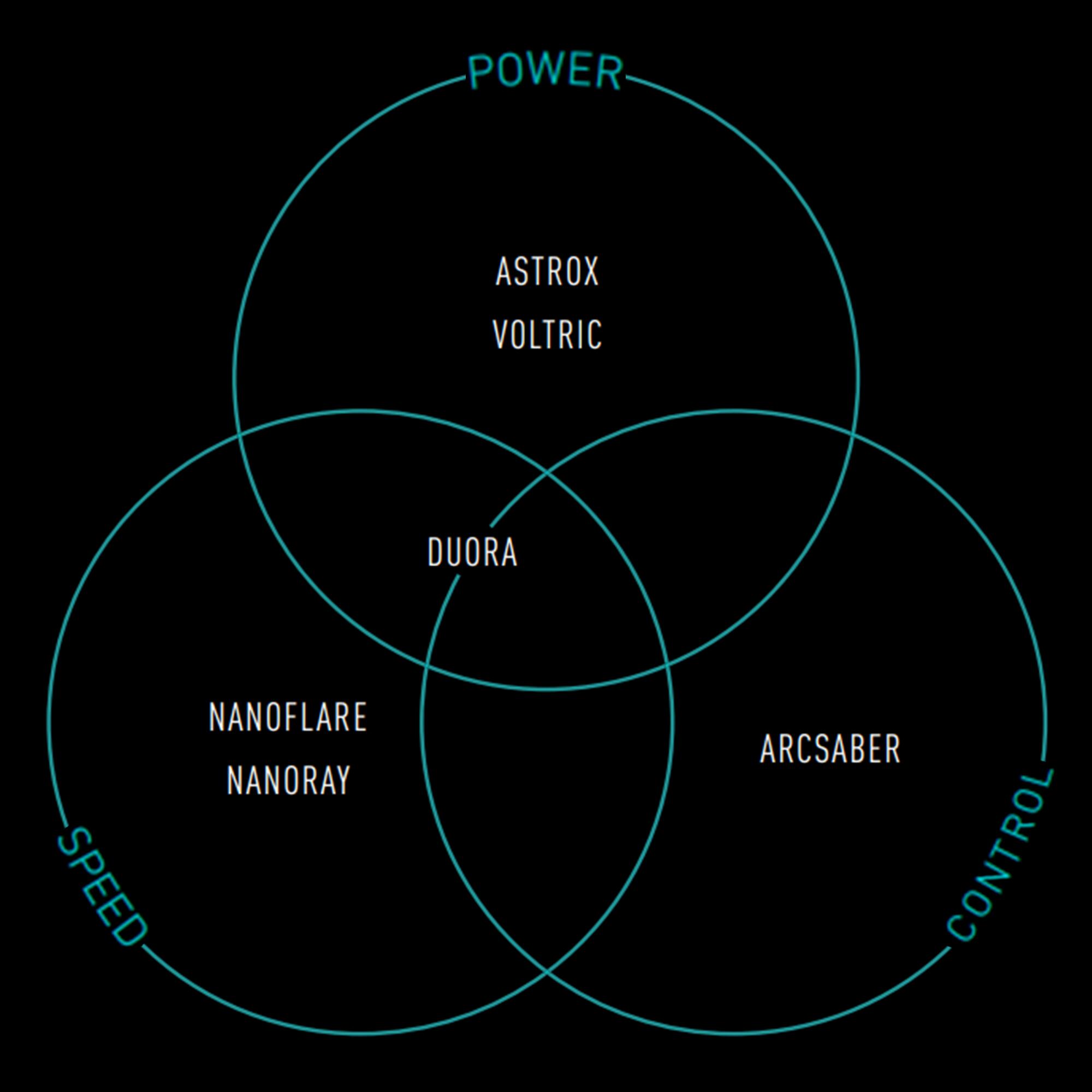

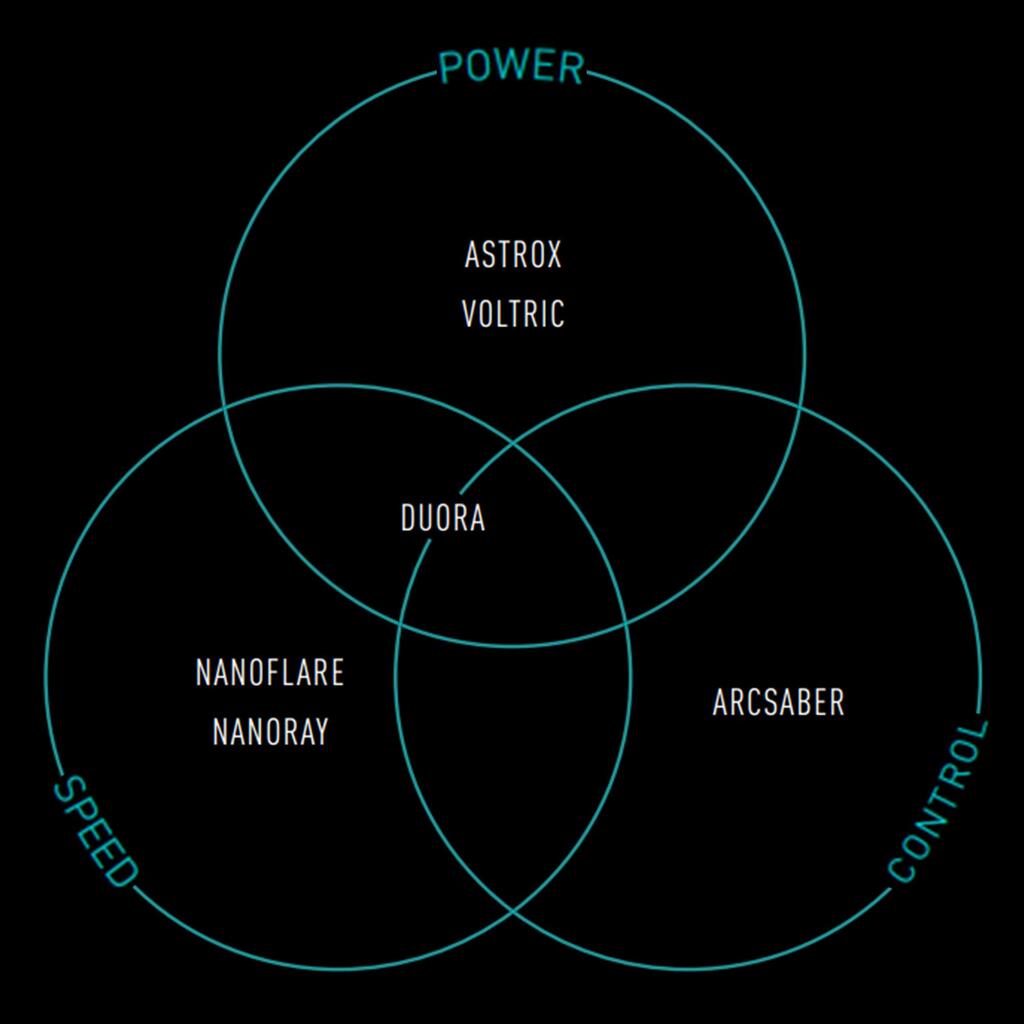

About the ASTROX series
The ASTROX (which replaces the VOLTRIC range) is a powerful racket that meets the needs of players with an aggressive offence. These rackets have a head-heavy balance so you can attack with confidence and put away every smash.

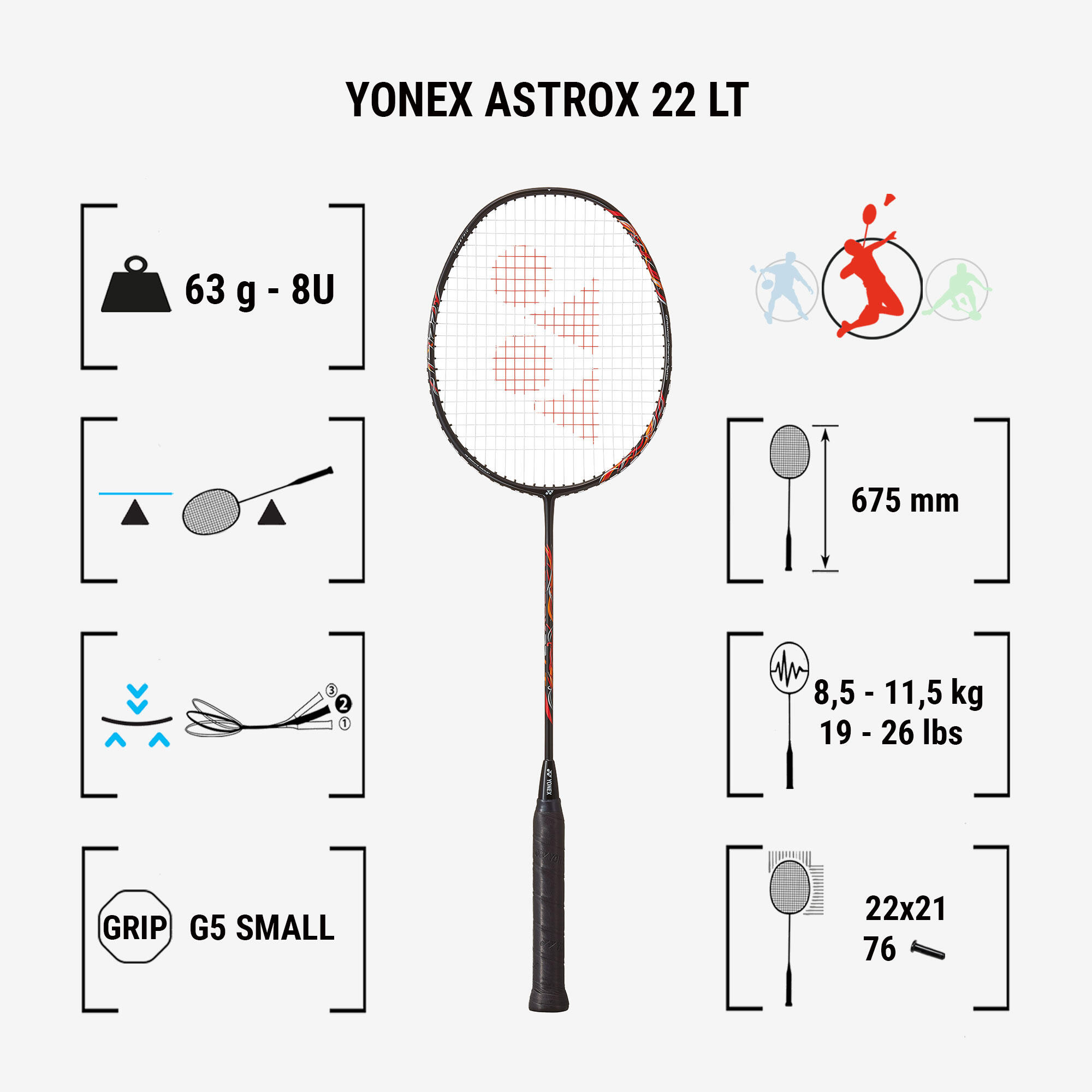

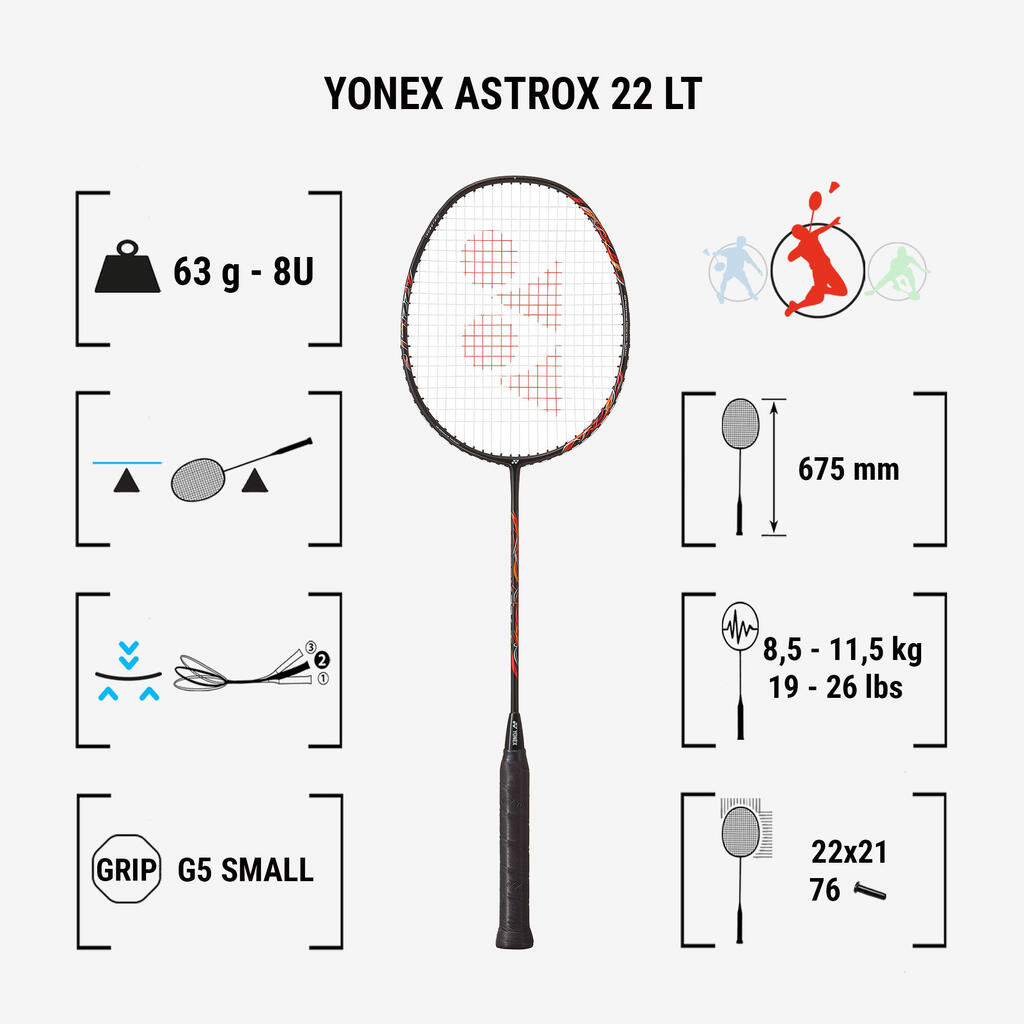

Weight
63 g - 8U (60-64 g). The weight (actually the mass) is measured in grams. A badminton racket's weight ranges from 60 grams to over 100 grams and is classified into different "U" weight ranges. The lighter a racket is, the more manoeuvrable and comfortable it will be. It's also easier to swing and faster, although less powerful. On the other hand, a heavier racket will be more powerful but less comfortable.
Flexibility
semi stiff.
Flexibility is defined as the shaft's capacity to bend while hitting. Shafts can range from flexible to rigid.A flexible shaft is more forgiving and will help you hit the shuttlecock further, although your shots will be slower. While a rigid shaft provides better propulsion, it requires a fast swing and is less forgiving.
Balance
Head heavy.
Balance refers to the racket's weight distribution. It is indicated in millimetres and is measured from the base of the handle to the balance point. A head light racket will be more manoeuvrable and reactive, making it perfect for defensive and doubles players. Head heavy rackets will provide better power, the ideal choice for offensive players. However, they can feel heavy and difficult to swing.
Composition
HM Graphite.
The composition of a badminton racket impacts its price. Steel and/or aluminium rackets are sturdy, heavy and better suited to recreational use. Graphite/aluminium and full graphite rackets are lightweight and perfect for beginner and intermediate players. Finally, rackets made from High-Modulus Graphite and other materials like tungsten are designed for advanced players.
Length
675 mm, 10 mm longer.
The length of an adult's racket is measured in millimetres and ranges from 660 mm to 680 mm. In fact, the shaft is the only part that changes in length. A shorter shaft will be more manoeuvrable and provide a better feel. A longer shaft will offer increased inertia for added power.
Grip size
G5 = small (80-84 mm).
Grip size is measured in millimetres. Grip size ranges from 75 mm to over 90 mm and is categorized into size ranges expressed in "G". While a larger handle is easier to hold, many players have difficulty changing their grip. A smaller handle is easier to wield and lets you put more power on the racket by using your fingers.
Original strings
The rackets come factory strung with Yonex strings with a 0.70 mm gauge (not available from stores). Only very high-end rackets made in Japan are factory strung with BG65 strings with a 0.70 mm gauge.
Pre-strung and recommended
Factory tension: 8-10 kg.
Tension recommended by the brand: 8-12 kg.
The rackets come with a tension that ranges between 8 kg and 10 kg, depending on tension losses that occur during transport. Each brand indicates a recommended tension, generally somewhere between 8 kg and 12 kg. This is to prevent the string or frame from breaking while stringing or hitting. Finally, some rackets have a reinforced frame that can withstand a tension of up to 16 kg.
String pattern: mains* crosses,
Stringing instructions for 76 eyelets
A = mains, B = crosses
22*21.
4 knot stringing instructions
Mains: start from top centre and continue to B9 (skipping A7, A9 and A11). Go through B12 towards A16, then go back to A14, down to B10 and finish by tying off at B8.(same other side)
Crosses: Make a knot at B6 and start crosses from B9. Keep on stringing until A7 (skipping A12 and A10) and finish by tying a knot at A5.
Nanomesh Neo
First generation graphite makes the frame more robust and flexible.This material increases shaft flexion for maximum power and a quick recovery after each hit
Aero+Box Frame
The frame combines an aerodynamic front profile with an extra stiff rear profile for a faster swing and a solid, stable feel when hitting the shuttlecock.
Isometric
ISOMETRIC technology increases the hitting zone by 7%*. In comparison to classic round frames, a square-shaped ISOMETRIC racket generates a larger sweet spot by optimizing the intersection of the mains and crosses.
New grommet pattern
With the new grommet hole design in the racket's frame, the string only needs to go through the grommet once instead of twice, as in conventional rackets. This makes restringing much easier and improves the strings' performance.
Rotational Generator System
By applying the principle of counterbalance, weight is distributed from the end of the handle towards the head for maximum control. The transition to the next shot can be done smoothly and in rapid succession
Control support cap
The top cap's surface is wider and 88% more flat than an ordinary racket for a better grip and more control on the racket.
BUILT-IN T-JOINT
The built-in T-joint reinforces the connection between the shaft and frame while reducing twisting for greater control
TUNGSTEN
Material designed to create a head heavy balance for added power
Article code and colour
AX22LT Black Red
Supplier reference
231-AX22LT-187
