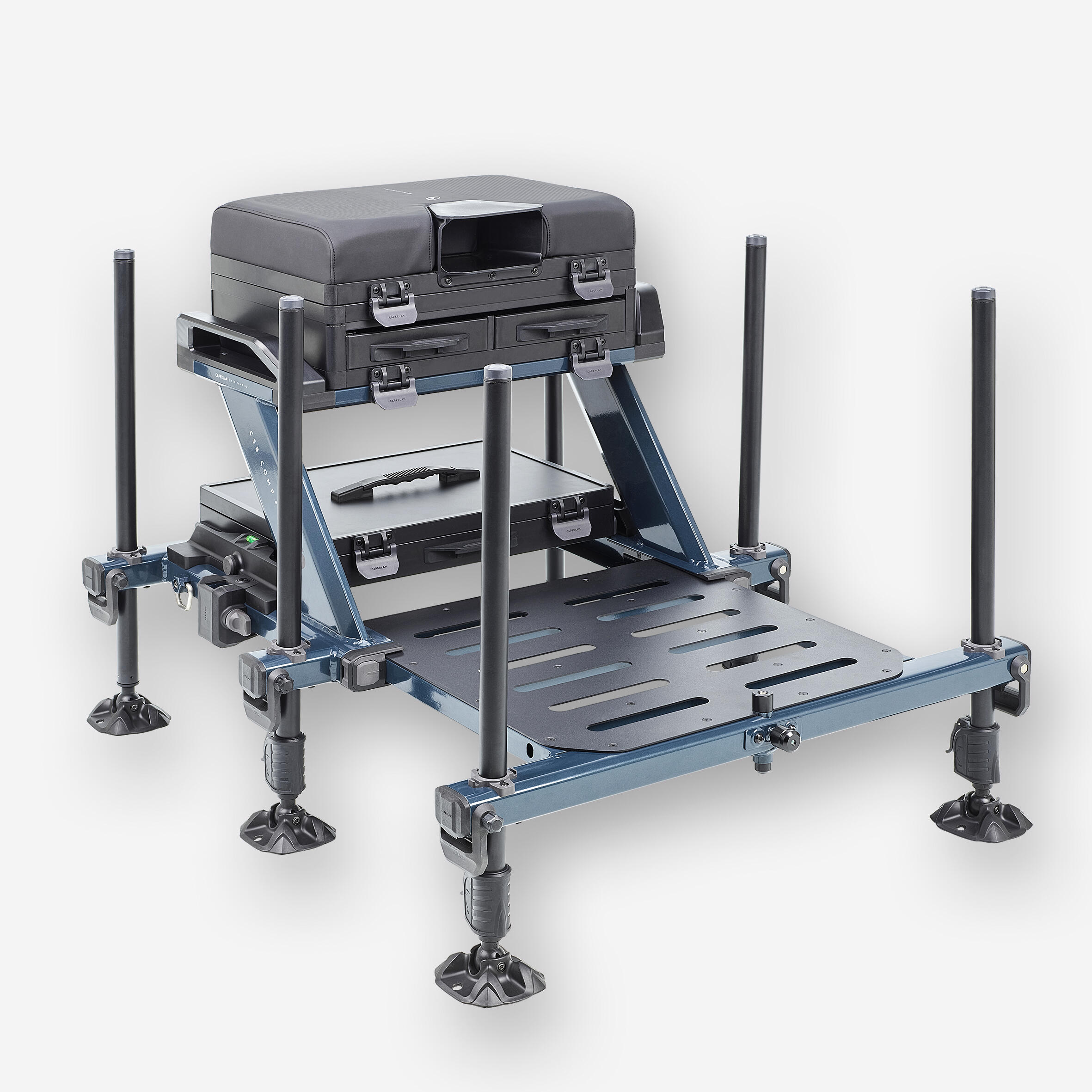

COMPOSITION 1/2

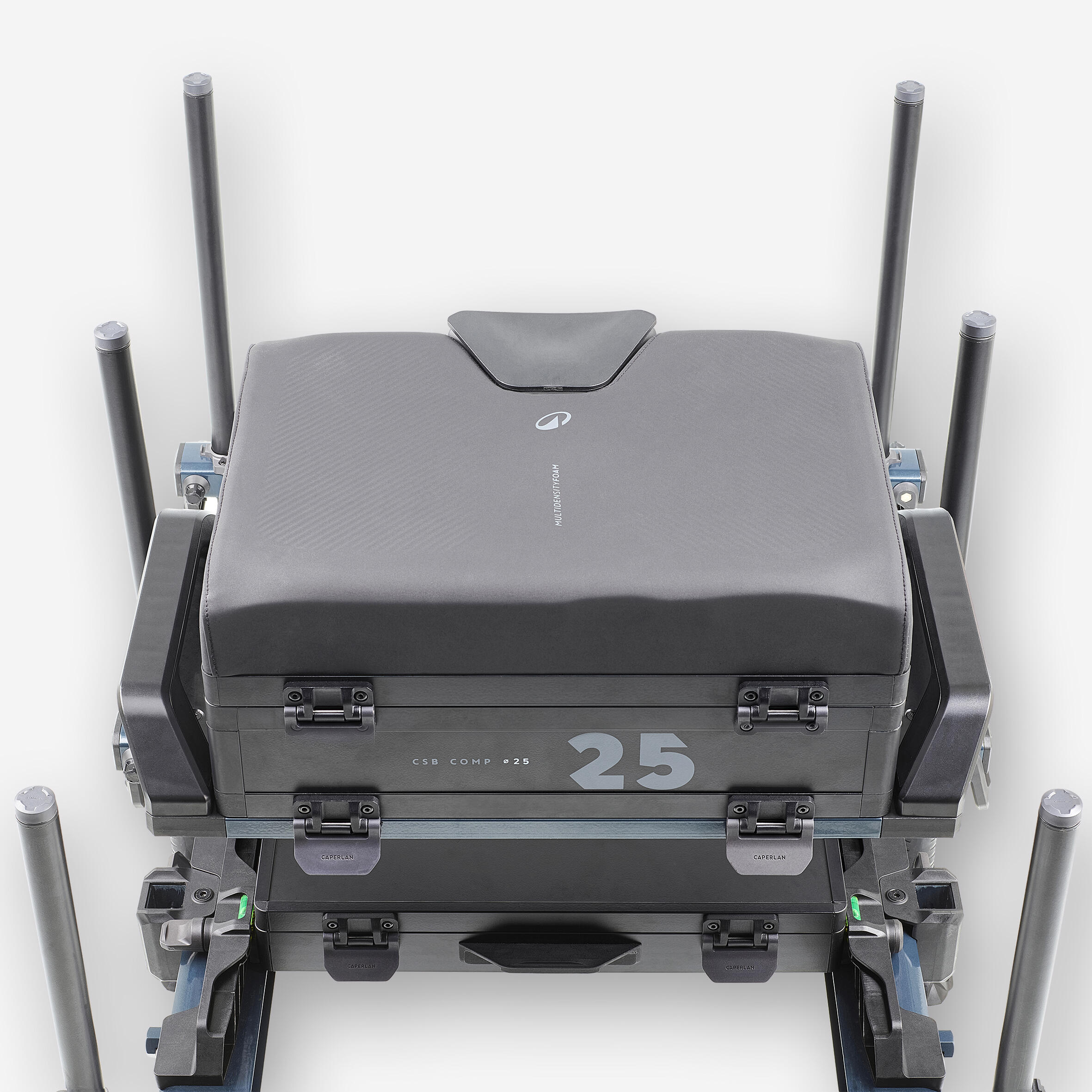

- 1 seat with double foam that combines elasticity and comfort (user comfort foam with a density of 79 kg/m3 and comfort foam with a density of 109 kg/m3)
- Butt support built into the chair
- 2 side handles at the top of the chassis for easy unloading from a car
- 1 portable locker and cover in the lower part
- 1 locker and 2 drawers in the upper part
- New-generation closing mechanisms on the lockers (compatible with the old models)
COMPOSITION 2/2
- 2 wheel support inserts on the sides of the station
- 1 platform with insert for the front trolley
- Steel platform
- 1 keepnet support on platform
- 3 levels on the 3 sides of the chassis

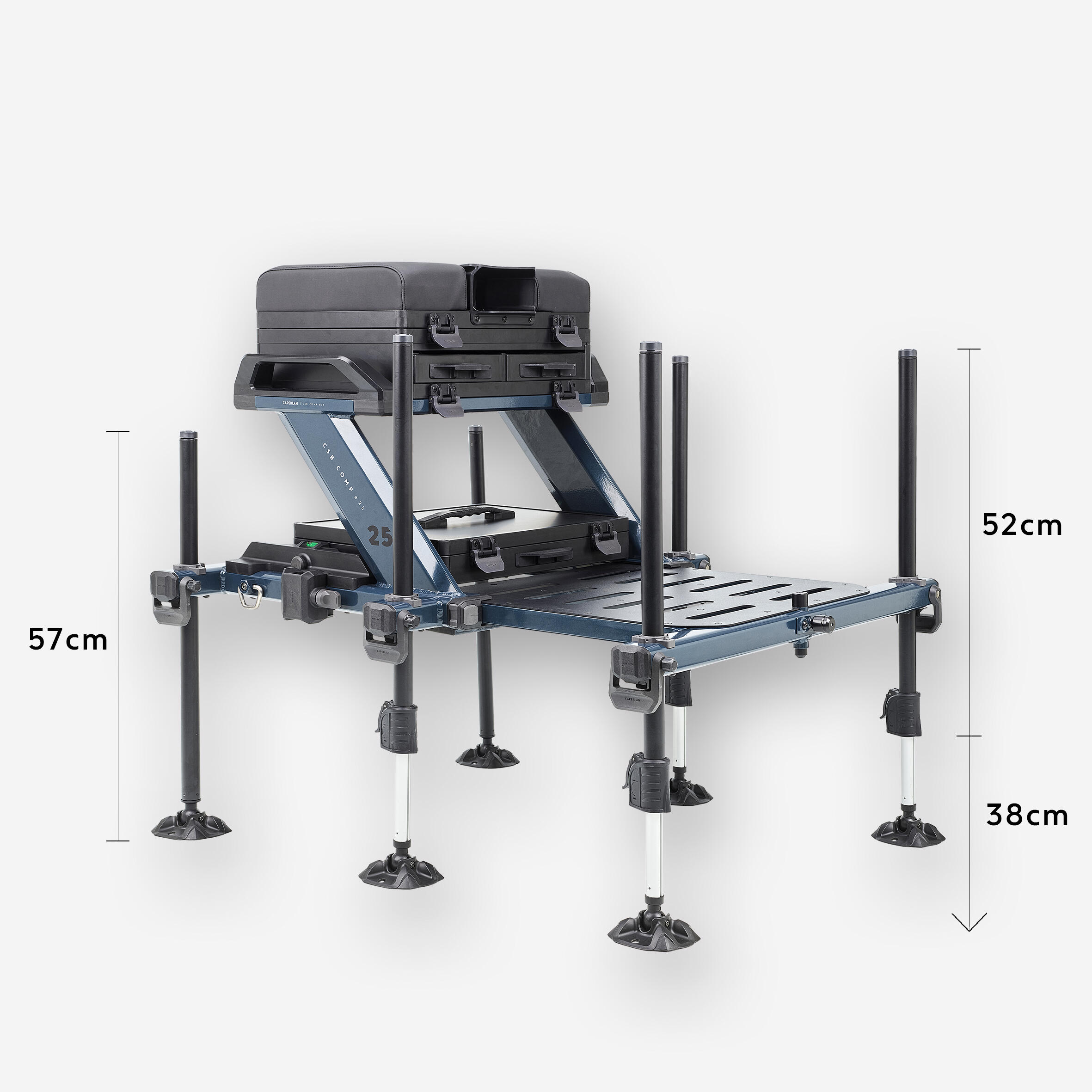

- 4 telescopic legs that can be extended from 57 to 89 cm
- 2 fixed 57 cm legs
- Leg diameter 25 mm (2 with umbrella supports and 4 with built-in screw threads)

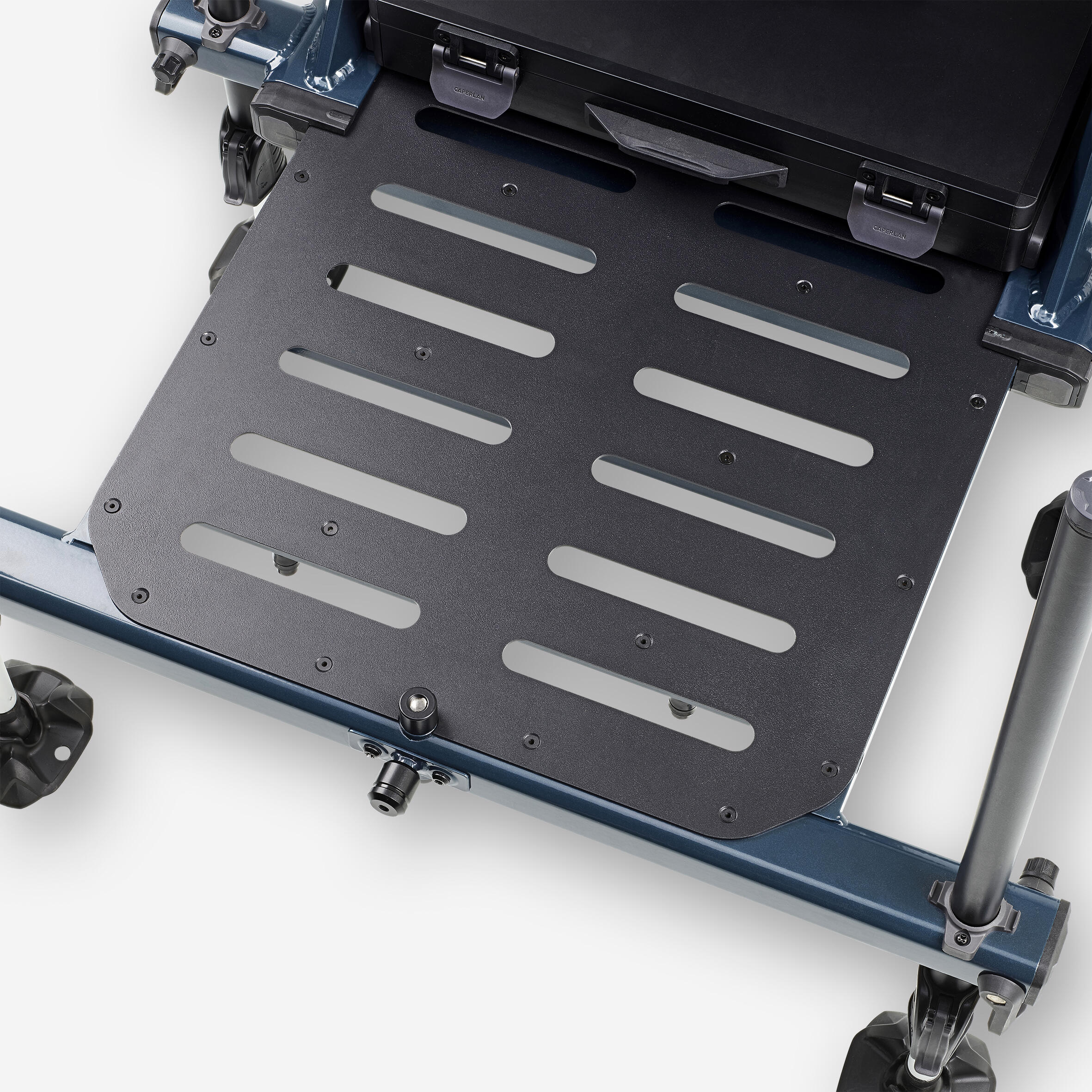

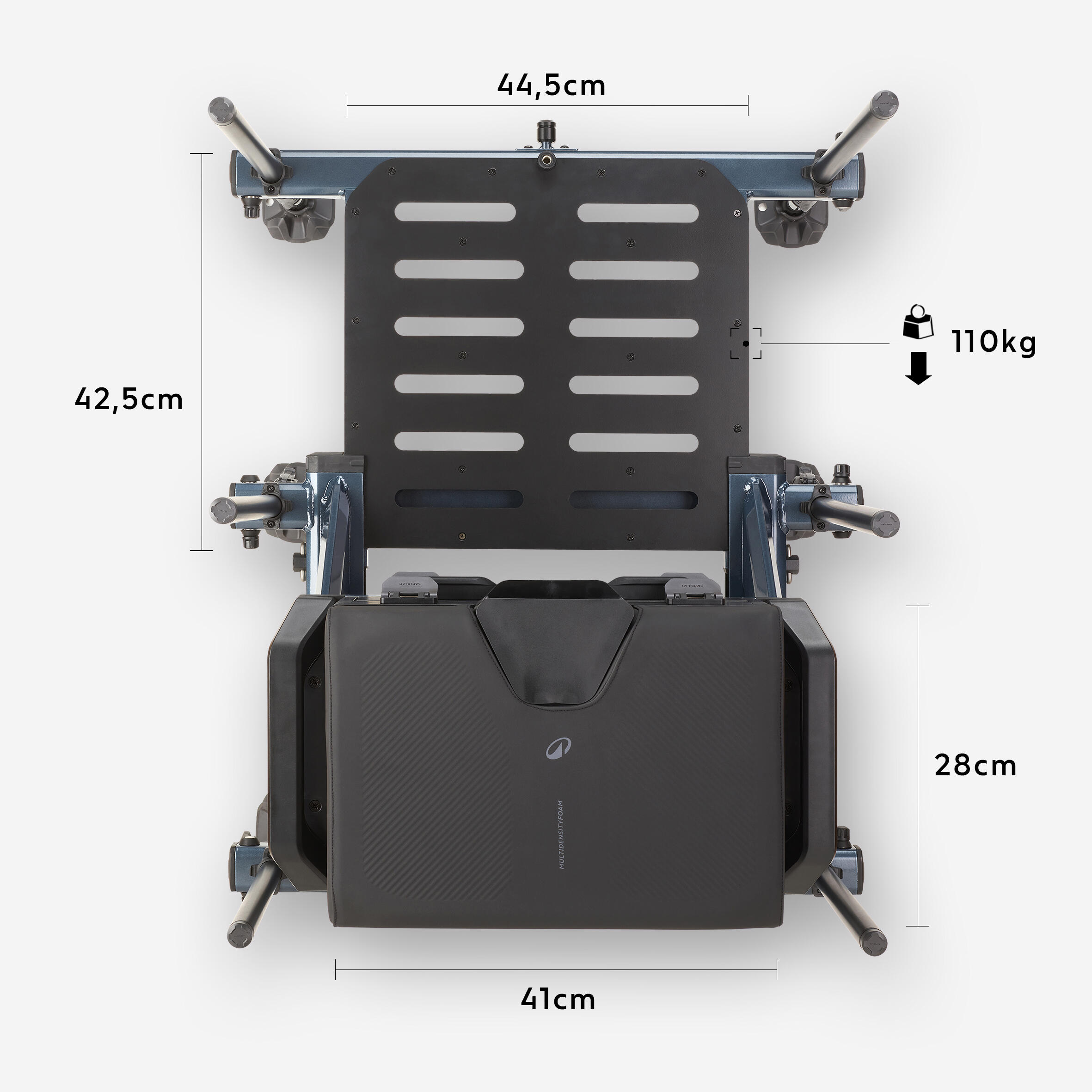

PLATFORM
The platform measures 44 cm when open, offering genuine comfort for your legs and feet.
Possibility to add 5.5 cm side extension that can be installed on the right or the left, between the 2 side legs of the platform, in order to fish on the sides.
The platform has a pressure latch that locks it in the closed or open position.
The front insert is used for the keepnet support and the front trolley support.
ERGONOMIC OPTIMISATION
Following the study by Tom B. in 2020, we worked on a seat height for optimal ergonomics for the average height of the male population in Europe.
The height of the optimised seat is 42 cm (height of the platform/top of the cushion).
We chose a height of 44 cm on the station, because we considered that, for an average weight, the seat will sink by about 2 cm to reach the target of 42 cm for fishing.

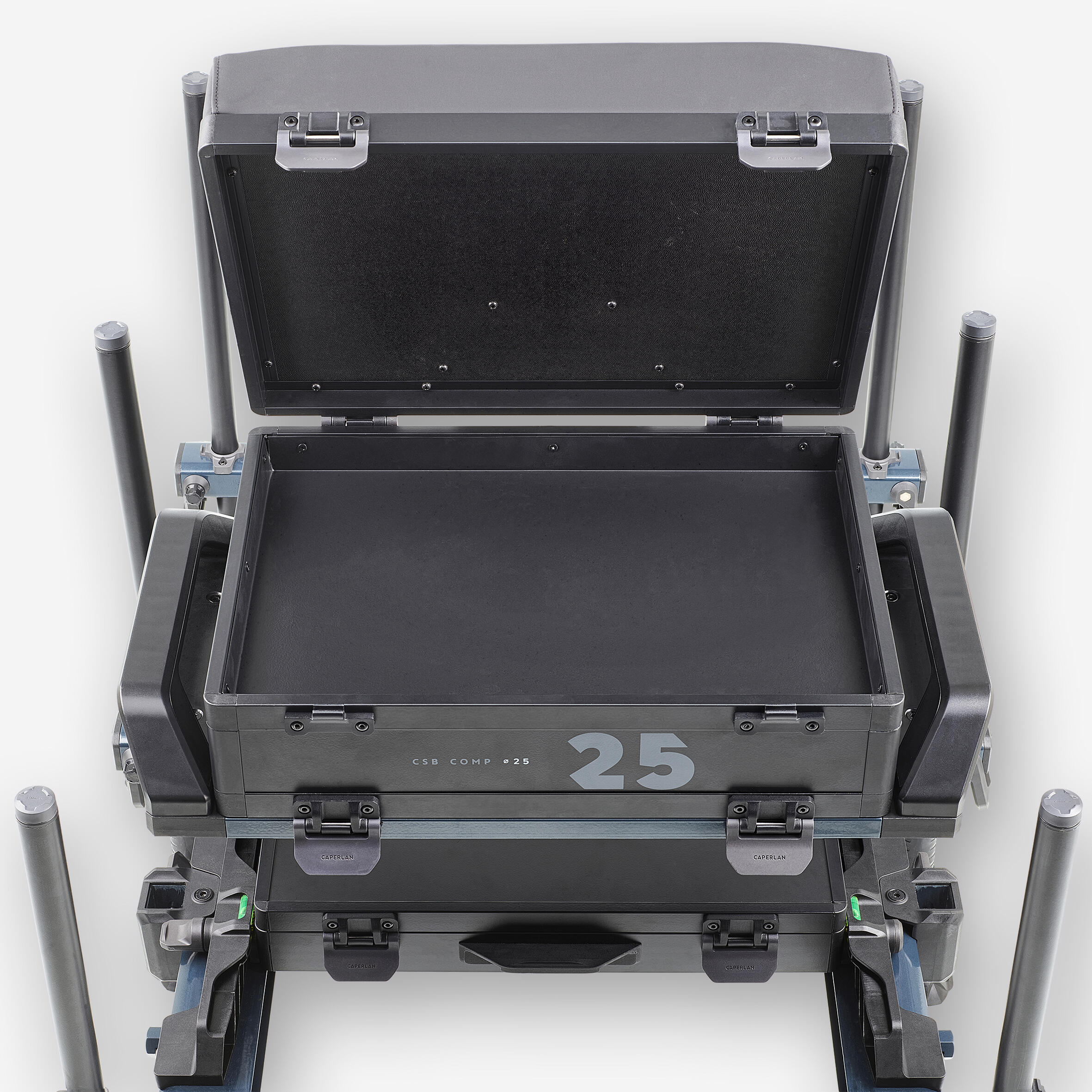

COMPARTMENTS AND DRAWERS
It allows you to store all your accessories for pole, match or feeder fishing.

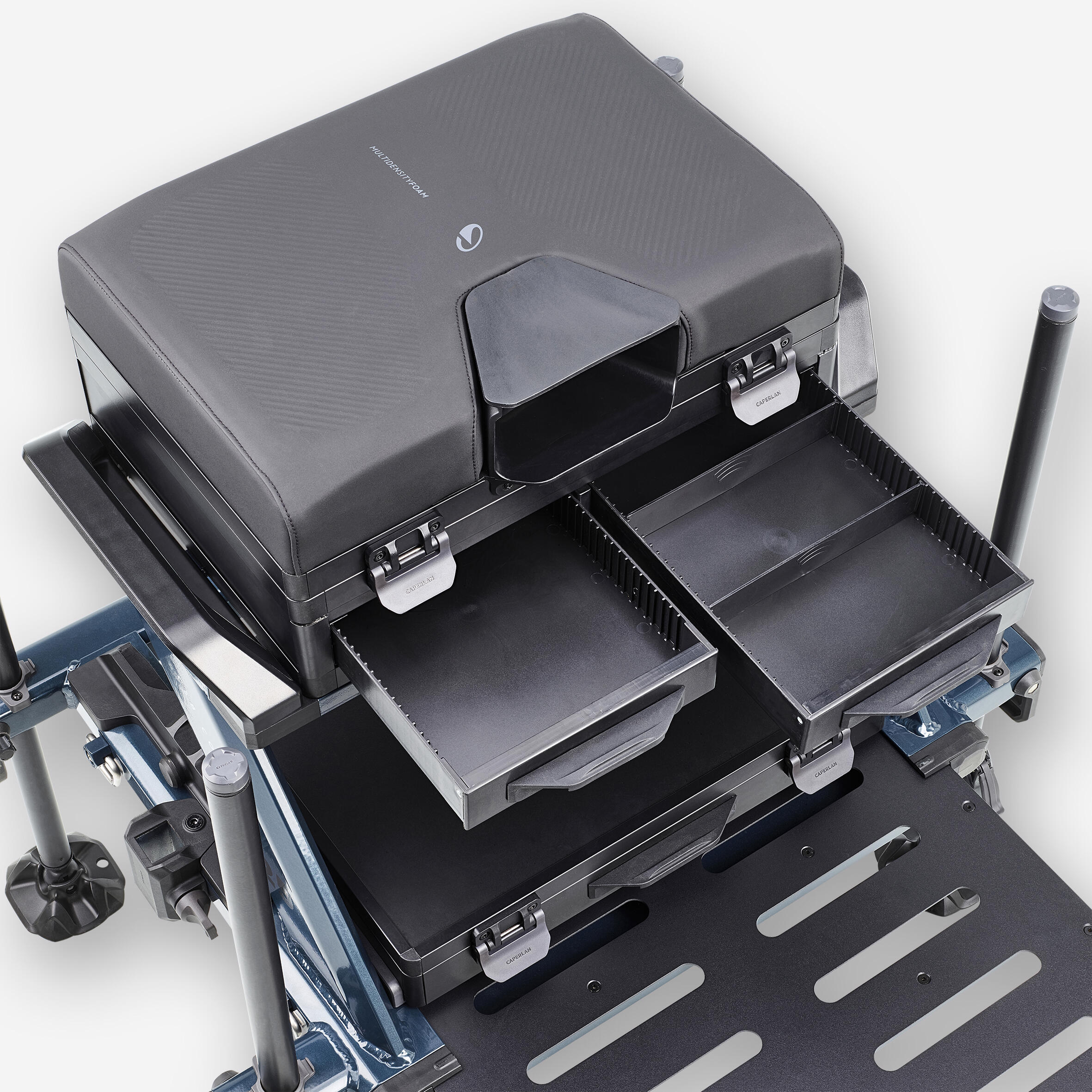

Detachable partitions in the 2 drawers for greater modularity.
The bottom box (front/rear) is detachable so you can keep your equipment within reach without getting up.
A safety catch on the side prevents it from moving during transport.
This catch also allows you to put your boxes facing the rear of the station.

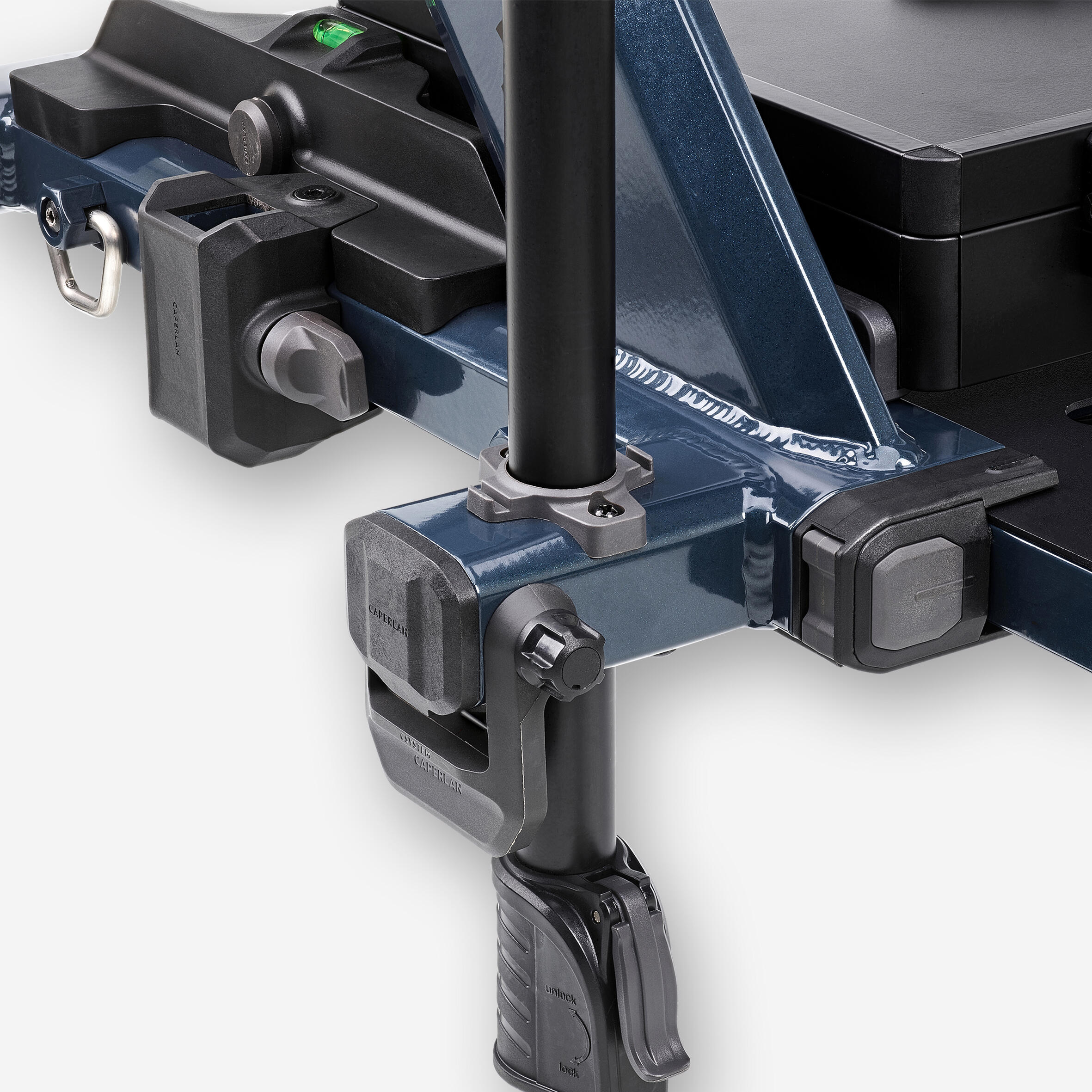

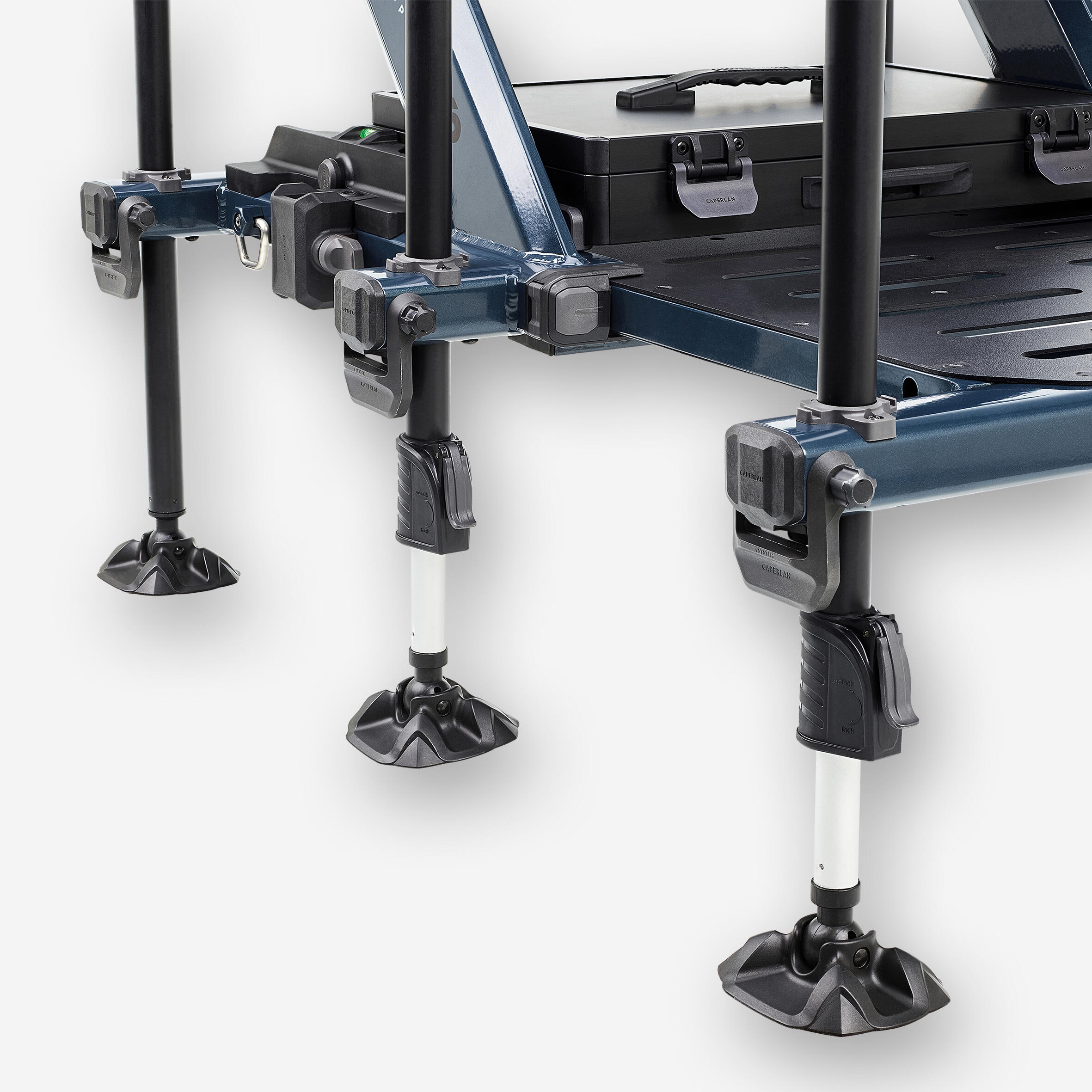

LEGS

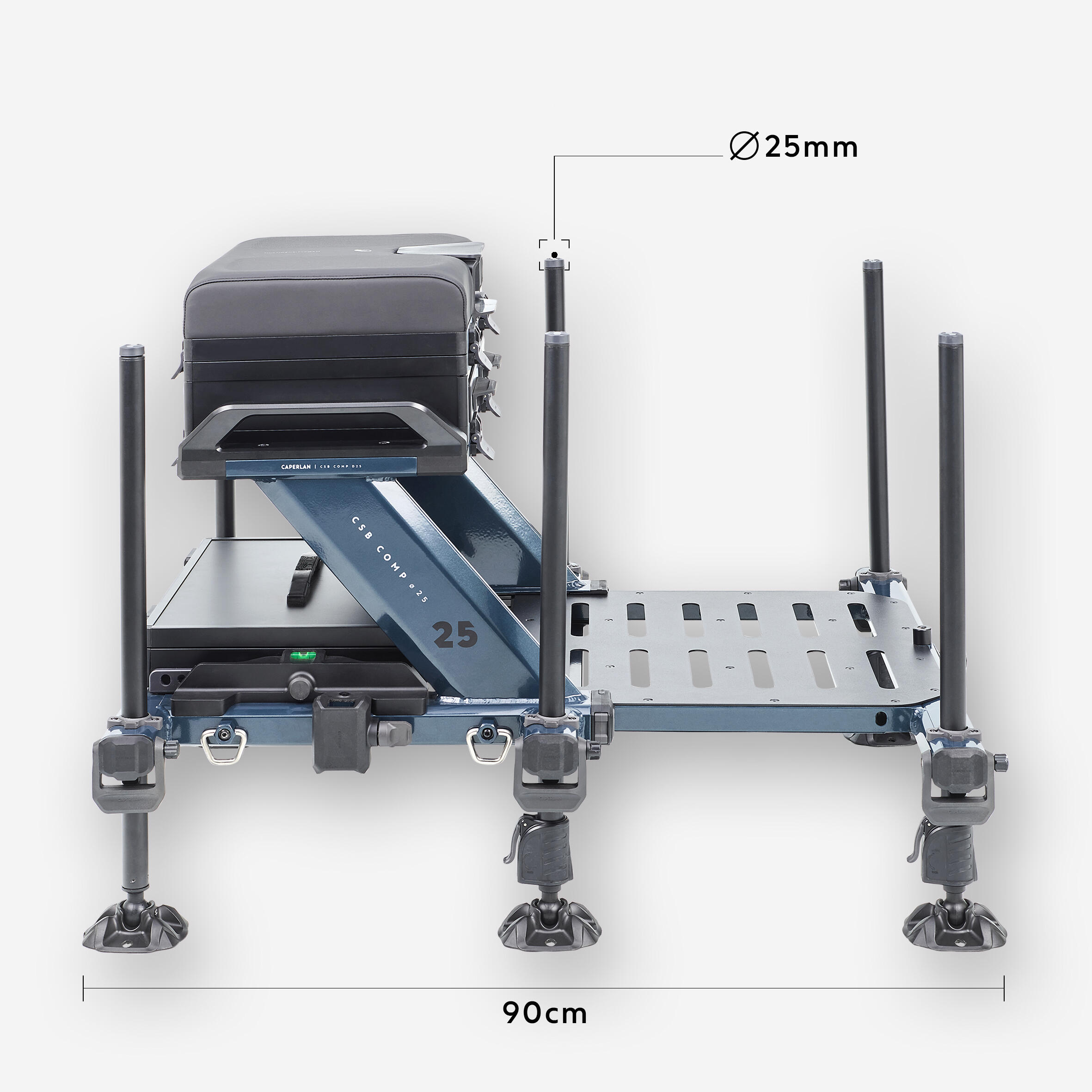

Diameter: 25 mm
4 telescopic legs: 57/89 mm

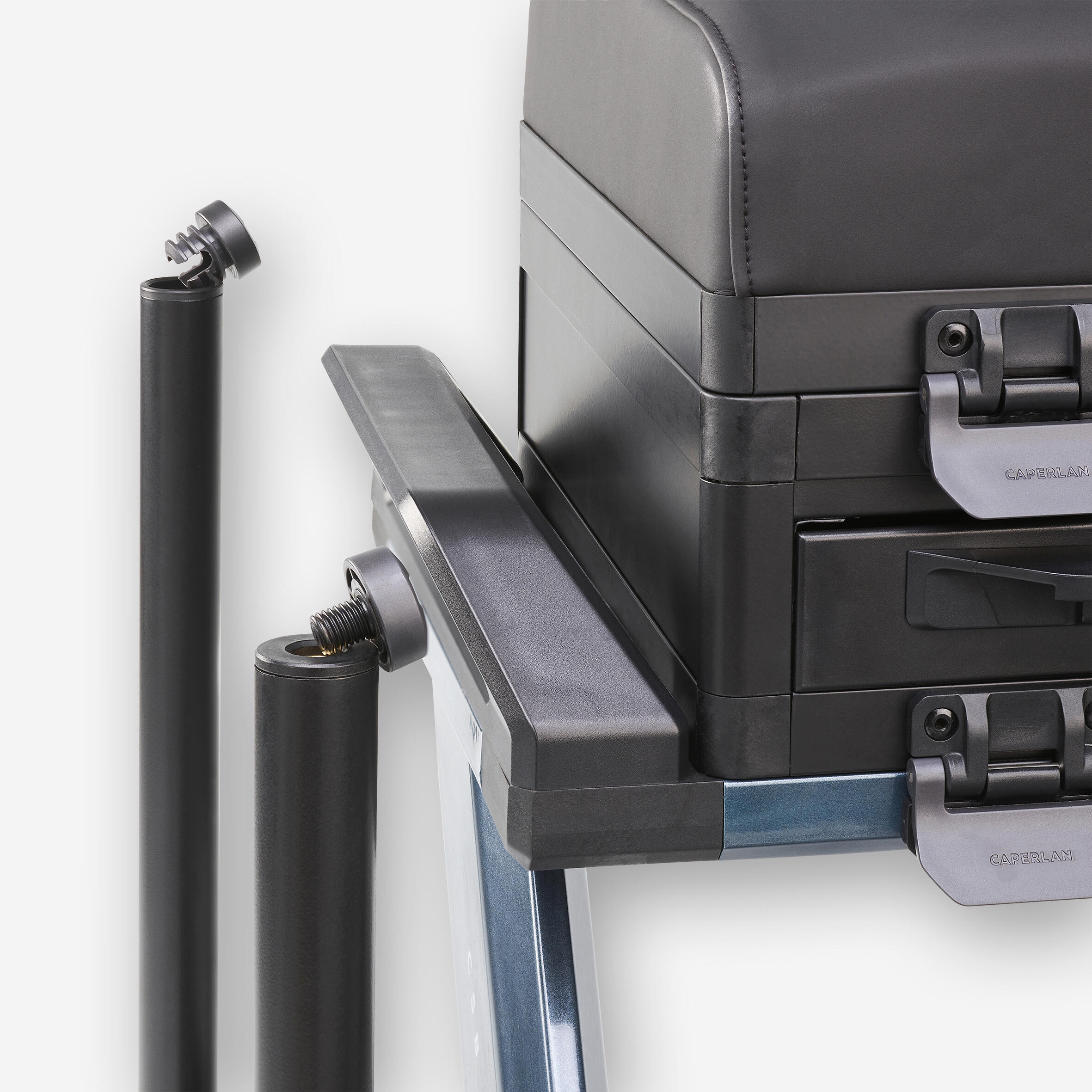

=> with the possibility of attaching accessories on the universal thread screw
2 fixed 57 cm legs with an umbrella support
This leg diameter saves weight, while remaining stable (meets the EN58112_1 and 2 10 kg camping standards)
Compatible with all CSB CS accessories with a D25/D36 connector
FEATURES

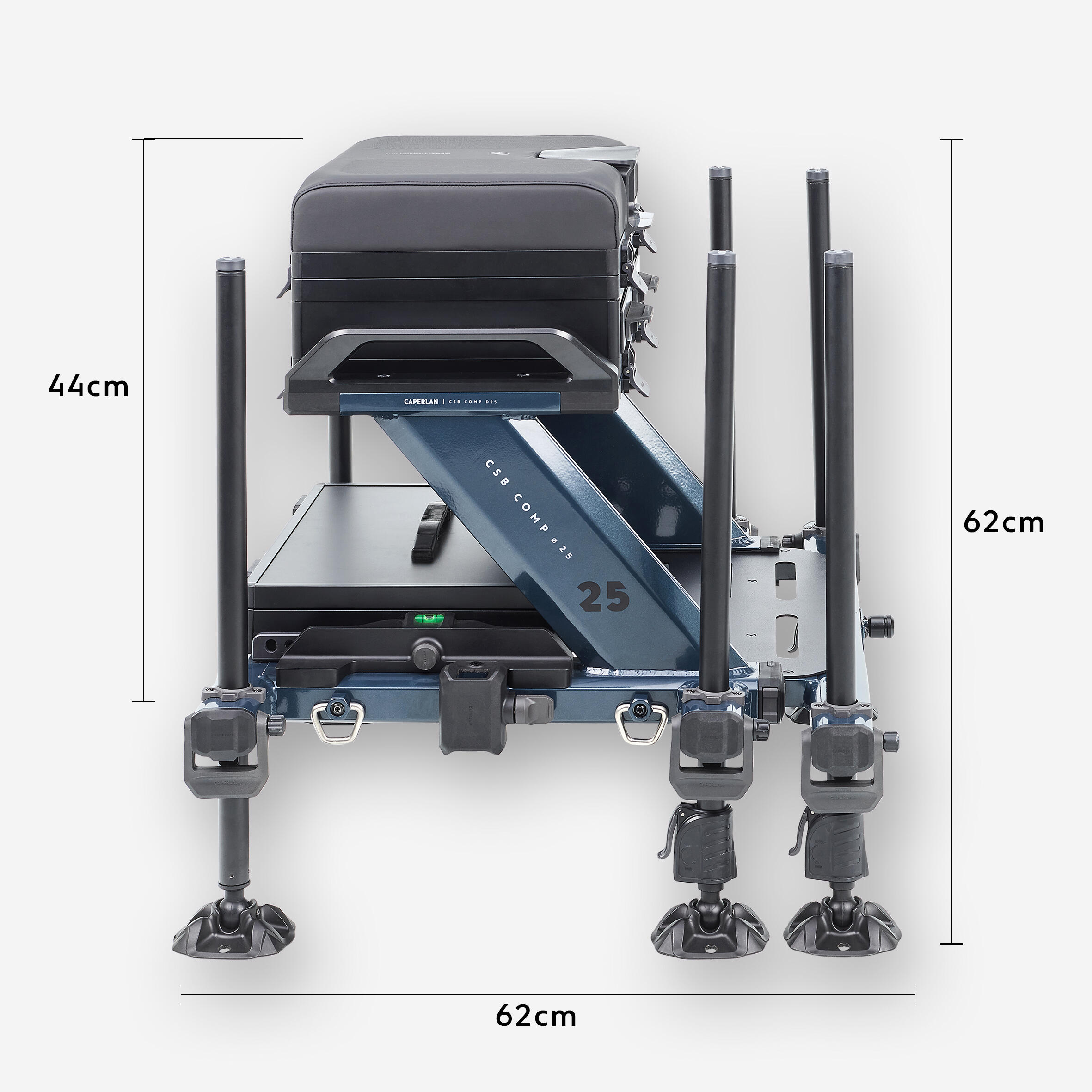

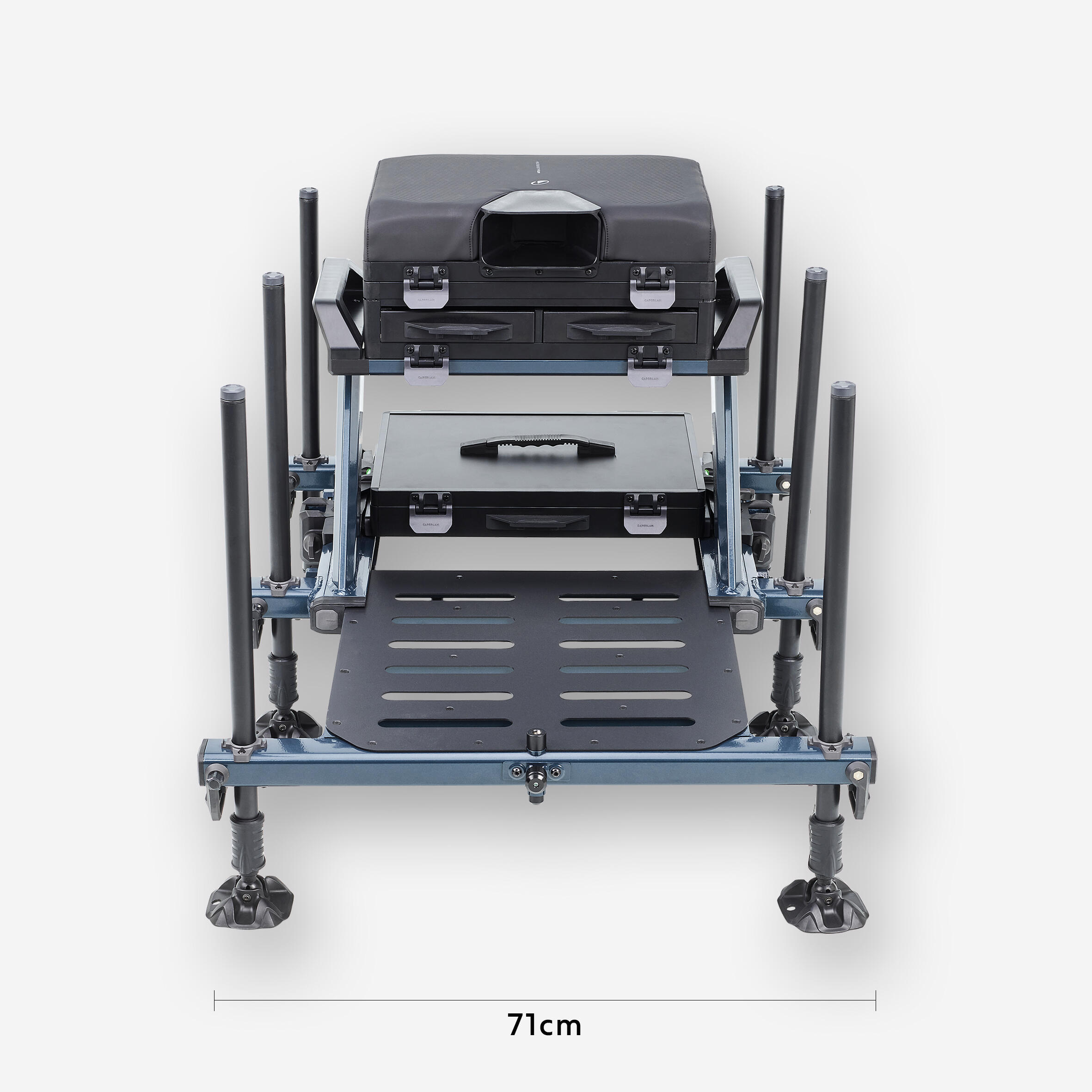

DIMENSIONS
- Height: 57 cm ( height of the folded legs)
- Width: 70 cm
- Platform depth: 44 cm
- Height between the platform and the seat: 44 cm
SIZE
- Folded: 60 cm x 70 cm
- Unfolded: 88 cm x 70 cm

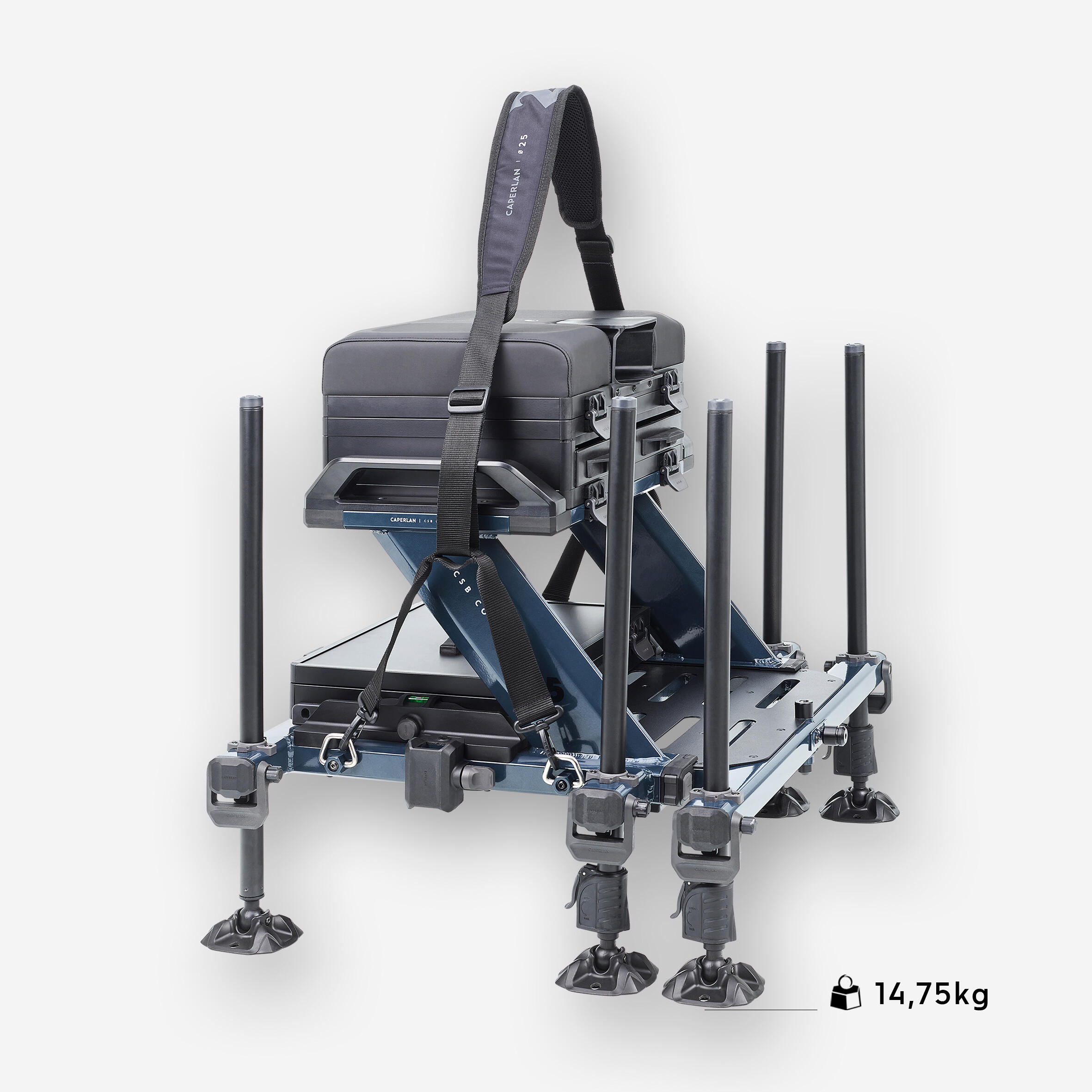

Weight of the station with the 2 drawers: 14.7 5kg
Weight of the detachable accessories:
- Cover + detachable box: 1.8 kg
- Carry strap: 0.15 kg
SPARE PARTS 1/2
8759027 SPARE CSB LEG TELESCO D25 57/89 CM
8759026 SPARE CSB LEG TELESCO D25 60/110 CM
8759037 SPARE SEAT WITHOUT BACKREST STATION CSB D25 D36
8759035 SPARE CSB CONCENTRIC SYSTEM D25
8929940 SPARE CSB STATION PLATFORM D25 COMP
8809613 SPARE STATION PLATFORM LOCK
8759907 SPARE CSB BUTT SUPPORT FOR SEATS STATION CSB D25/D36
8759914 SPARE CSB LOCKER COVER
8827631 SPARE CSB ST SLIDING LOCKER FOR STATION CSB
8759039 SPARE SIDE SUPPORT CASING FOR WHEEL STATION CSB
SPARE PARTS 2/2
8929863 SPARE LEG CAP STATION D25 X 2
8861700 SPARE SIDE HANDLE FOR CSB STATIONS
8809606 SPARE LOCKER LOCK BLOCK CSB LBT FOR STATION
8396643 CSB KEEPNET SUPPORT CSB
307209 CARRY STRAP STATION CSB
8929943 SPARE CSB PLATFORM SIDE EXTENSION PLE D25
ACCESSORIES COMPATIBILITY
CSB D25 COMP station compatible with all the accessories in the CSB CS range equipped with the D25 D36 adapter.
