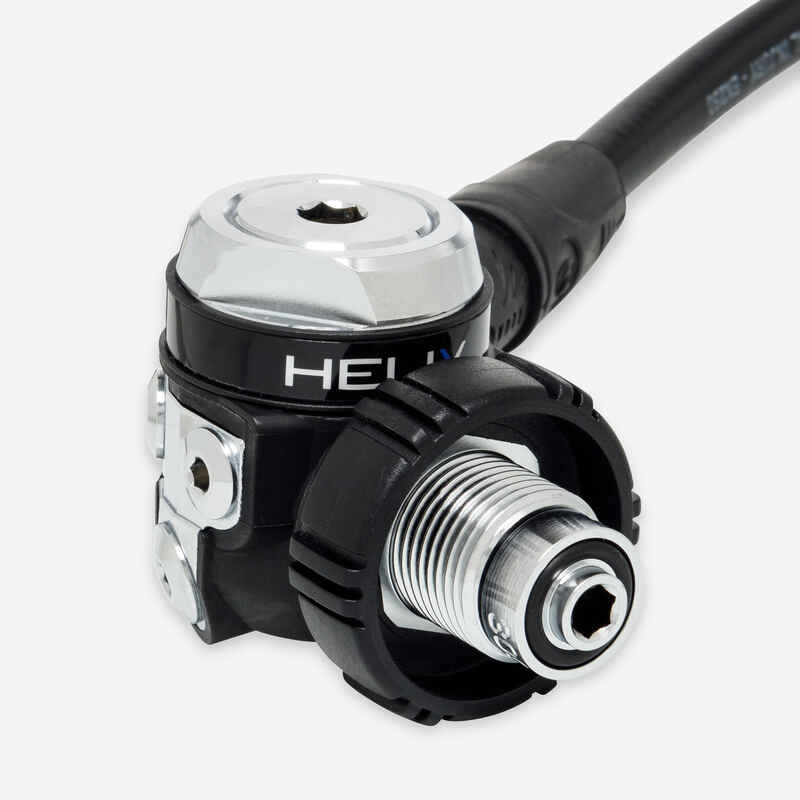

FIRST STAGE

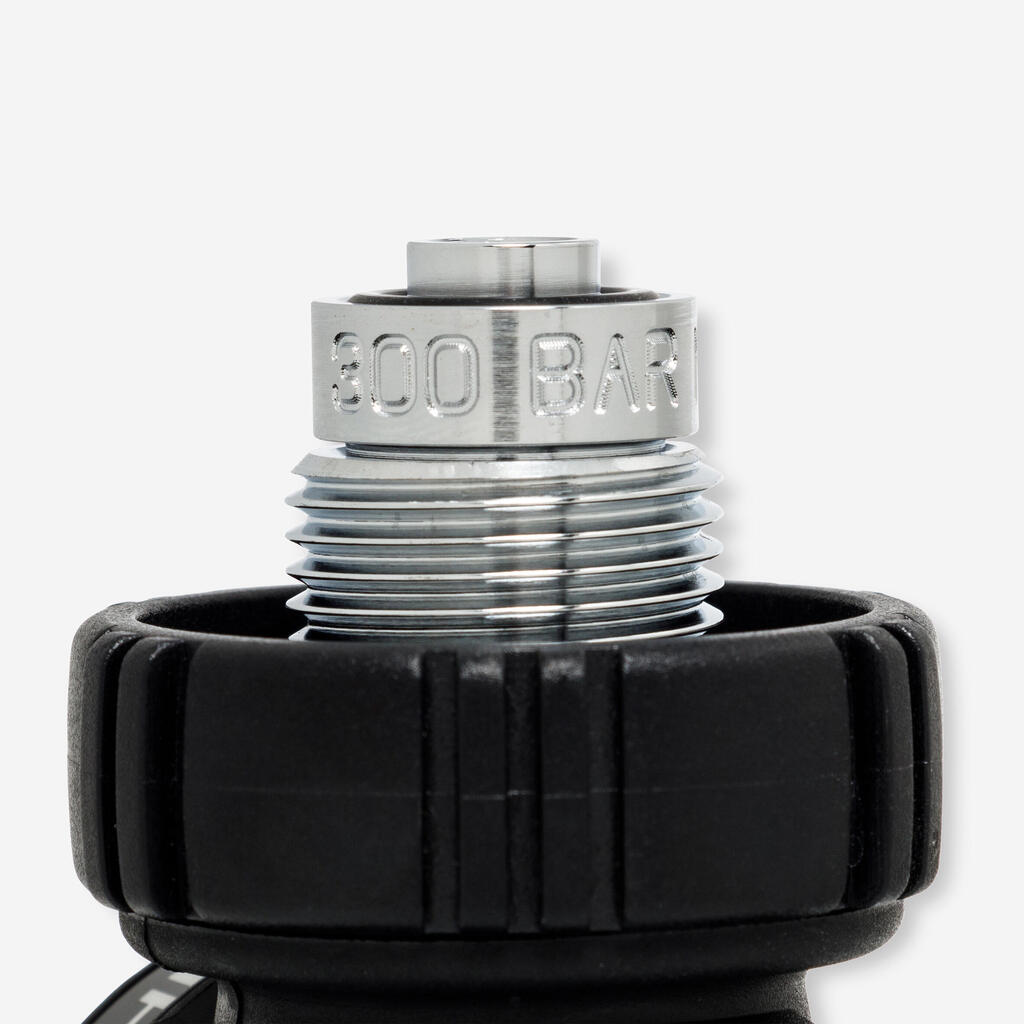

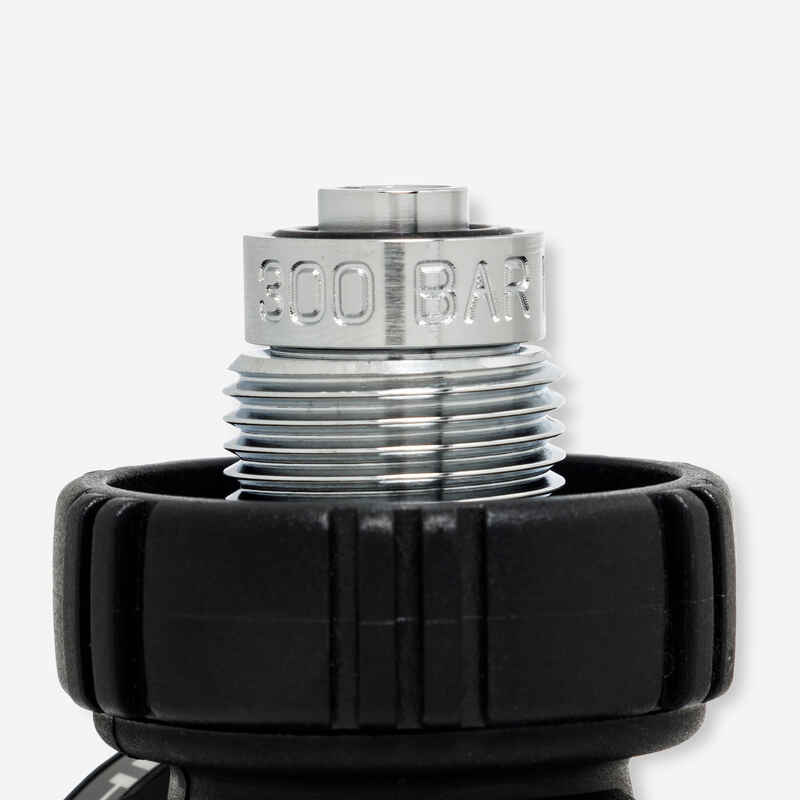

DIN cables (max 4,350 PSI / 300 bars)
Pressure equalisation membrane with T mechanism (constant performance at any depth and regardless of the remaining pressure in the cylinder/tank)
Stainless steel removable seat.
Flow rate at 200 bars: 1500 L/min.
T body with 2 HP outlets (7/16”) and 4 MP outlets (3/8”), perfectly placed for optimal positioning of the hoses.
Forged brass body with multi-layer chrome.
Weight: 525 g

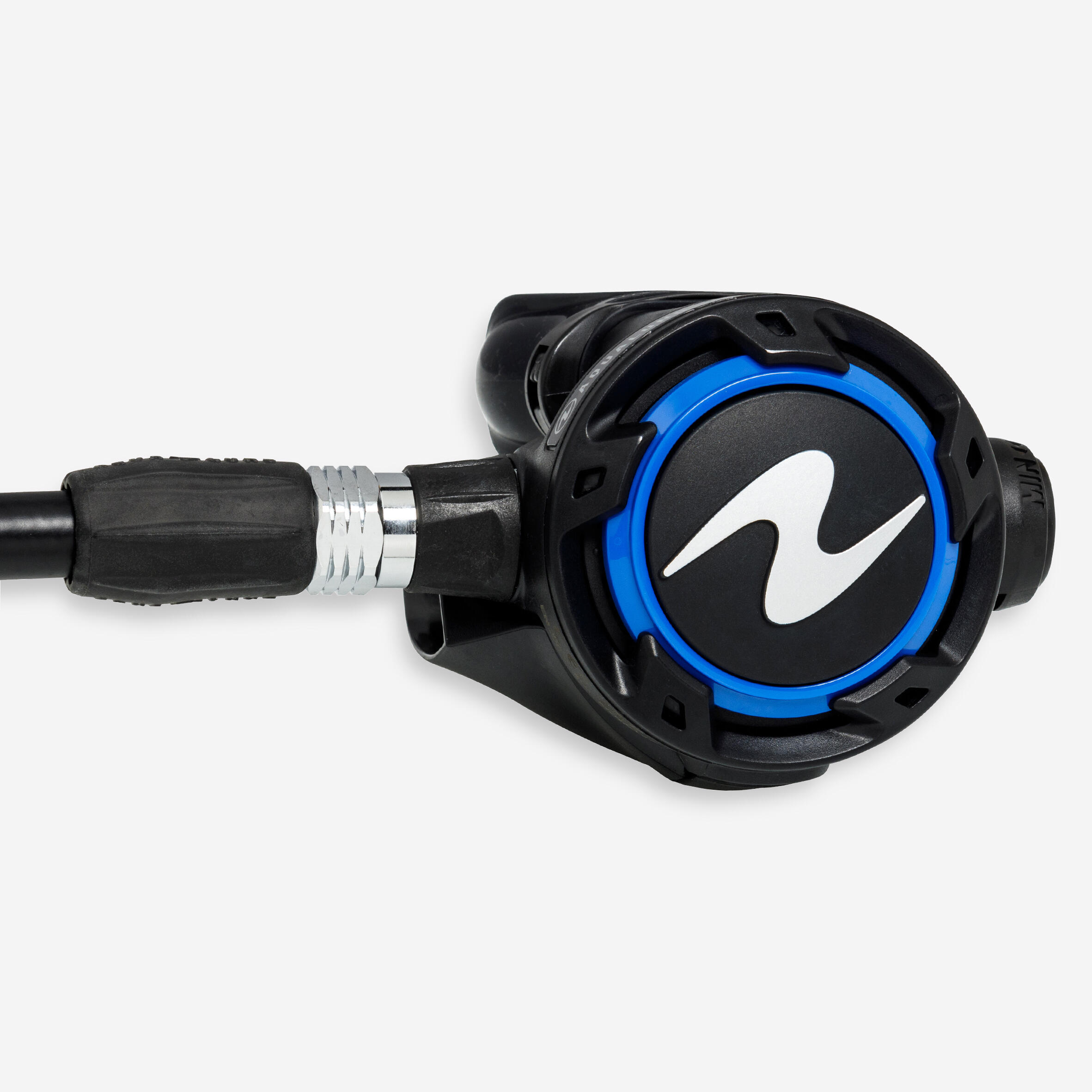

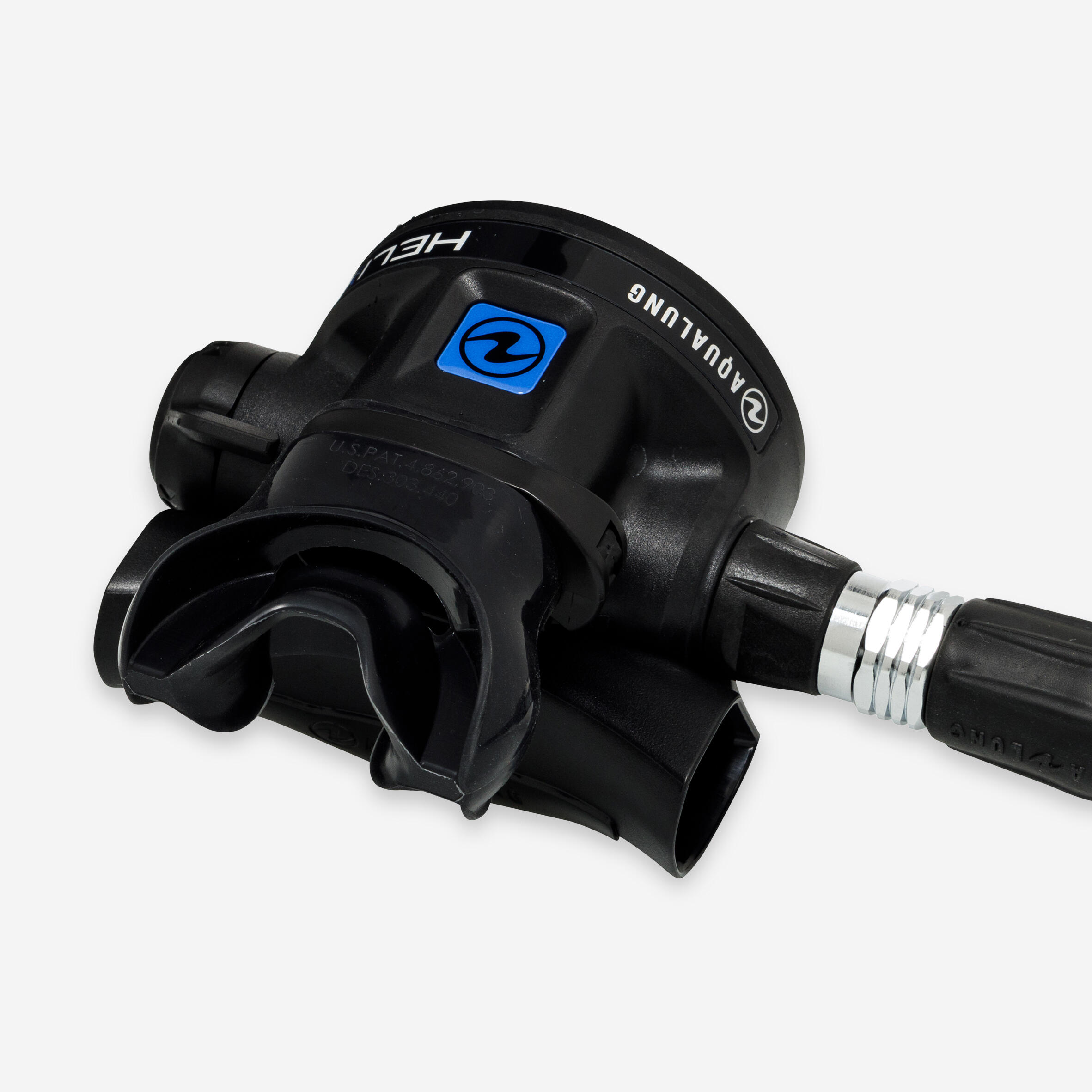

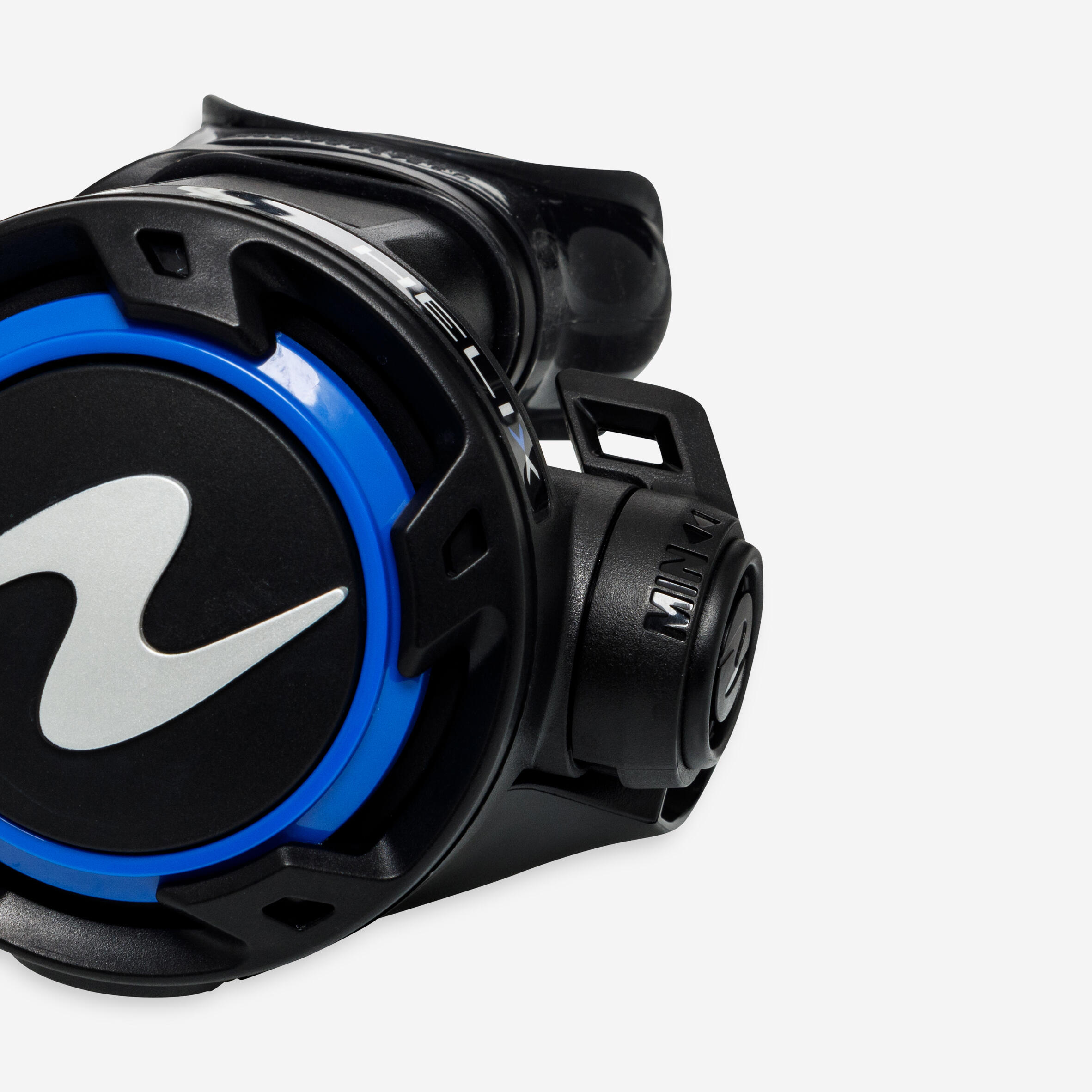

SECOND STAGE
Air pressure balancing system for easy, gentle breathing.
Venturi effect adjustment mechanism (ergonomic design for easy use, even with gloves).
Weight: 186 g

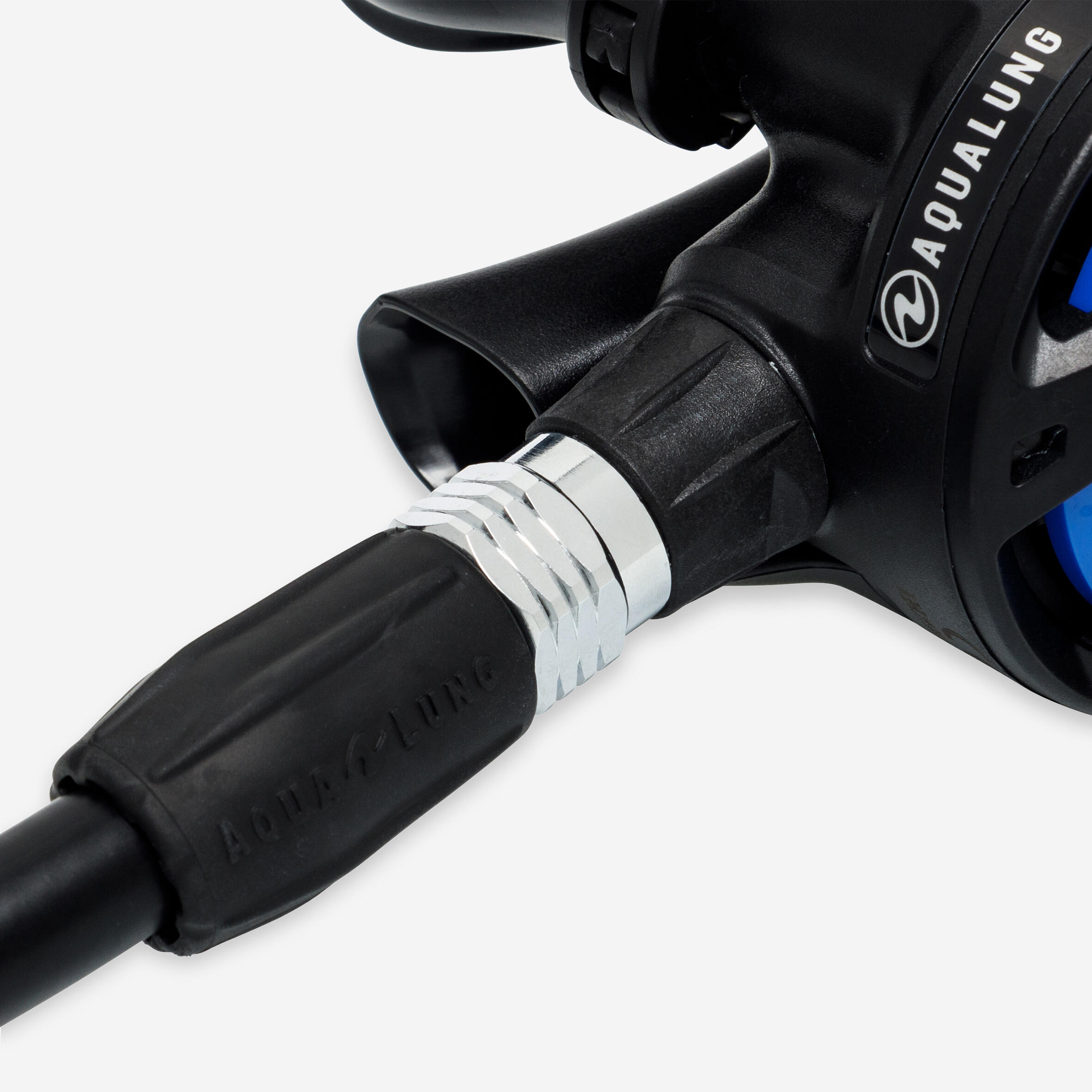

Hose length: 730 mm
Average work of breathing (WOB) 0.85 joules/litre
Flexible and robust Comfo-Bite mouthpiece that helps reduce jaw fatigue thanks to its unique mouth bridge.

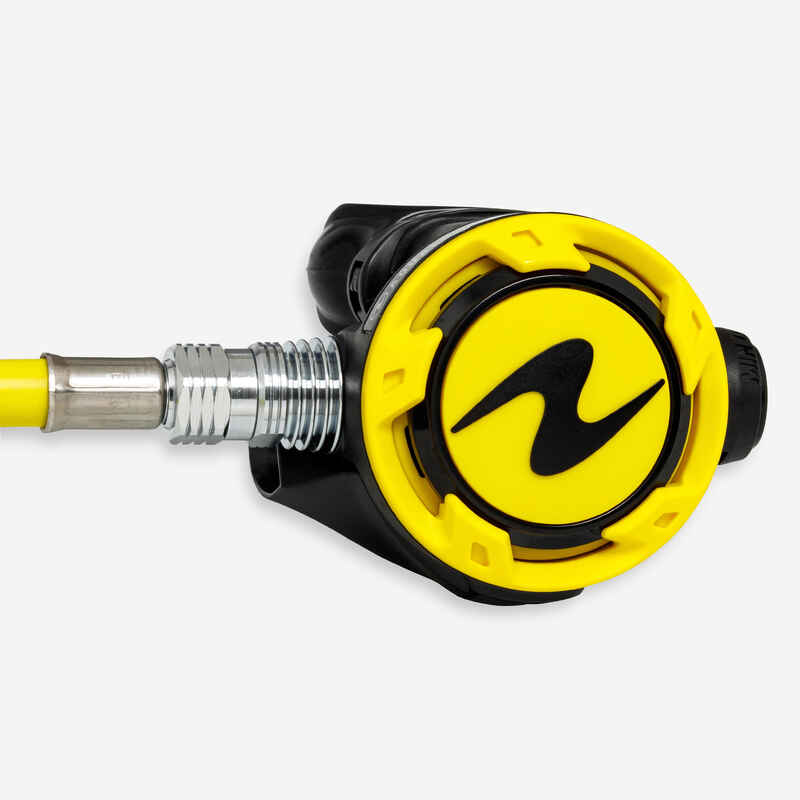

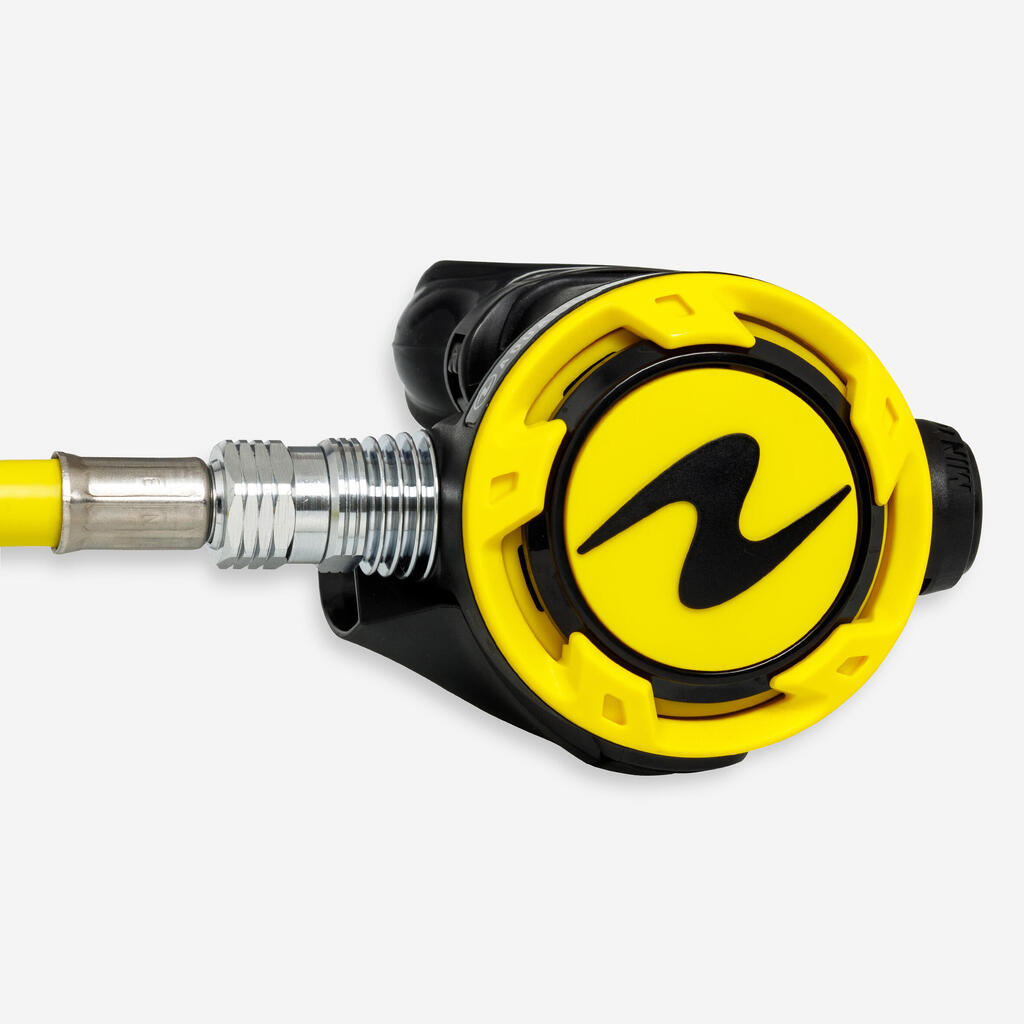

OCTOPUS
Air pressure balancing system for easy, gentle breathing.
Venturi effect adjustment mechanism (ergonomic design for easy use, even with gloves).
Heat exchanger to prevent freezing
Weight: 186 g
Hose length (yellow): 1000 mm
Average breathing rate: 0.85 joules/litre
Flexible and robust Comfo-Bite mouthpiece that helps reduce jaw fatigue thanks to its unique mouth bridge.
Luminescent yellow protective cover for better visibility.
CARE

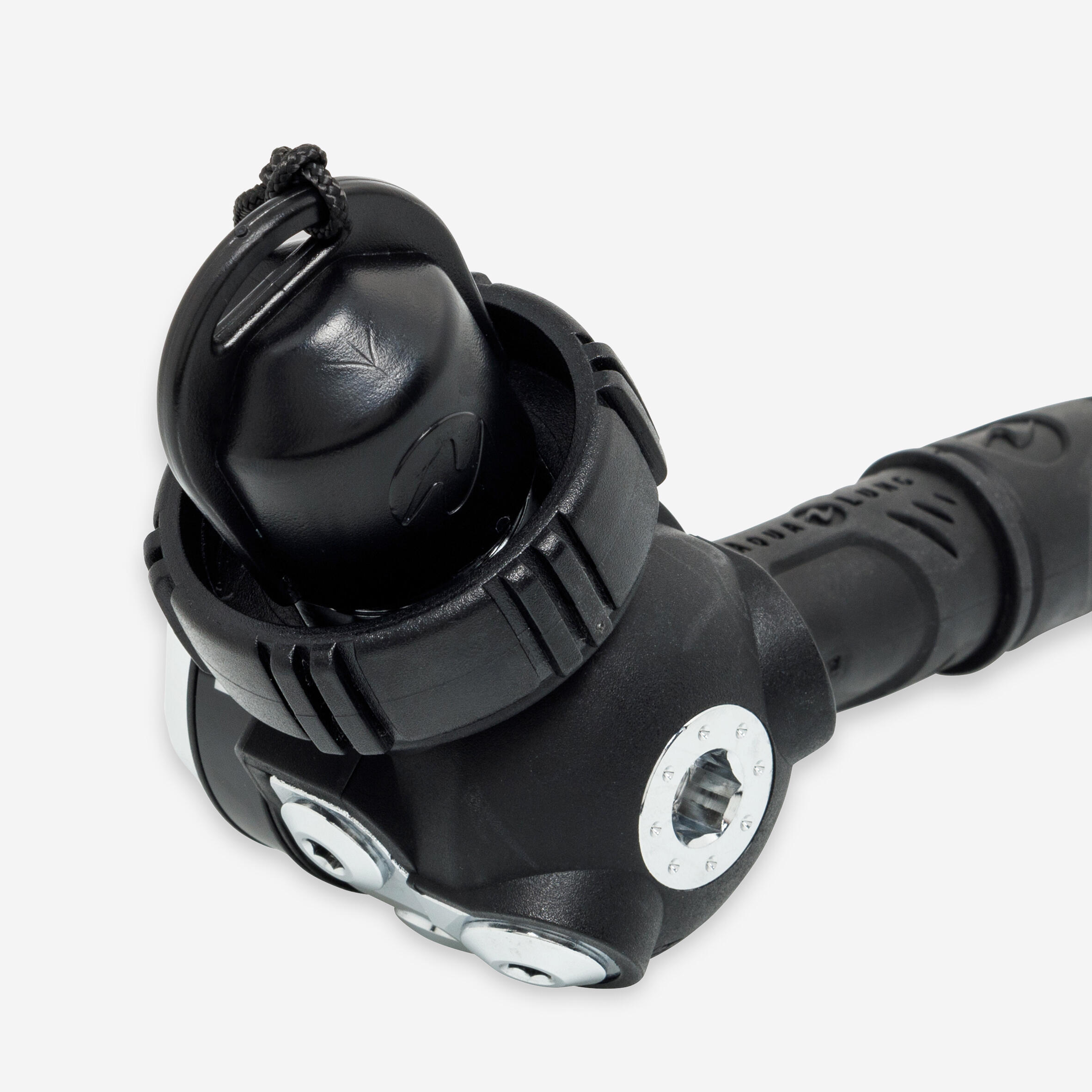

Make sure you put the dust cap on properly.
Soak the regulator in a tray of fresh water.
DANGER: If you use a hosepipe, do not use a pressure jet to clean the 2nd stage. The pressure of the jet could damage the membrane and/or the internal valve.
Wipe the regulator dry.
Do not expose your regulator to full sunlight for a lengthy period.
STORAGE
Store your regulator in a clean environment away from light and at a moderate temperature.
Do not store it near a source of heat or in a room that may contain chemical vapours like chlorine, ozone, etc. (e.g. a swimming pool machine room).
Never store the regulator on top of a cylinder/tank
DANGER: Never use solvents or hydrocarbon-based products to clean or lubricate your regulator. Never use spray cans.
SERVICING
Aqualung advises you to service your regulator every two years and to make a visual inspection at least once a year.
These two inspections should be carried out by a Aqualung approved workshop
Your regulator should be serviced more frequently depending on the number of dives and conditions of use.
