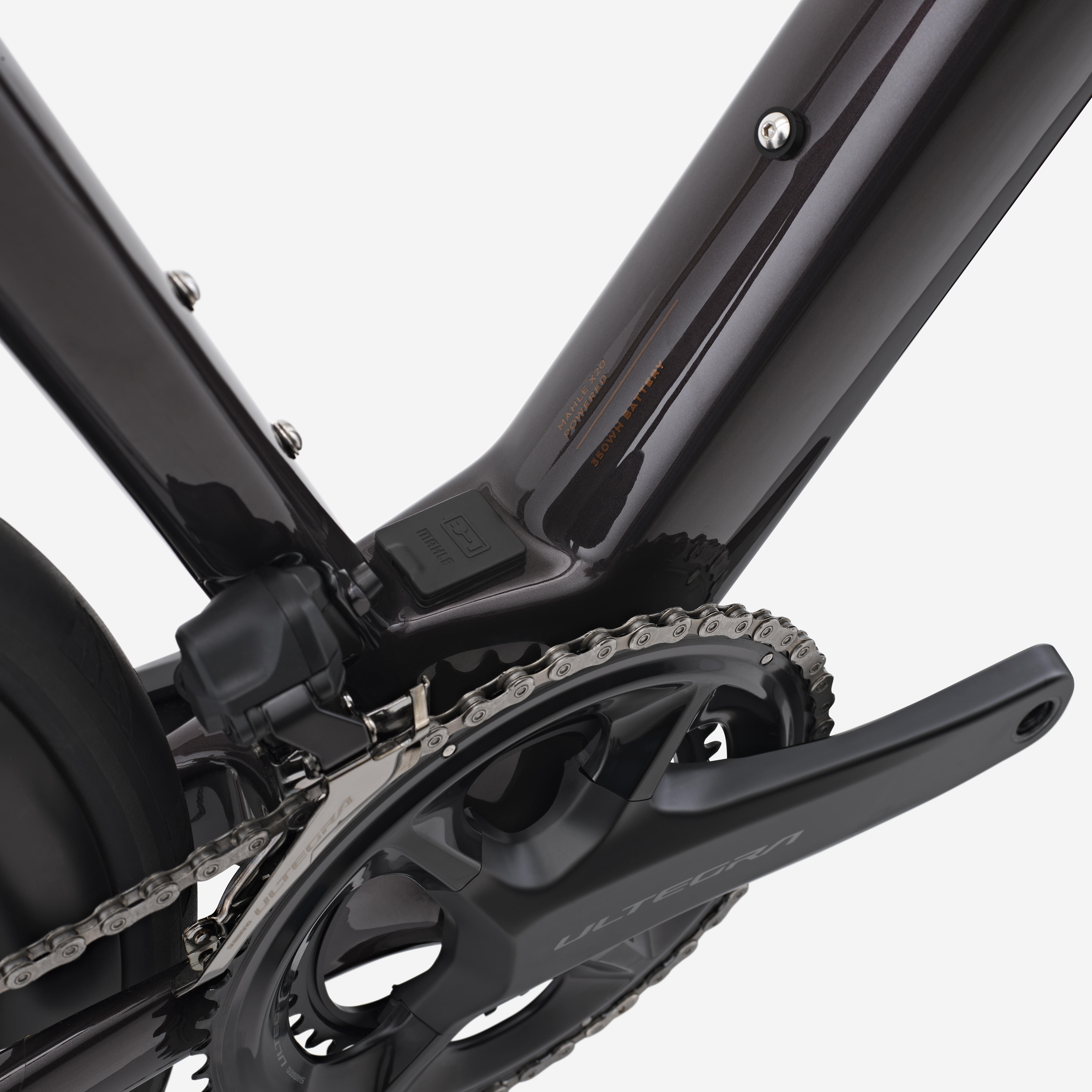

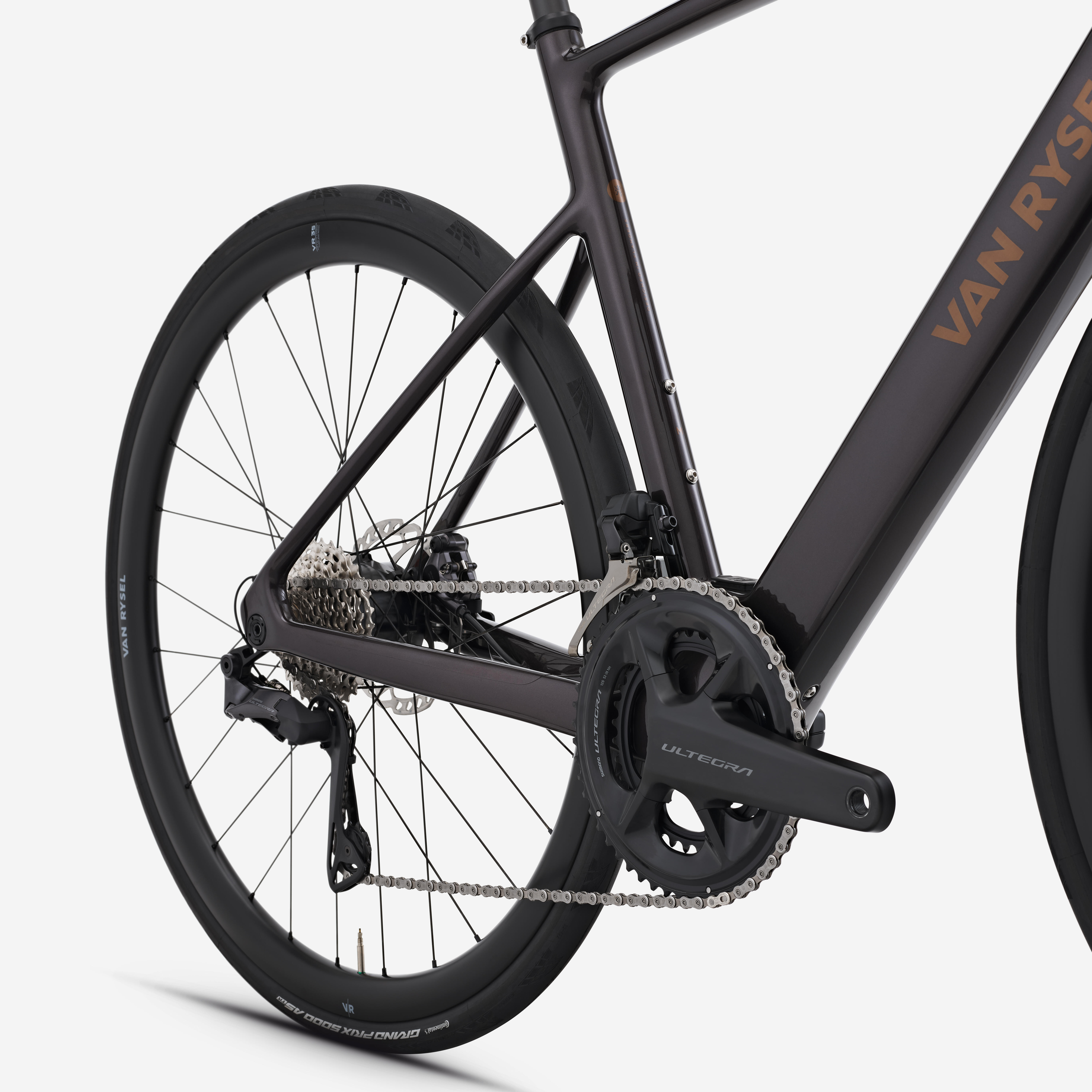

Drivetrain
Complete Shimano Ultegra Di2 groupset
Electronic transmission (battery in the seat post)
12-speed 11-34 cassette (11-12-13-14-15-17-19-21-24-27-30-34)
Compact 50-34 double chainring

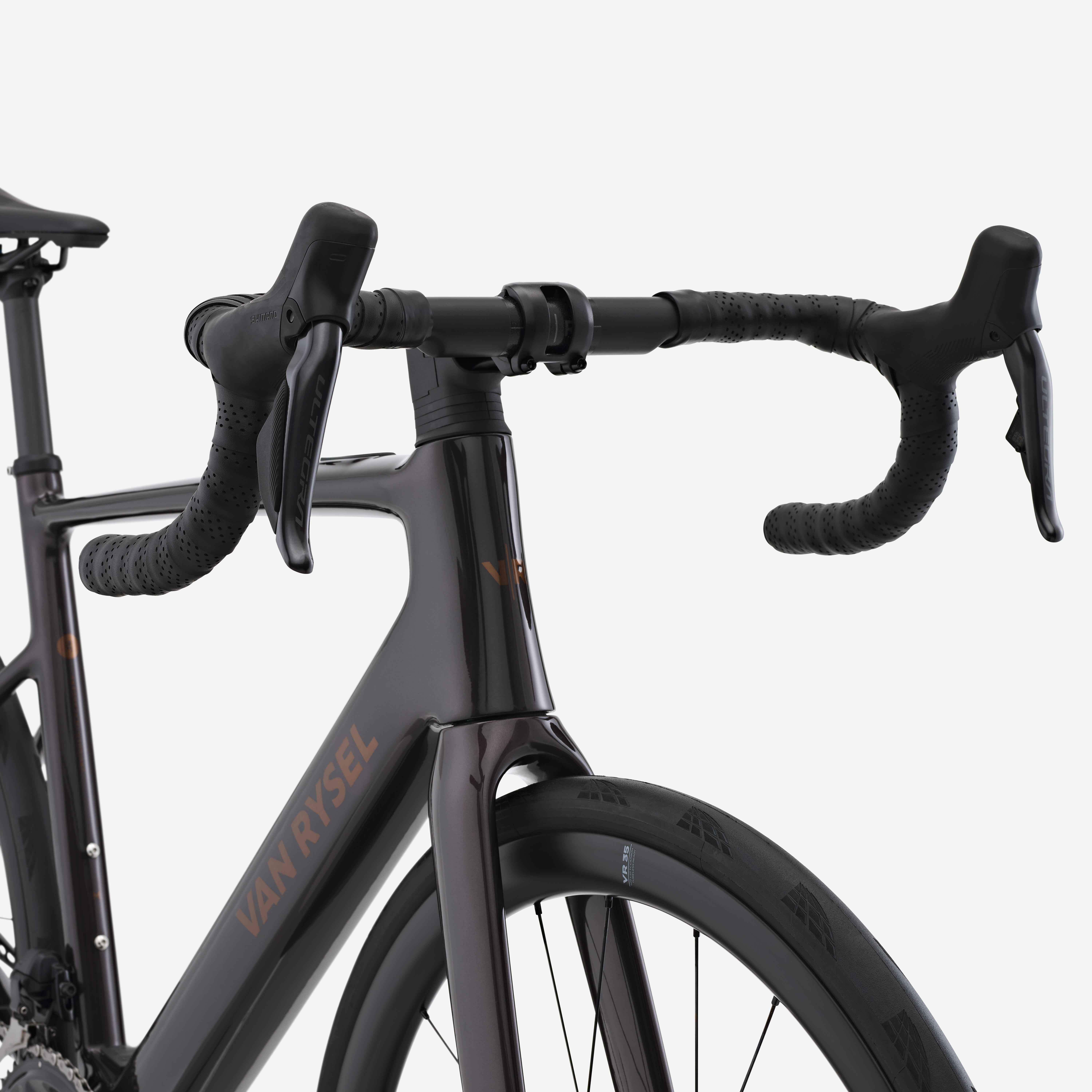

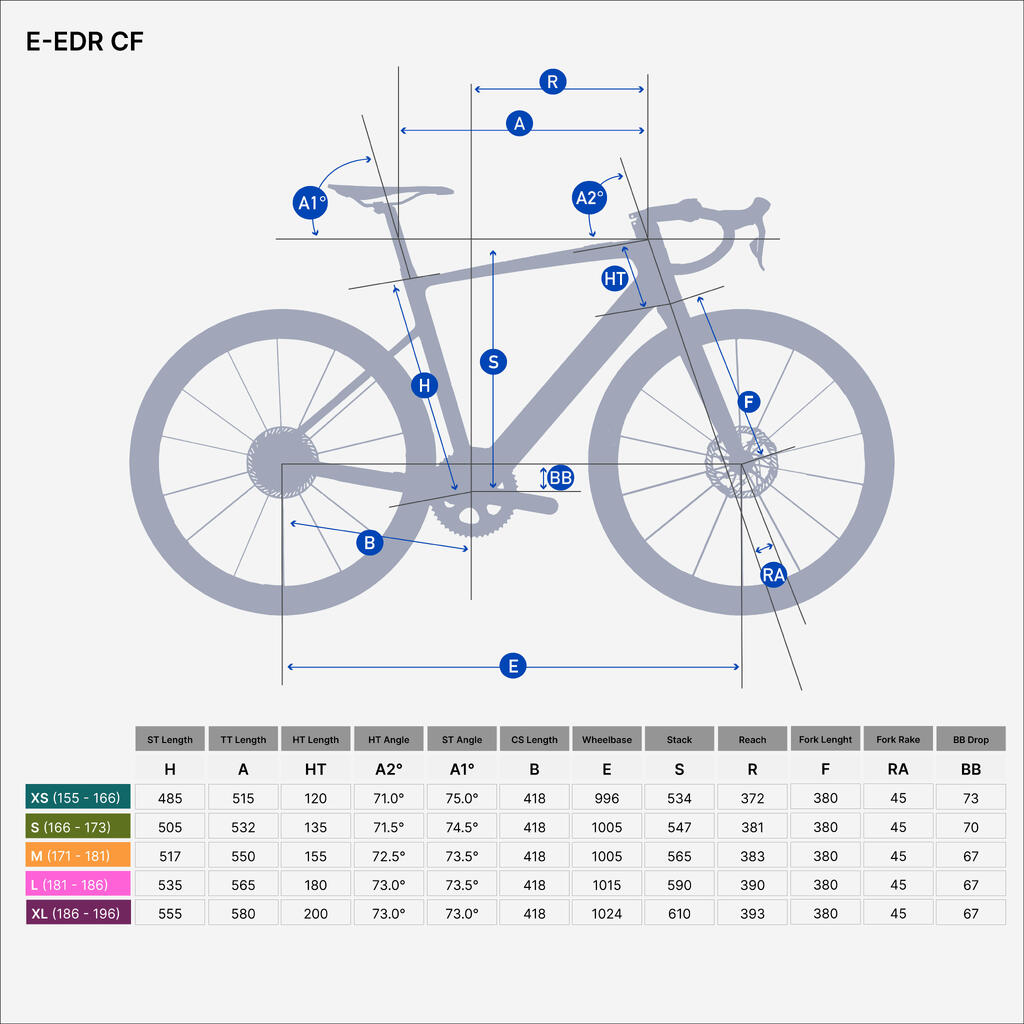

Position
DEDA X VR 31.8mm carbon handlebar, width XS S 400mm/M L XL 420mm
Van Rysel aluminium stem, length XS 70mm/S 80mm/M 90mm/L 100mm/XL 110mm

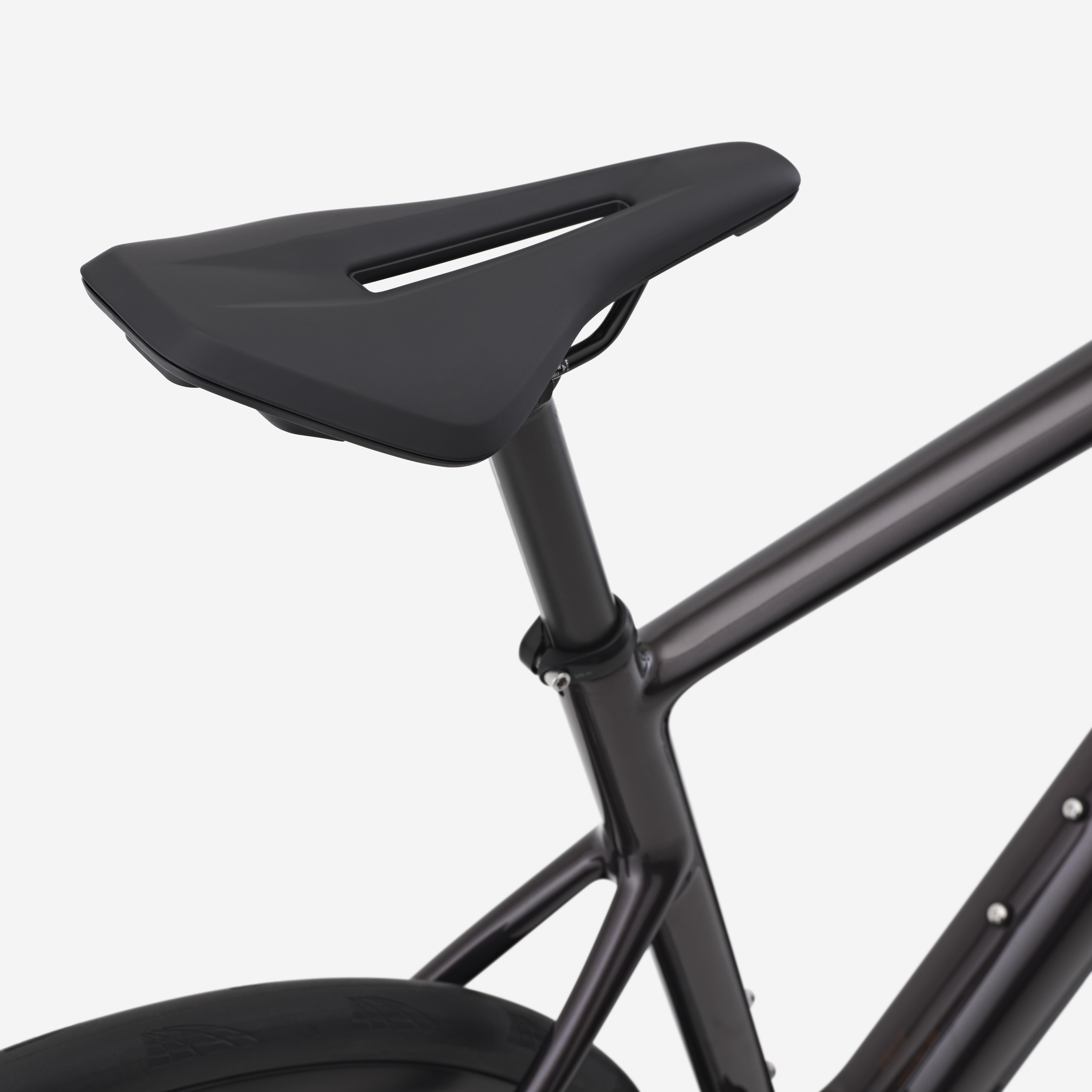

Decathlon Road Light saddle
Carbon seat post, diameter 27.2mm, length 300mm (XS)/350mm (S, M, L)/400mm (XL)
Ride all day long
The 350 Wh battery integrated into the frame provides a maximum battery range of 150 km to let the miles fly by. Our optional 171 Wh battery extender, built discreetly into the spot for one of the bottle cages, brings the maximum battery range up to 200 km for full-day expeditions. Of course, the indicated maximum battery range will vary depending on the assistance level used, the route, the cyclist's weight, the temperature, etc.
Battery
battery completely integrated into the frame with charging point on the frame
capacity: 350 Wh
full charge time: 3 hours
Compatible with a 171Wh battery extension
Weight of range extender: 1100 g
Brakes
Shimano Ultegra
hydraulic disc brakes
flat mount
160mm rotors

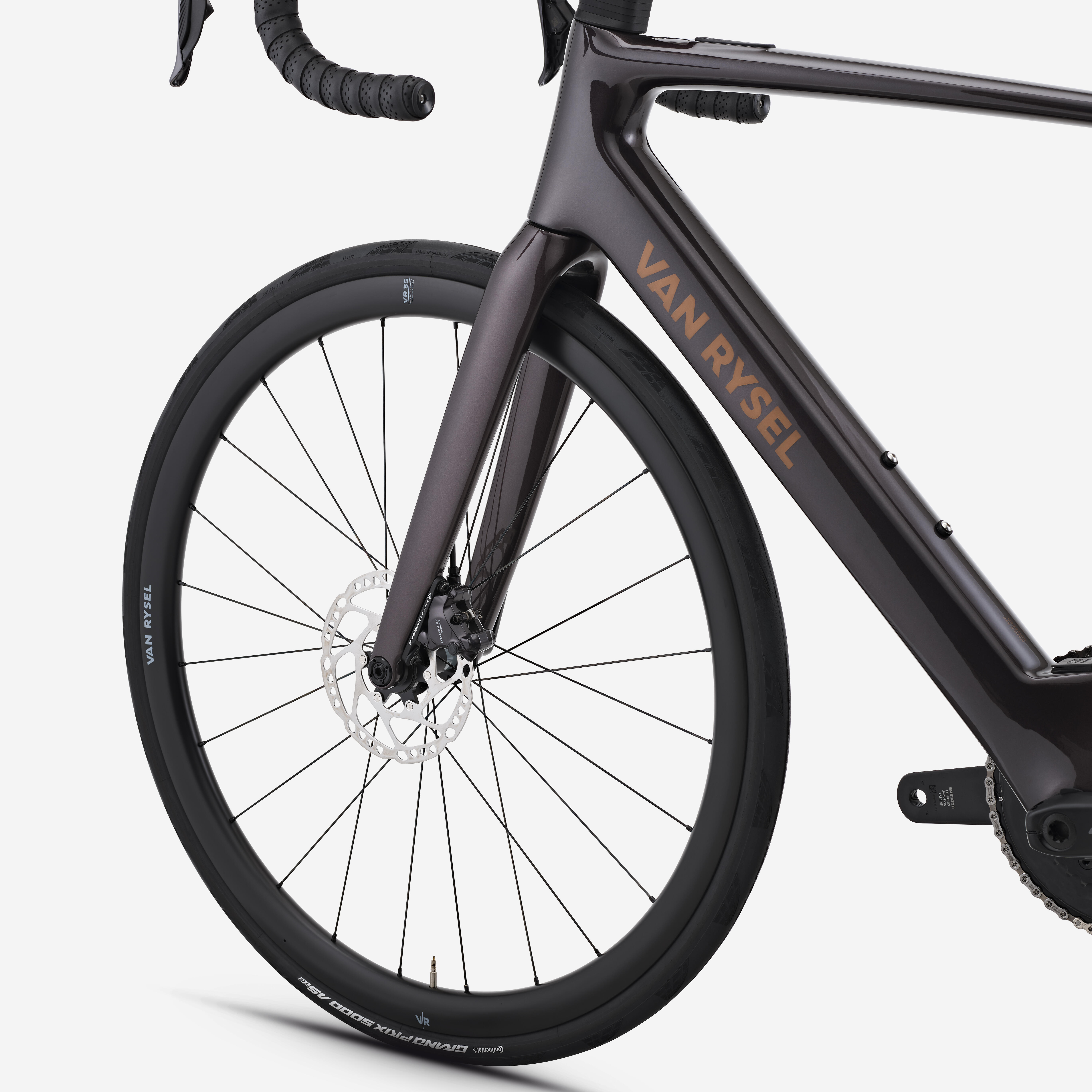

Fork
full carbon
flat mount disc brakes
thru axle
internal cable routing
700x32 mm travel
Next generation Mahle X20 electrical system
With the fully integrated system and lowest weight on the market, you'll barely even notice the X20 until you feel its 60 Nm of torque.
The new torque and cadence sensor located in the chainset accurately picks up the wattage you're putting out so that it can use AI and machine learning to respond appropriately.
When the motor isn't providing assistance (>25 km/h), you won't feel any resistance or braking.
All the info at your fingertips

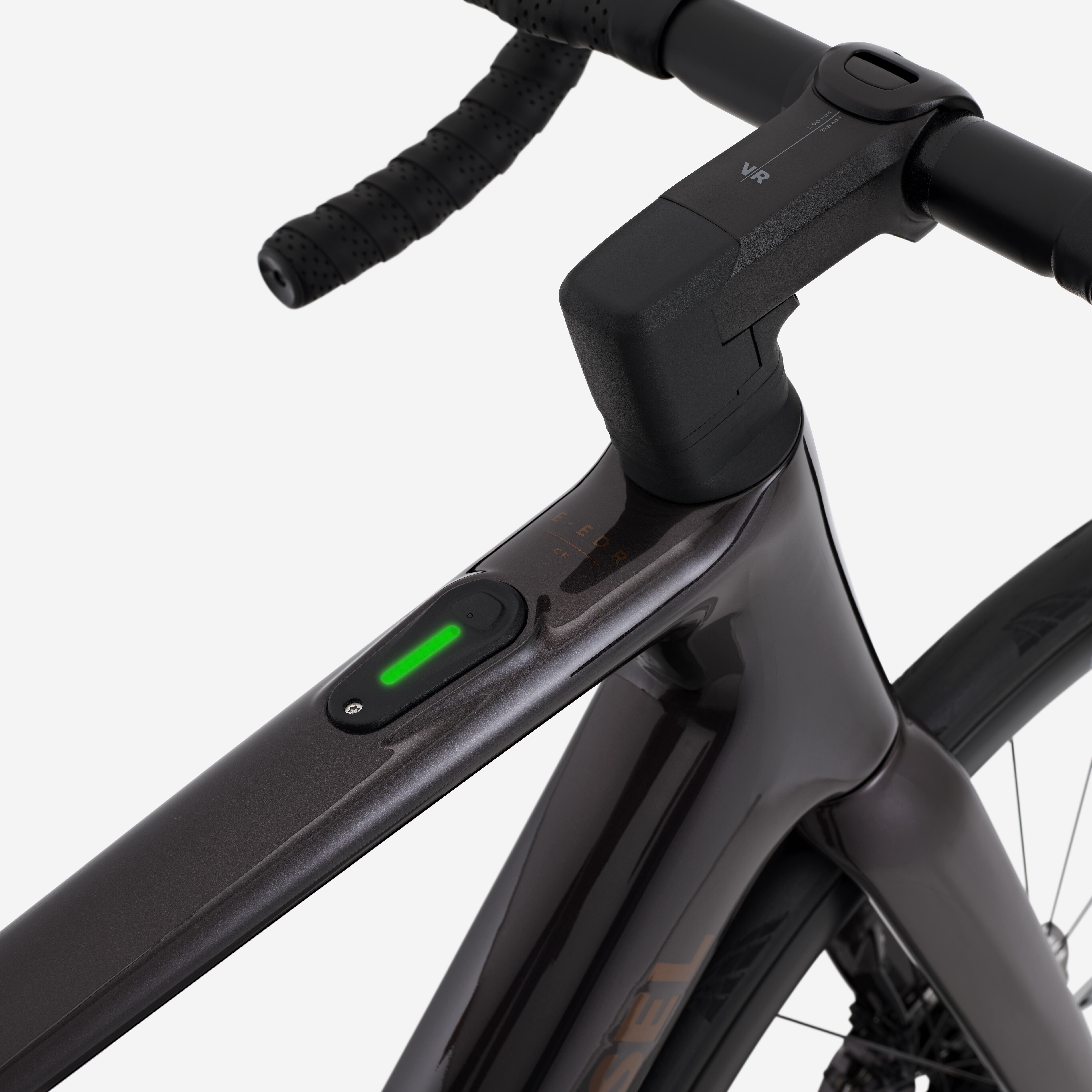

The compact info system on the top tube gives you all the stats you need in a single, lit-up line: battery level and assistance mode. Simply press the button once to change the assistance level.
What's more, with Bluetooth and ANT+ connectivity, you can connect your smartphone or cycle computer (Garmin or other ANT+ LEV-compatible cycle computer) and view all your e-bike data on your screen.

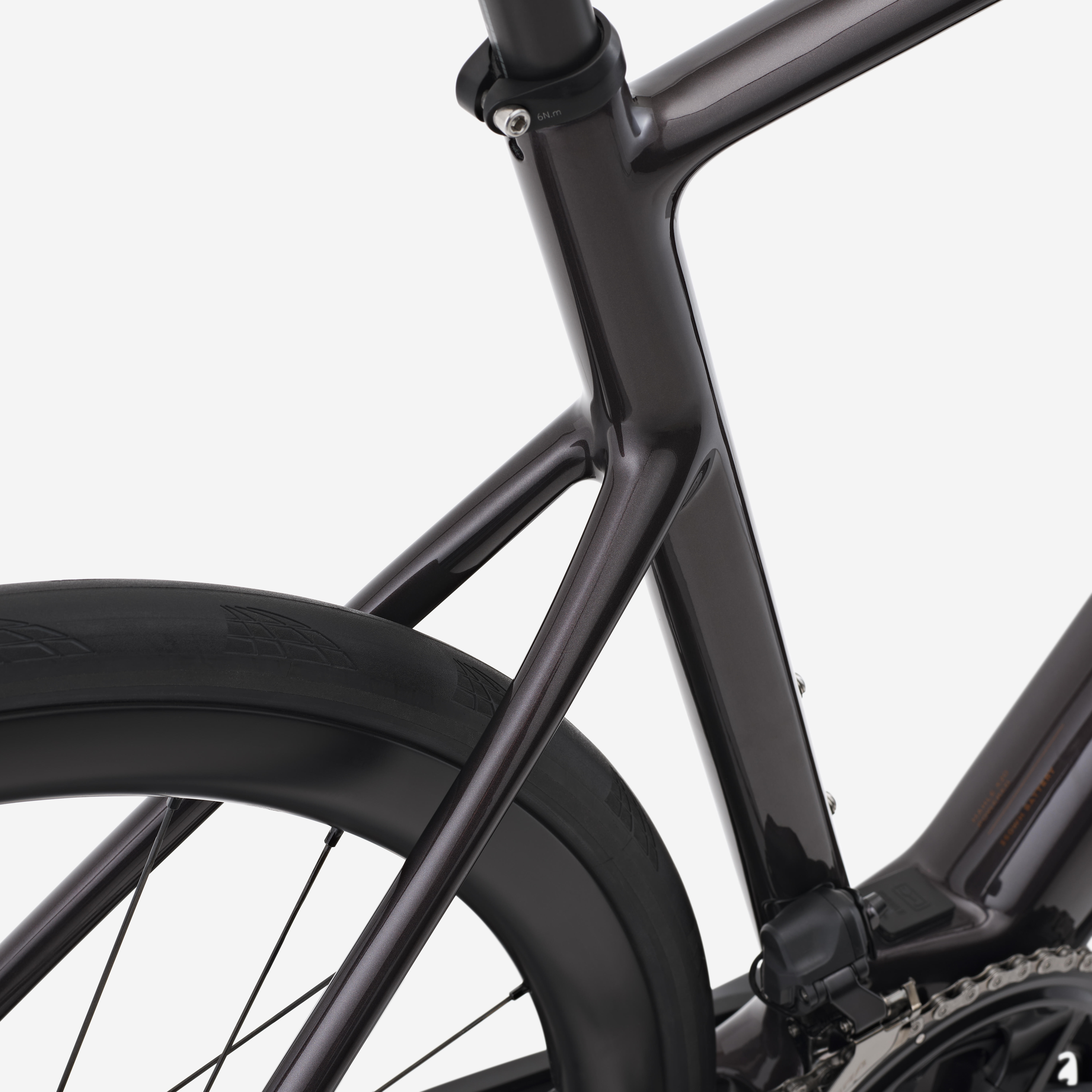

Frame
carbon frame
battery fully integrated into the down tube
flat mount disc brakes
thru axle
internal cable routing
700x32 mm travel
CAUTION:Carbon frames must not be secured on the top tube, seat tube and down tube using a clamp (workshop stand, bike carrier). Carbon is a very rigid material but it does not withstand compression.
WHEELS
Van Rysel VR35 wheels
carbon rim with hooks compatible with tubeless and tubed tyres
35mm rim height for ideal use on hilly and mountainous roads
internal width: 22TC
External width: 30 mm
through axle (front 12x100 mm, rear 12x142 mm)
hub:DT swiss DT370 Classic
Motor

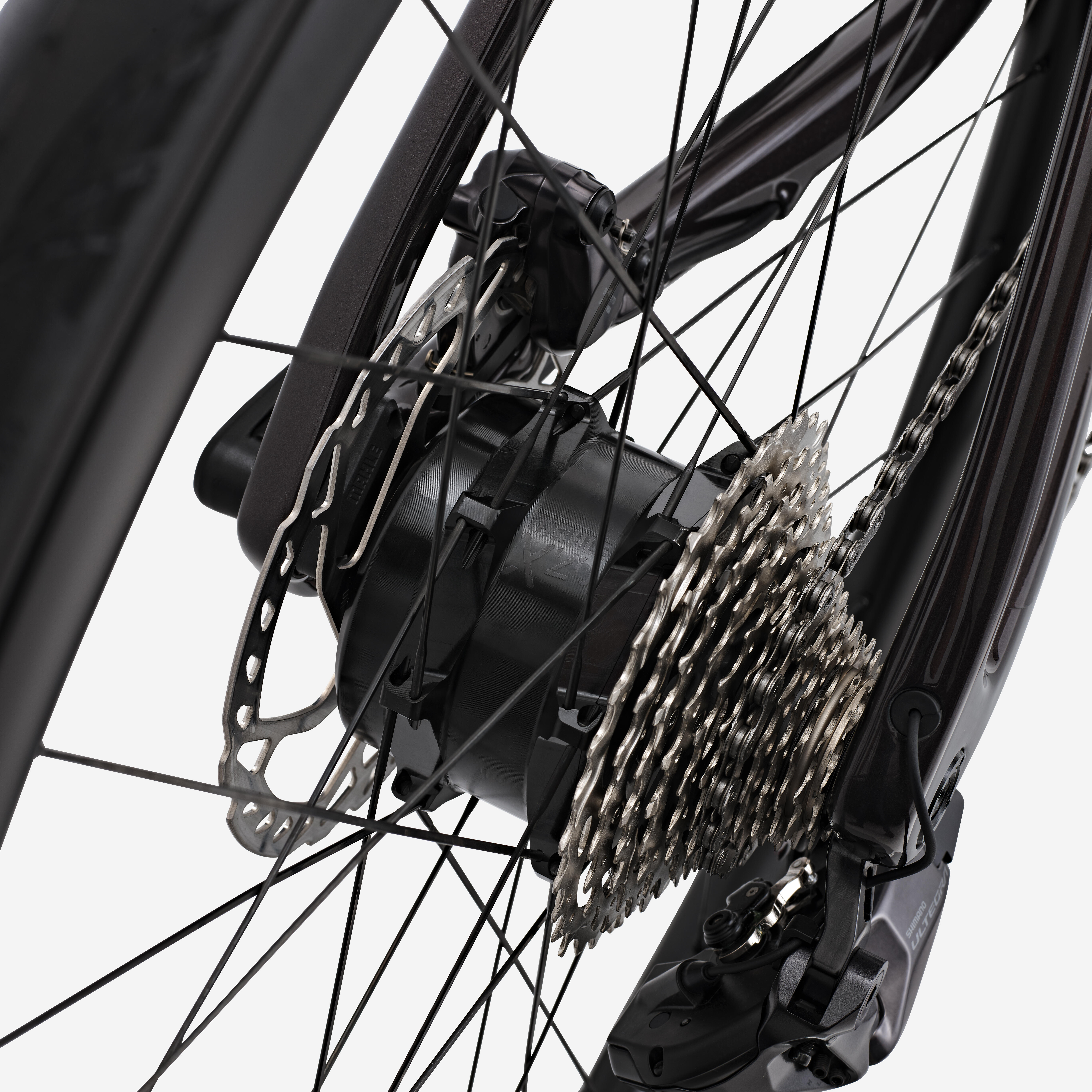

Mahle X20 next generation rear hub motor, the lightest motor on the market
rated voltage 36V
continuous power 250W
torque 60Nm
weight 1399g
3 levels of assistance
assistance up to 25km/h
compatible with standard 12mm thru-axle
Connectivity
Bluetooth connection with the Mahle "MySmartBike" app (with assistance level settings feature)
ANT+ connection with compatible devices (Garmin and others).
To pair the bike, you'll need to search for the sensors. Depending on your bike computer, you'll pick up one or two sensors:
- ANT+ LEV (Light Electric Vehicle): for capturing all the "e-bike" data (assistance level, battery level, range in km, etc.)
- ANT+ PWR (Power): power meter (Watts)
Tyres
Grand Prix 5000 AllSeason Tubeless Ready 700x32
Superior grip in dry and wet conditions and increased tread thickness for improved durability
Reflective strip on the sidewalls
