LOWRANCE

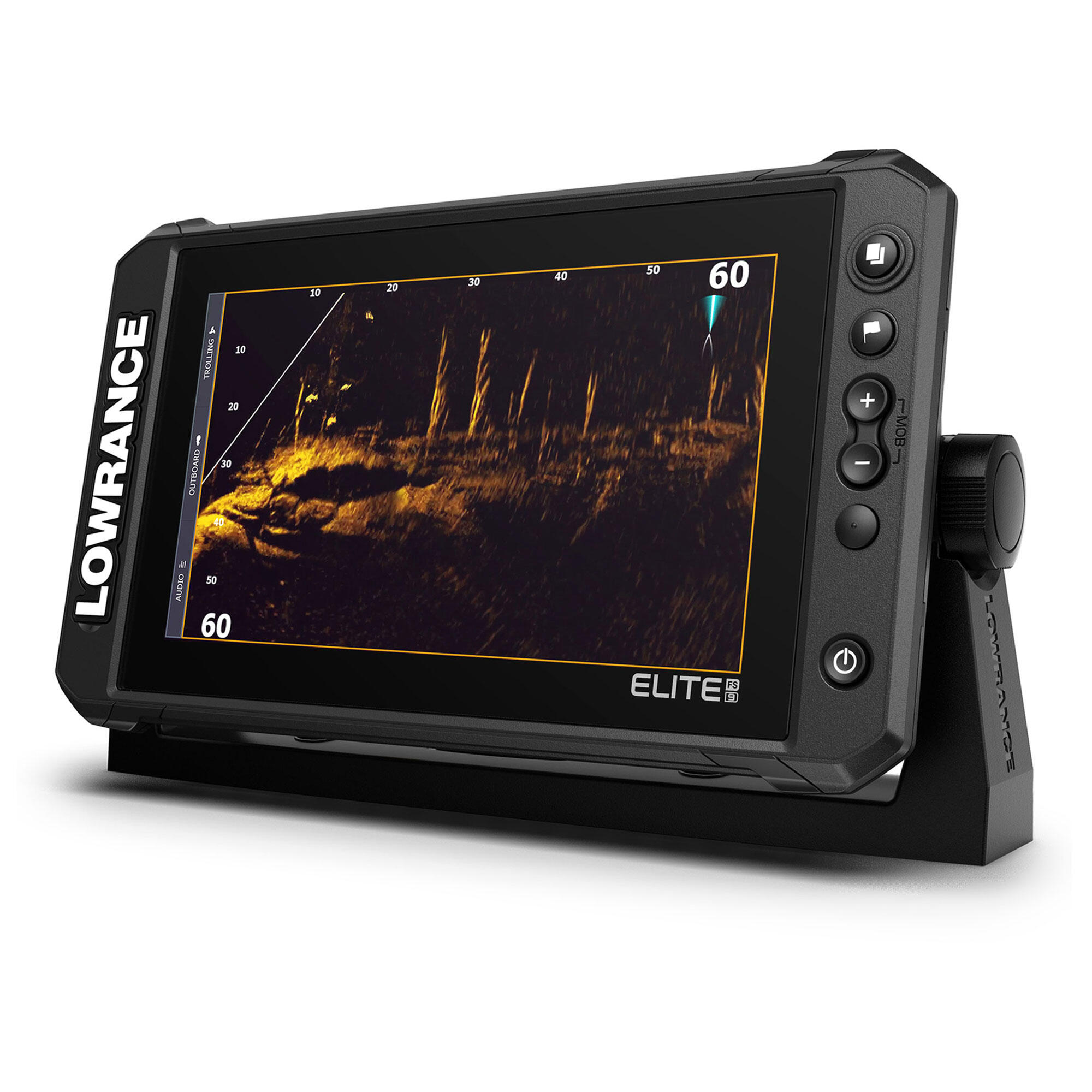

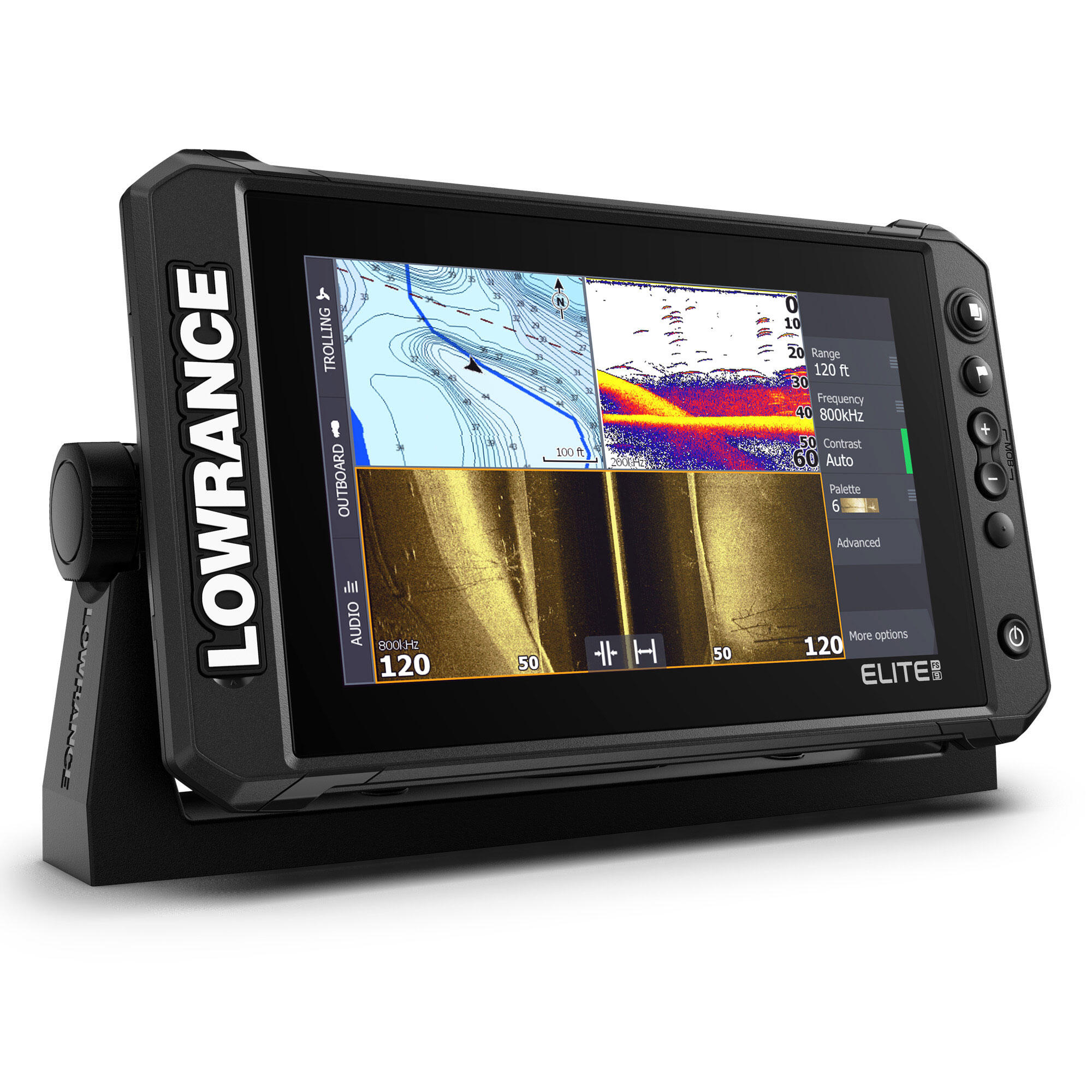

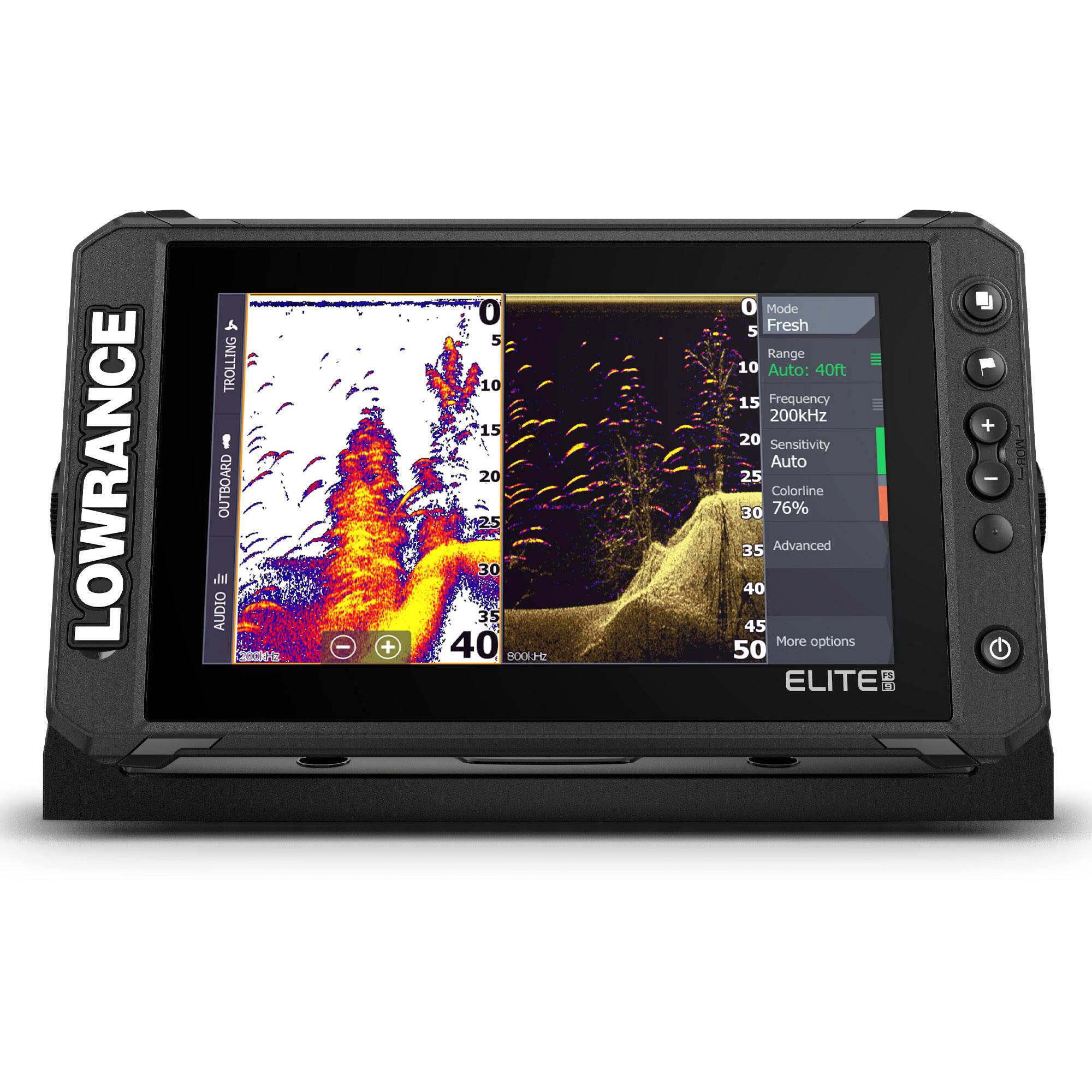

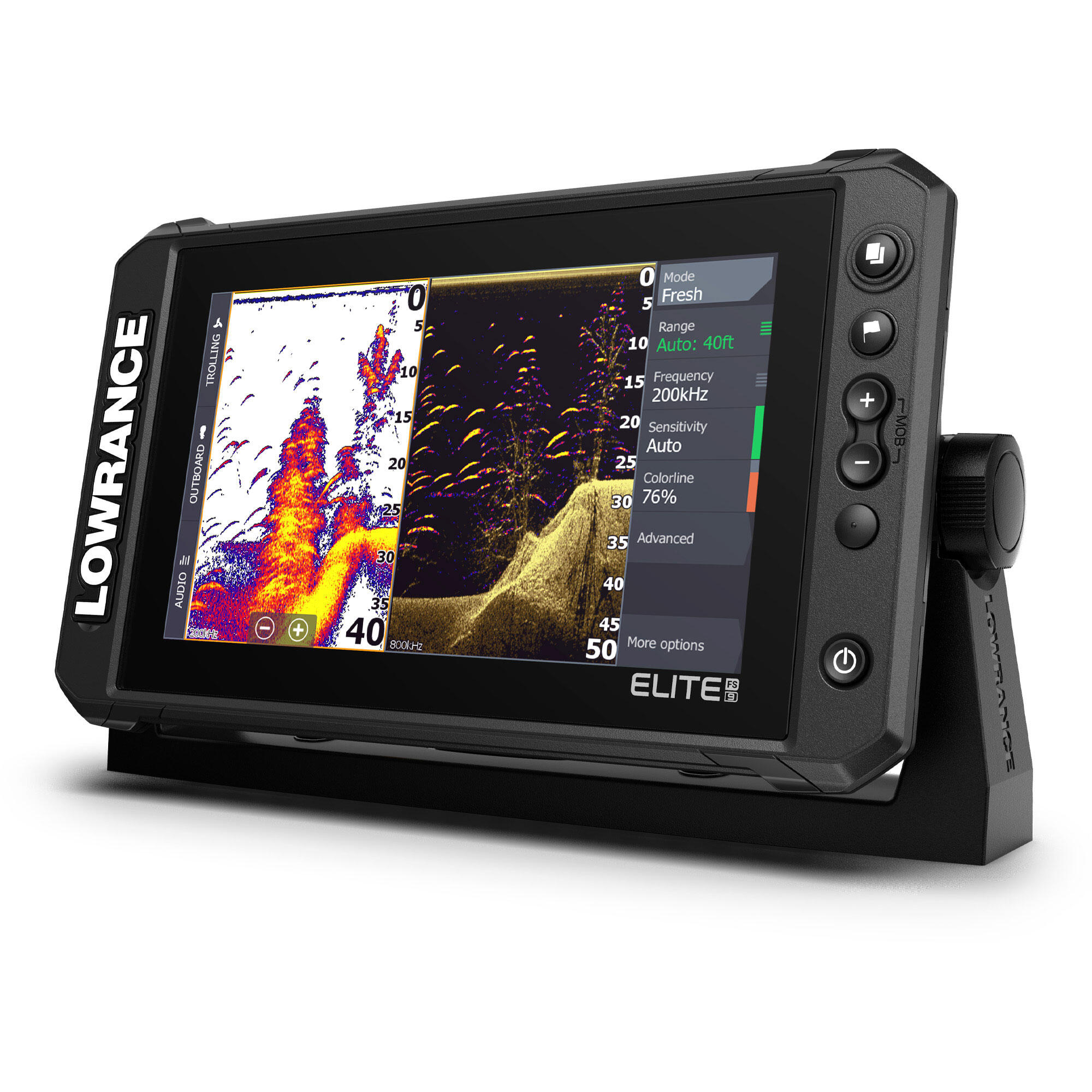

Lowrance ELITE FS 9 with Active Imaging 3-in-1 sonar

Designed for demanding anglers, the ELITE FS 9 with 3-in-1 Active Imaging has an accurate fishing sonar with CHIRP, SideScan & DownScan for a complete view.

The ELITE 3-in-1 FS 9 Active Imaging combines a CHIRP sonar, SideScan and DownScan with a high-resolution 9” screen. It allows detailed observation of fish and structures in freshwater and at sea.

ID 9027316

€1,399.99
VAT included

  • Pick up at Decathlon

    Loading...

  • Pick up near you

    Loading...

  • Home Delivery

    Loading...

  • Features

    Design benefits

    • precision

      Compatible with ActiveTarget 2, Active Imaging and Active Imaging HD*

    Design details

    DISPLAY Lowrance ELITE FS 9 with Active Imaging 3-in-1

    Size of the screen: 9” IPS
    Screen resolution: 800x480
    Screen brightness: >1,200 nits
    Touch screen: Multitouch
    Keypad: Pages, waypoint, zoom, power, (1) user-programmable quick-access keys
    Viewing angles: 50° top 60° bottom 70° left/right

    SONAR Lowrance ELITE FS 9 with Active Imaging 3-in-1

    Compatibility of the sonar

    Integrated:
    CHIRP, Broadband, Active Imaging™ HD DownScan*, Active Imaging™ HD SideScan*, Active Imaging™ DownScan, Active Imaging™ SideScan
    *requires S3100 module

    Compatible with:
    ActiveTarget® 2, ActiveTarget®, S3100, SonarHub®, StructureScan®, StructureScan®HD, StructureScan®3D, LiveSight (requires PSI-1 module)

    sonar frequencies

    CHIRP
    High CHIRP
    Medium CHIRP
    Low CHIRP
    (depending on transducer)

    Broadband
    50 kHz
    83 kHz
    200 kHz
    (depending on Broadband transducer)

    MULTIFUNCTION SCREEN Lowrance ELITE FS 9 with Active Imaging 3-in-1

    AIS

    AIS chart overlay.
    Target vessel details.

    Autopilot

    Outboard Pilot

    Ghost® Trolling Motor

    Recon™ Trolling Motor

    MotorGuide Xi5/Xi3 Trolling Motor (requires Motorguide PinPoint Gateway)

    Cartography

    World basemap

    Cartography

    C-MAP® REVEAL™
    C-MAP® DISCOVER™
    C-MAP® Genesis
    Navionics (Gold, NAV+ Platinum+)
    Lowrance Regional Mapping Partners

    GPS

    10 Hz Internal high-sensitivity WAAS + EGNOS + MSAS

    Multimedia

    SonicHub
    SonicHub2
    FusionLink products

    INTERFACE AND CONNECTIVITY Lowrance ELITE FS 9 with Active Imaging 3-in-1

    NMEA 2000®

    1x Micro-C

    Ports Ethernet

    1 x 100Mbit

    Stockage sur carte SD

    1 micro SD card up to 32GB

    Wi-Fi®

    Internal 802.11b/g/n

    Bluetooth®

    Bluetooth® 4.0 with support for Bluetooth® classic

    ELECTRICAL Lowrance ELITE FS 9 with Active Imaging 3-in-1

    Supply voltage
    12 VDC (10.8-17 VDC)

    Max. power consumption
    2.0 A @ 13 VDC with backlight on full

    Recommended fuse amperage: 3 A

    PHYSICAL Lowrance ELITE FS 9 with Active Imaging 3-in-1

    Weight: 1.2 kg (2.7 lbs)

    Type of rig: Gimbal Bracket or Dash Flush Mount

  • Usage & care

    Warranty

    2 Years
