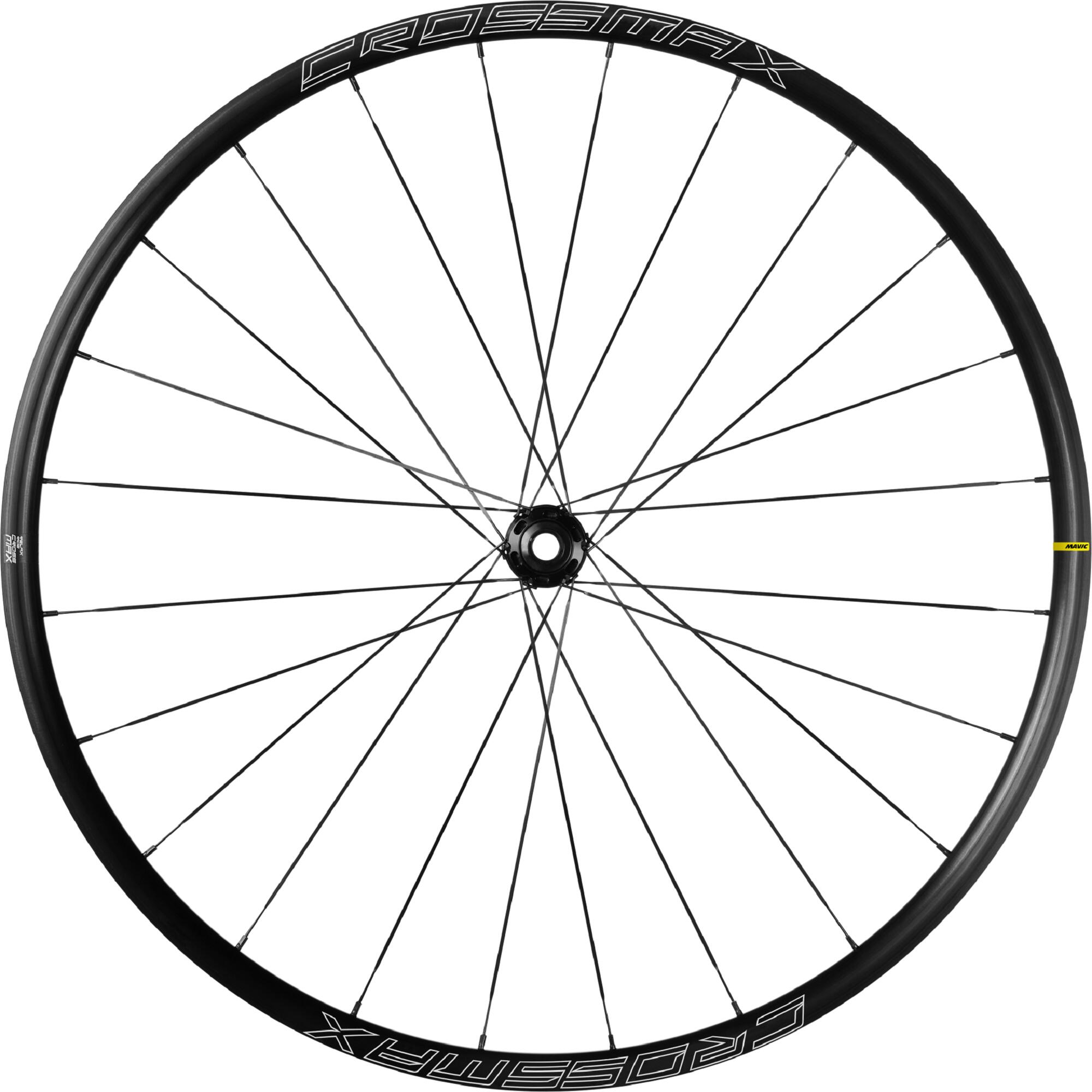

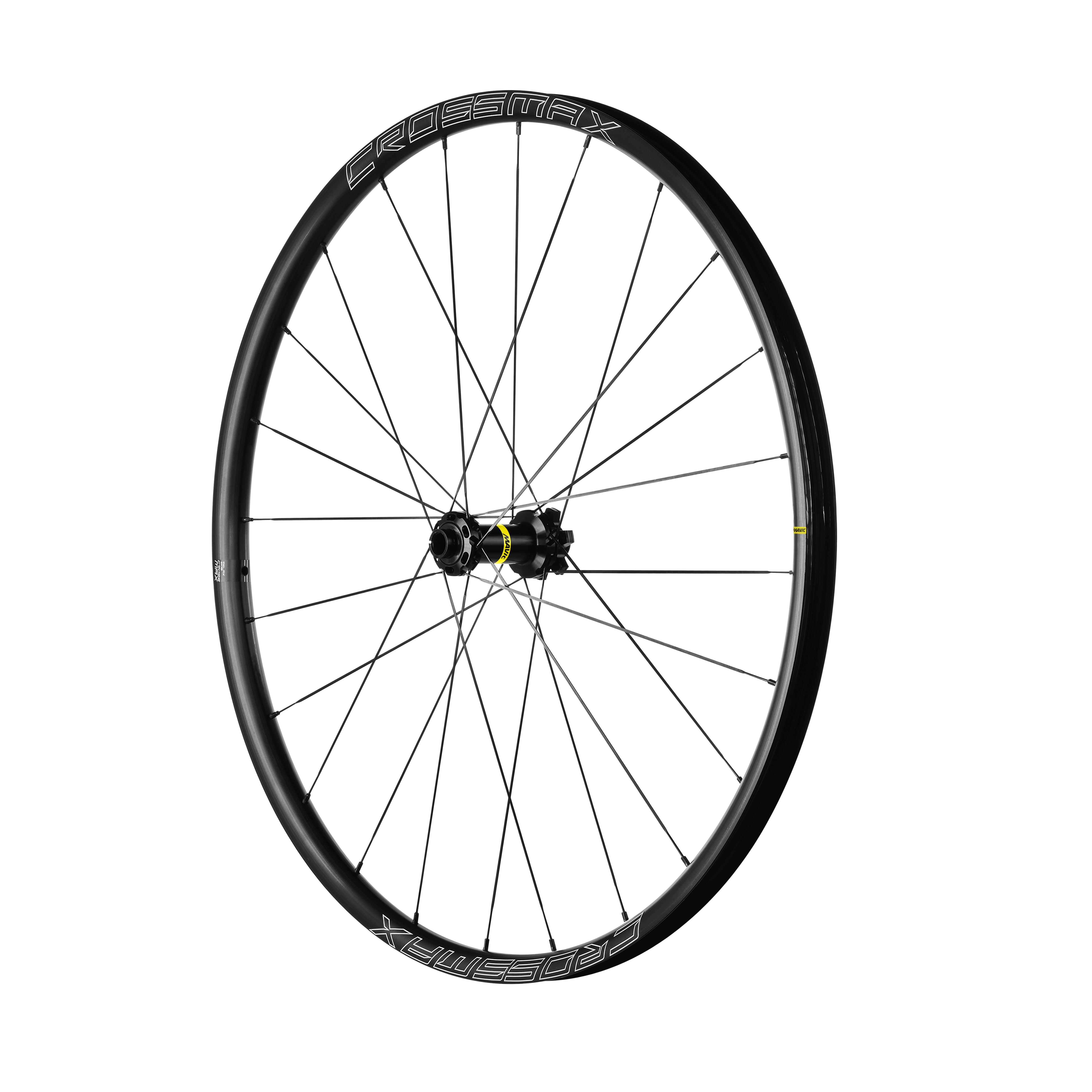

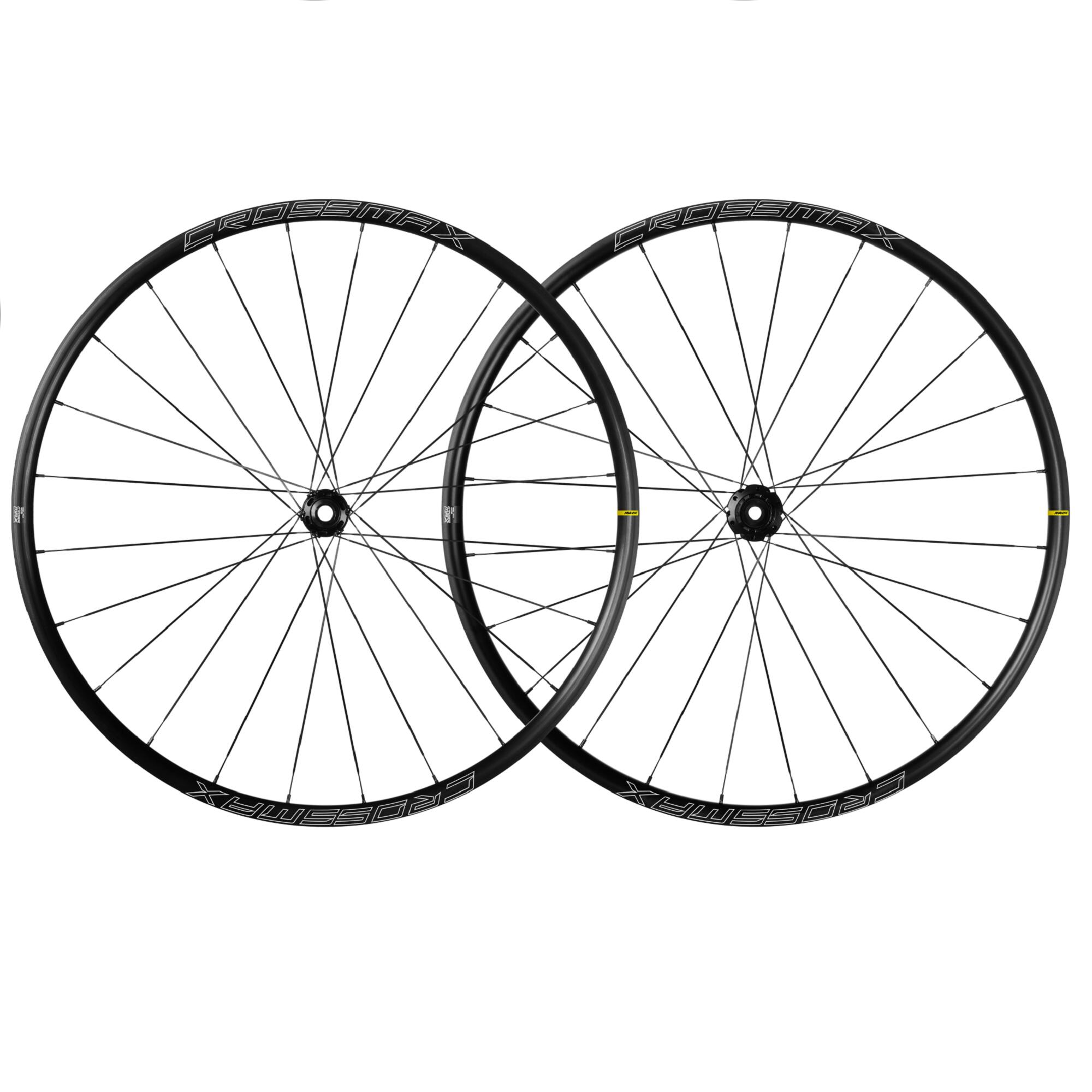

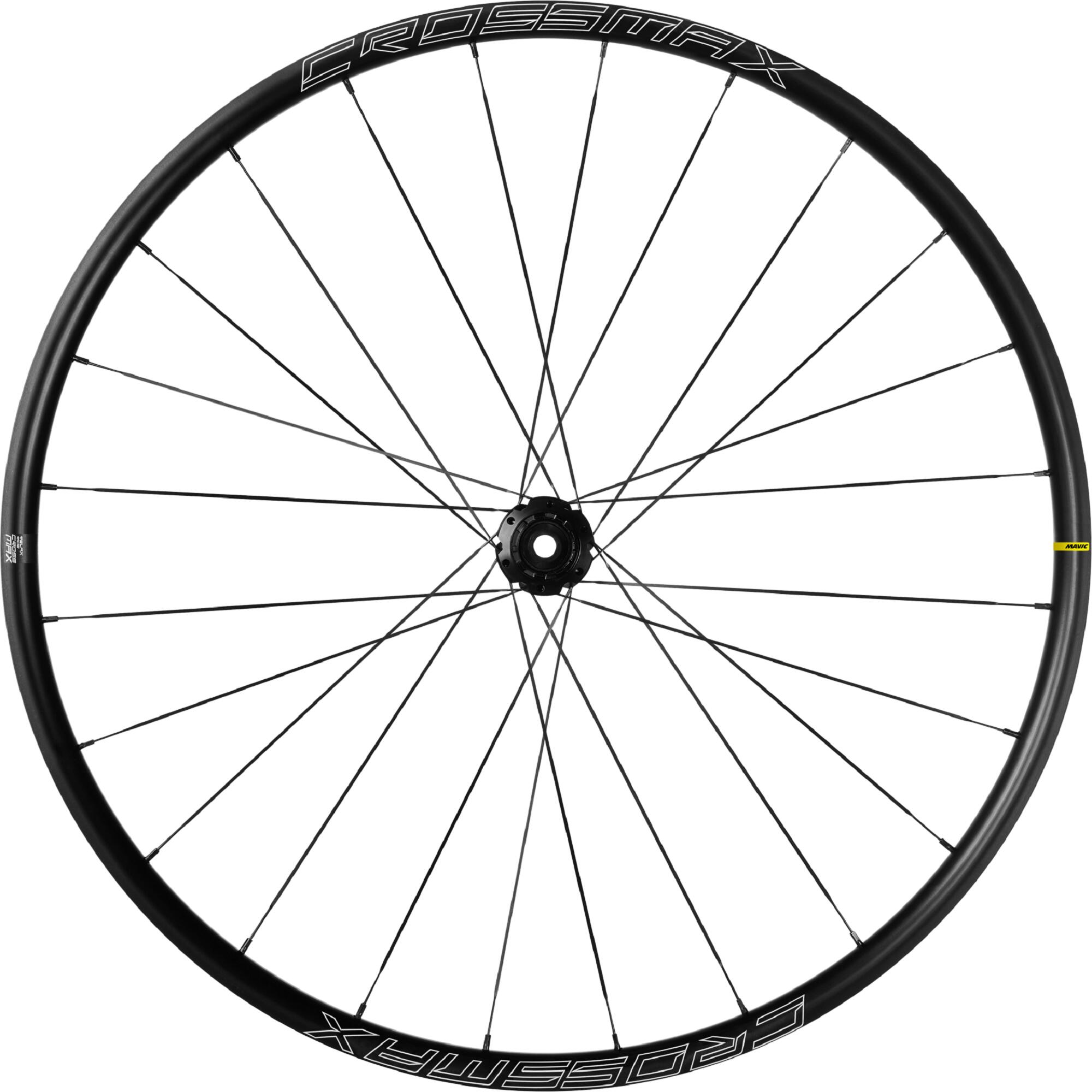

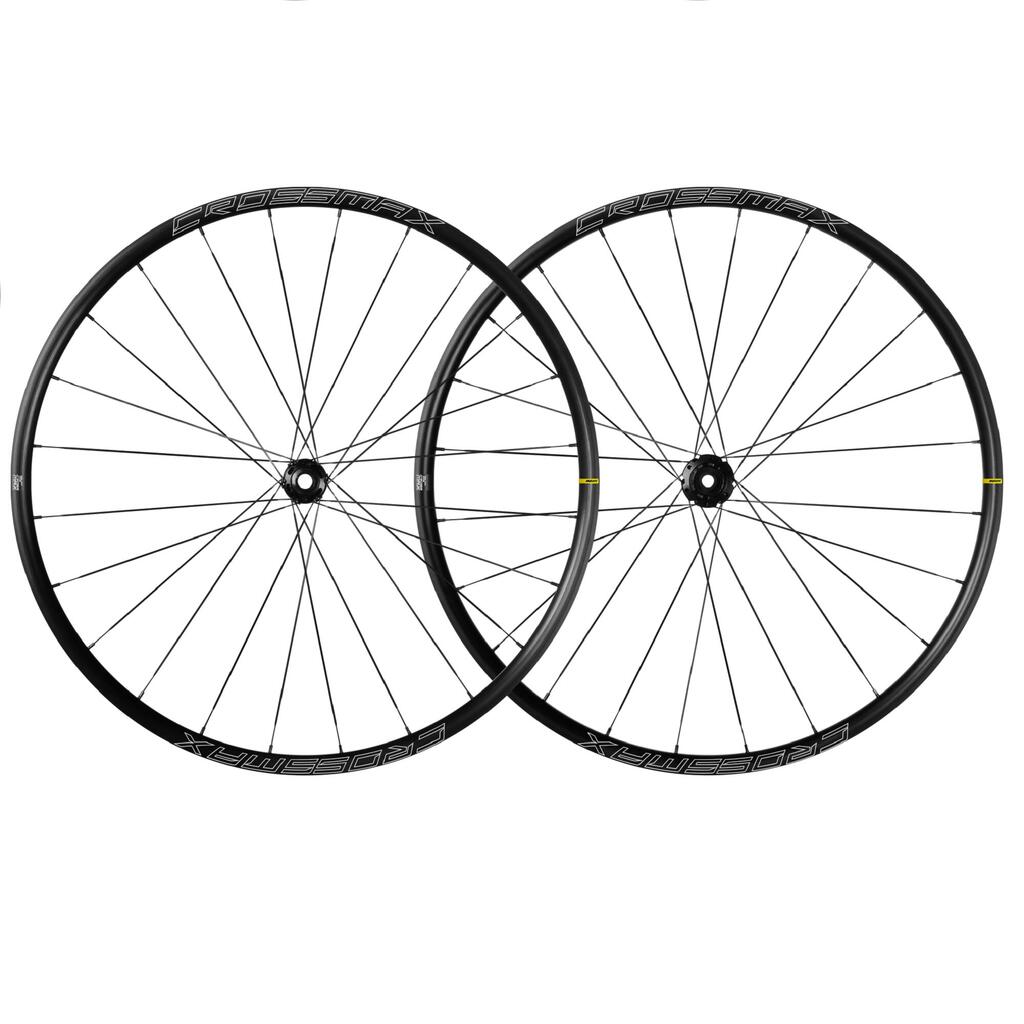

Rim features
All the parts are coherently designed to form a complete system.
25 mm rim for versatile performance in all conditions.
Durability and strength thanks to straight spokes.
Lightweight and durable Maxtal welded rim.
Compatibility with the most common axle standards.Comes with: User guide
UST valves (not fitted)
UST rim strip (not fitted)
Multi-function adjustment wrench
4 additional spokes

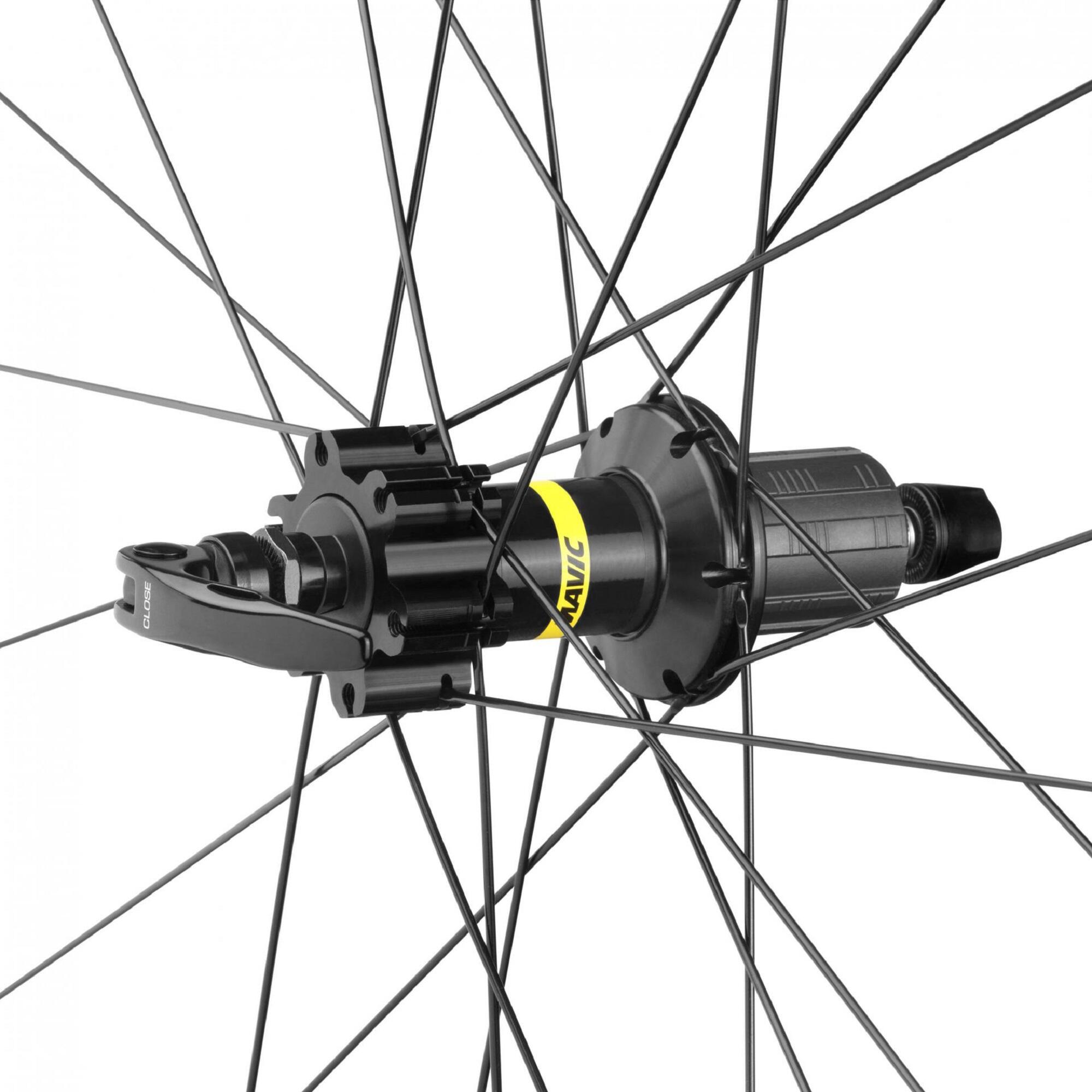

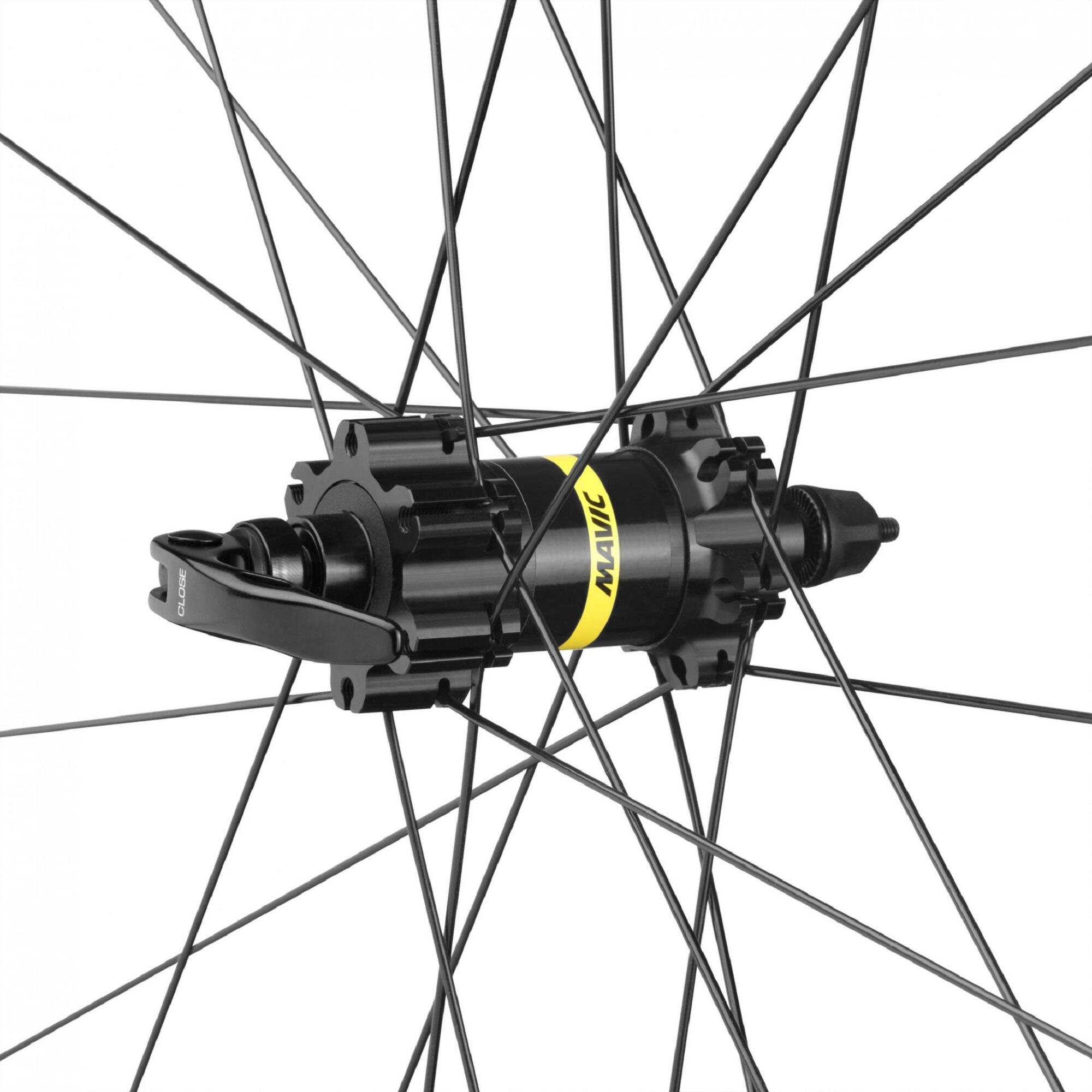

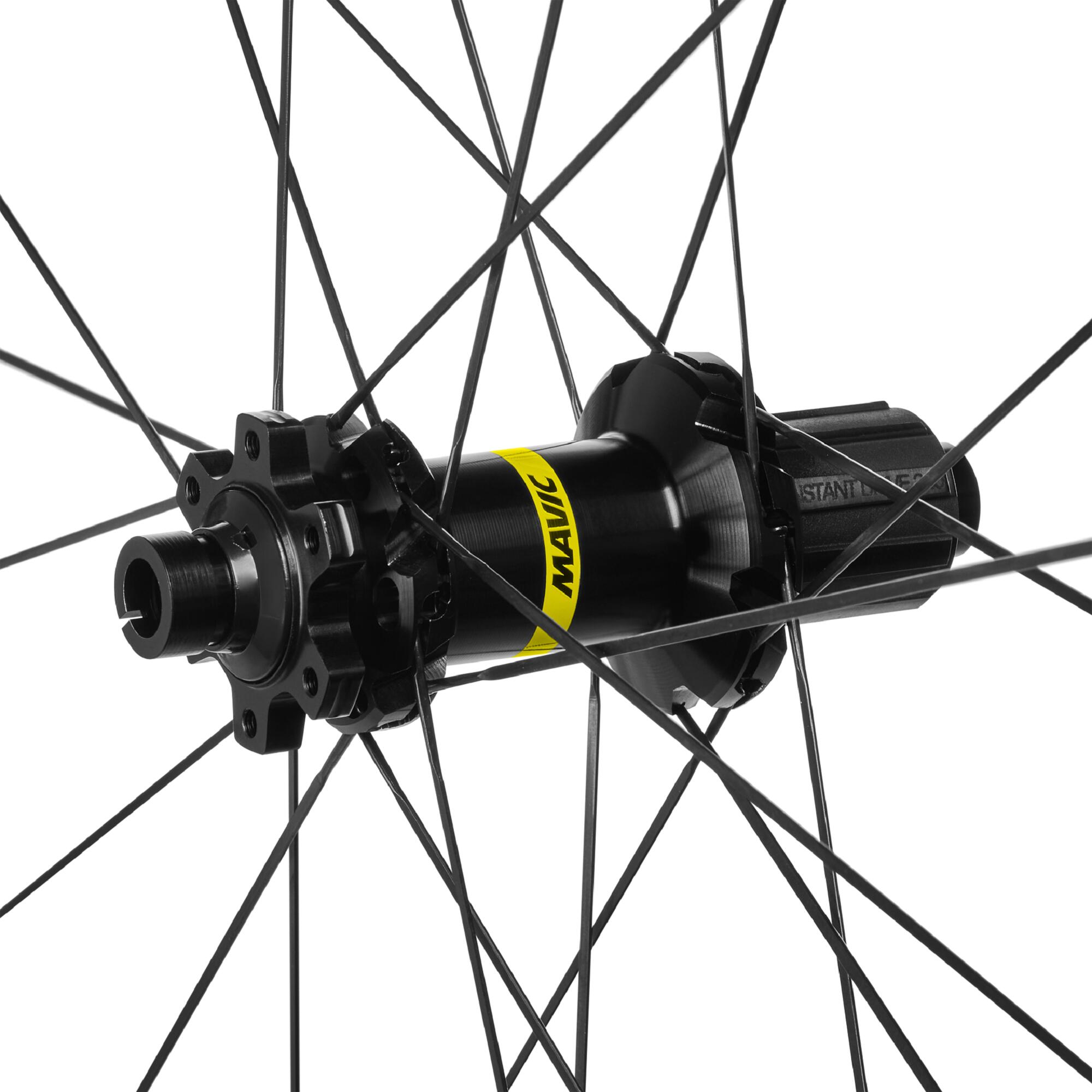

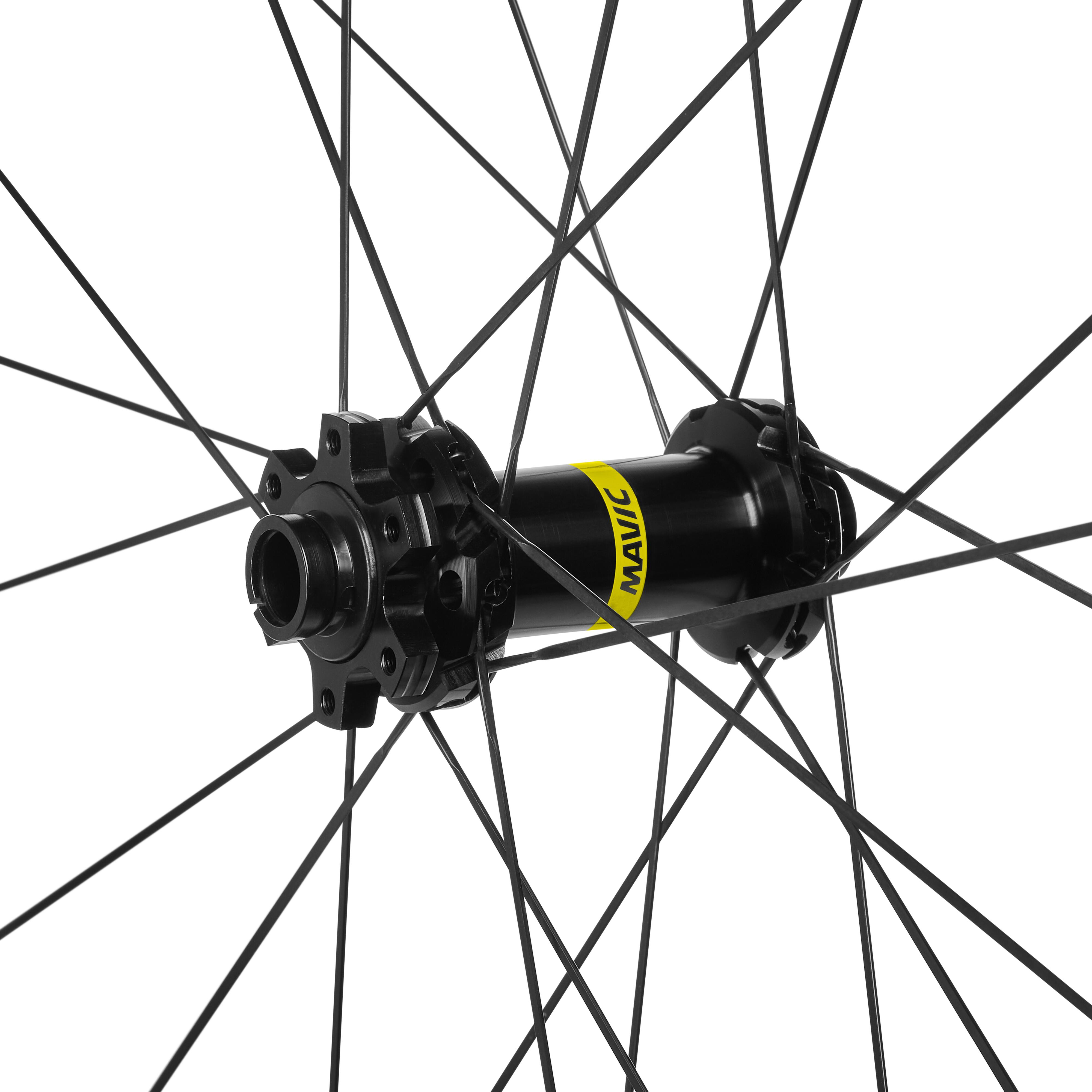

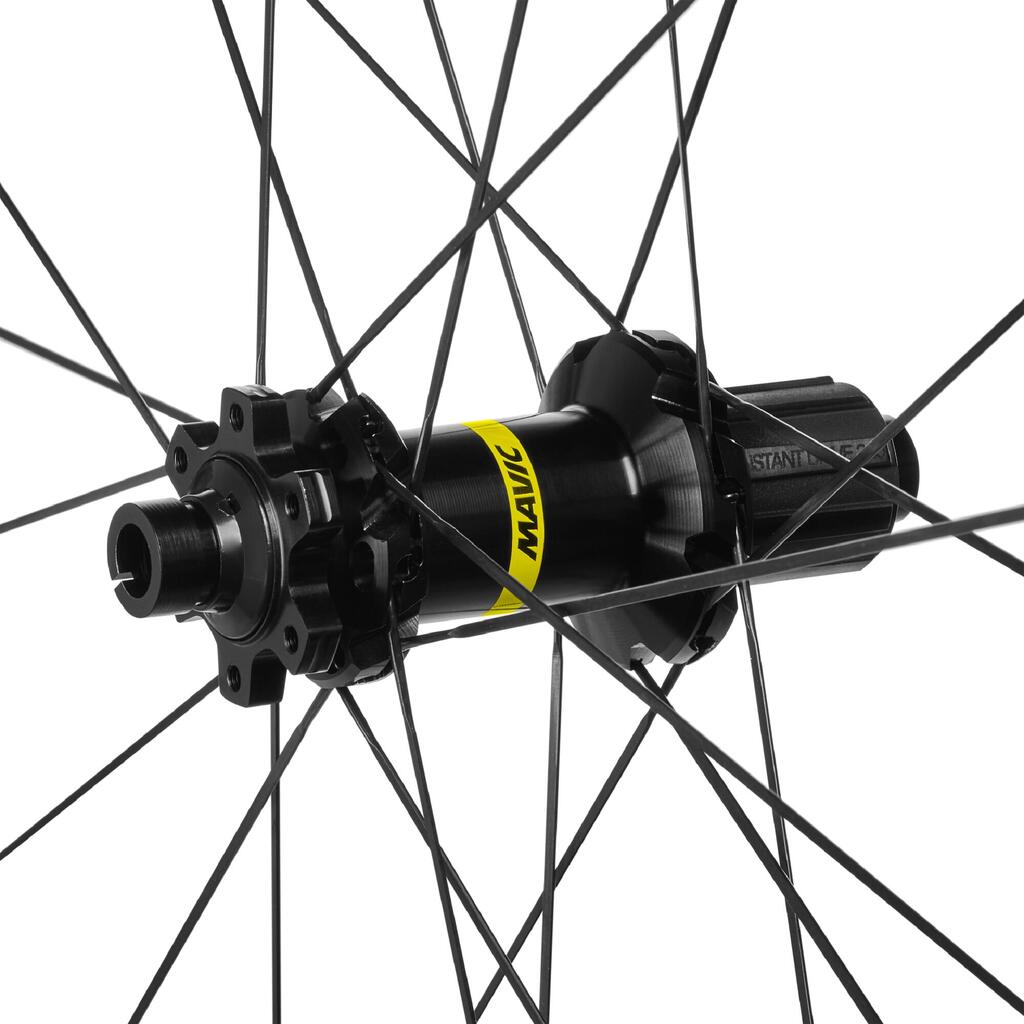

Hub features
The lighter Infinity hub increases lateral rigidity and spoke tension.
Our Instant Drive 360 freewheel system, with its double ratchet mechanism, guarantees rapid engagement and unrivalled reliability.
Technical features
Size: 29"
ETRTO: 622x25TSS
Double-walled welded aluminium rims
25TSS internal width
Disc: 6-hole
OLD:12 x 148 mm and 15 x 110 mm (via adaptors)
Freewheel: Shimano/Sram
number of spokes: 24
Lacing pattern: 2-cross
Spoke shape: straight flat
Bearing type: Sealed cartridge bearings
Inner tube compatible
Weight:front wheel = 820 g / rear wheel = 950 g
Recommended wheel dimensions: 30 to 64 mm
Wheel assembly advice
Respect the tightening torque on the disc, which is 5 Nm, and the tightening of the cassette, which is 40 Nm.
Remember to apply light thread-locking fluid on the threads of the disc screws.
CARE TIPS
Get your wheels checked regularly for buckling, and get the spoke tension checked
To make your wheels last longer, Mavic recommends that the total load is no more than 120 kg, including the bike.
Do not use a high-pressure cleaner on the wheel bearings
