Power and user guide

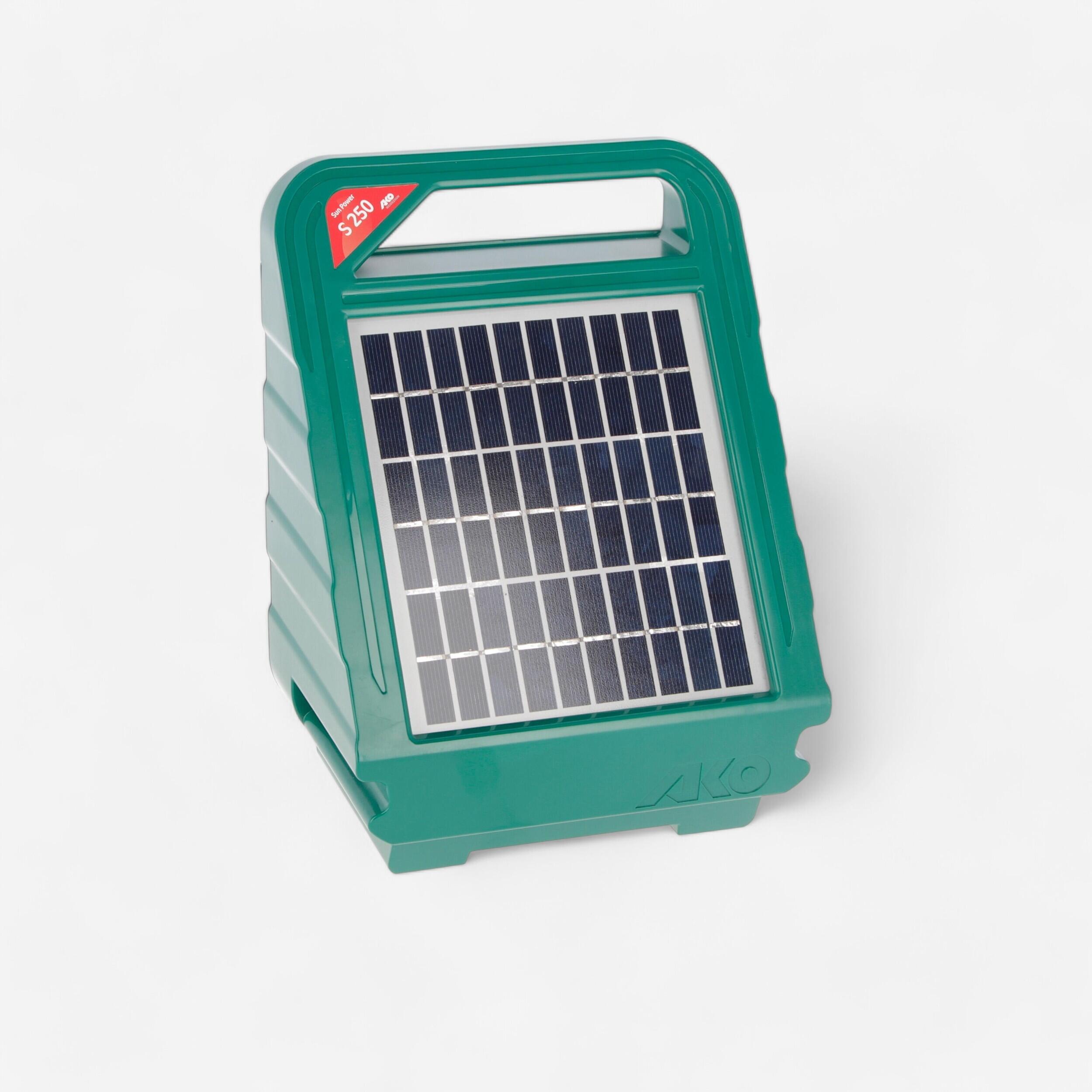

Solar panel/AGM 12V battery
USER GUIDE AVAILABLE ONLINE FROM THE "USER GUIDE" SECTION BELOW
Start up
BEFORE first use: Charge the battery completely (12 hours minimum)
Start the device NOT hooked up to the fence or grounded.

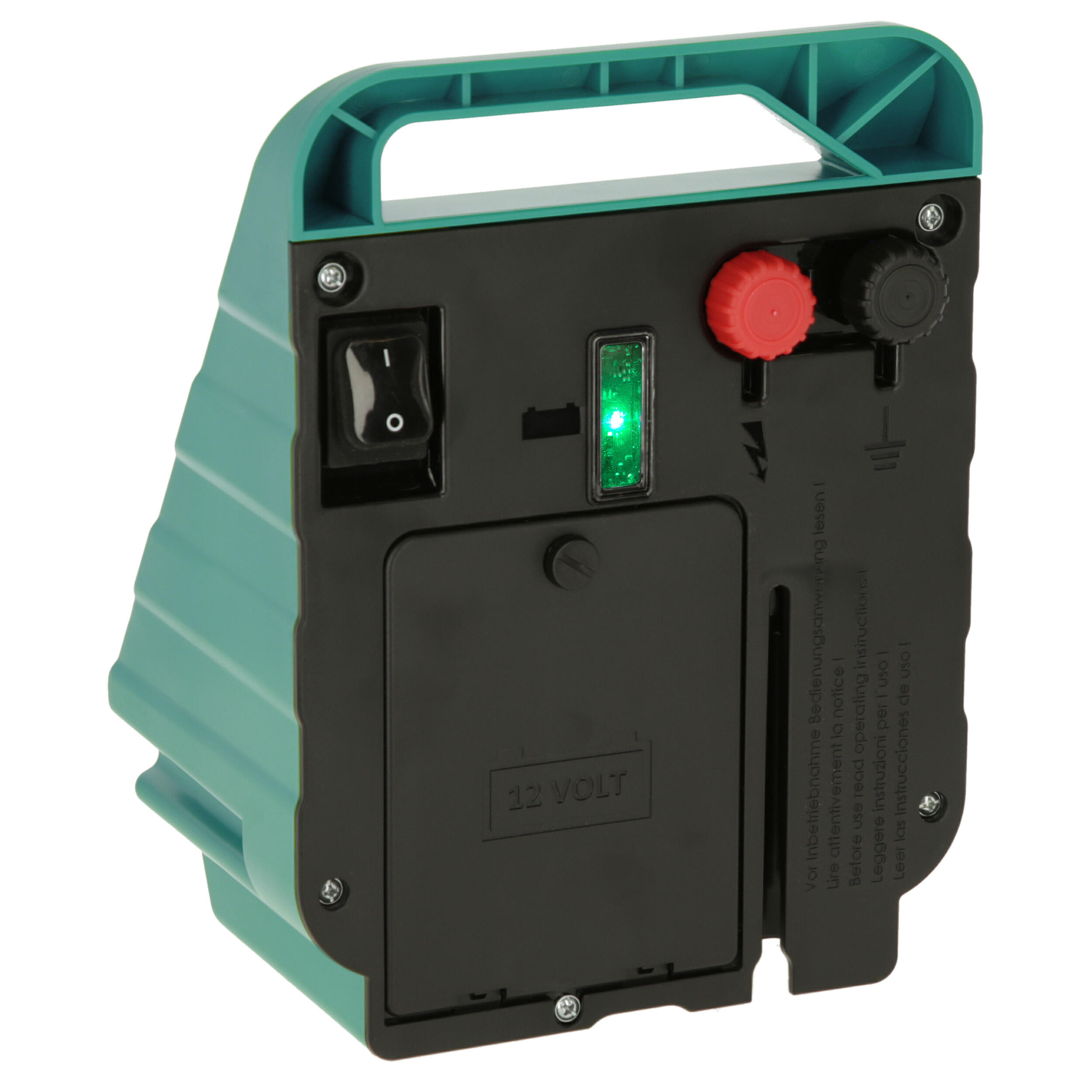

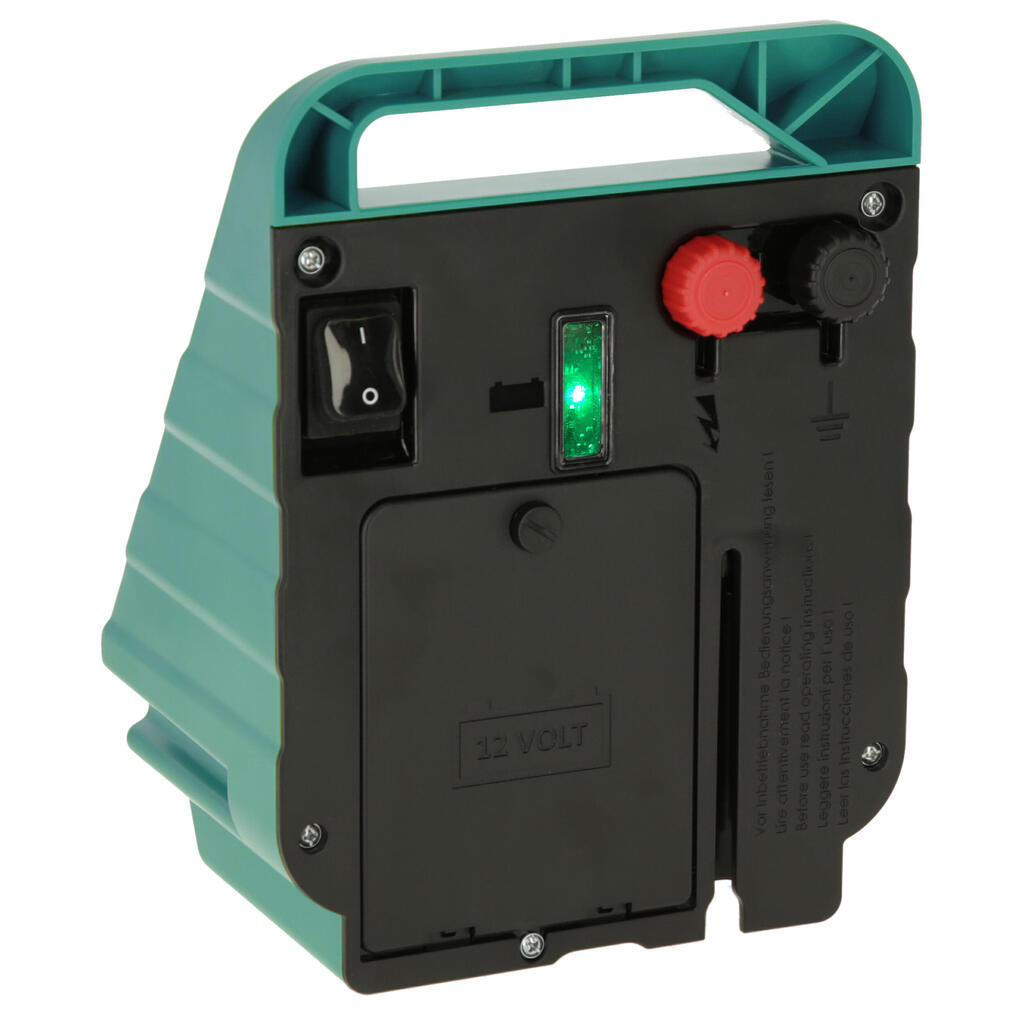

When connecting the 12V battery, ensure the positive and negative terminals (polarity) are properly connected: If the fence indicator light is blinking:
- green: the device is working.
- red: check the 12V battery voltage.
- is not blinking: check the cable polarity or have a qualified technician check the device.
Use and maintenance
If the red indicator light is blinking: recharge your battery
Recharge the battery BEFORE and AFTER long periods of not using it (eg, winter) and turn it off when not in use.
Anyone using electric fencing is required by law to check that the energiser and fencing are operating properly on a regular basis (ie, at least once a day)
- Visually inspect the energiser and fencing
- Check that the fence line has the minimum voltage of 2500V
Warning for use (1 of 2)
This device is not intended for use by people (including children) with
impaired physical, sensory or mental capacities, or a lack of experience or knowledge, except
under the supervision of a person responsible for their safety.
Do not allow children to play with the device.
Warning for use (2 of 2)
Electric fencing should be installed, used and maintained to ensure it poses
no risks (electric, etc.) to people, animals or the environment.
Do not touch the electric fencing. Do not climb through, over or under the fencing. A gate or other point of entry should be used to enter the enclosure.
Refer to the user guide for more information.
