Technical features

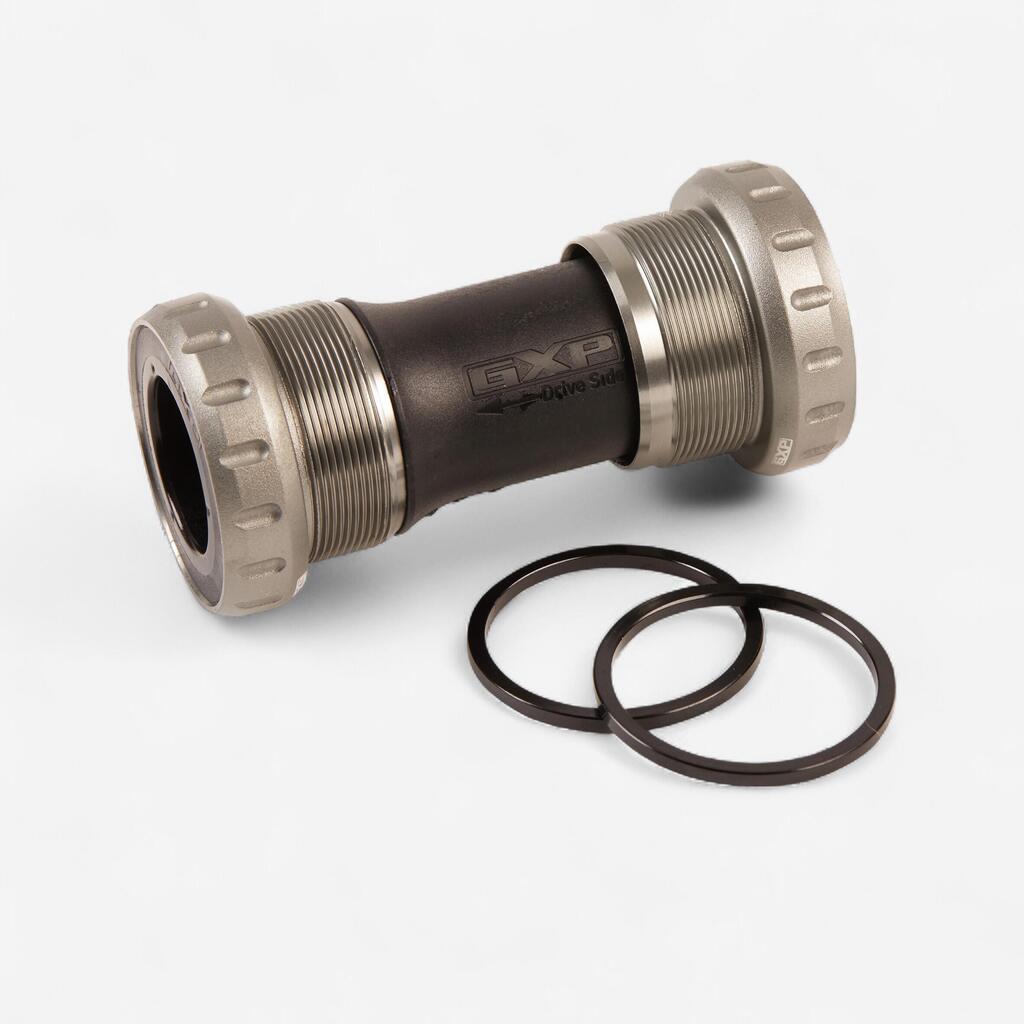

Material: Aluminium external bracket cups
Threading: BSA/BSC
Sealed steel cartridge bearings
Shell width: 68 / 73 mm
For GXP 22 mm (right) and 24 mm (left) spindles
Assembly tips
Bracket tightening torque: 34-41 Nm
Crank torque: 47-54 Nm
Grease the threads of the bracket for easier installation and removal. You'll need a special tool to fit this bottom bracket.
Maintenance advice
Do not use a high-pressure cleaner on the bearings
