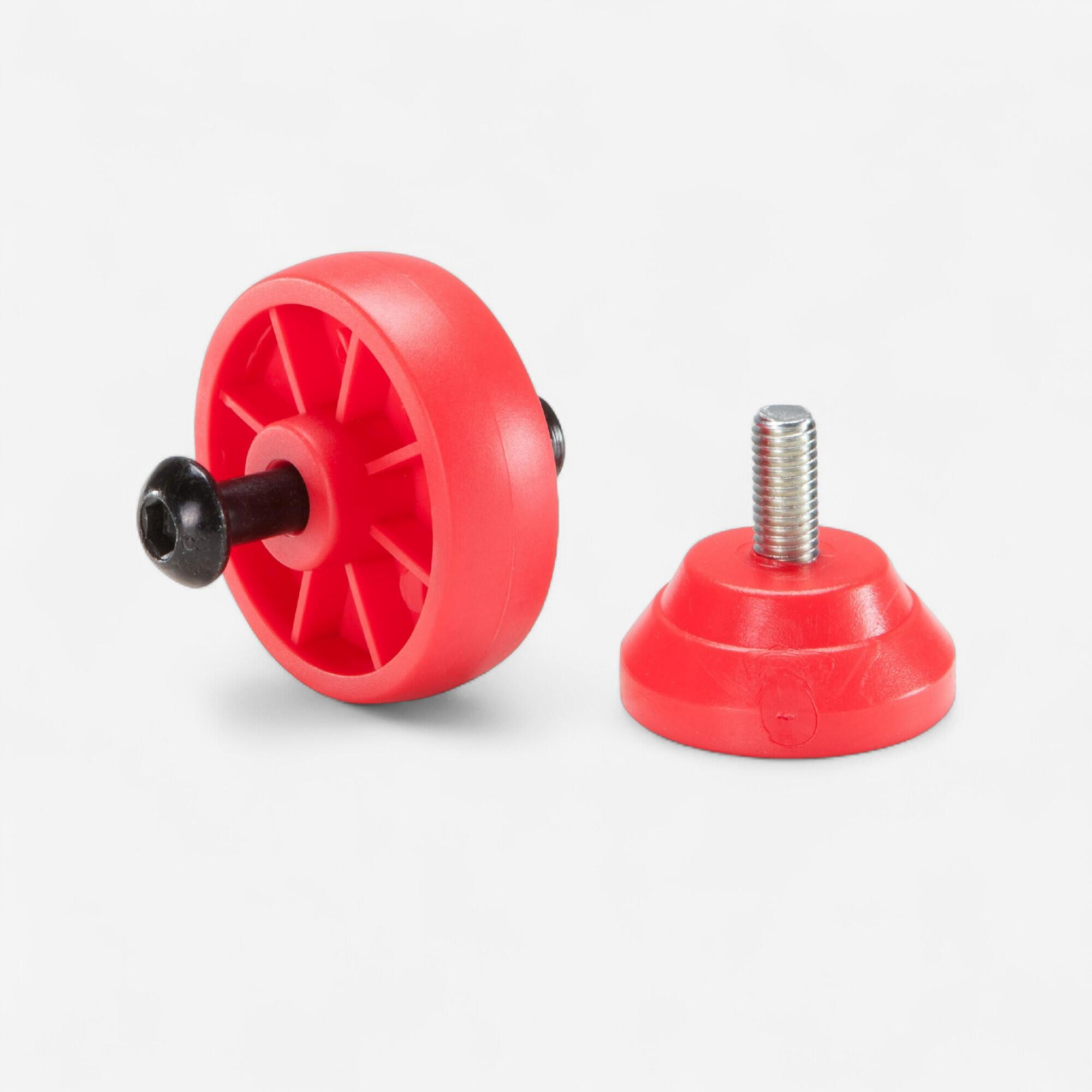

Designed for
T540B (Reference 8550004)
T520B (Reference 8550003)
Compatibility:
T540A / T540B / T540C (Reference 8550004)
T520A / T520B / T900A / T900B / T900C / T900D (Reference 8550003)

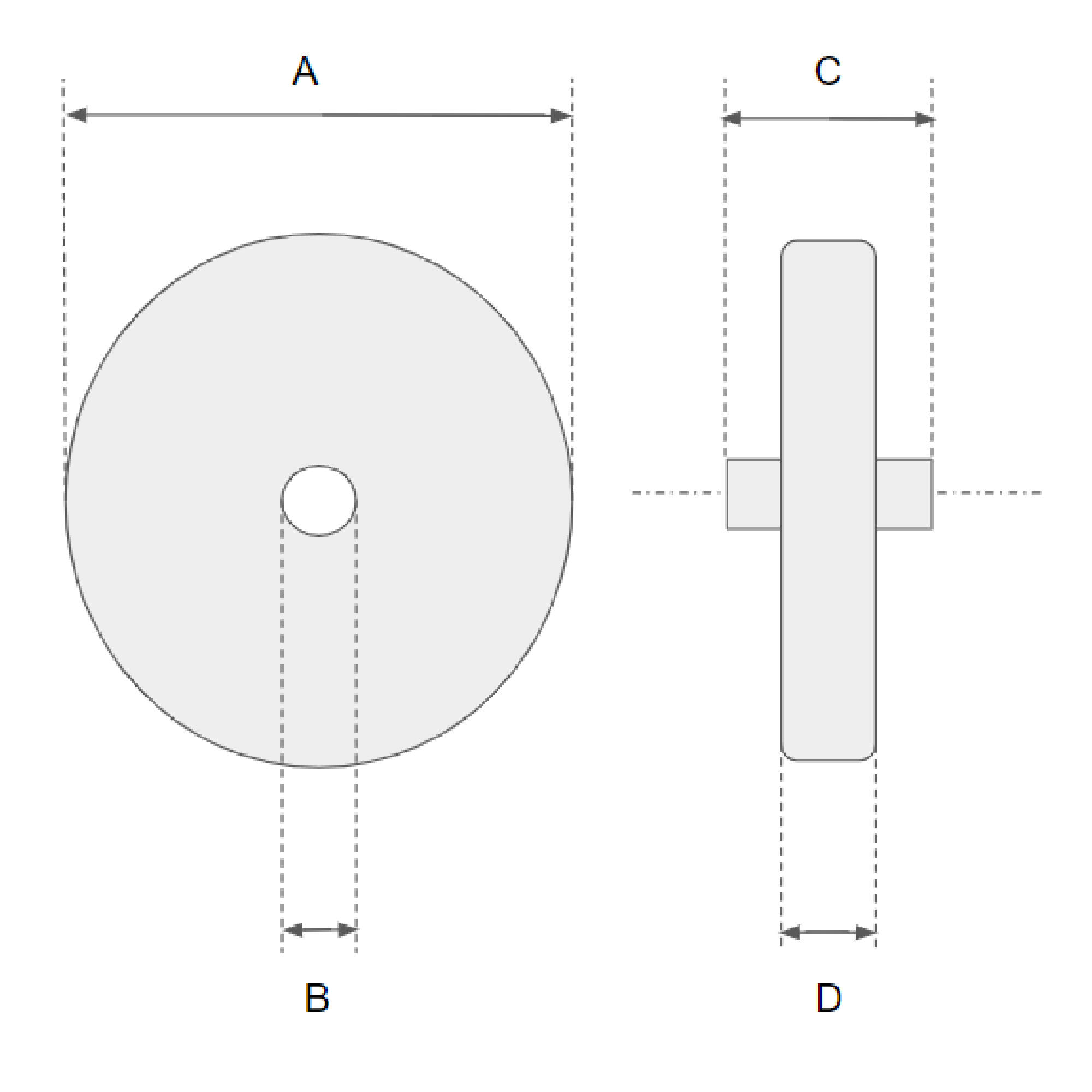

Wheel dimensions:
T540A / T540B / T540C (Reference 8550004)
A: Outer diameter: 57 mm
B: Central hole diameter: 8.2 mm
D: Central width: 36 mm
C: Wheel width: 22 mm
T520A / T520B / T900A / T900B / T900C / T900D (Reference 8550003)
A: Outer diameter: 54.6 mm
B: Central hole diameter: 8.2 mm
D: Central width: 25.2 mm
C: Wheel width: 16,5 mm

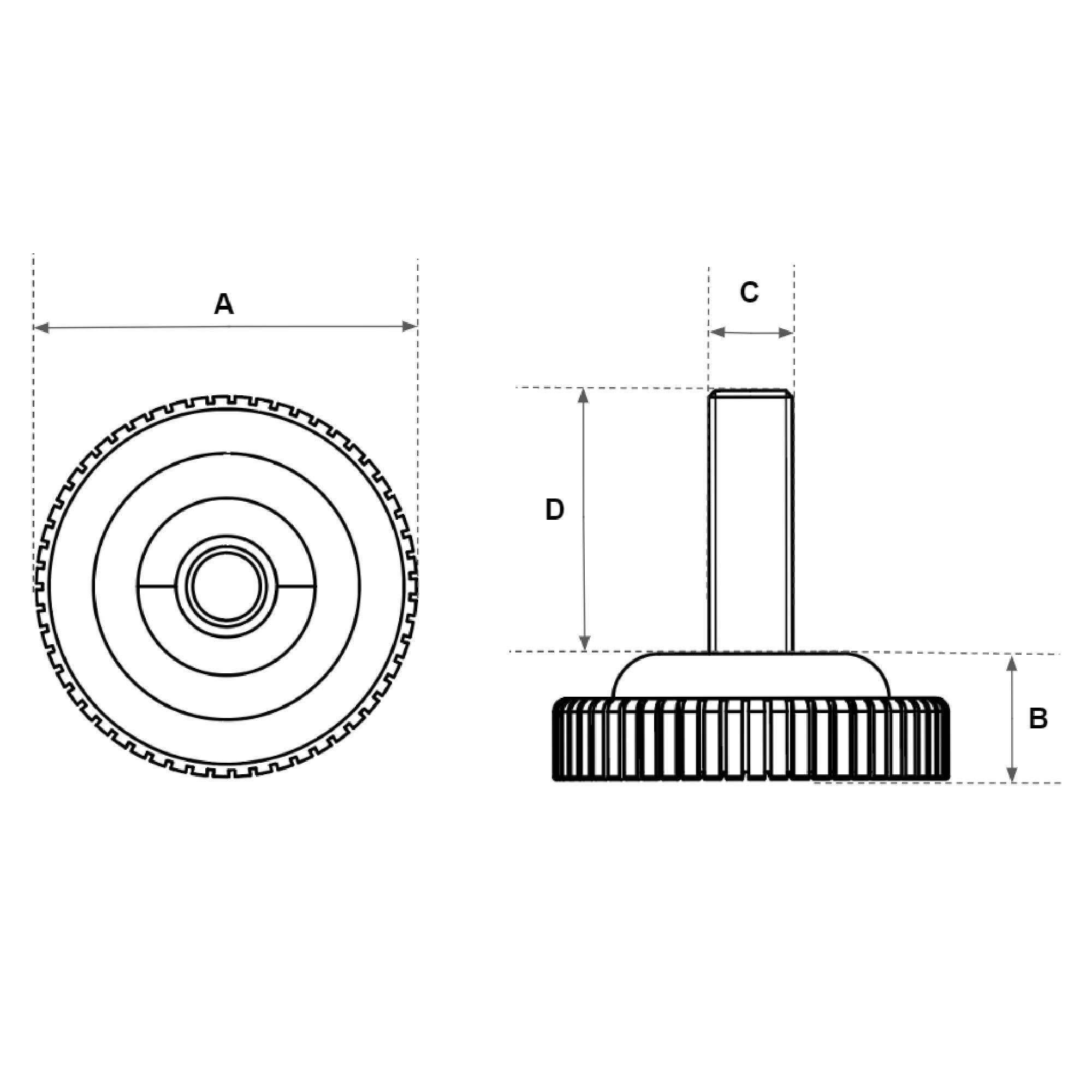

Leg leveller dimensions:
T540A / T540B / T540C (Reference 8550004)
A: Pad outer diameter: 29 mm
B: Pad height: 10.2 mm
C: Screw diameter: 6.2 mm
D: Screw height: 23.5mm
T520A / T520B / T900A / T900B / T900C / T900D (Reference 8550003)
A: Pad outer diameter: 40 mm
B: Pad height: 18 mm
C: Screw diameter: 7.8 mm
D: Screw height: 17 mm
