What's new in the 2024 version compared to the previous version.
Thanks to your feedback we have made changes to improve your experience.
- The lights are now USB rechargeable, more powerful and positioned higher. - Integration of the front carrying interface for the 25 L front bag (ref: 8735484). - Length-adjustable stand.
- Built-in interface for smartphone mount on handlebar.
- New lever on the seatpost clamp for better clamping force.- Magnets to keep it folded.
- Handle under the saddle.
Frame
6061 T6 aluminium frame—lightweight, dynamic and sturdy.

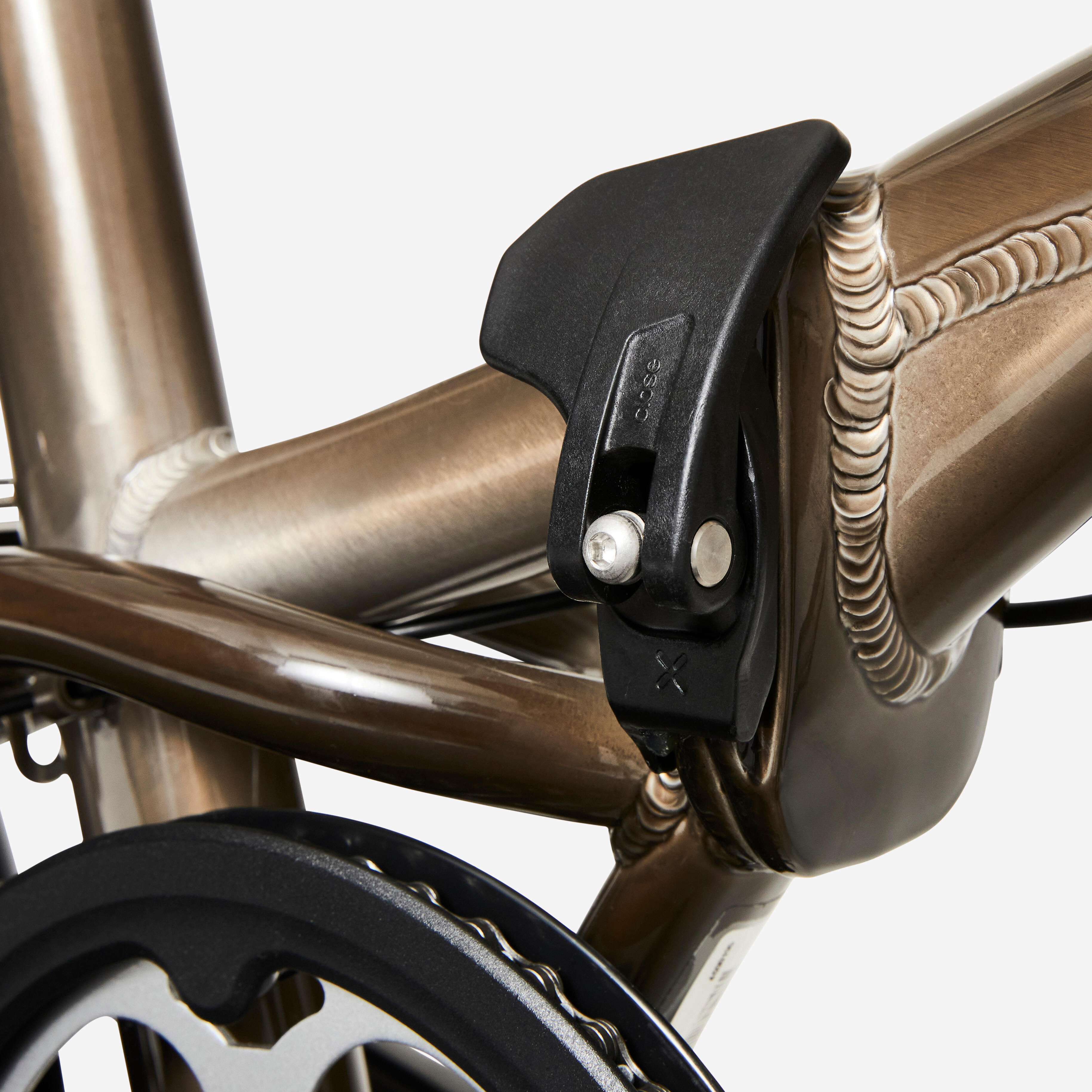

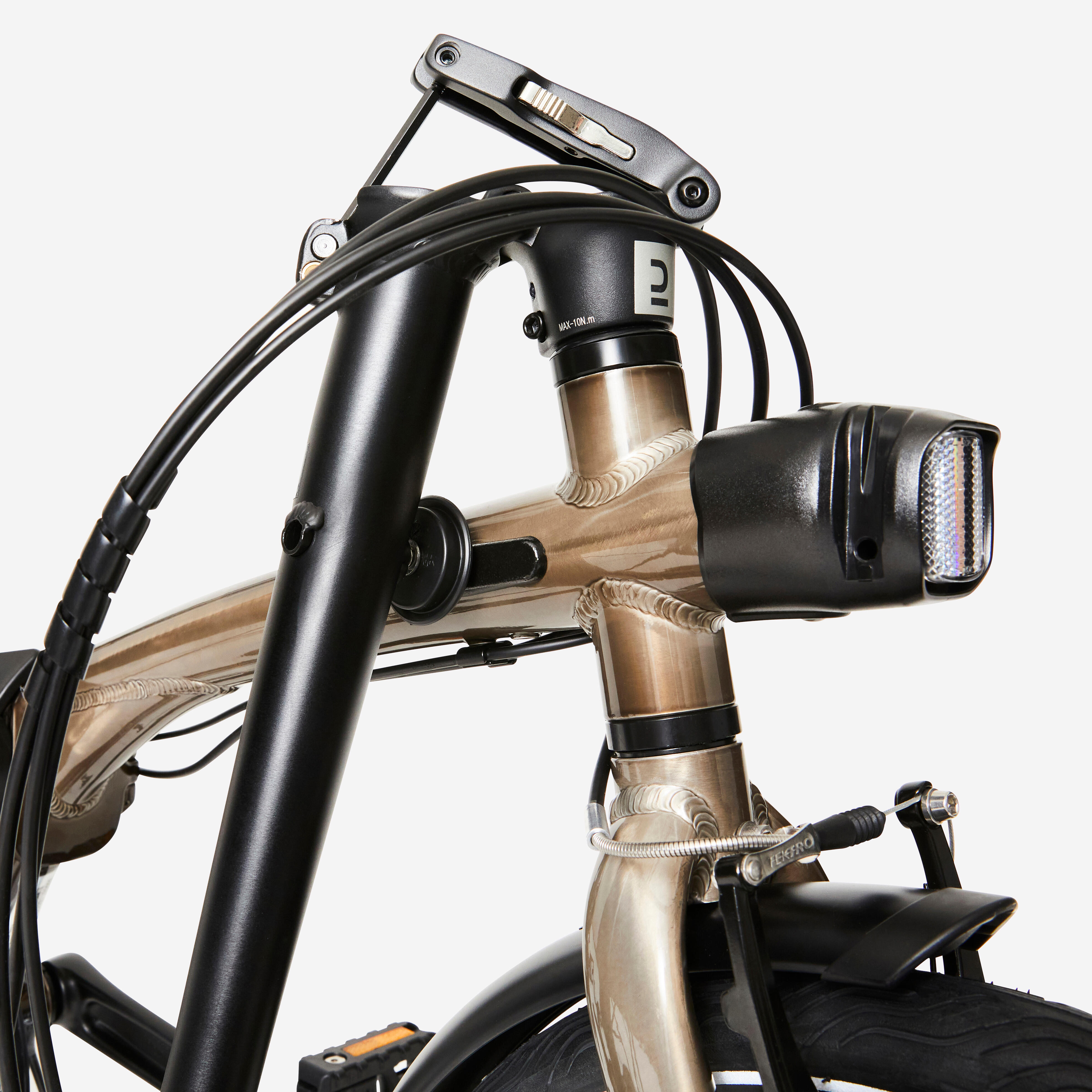

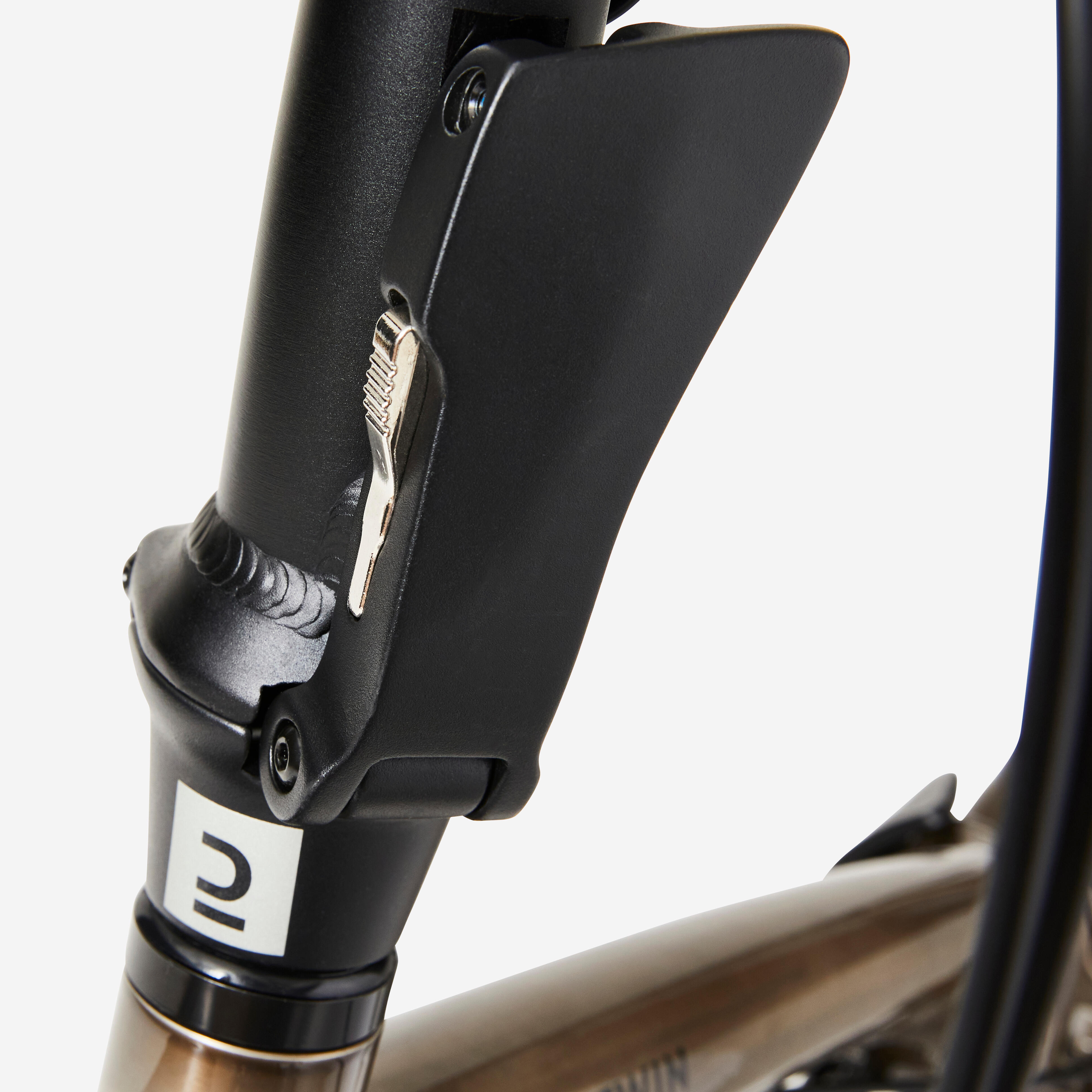

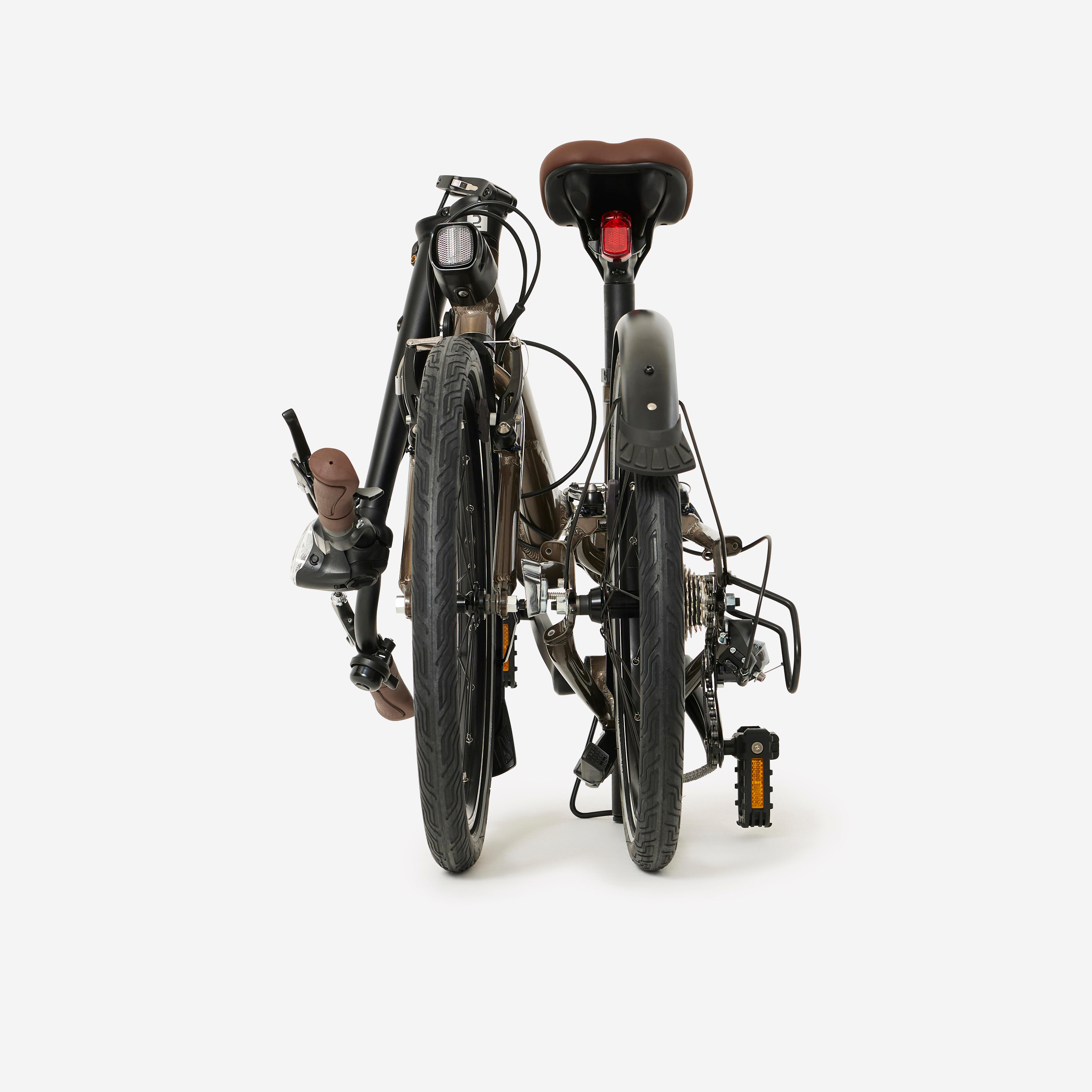

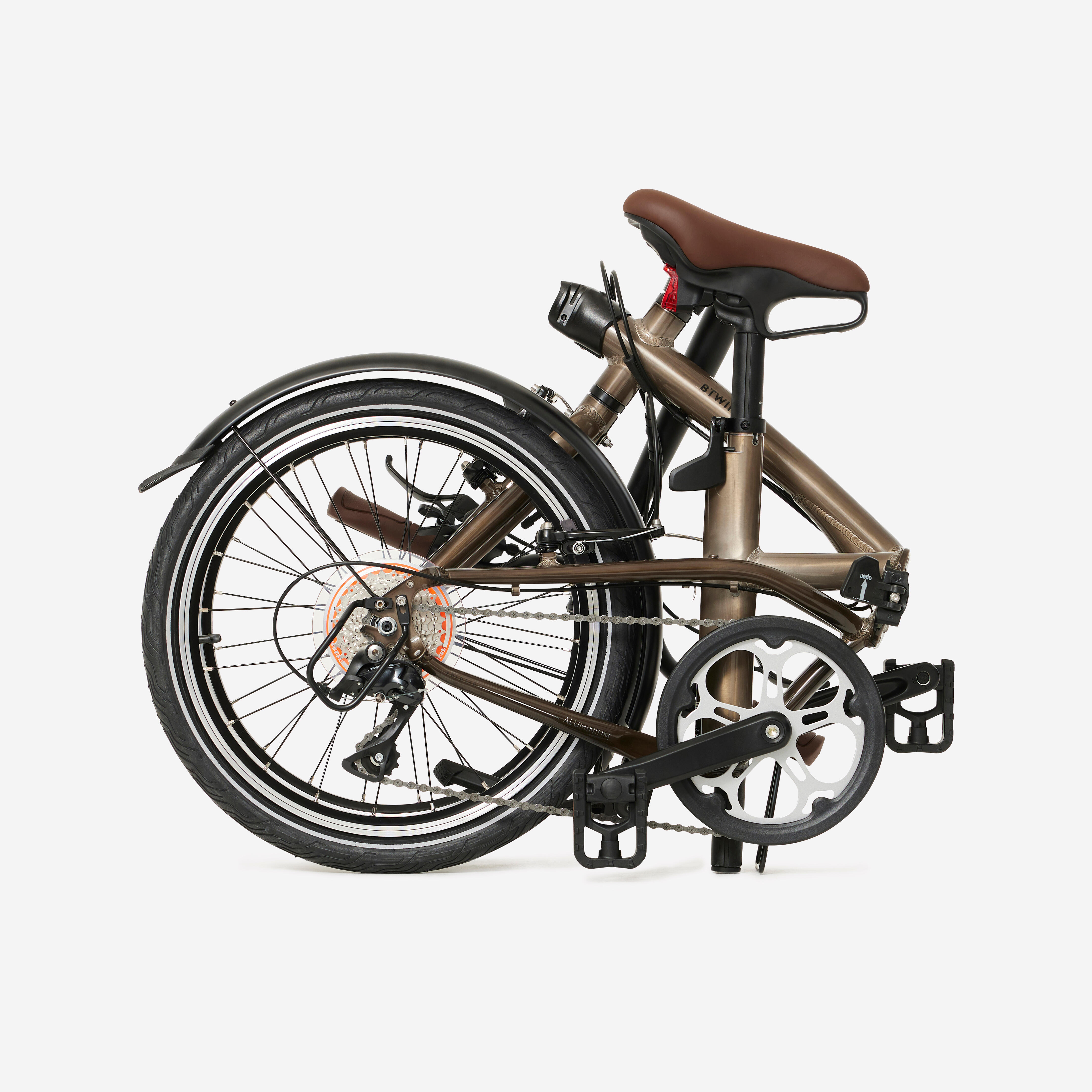

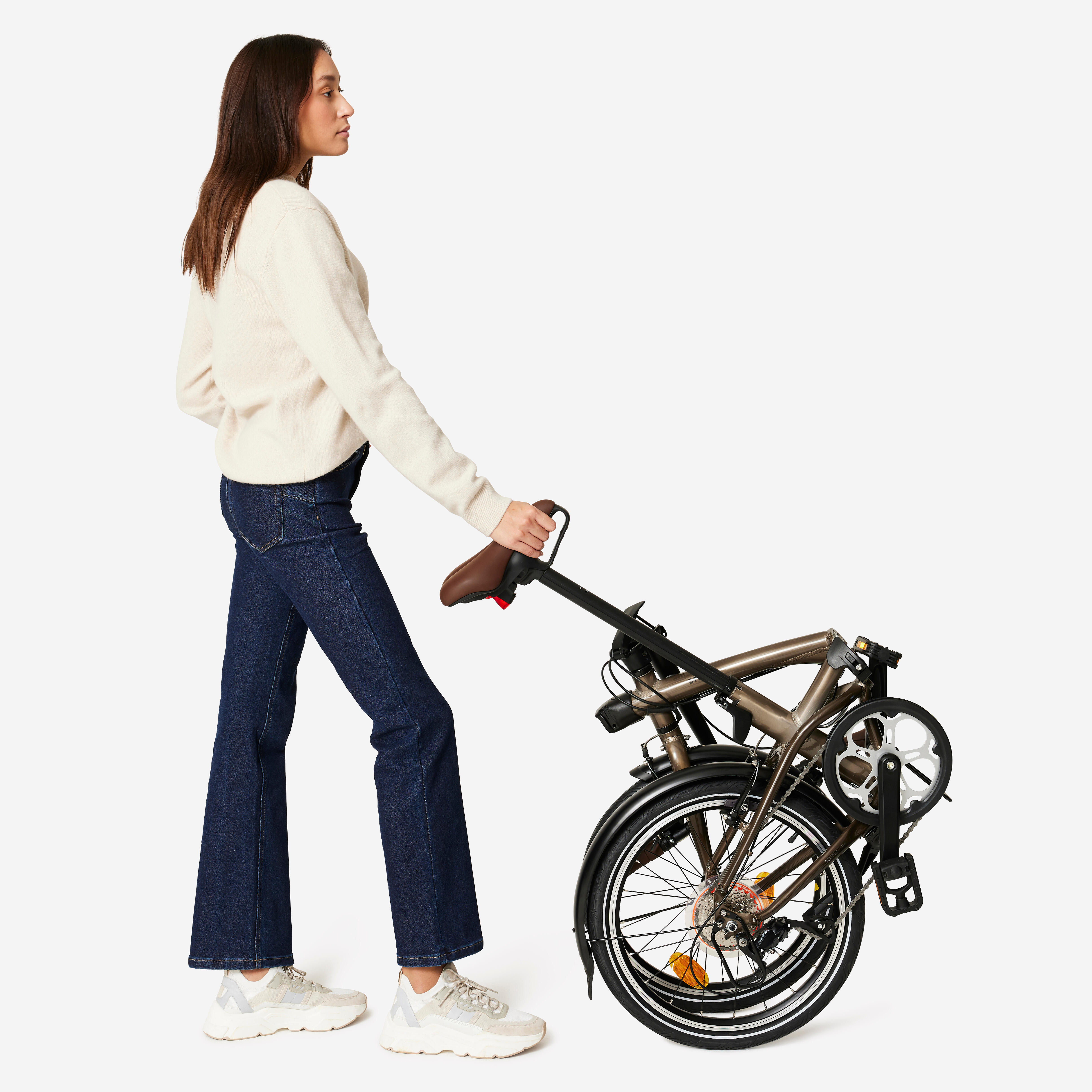

The very easy side-fold system with a lever helps to save up space: at home, at the office, in the boot of a car or in a camper... you'll forget your bike is even there. There is a mechanism to quickly lock the frame and stem so that you can keep the bike folded and transport it easily.
Frame with a stand for better stability once folded.
FORK
Aluminium 6061 T6 fork for a lower weight.
Transmission

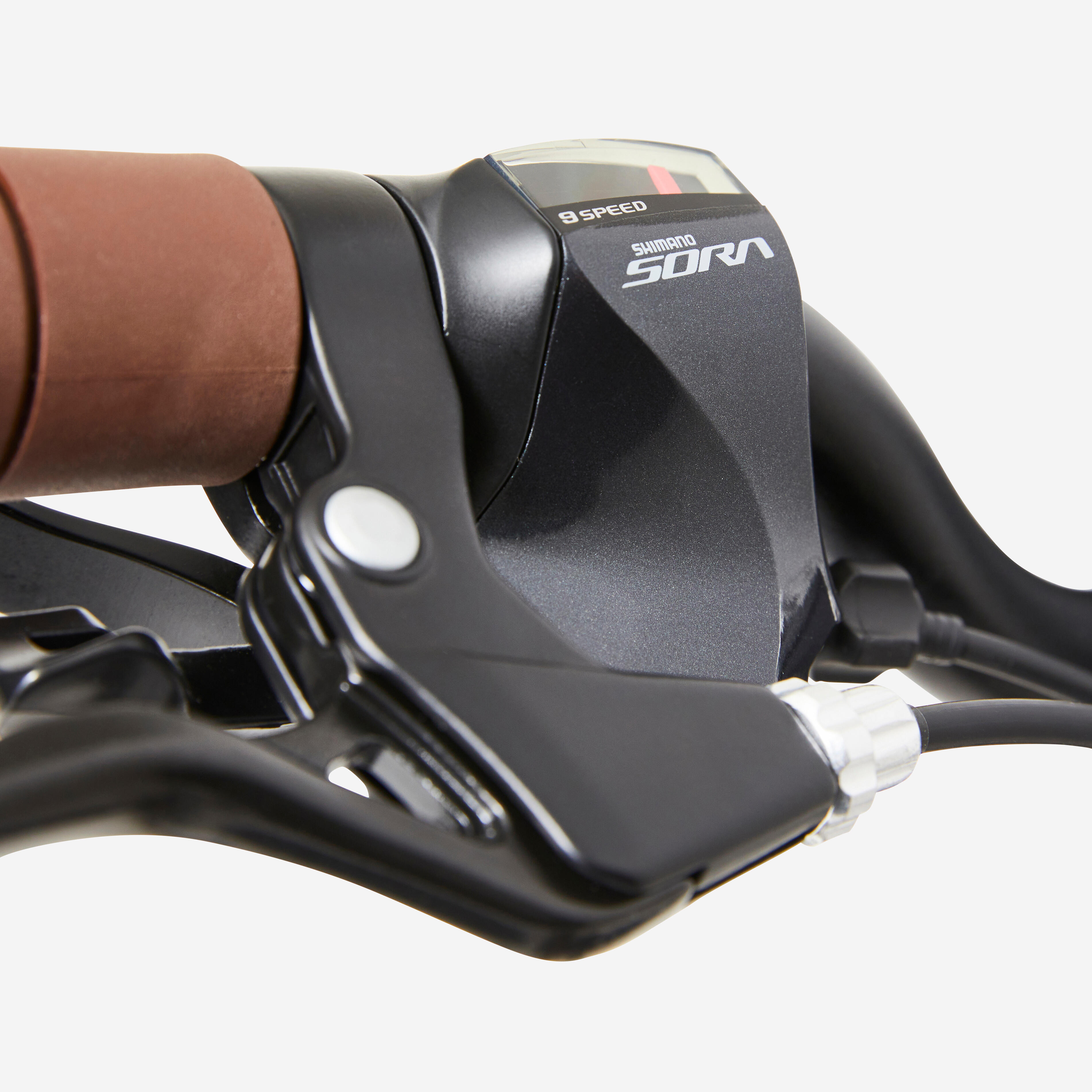

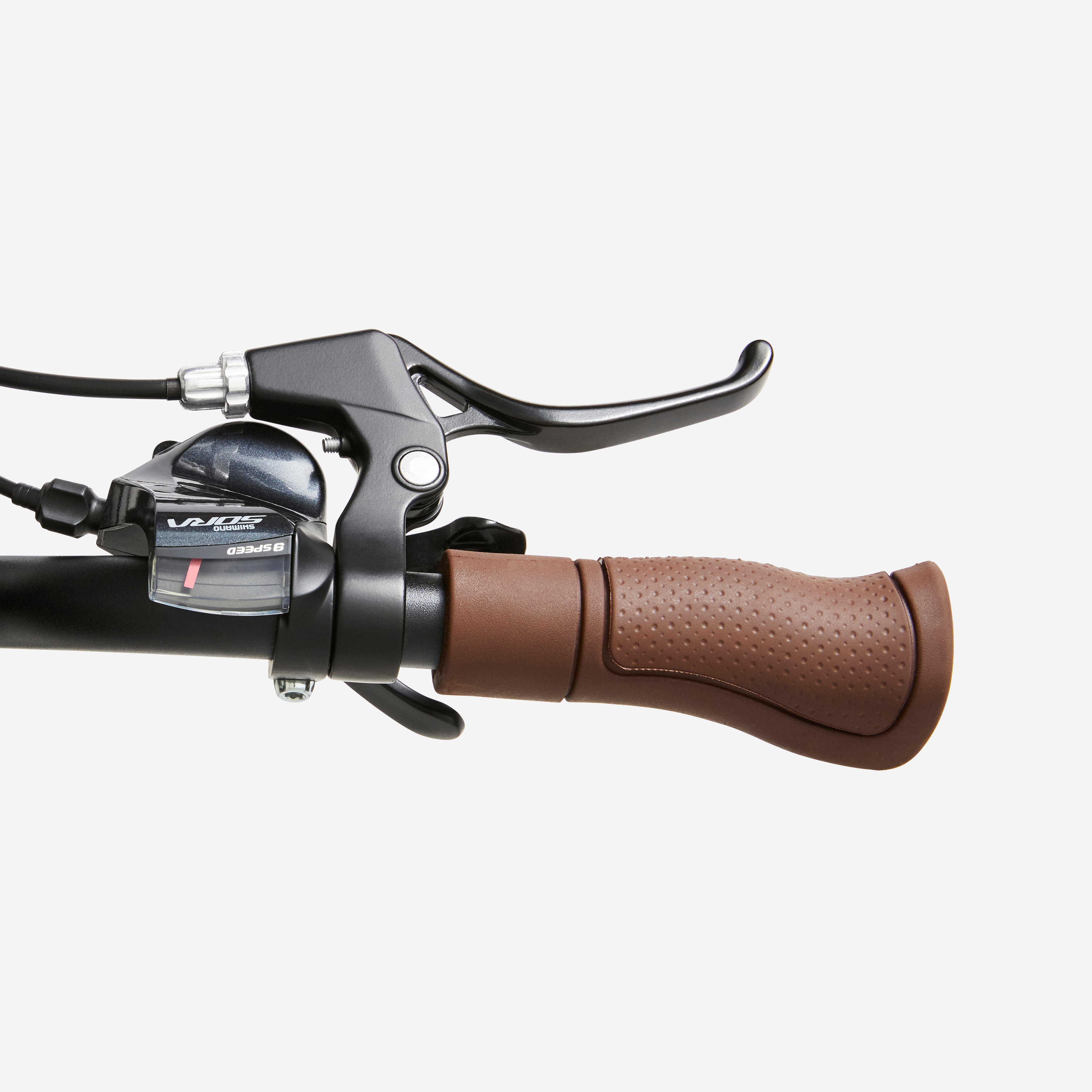

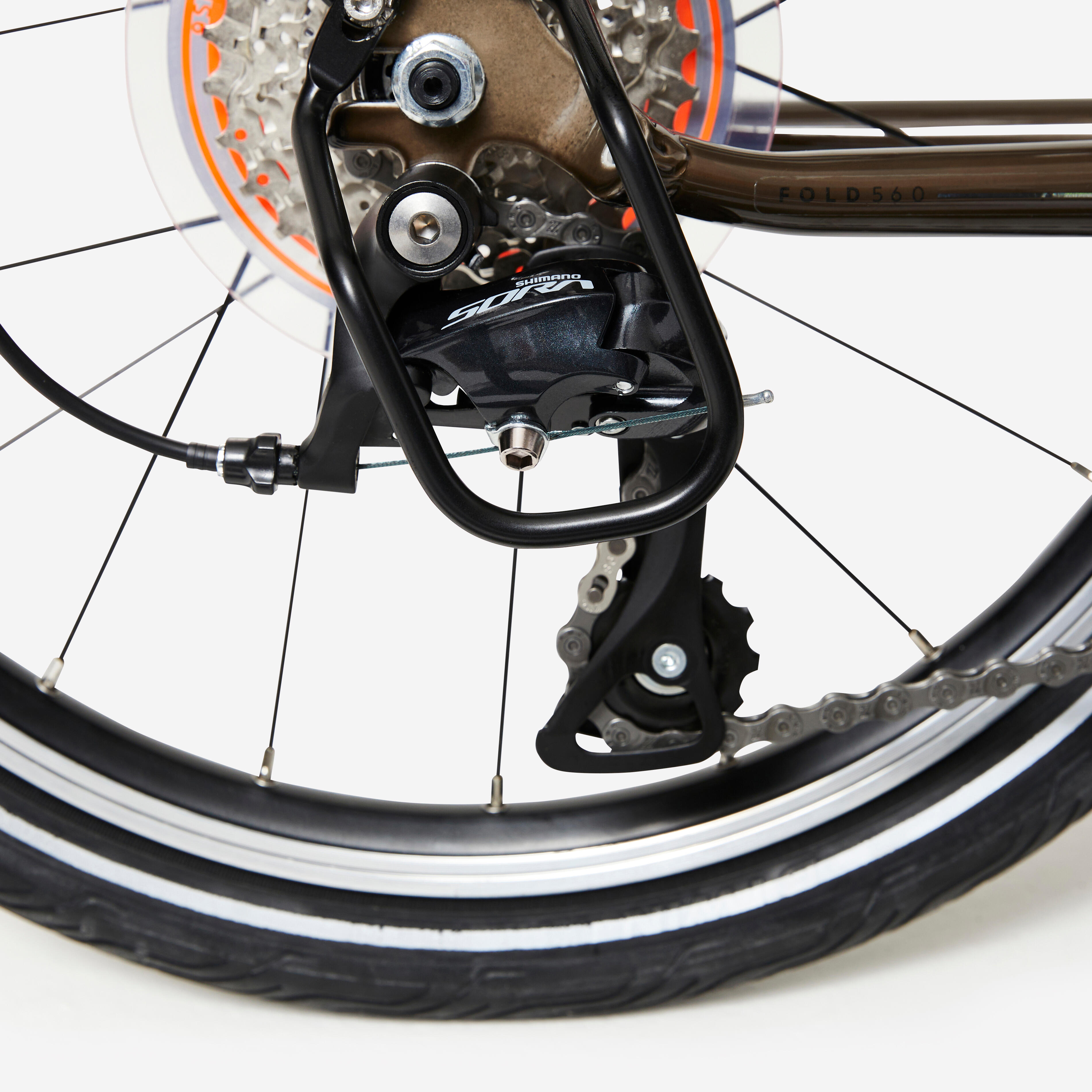

The Shimano Sora 9-speed drive train gives your bike increased precision and reliability when changing gears. The wide range of speeds lets you pedal hard on flats and effortlessly get back up to speed after stopping.
Metres of development:
- smallest development: 2.90 m per turn of the pedals, 28 teeth
- largest development: 7.2 m per turn of the pedals, 11 teeth
Brakes

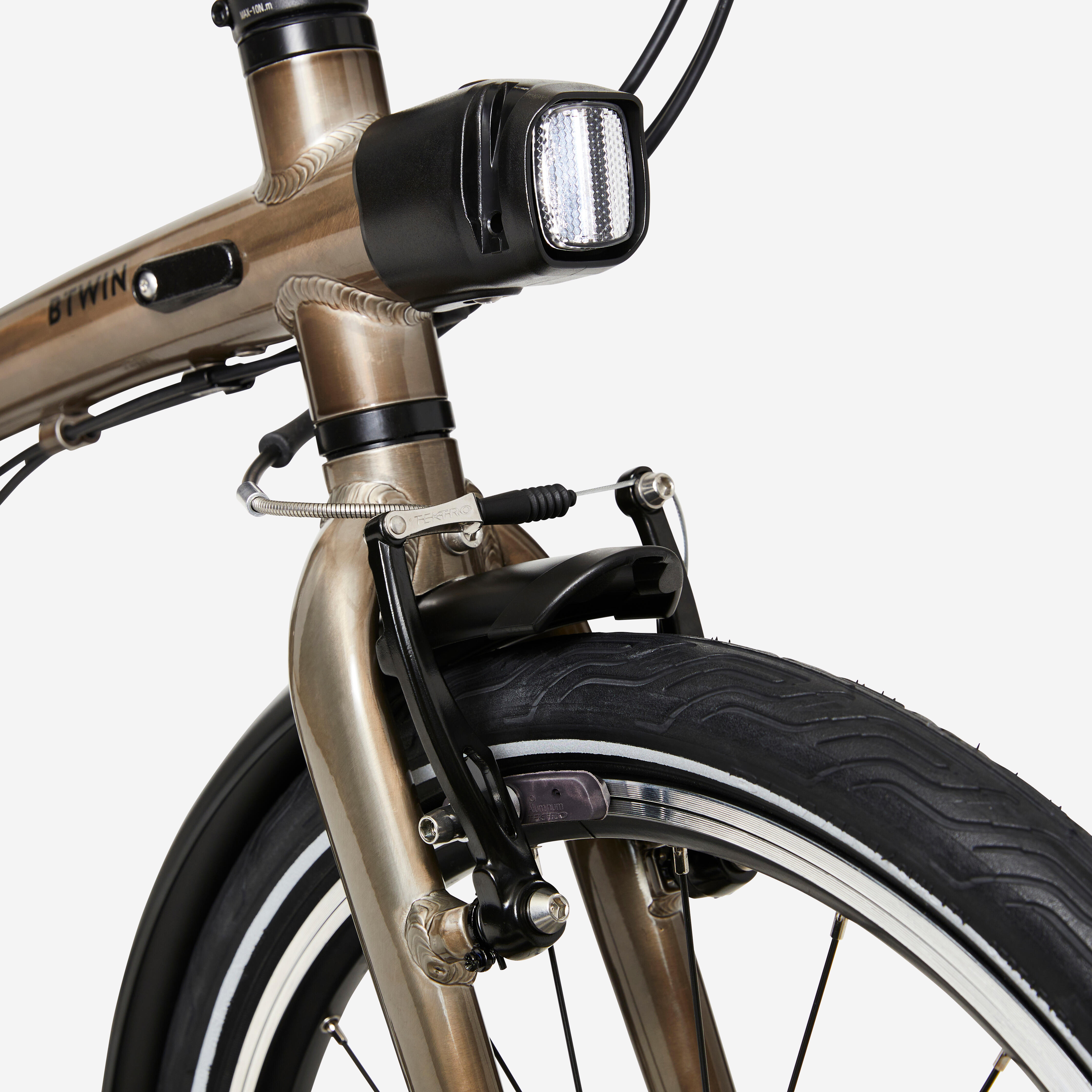

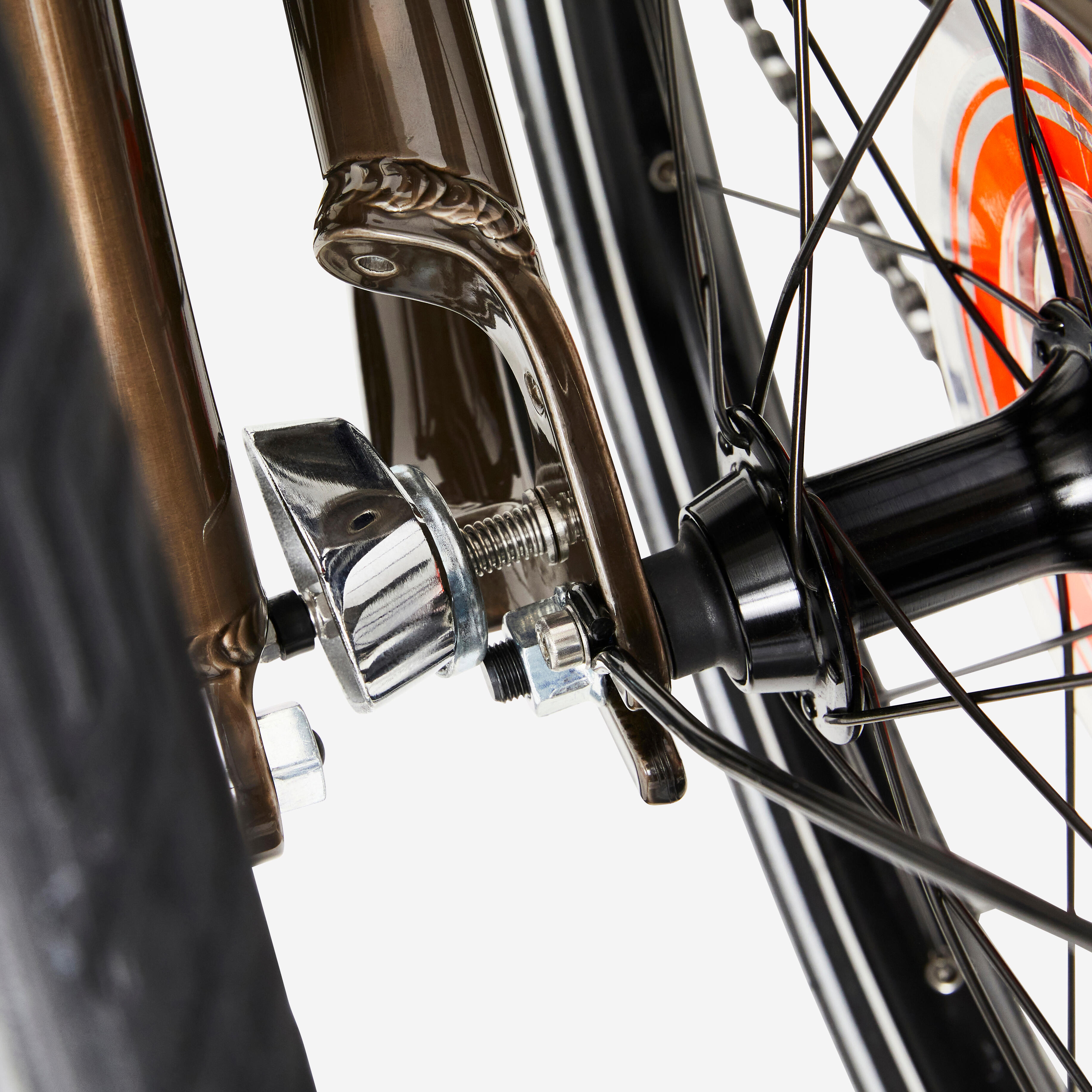

Aluminium V-brake and callipers guarantee effective and progressive braking.
Saddle & seatpost
- The comfy memory foam saddle is made without seams to prevent water getting in when riding in the rain.
- A new seatpost clamp designed to improve the clamping force.
It's also more pleasant to handle, with its ergonomic shape.
- Anti-theft, anti-rotation aluminium seat post 31.6 mm in diameter.
Handlebar / stem / steering
What's new on the handlebar: a built-in quarter-turn clip interface for smartphone support.
The comfortable memory foam saddle is made without seams to prevent water getting in when riding in the rain.
Anti-theft, anti-rotation aluminium seat post 31.6 mm in diameter.
Wheels
20 inches, double-walled machined rims.
TIRES
Tyres with anti-puncture reinforcement and reflective strips for improved lateral visibility.
Size 20 x 1.75.
We've developed these tyres using Skinwall technology for lower weight and higher performance.
Crankset
The fold-up pedals reduce bulk when the bike is folded.
Once pedals are folded up and the stem folded down, the bike can be stored against a wall and takes up very little space (26 cm wide).
Aluminium cranks: 170 mm.
USB rechargeable front and rear lights

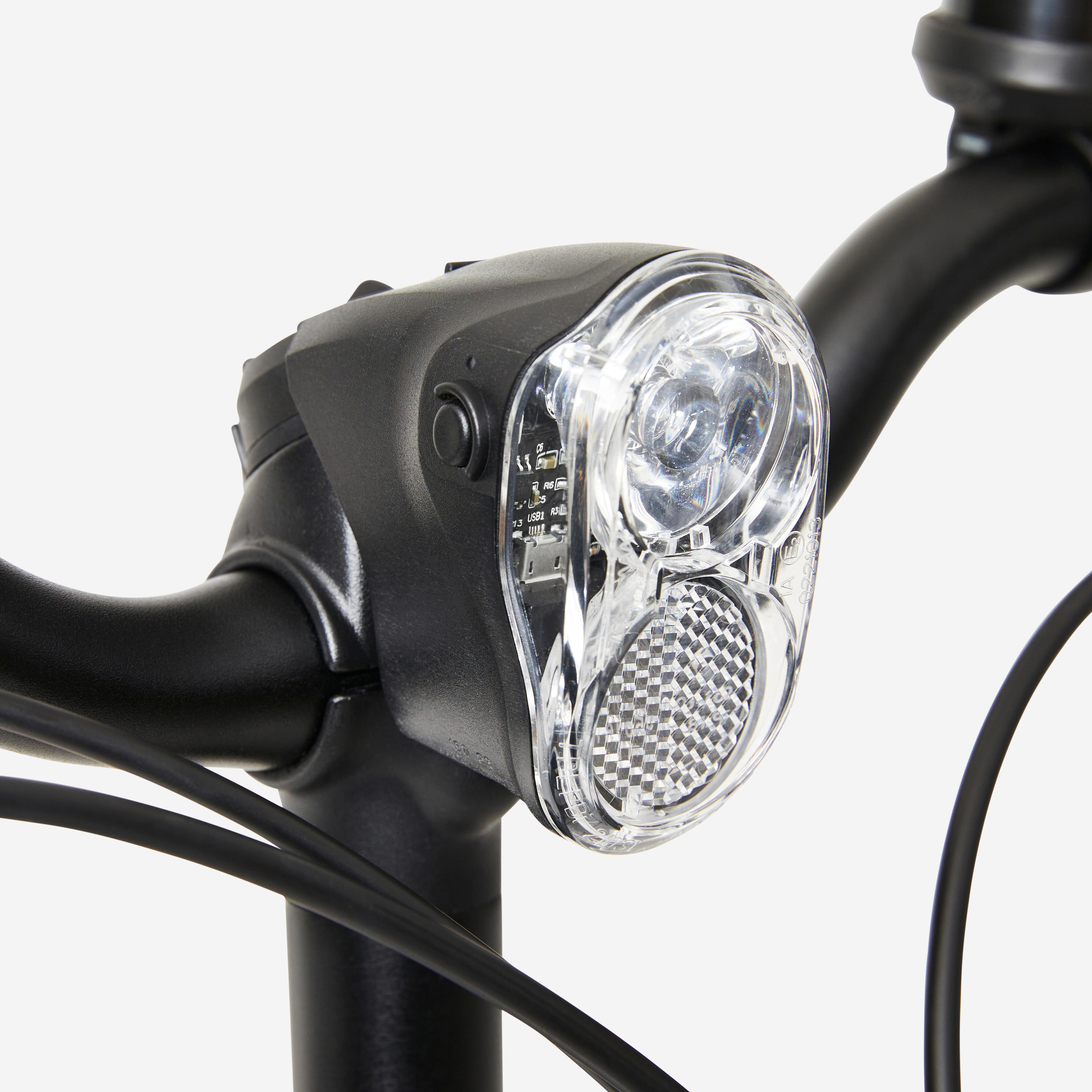

USB front light:
- 5-hour battery life.
- 10 lux for seeing and being seen.
- Clips onto a special bracket in the centre of the handlebar.

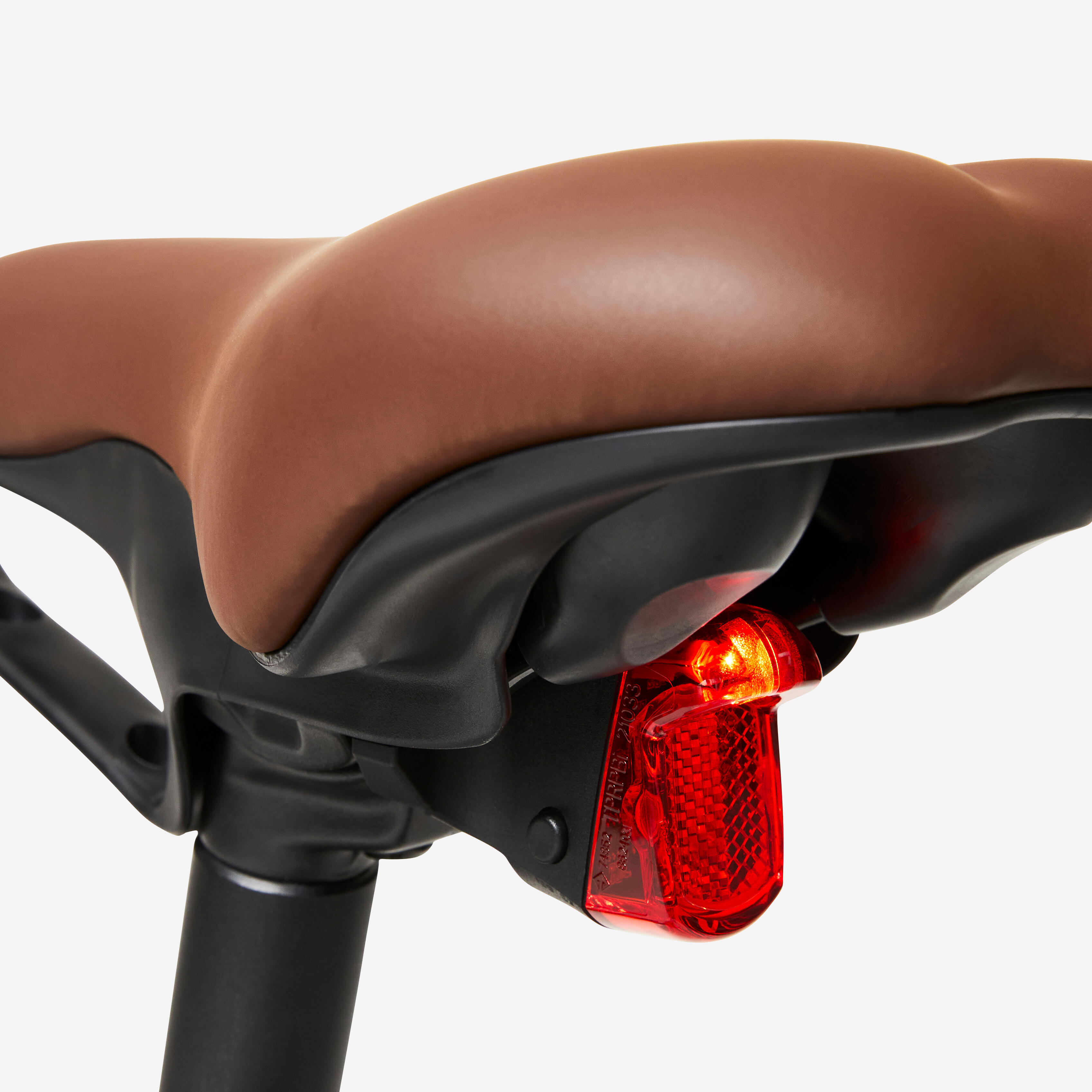

USB rear light:
- 6-hour battery life.
- 5.4 lumens.
- Clips onto the seat clamp. It's positioned nice and high so that you're really visible.
These lights comply with the French highway code and with German standards.
The dual port micro USB cable is supplied with the bike
Accessories compatible with folding bikes.
- luggage rack for folding bikes. It clips on the frame, at the front of the bike. (ref: 8735484, 8798072)
- rear pannier rack (ref: 8750409) for B'twin folding bikes.
- the 20" protective cover (ref: 8271631) protects your bike during transport phases (Eurostar, car, train...) or in your garage.
- Smartphone holder (ref:8595221) :
clips onto the bracket on the handlebar.

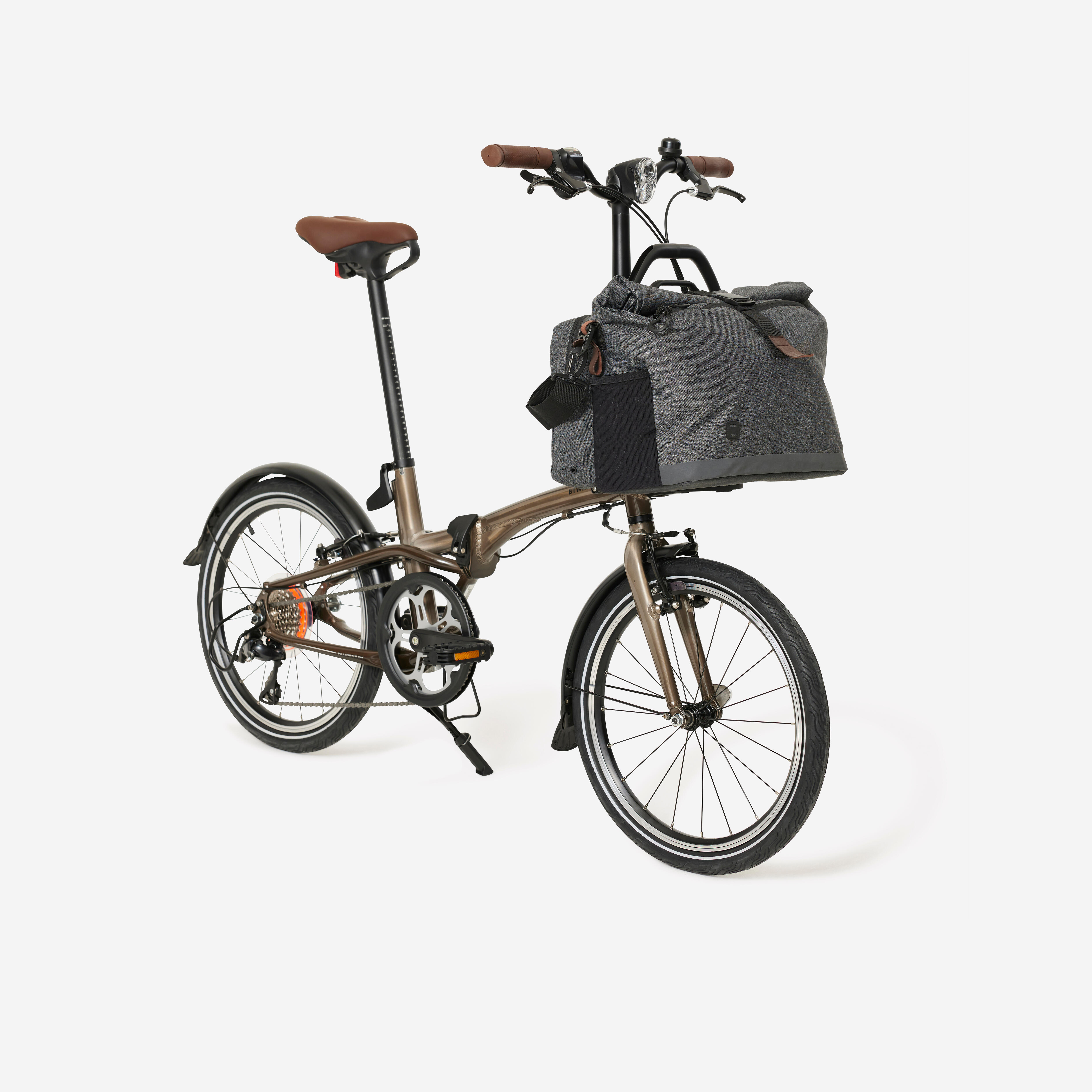

How can you carry your bags at the front?
The bike comes with mounting points on the frame (above the front wheel).
It allows you to clip on and off, with one hand and in one second, the exclusive luggage developed by the B'twin teams.
As it sits on the frame, you won't notice its weight and the bike will remain stable.
You'll be able to control your bike as normal.
/!\ The rack makes it harder to lift the front wheel over kerbs.
Accessories that AREN'T compatible
- Pannier racks that attach to the seat post are not compatible either.
- Child seats are not compatible.
- Trailers for children are not compatible.

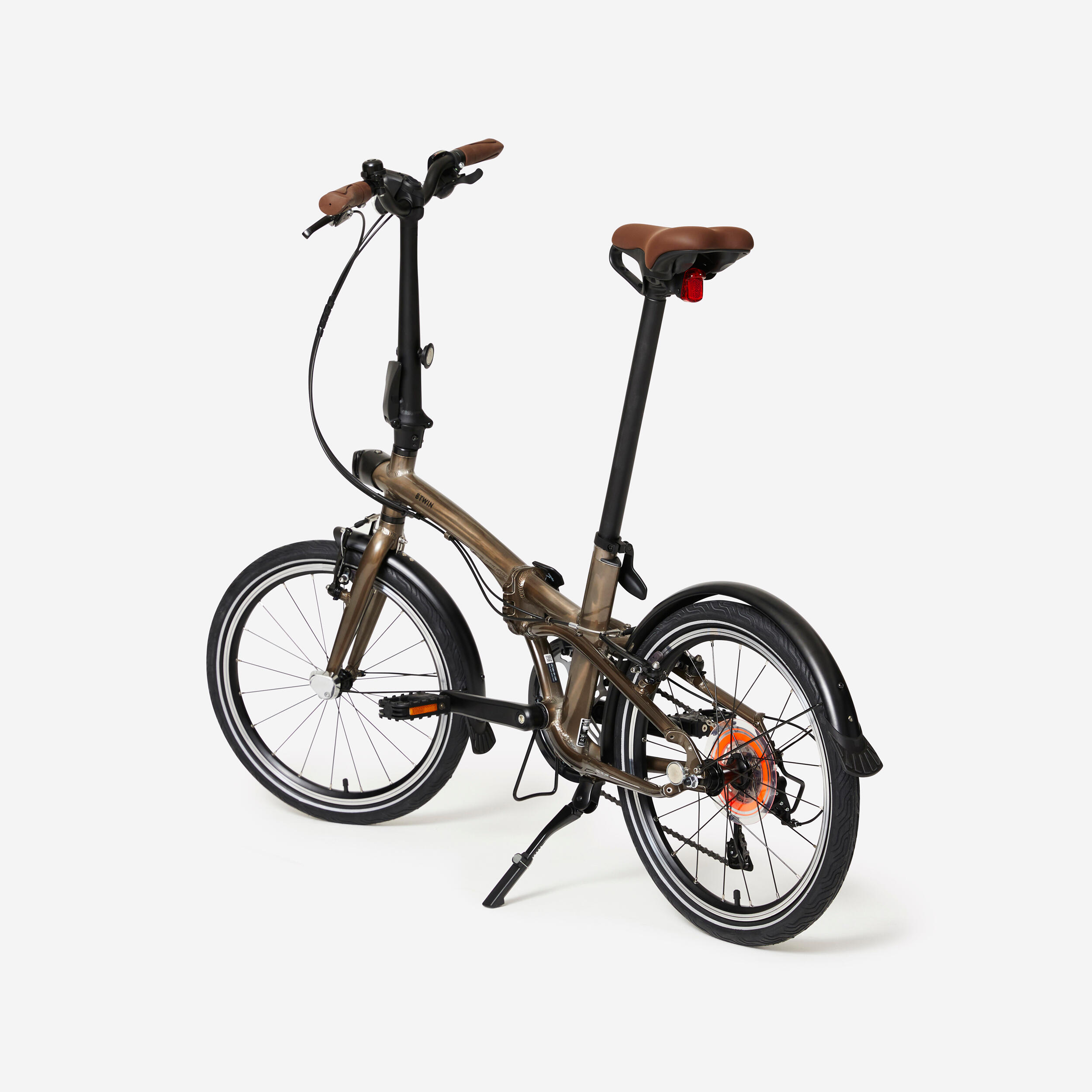

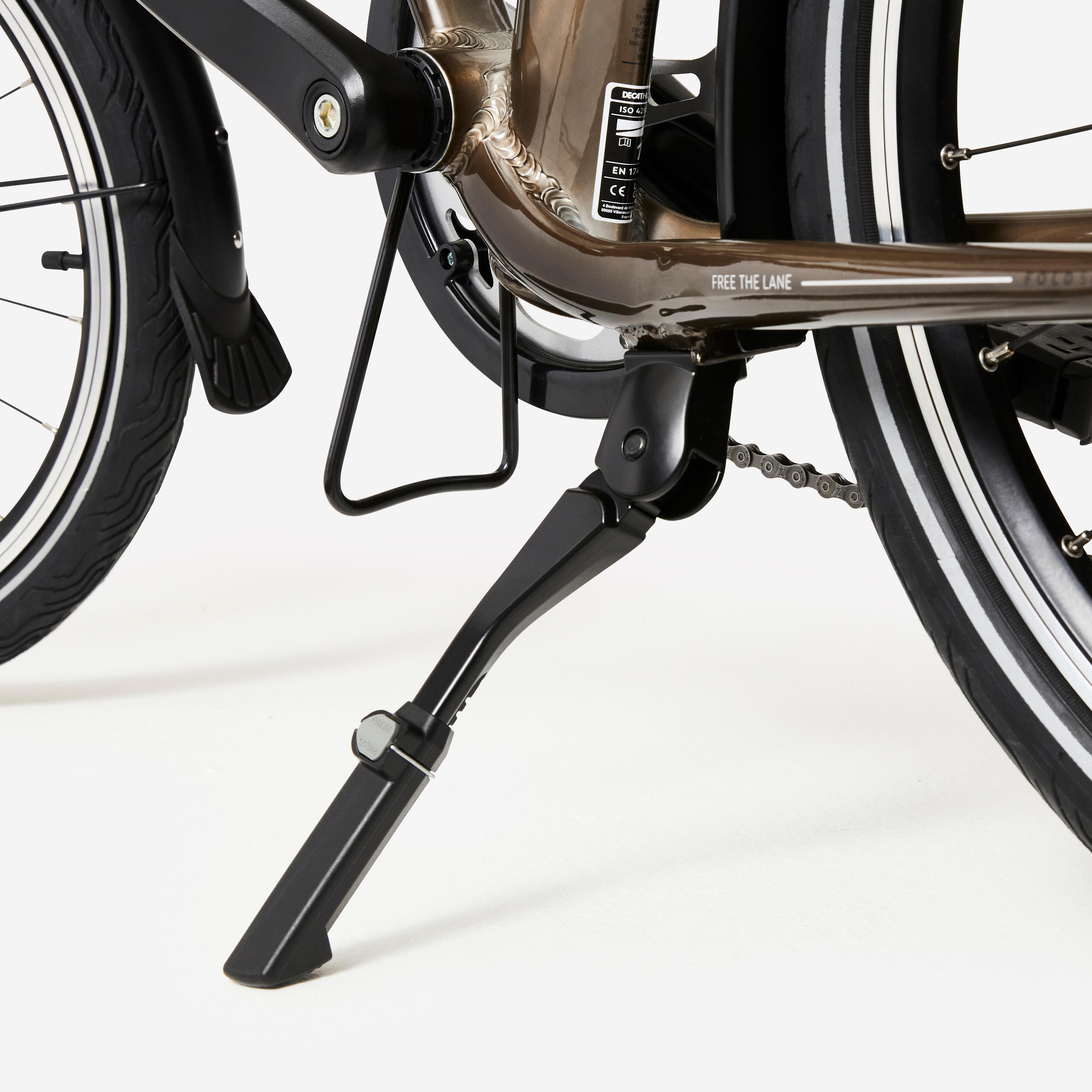

Bike stability: 2 stands
Bike stability: 2 stands
- Adjustable stand with a button to adjust the length. The stand keeps the bike stable when it's unfolded (whether or not you have bags on it).
- Frame support stand that the bike rests on as you fold it and that protects the chainset.
User size and weight
This bike's geometry is comfortable for cyclists between 1.45 and 1.85 m tall.
This bike complies with the requirements of standard ISO 4210.
Maximum load
The bike is approved for a maximum load of 100 kg.This charge comprises:the weight of the bike (12.2 kg) + the weight of the rider and any passengers + the weight of any additional load (panniers, basket, etc.).
Color
The imperfections in the brown frame colour (hues, shiny wear) are not quality defects but instead, the result of our design choice to use brushed aluminium, tinted varnish. Your bike will therefore look like no other!
