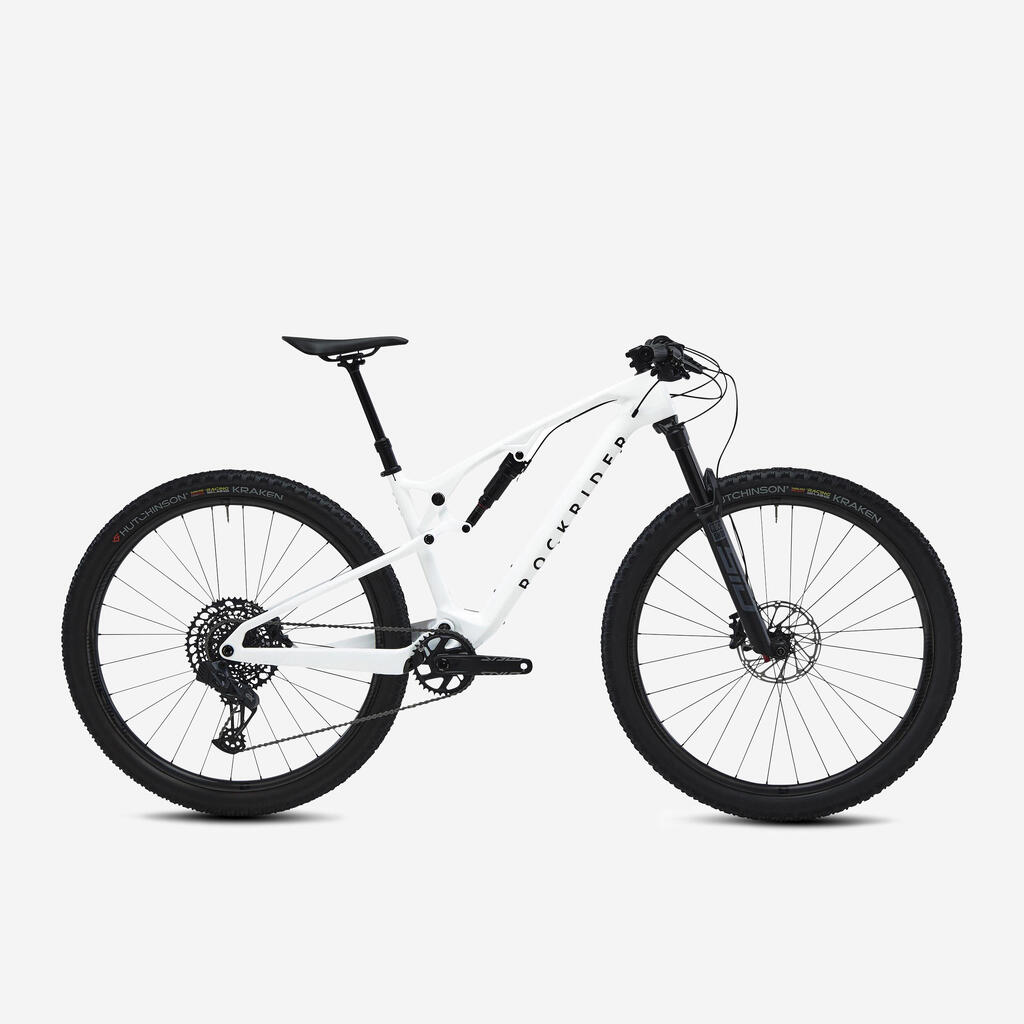

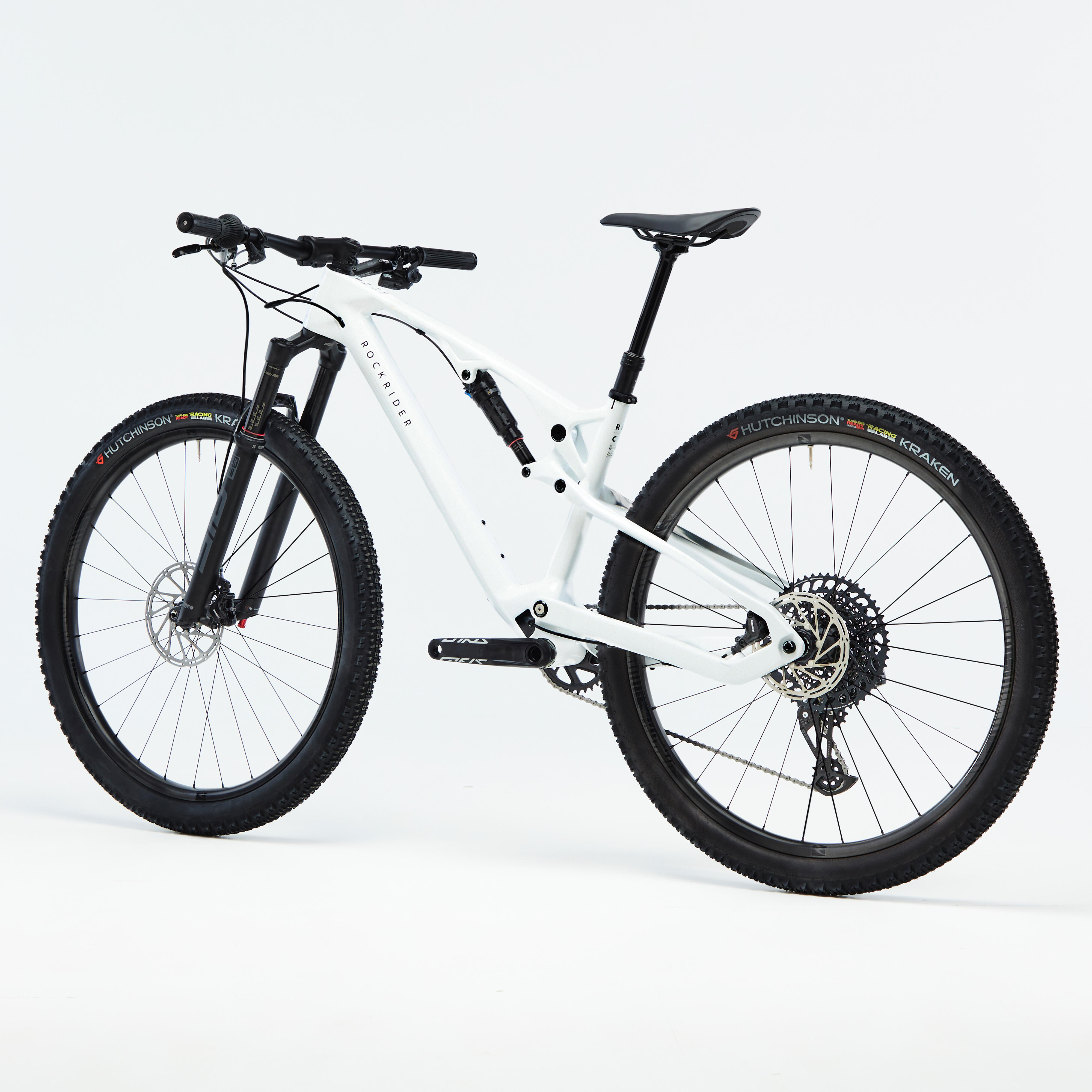

In a nutshell
Weight: 12.1 kg in size M (without pedals)
Frame material: Carbon
Type: Full suspension
Wheel size: 29"
Fork and shock travel: 120/120 mm
Drive train: 1x12
Brakes: hydraulic disc
Seatpost: Telescopic
2-year guarantee for components

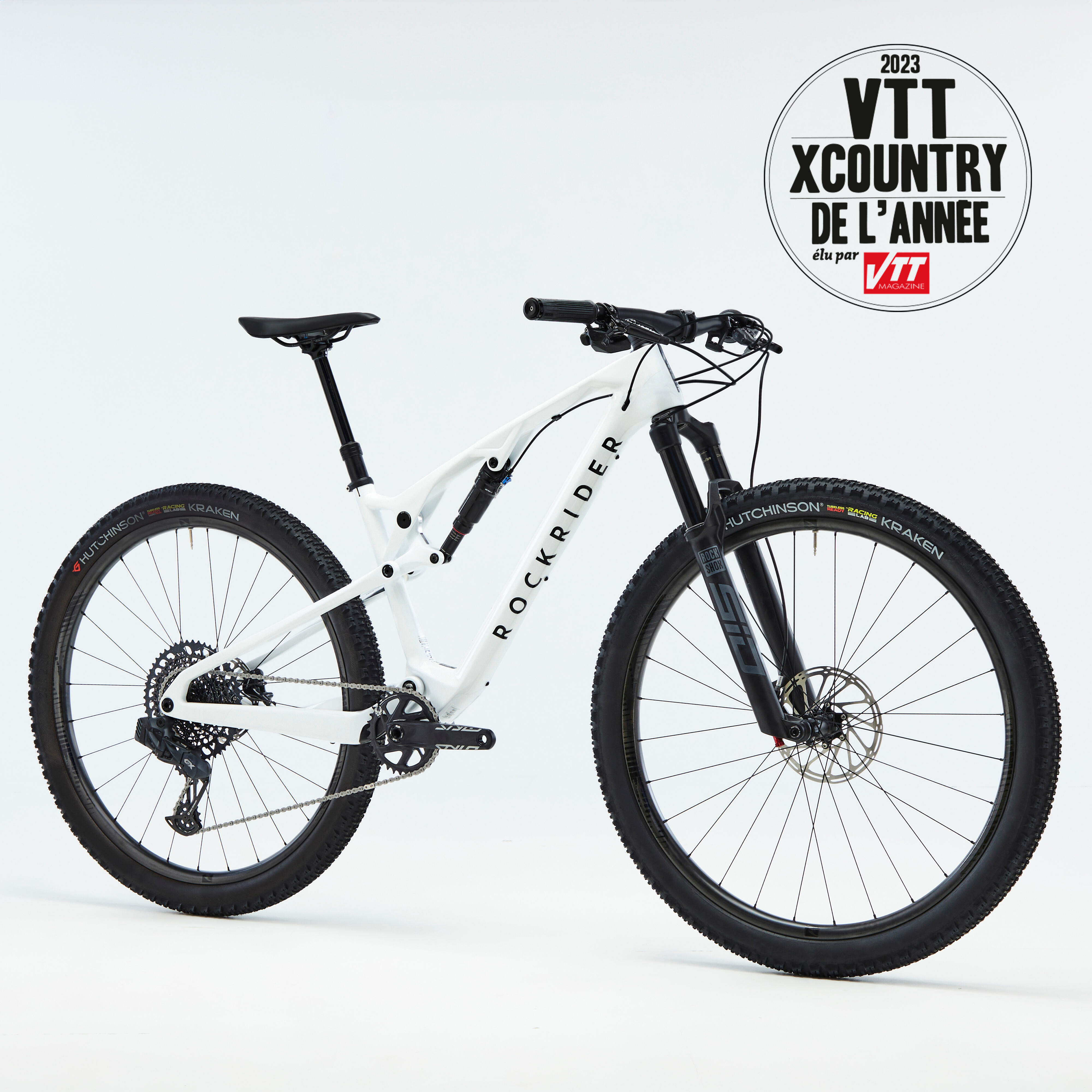

SELECTED BEST XCO MTB OF THE YEAR 2023
This mountain bike was selected XCO Mountain Bike of the Year 2023 by the speciality magazine VTT Mag following a large test conducted by readers. It was praised in comparison with many other models of competing brands, and was chosen for its performance, versatility, and excellent value for money.
The entire test is available in edition 379 of "VTT MAG"
Weight
S: 12.0 kg
M: 12,1 kg
L: 12.3 kg
XL: 12.5 kg
Weight without pedals but with inner tubes

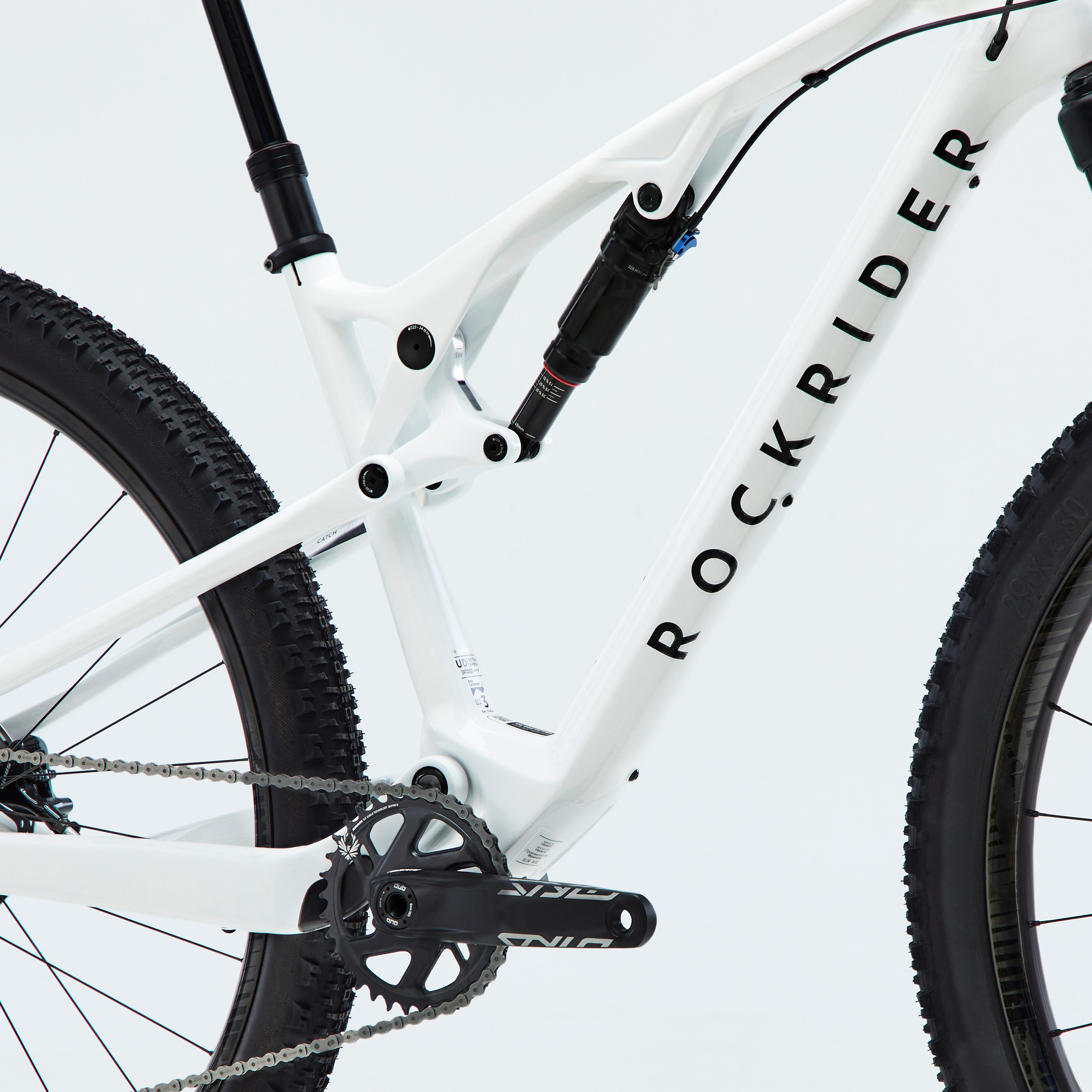

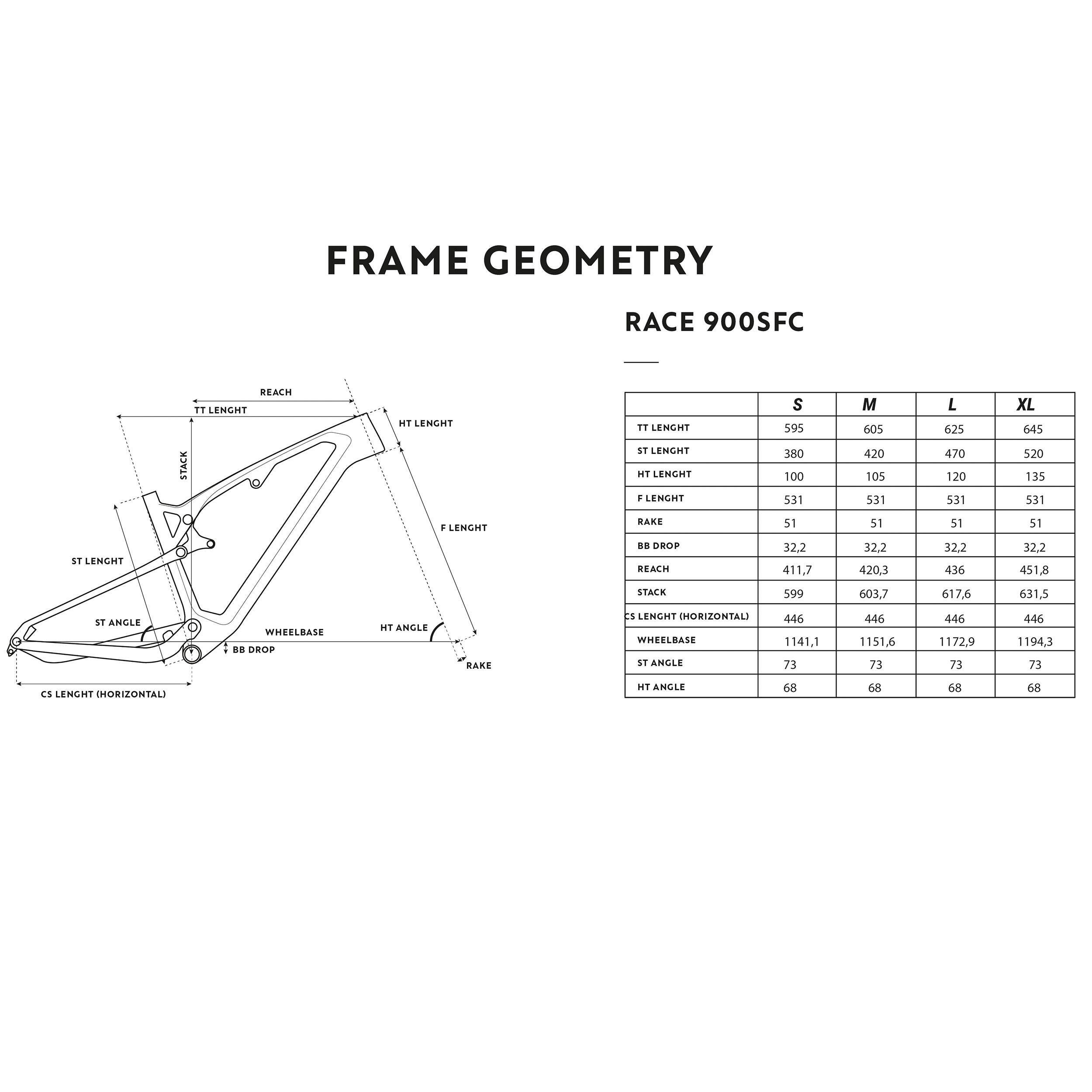

Frame
Composition: Full carbon (frame and link)
1980 grams in size M with connecting rod and screws
Travel:120 mm
Axle: thru axle
Format: BOOST
Bottom bracket: PressFit 92
Seat post diameter: 31.6 mm
Compatible with telescopic seat post (internal routing)
Bottle cage:yes (1 bottle)
Sram UDH derailleur hanger. Frame not compatible with T Type derailleurs

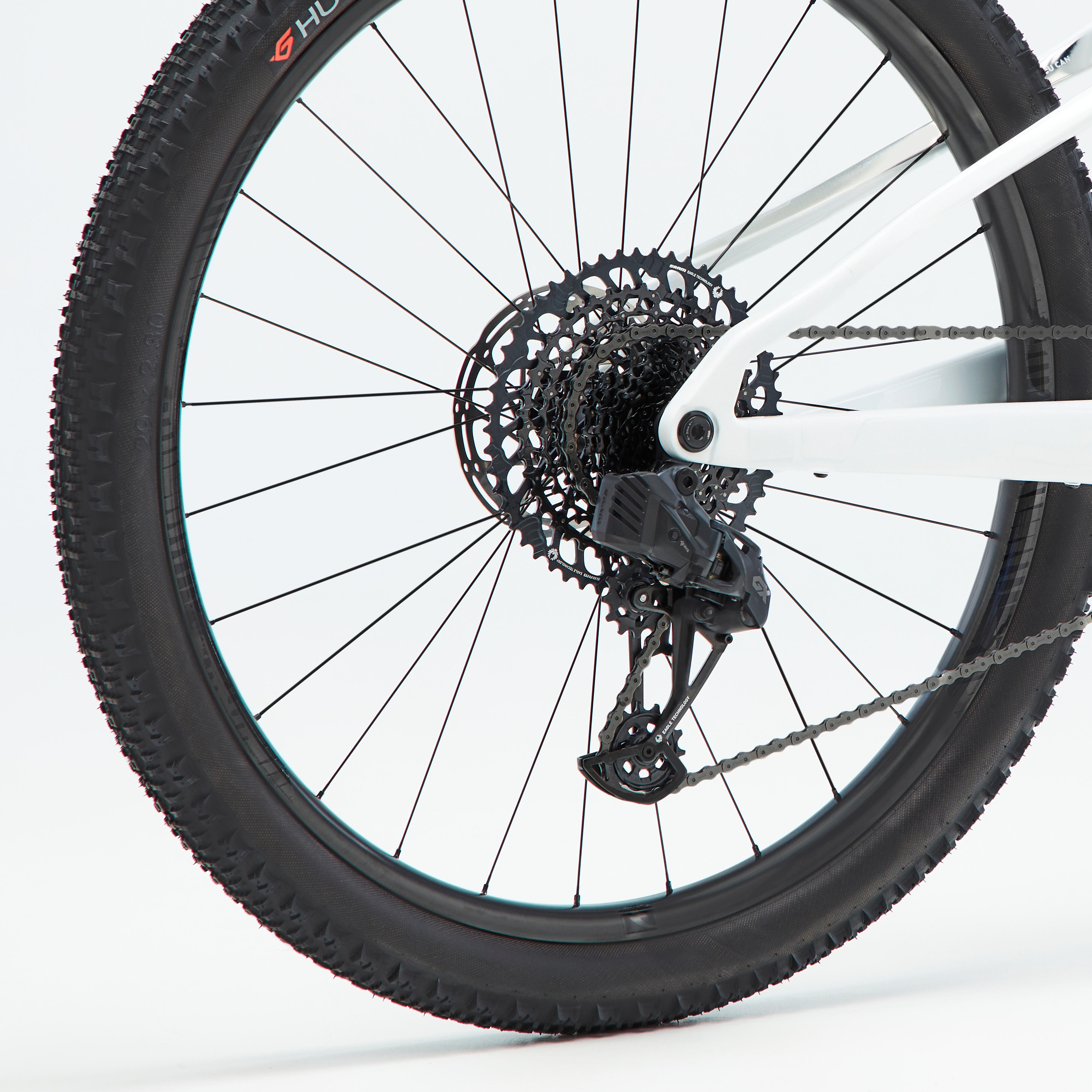

Drive train
SRAM GX AXS
Truvativ Stylo 7K Aluminium crankset
34 chainring (compatible with 30, 32 and 34 teeth)
Bottom bracketSram PF 92
Cranks: 170 mm in (S/M) and 175 mm in (L/XL)
SRAM PG1275 cassette in 10-52 (520%)
Chain: SRAM EAGLE NX
Suspension
Fork: RockShox Sid Base
Travel: 120 mm
Dampers: 35 mm
Rush RL cartridge
Type of axle: thru axle
Format: BOOST
RockShox Twist Lock OR One Lock handlebar lock (2 positions)
Weight:1690 grams
Shock absorber: RockShox SidLuxe Select +
Format: 190 x 45mm
Specific model adapted to the kinematics of the bicycle.
Weight 236 g
Wheelset
Reynolds TR309/289 XC 29"
1665 grams
Carbon fibre rim, hookless
Width: 30 mm / 28 mm
Freehub: Reynolds TR MTN
Spokes (front/rear): 24 / 28 - Sapim Sprint
Centerlock disc attachment
Tubeless Ready: yes
Lifetime warranty (subject to registration on the Reynolds website)
Brakes
Hydraulic disc brakes
Sram Level TL
Sram Centerline front discs:180mm
Sram Centerline rear discs:160 mm
Centerlock attachment

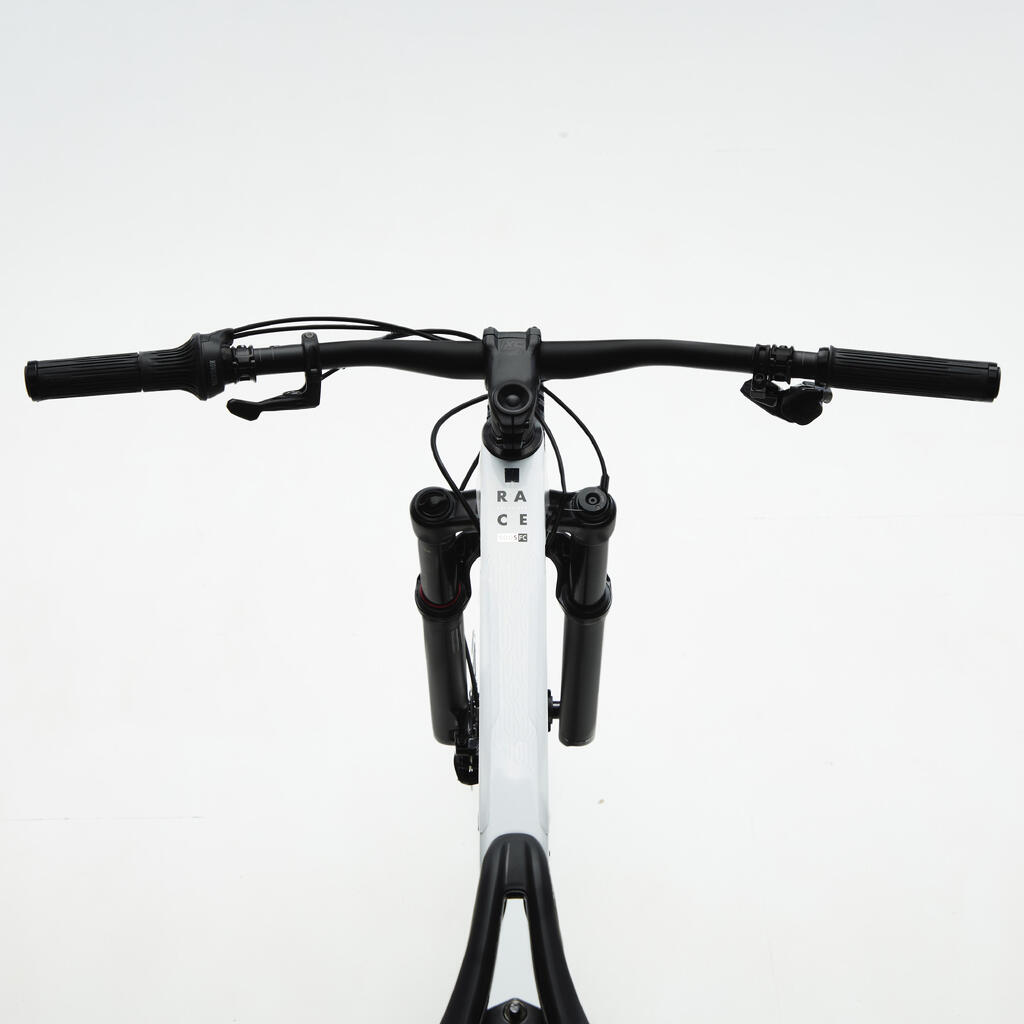

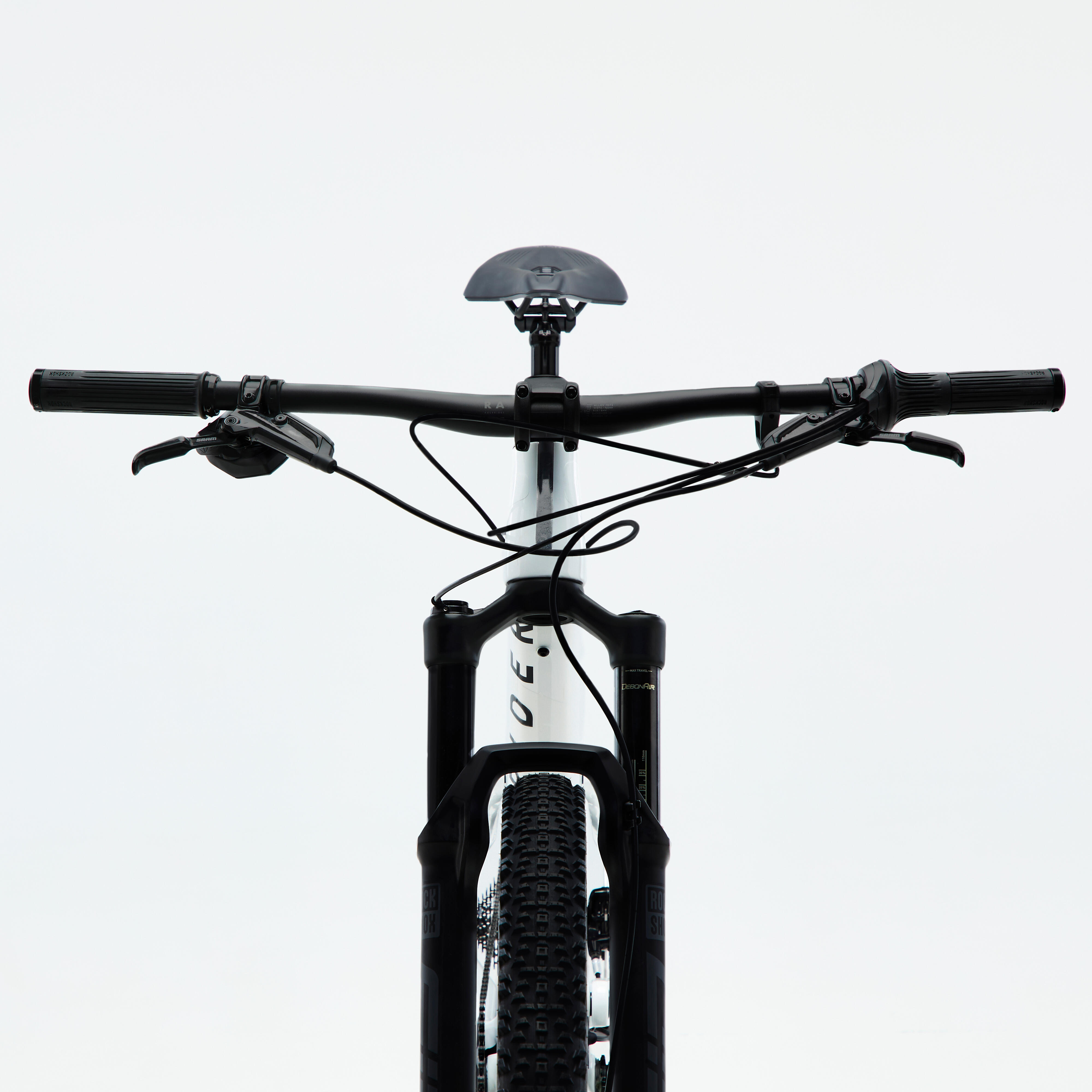

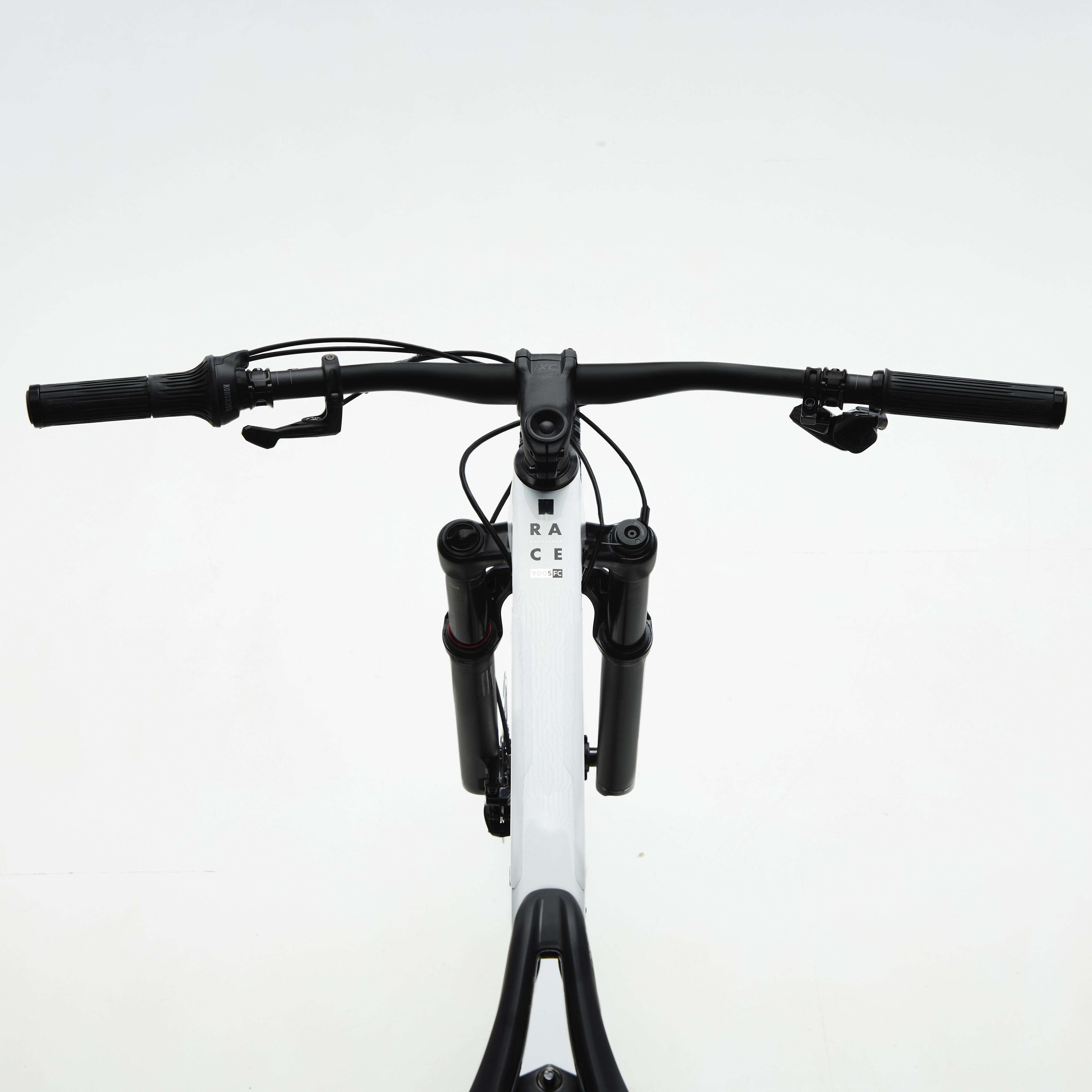

Riding position
Handlebar: Rockrider flat
Material: Aluminium
Width 720 mm
Angle: 6.5°
256 grams
Stem: Rockrider
Material: Aluminium
Angle: -7°
60 mm (size S), 70 mm (size M), 80 mm (size L), 90 mm (size XL)
Grips: Rockrider 900 Lock On
Saddle and seat post
Saddle Fizik Argo Vento
230 grams
Seat post: TranzX telescopic
Diameter: 31.6 mm
Length: 400 mm
Travel: 120mm (S) 150mm (M, L and XL)
Insertion limit: 80 mm (120) - 120 mm (150)
Max height (at insertion limit): 281 mm(120) - 318 mm(150) - 358 mm(170)
Control: offset on handlebar
Material: 6061 aluminium
Head offset: 15mm
Weight: 600 g
TYRES
Hutchinson
Front: Kraken Racing Lab 29 x 2.30
Tubeless Ready: Yes
Race Ripost XC rubber
127 TPI carcass
Weight:700 g
Rear:
Kraken Racing Lab Hardskin 29 x 2.30
Hardskin reinforcement
Tubeless Ready: Yes
Race Ripost XC rubber
66 TPI carcass
Weight 800 grams
PEDALS
Rockrider 520 Grip resin flat pedals
comfort and safe
Your bike's equipment (drivetrain, brakes, etc.) will move around during the first few months of use. Please contact your nearest store's workshop to have your bike correctly adjusted.
