BTWIN

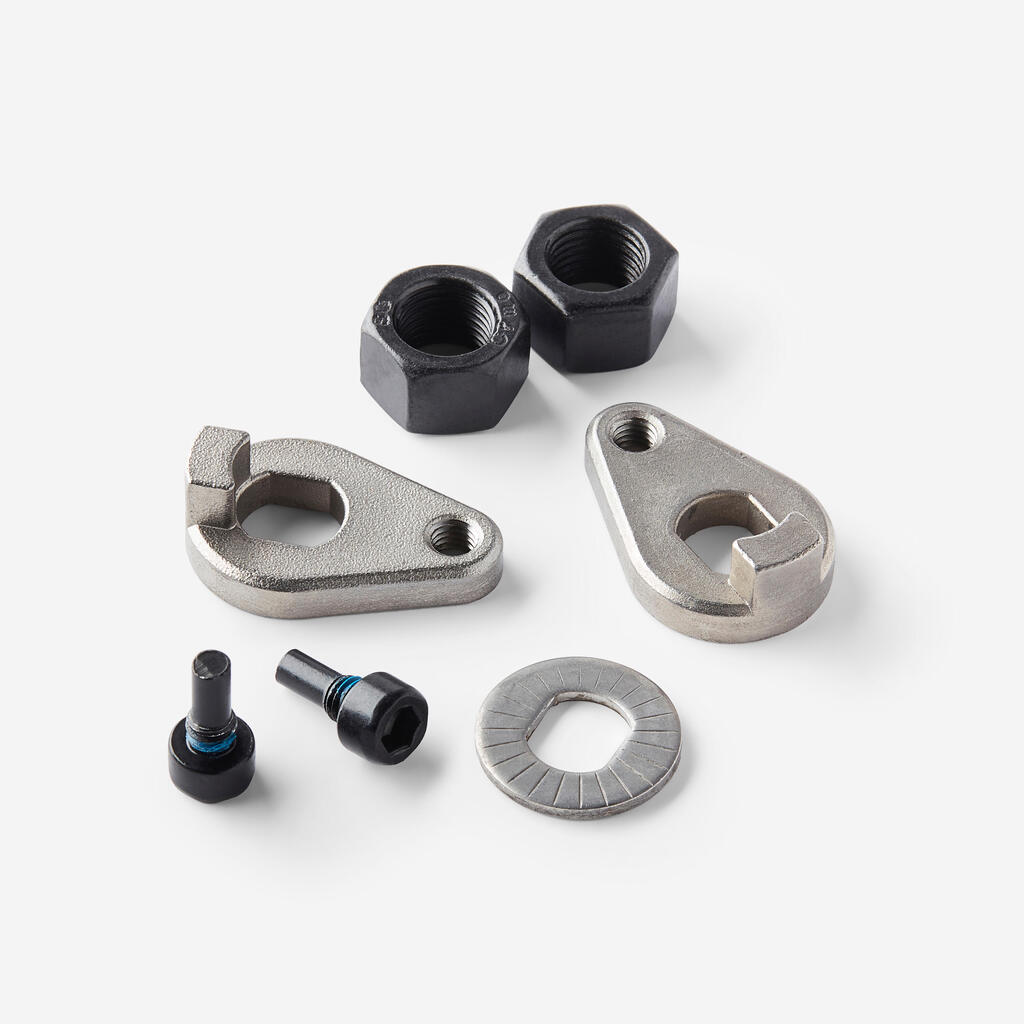

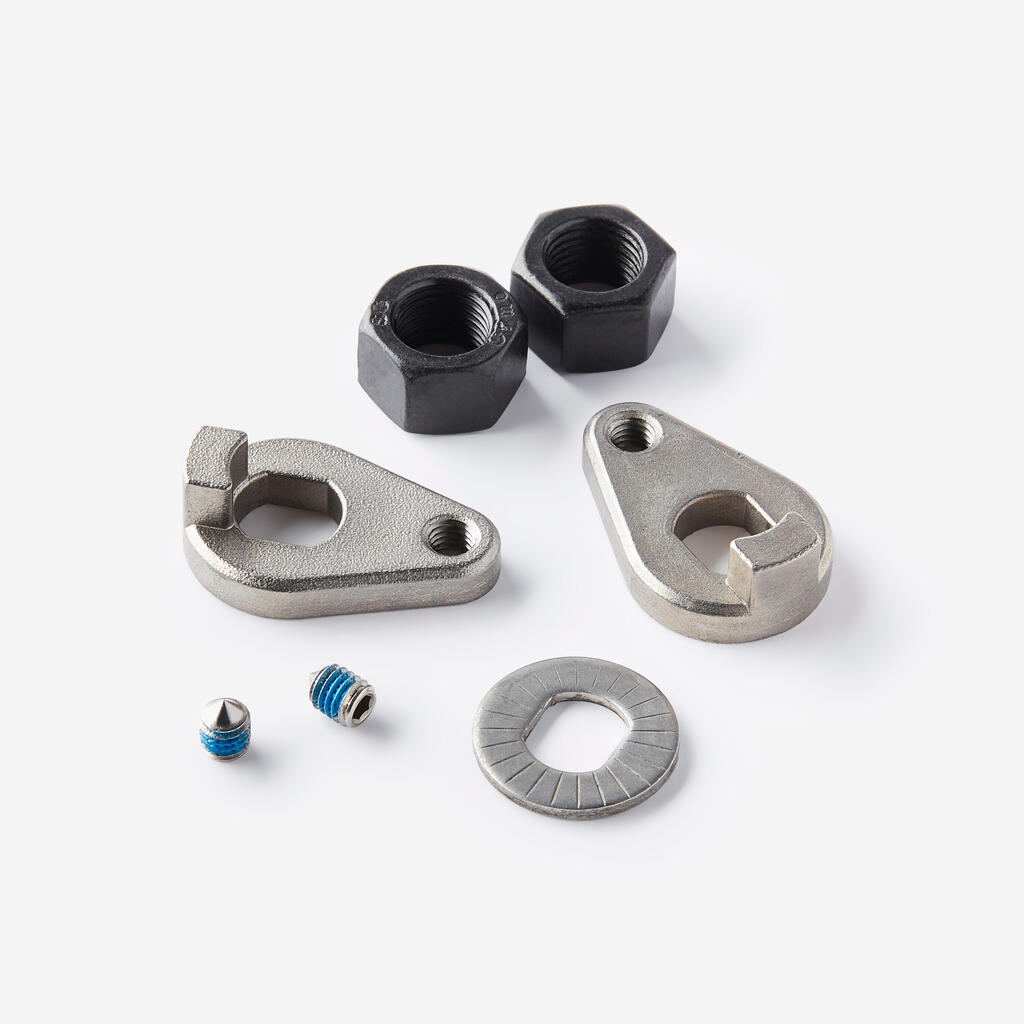

R500E PIN LONGTAIL CARGO BIKE anti-rotation nuts and washers

Designed to replace the anti-rotation washers on your R500E LONGTAIL REAR LOADING ELECTRIC CARGO BIKE.

This anti-rotation washer kit provides enhanced anti-rotation security at the rear wheel axle of your R500 LONGTAIL REAR LOADING CARGO E-BIKE.

ID 8928448

€5.99

VAT included

Color: Colorless

Pick up at Decathlon

Loading...
Pick up near you

Loading...
Home Delivery

Loading...

Features
Design benefits

repair

Replace the spring washers on the back wheel of the Longtail R500.

Design details

Technical features

Washers:
Material - stainless steel
Width - 25 mm
Thickness - 13 mm
Length - 38 mm
Axle diameter - 10x12 mm

Inner washer:Material - stainless steel
Inner diameter - 10x12 mm
Outer diameter - 24 mm
Thickness - 2 mm

Nuts:Material - stainless steel
Inner diameter - 12 mm
Outer diameter - 18 mm
Thickness - 11.5 mm
Thread - 1.25 mm

Grub screw:
BTR bolt:3

Assembly tips

Add a drop of intermediate thread lock on the nut.
Place the spacer washer inside the frame on the disc side.
Fit the washers and nuts.
Tighten each nut to 45 Nm.
Finally, tighten the grub screw against the frame + 1/2 turn.
Usage & care
Warranty

2 Years

Care Instructions

Cleaning

DO NOT WASH.

DO NOT DRY CLEAN.

DO NOT IRON.

DO NOT TUMBLE DRY.

BLEACHING EXCLUDED.
Specifications

Composition

Main part: 100.0% Stainless Steel
