Shimano details

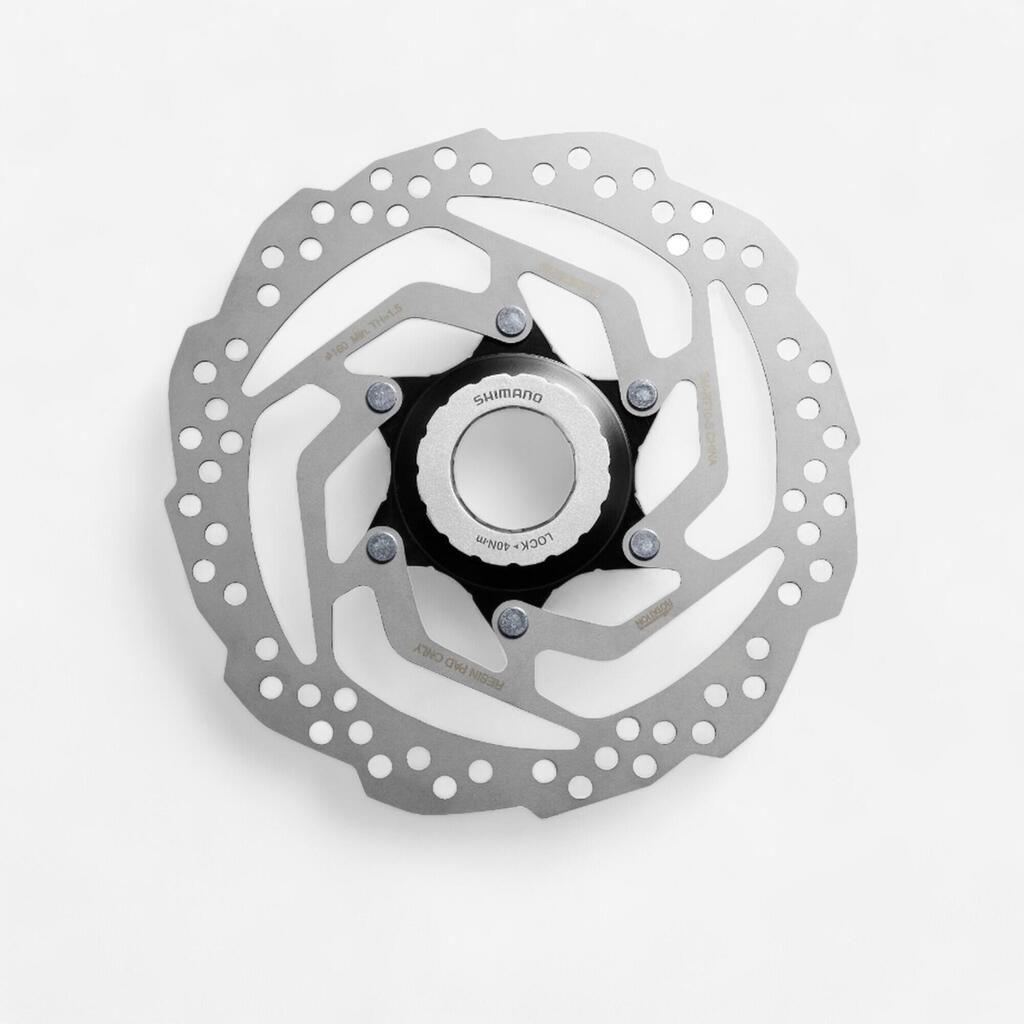

The Shimano SM-RT10 disc brake provides exceptional braking power in all riding conditions. The Center Lock mount system by Shimano makes it quick and easy to install or remove the rotors thanks to a spline mount and lock ring.
Shimano details 2
New type of lock ring
>Larger diameter internal splines with external spline structure for multifunction tool compatibility (TL-FC36 and TL-LR11)
New TL-LR11 installation tool
Efficient braking performance
>Easy handling for less experienced cyclists
>Fast assembly
>Center Lock
Technical features
Model No.: SM-RT10
Series: Shimano Alivio M3100 Series
Center Lock ✔
Outer diameter|180 mm ✔
Outer diameter|160 mm ✔
Cushion liner shape compatibility|Narrow ✔
Cushion liner shape compatibility|Wide ✔
Assembly instructions
The manufacturer recommends using this disc with brakes made by the same brand.
Tighten to the recommended torque for your hub
It is recommended that you use thread-locking fluid each time you re-fit the rotor.
Maintenance advice
Avoid spraying greasy products, which could alter the braking power.
Consider replacing the disc each time you replace the pads
Need Help?
The technicians at your Decathlon store workshop are available to help you replace your bike's parts. Feel free to ask them for help!
