In summary
Weight: 26.2 kg (in size M without pedals)
Mid-drive motor: Brose C 50 Nm
Battery: 500 Wh
Frame material: Aluminium
Type: Full suspension
Wheel size: 29"
Fork and shock travel: 130 mm / 130 mm
Drive train: 1x08
Brakes: Hydraulic
Seatpost: Fixed
Frame, handlebar and stem warranty: lifetime
Motor
Brose Drive C Aluminium motor
Mid-drive position
50 Nm torque
Torque sensor
Max assistance: 280 %
Max power: 380 W
In accordance with EU regulations, the electrical assistance cuts out above 25 km/h
Battery
Battery fully integrated into the frame with side outlet for easy gripping.
Capacity: 500 Wh
Display
Ergo 500
3 assistance modes: Eco / Standard / Boost.
Walk mode.
Stats displayed: Active assistance mode / Battery level / Speed (current, average, max) / Remaining battery / Distance covered (total and trip)
Frame
6061 aluminium suspended frame
Single pivot with tie rod
Max rear travel 140 mm
Fully built-in battery, removes from the side
Conical steering socket
31.6 mm diameter seat tube
Mount for 1 bottle cage

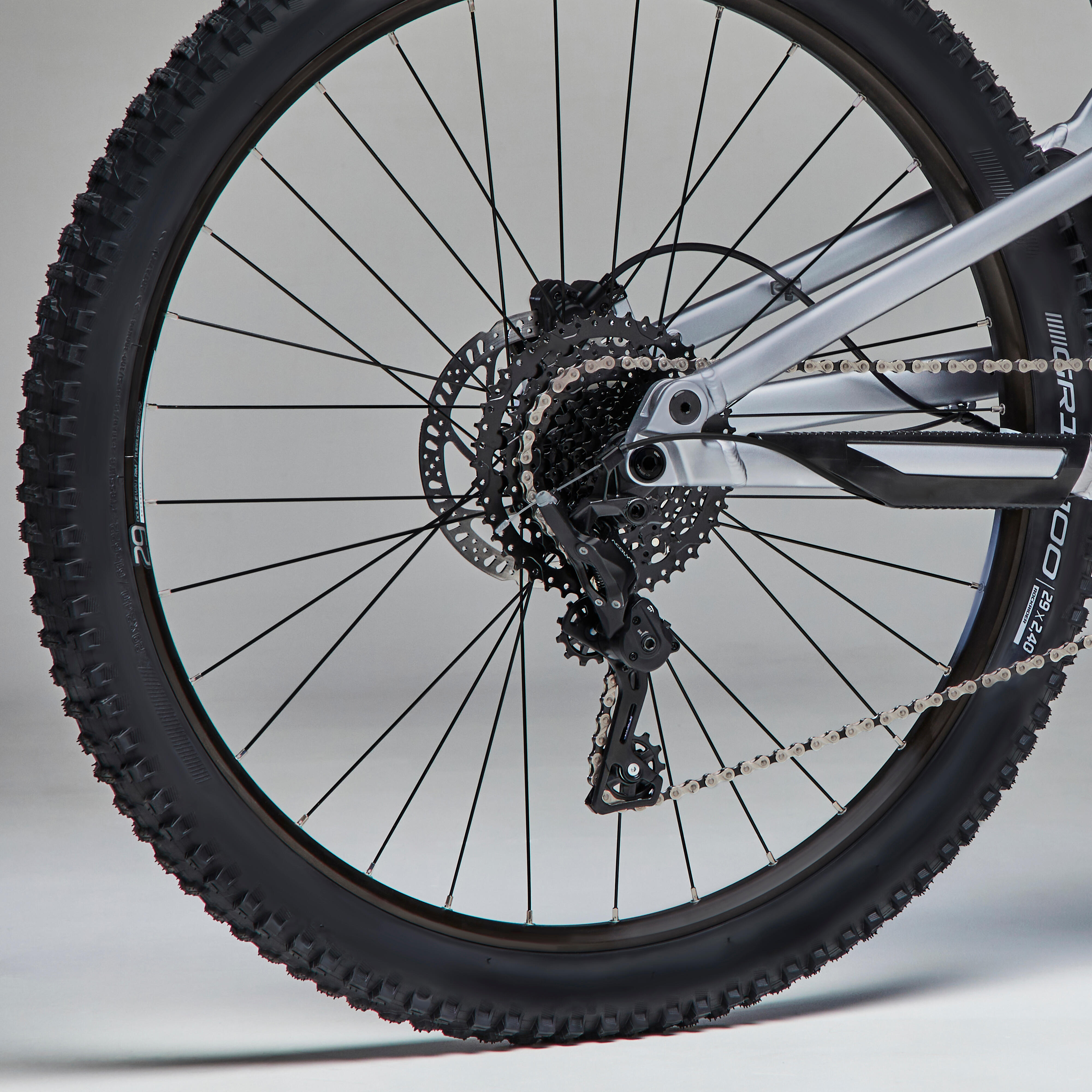

Transmission
Microshift Acolyte
34 T chainring with chain guide
Microshift Acolyte 8-speed rear derailleur
Crank: 170 mm
Microshift Acolyte right shifter with speed indicator
Microshift Acolyte 8-sprocket 12 to 46 T cassette
KMC E8S chain
Suspension
Suntour XCM 130 fork
Travel: 130 mm
Dampers: 34 mm
Axle: Thru axle
Format: 110 x 15 mm
Offset: 51 mm
Technology: Coil with preload adjustment
Adjustments: preload
X-Fusion O2 shock
dimensions: 210x50 mm
mount: Standard
wheelset
29" Rockrider wheels
Size 29" compatible with wide tyres: up to 2.6"
25 mm (width between brackets),
32 spokes
Format: Boost
Discs: 6-hole
Cassette body: HG
Tubeless Ready, equipped with a watertight rim base
(requires Tubeless tyres, special Presta valves and puncture-proof liquid)
Brakes
Tektro M276 hydraulic disc brakes
Number of pistons: 2
Front disc: 180 mm
Rear disc: 180 mm
6-bolt mounting
Riding position
Rockrider Sport handlebar
Material: Aluminium
Diameter: 31.8 mm
Width: 740 mm (S, Ms) 760 mm (L, XL)
Rise: 10 (S, M), 25 (L, XL)
Upsweep: 0° (S, M), 6° (L, XL)
Backsweep: 9°
Rockrider stem
Material: Aluminium
Angle: 7°
Sizes: 50 mm (S), 60 mm (Ms / L), 70 mm (XL)
Grips:
Rockrider Ergo Lock On
Headset
ZS 44/28.6 - 56/40
Saddle & seat post
60° Decathlon Core saddle
Rockrider Sport
aluminium seatpost
diameter: 31.6 mm
Length: 300 mm (S) / 350 mm (M) / 400 mm (L) / 450 mm (XL)
Seat clamp collar: aluminium, fast adjustment
Tyres
Rockrider Grip 100
29" x 2.4"
Tube Type (not compatible with Tubeless)
Bead: soft
Carcass: 60 TPI 1 ply
Sidewalls: Skinwall
Tread: single rubber
Pedals
Rockrider Flat Evo Resin
ACCESSORIES INCLUDED
Your MTB comes with:
2A charger
bell,
lights,
wheel reflectors
and pedals.
