RCR OR RCR-F: HOW TO CHOOSE
The RCR-F Pro has been designed to excel in competitions on rolling to hilly terrain. It is particularly effective on trails with under 1,500 m of positive gradient over 100 km, with average speeds of 35 to 50 km/h.
The RCR Pro has been designed to exceed expectations on hilly to mountainous terrain. It is therefore ideal for trails with more than 1,500 m of positive gradient over 100 km, with average speeds of 25 to 35 km/h.
THE STORY BEHIND THE DESIGN: AERODYNAMICS
The RCR-F frame is the result of thorough work on aerodynamics, carried out with our partner and aerodynamic optimisation expert, Swiss Side.
With one purpose in mind: to design the fastest road bike in the pack!
After CFD simulations and wind-tunnel tests, the final contours have been tested in the field by our professional athletes.
The result: the RCR-F is 13 watts faster than the RCR at 45 km/h.
THE STORY BEHIND THE DESIGN: STIFFNESS AND PERFORMANCE
The second aspect of its development is the stiffness, with the aim of meeting the needs of the most demanding racers and maximising performance.
To do this, a Super High Modulus carbon layup was designed with 517 plies, made exclusively from high-end carbon fibres.
The RCR-F is 7% stiffer at the front than the RCR, which makes it especially more effective in fast phases like attacks or sprints.

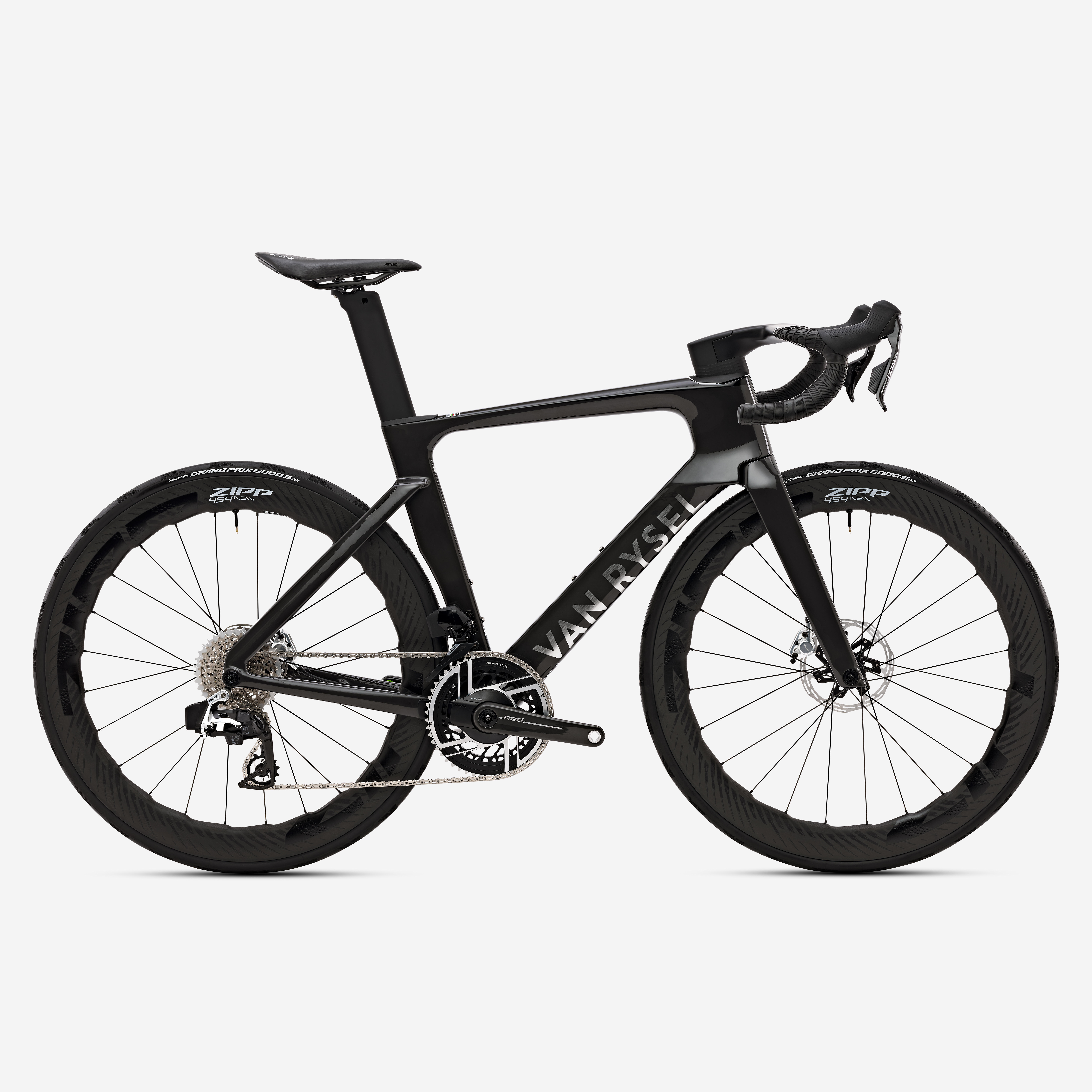

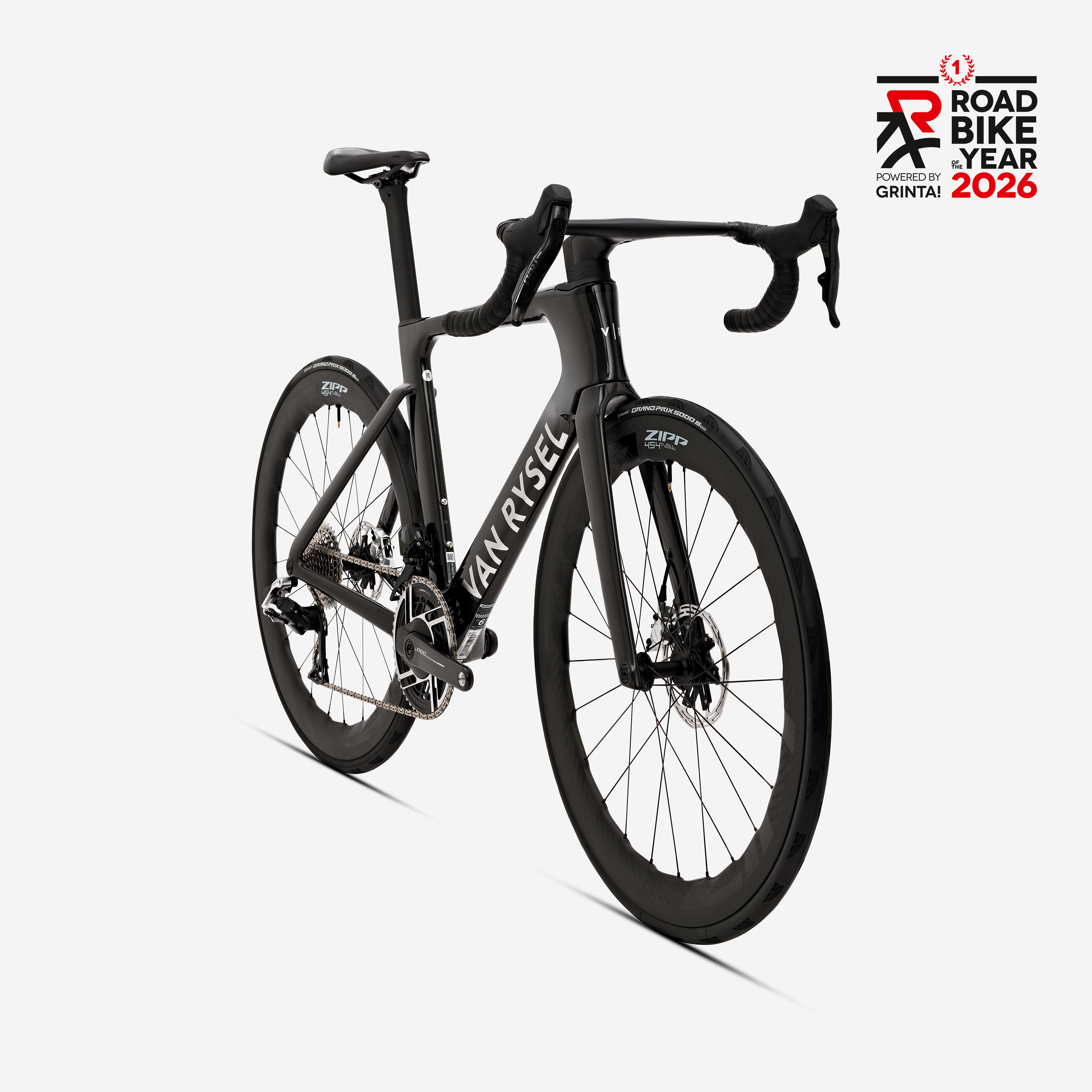

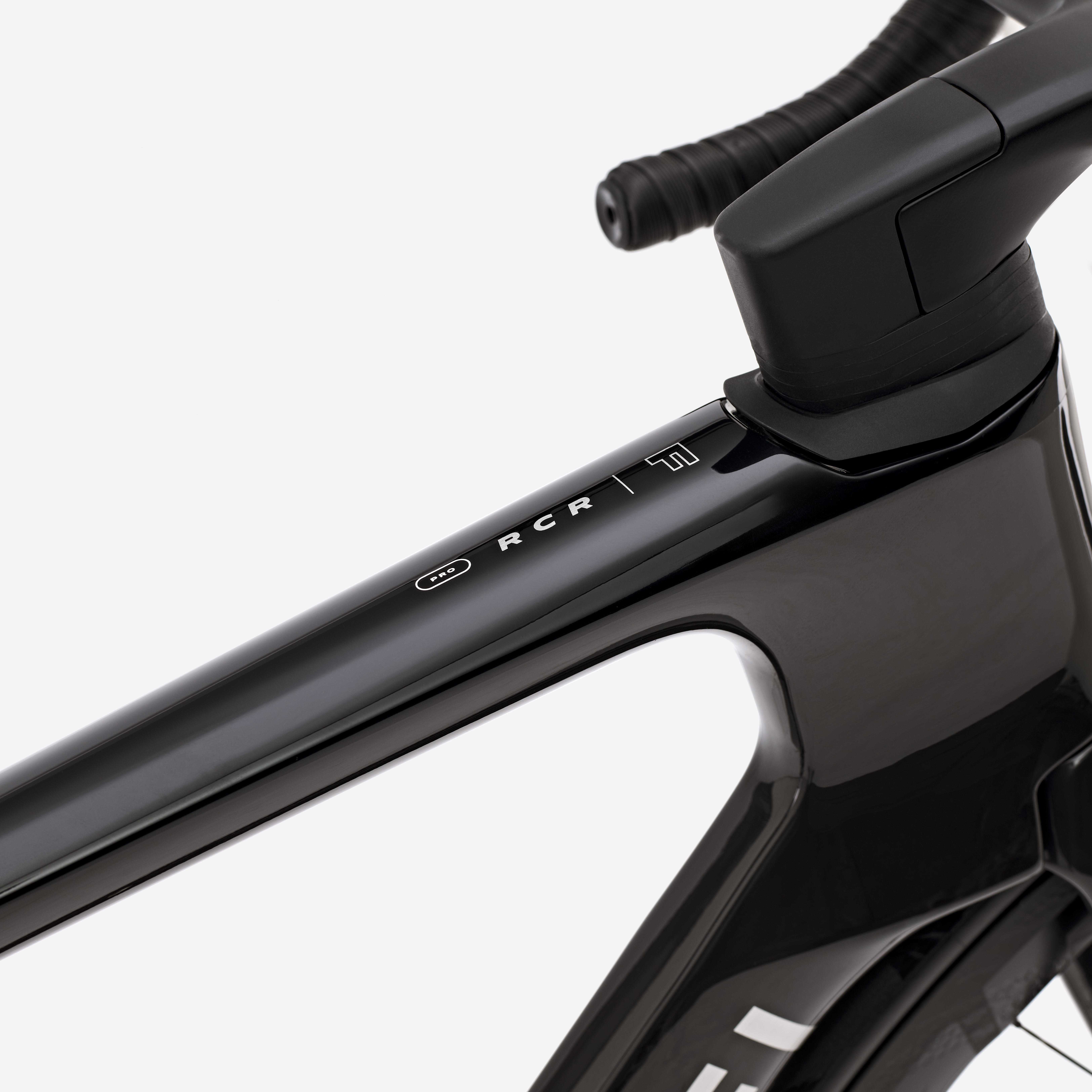

RCR-F PRO FRAME/FORK
The RCR-F Pro frame and fork have been designed for fast riding on rolling to hilly terrain.
The Super High Modulus layup is made from exceptional fibers, offering maximum performance combined with excellent stability at high speed.
This frame is used by the Decathlon - CMA CGM World Tour team and features in the biggest races on the UCI circuit.
Gross frame weight: 1,010 g (Size M)
Gross fork weight: 420 g

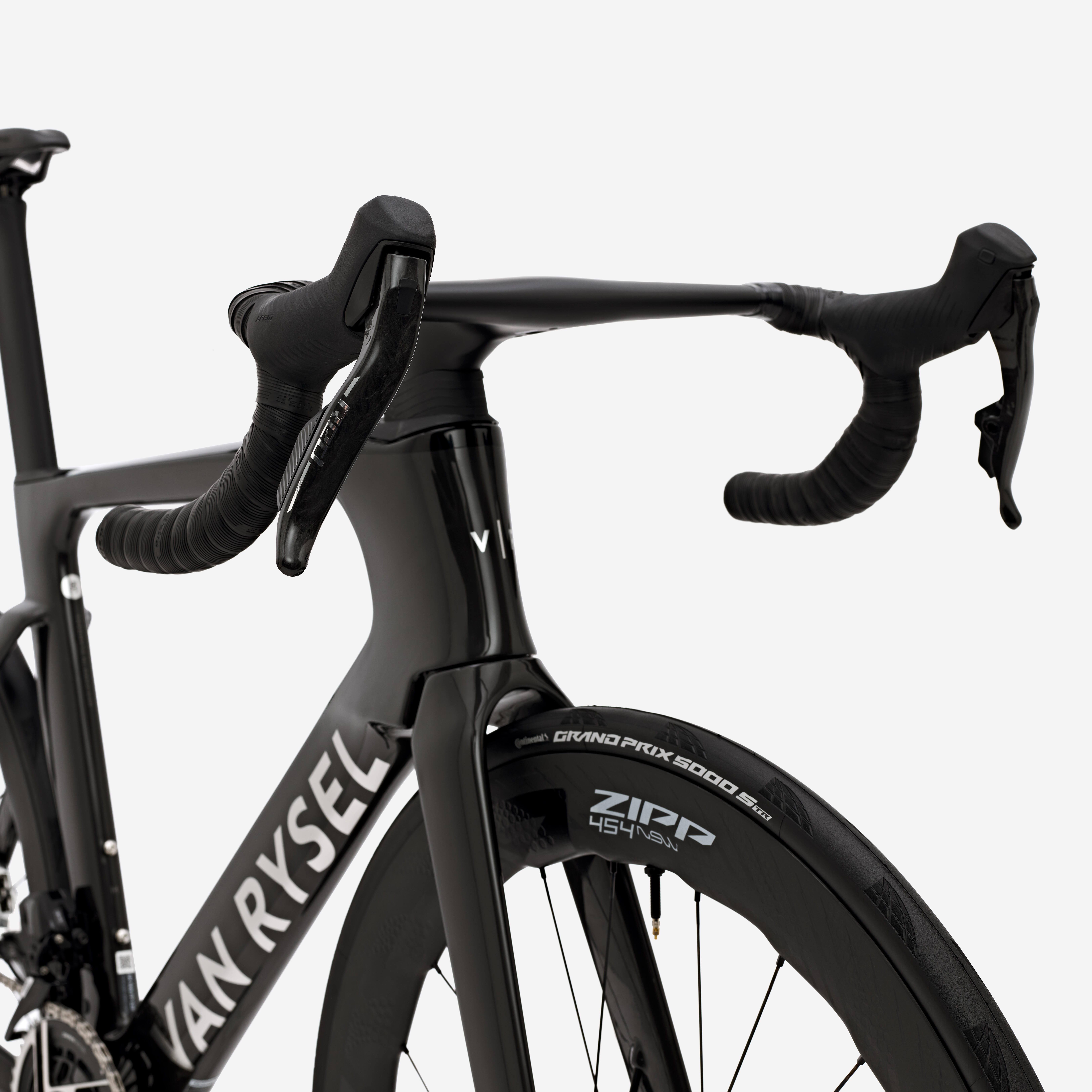

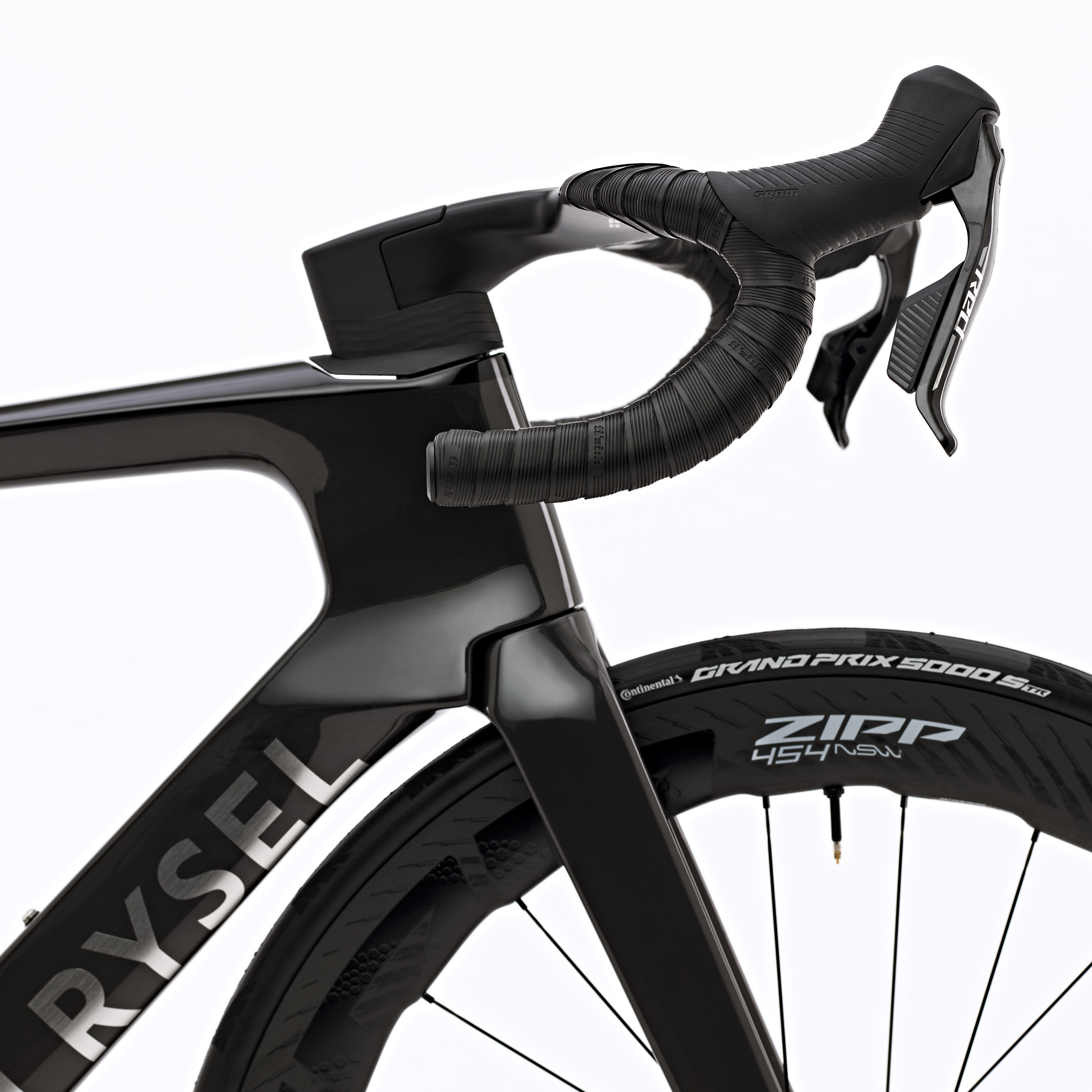

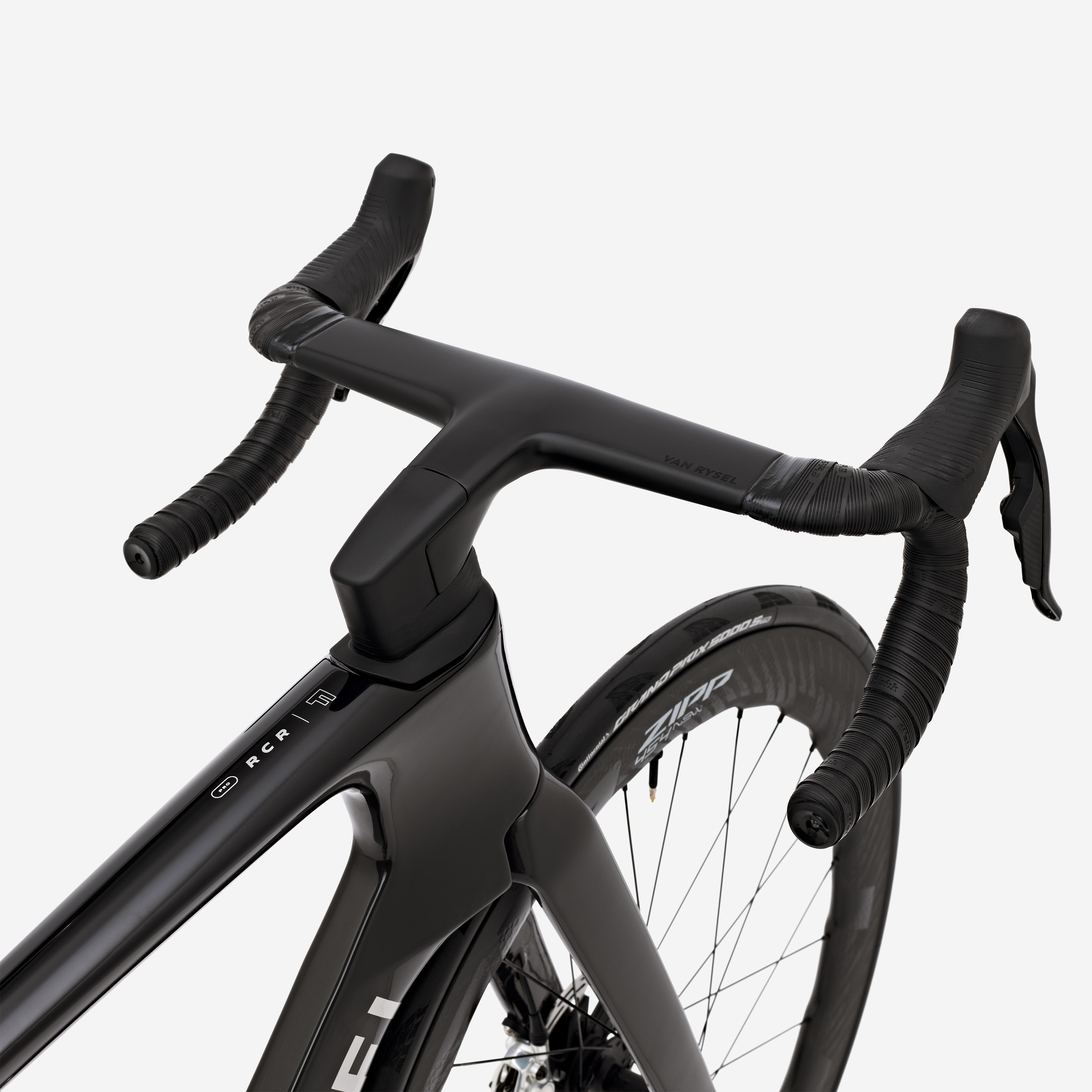

RCR-F PRO COCKPIT
DEDA x VR RCR-F combo to optimise aerodynamics, stiffness and ergonomics.
Ergo drops inserts to improve grip on the handlebar drops.
GPS cyclometer holder included — Garmin, Wahoo and Bryton compatible.
Option to install VR x Deda triathlon extenders.
Handlebar widths and stem lengths depending on the frame size:
XXS 70-400
XS 80-400
S 90-420
M 100-420
L 110-440
XL 120-440
Measurements from the bottom of the handlebars between axles

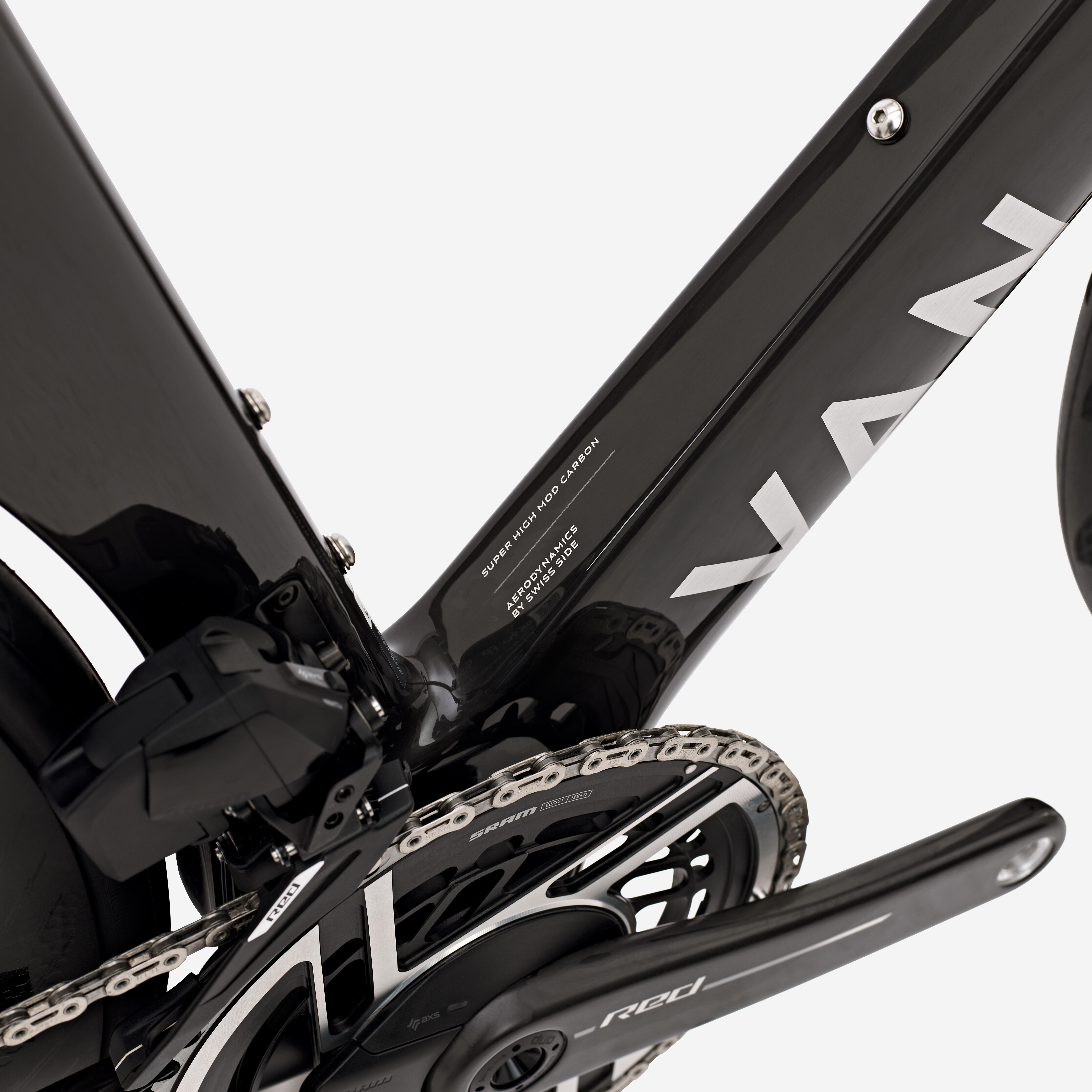

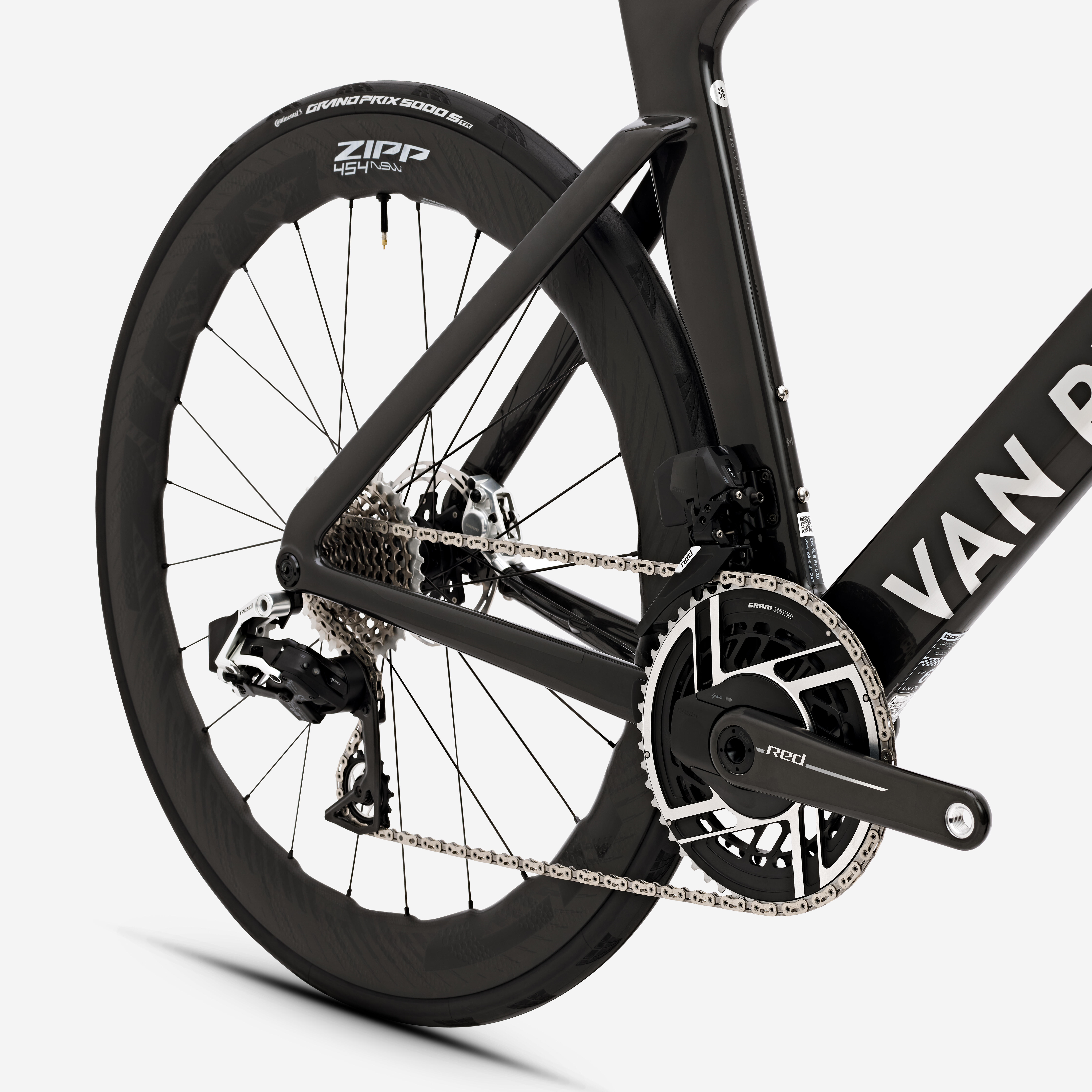

SRAM RED AXS GROUPSET
SHIFTER: RED AXS HRD E1
Front derailleur: RED AXS E1
Rear derailleur: RED AXS E1 MAX 36T
Cassette: RED XG 1290 10-33
Bottom bracket: RED AXS PM 50/37T
Casing: SRAM DUB BB86 CERAMIQ
Bottom bracket: FC SRAM RED AXS E1 PM T
Variable crank length depending on bike size
XS 165 mm
S 170 mm
M 172,5 mm
L 175 mm
Chain: SRAM RED E1
The SRAM elements are easy to replace, with the Red and Force ranges being compatible.
SRAM RED DISC BRAKES
SRAM RED E1 disc brakes with 160 mm discs at the front and 140 mm at the back.
The SRAM RED E1 disc brakes are hydraulic. This gives you more progressive and more powerful braking than with cable-actuated hydraulic brakes.
You will need to bed these brakes in. Simply brake gradually 20 times at a low speed (20 km/h), then repeat at 30 km/h. Make sure to bed in both brakes.
Bedding in creates more friction between the disc and brake pad.

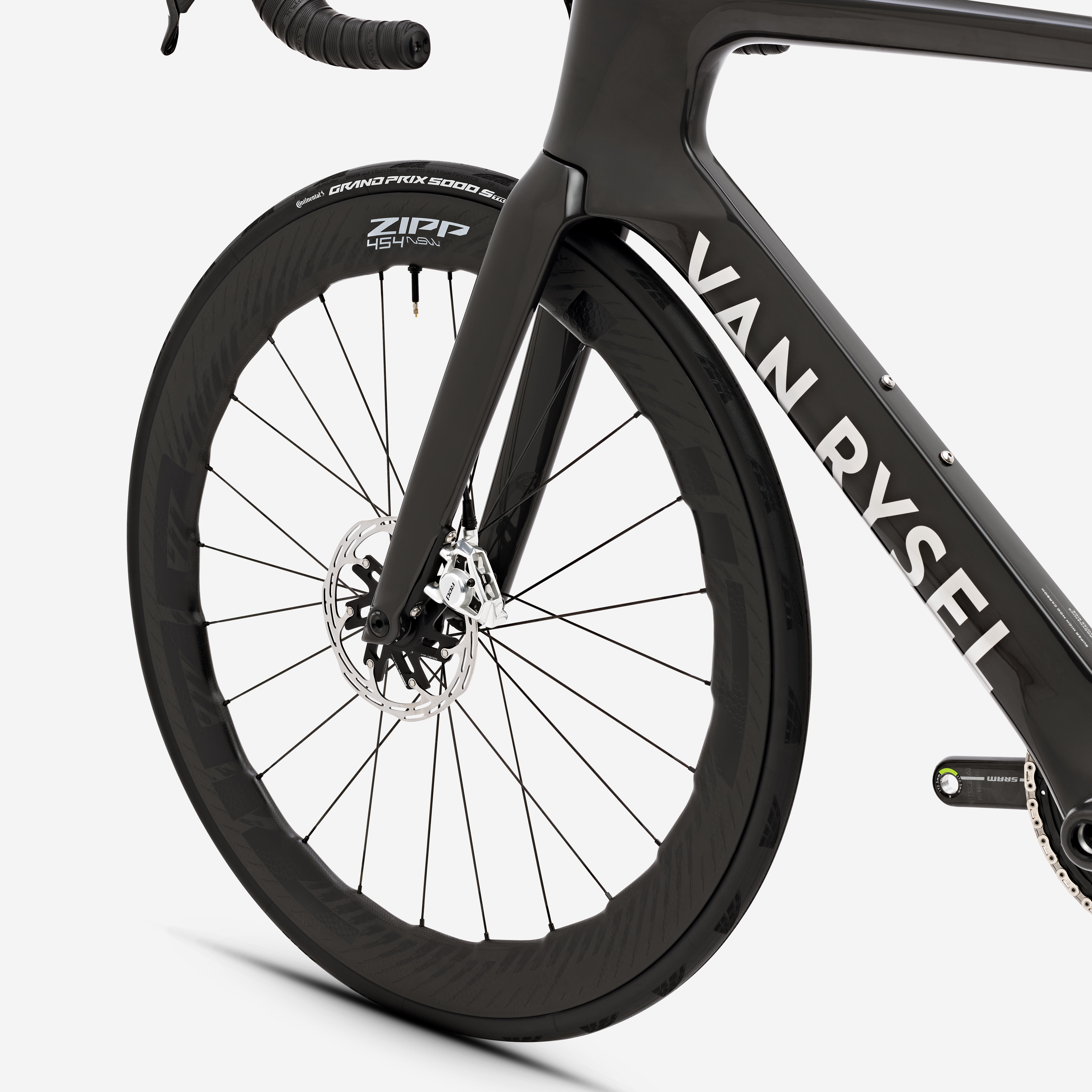

Zipp 454 NSW wheels
The Zipp 454 NSW tubeless for disc brakes is the ideal wheel for road competitions.
This wheel offers all the features that competition-oriented cyclists demand. It is extremely aerodynamic and stable especially when it's windy. Also, this wider rim has been designed for low pressure tubeless tyres reducing drag and dampening vibrations generated by the road. This helps you to reduce energy loss.
CONTINENTAL TYRES
GP 5000S TR 28 tyre.
We recommend switching your tyres to tubeless using the tubeless valve and preventive liquid that comes with this bike.
Tubeless is more comfortable and more efficient, and the tyres can self-repair when you get small punctures.
Of course, you should always carry an inner tube in your repair kit, just in case your tyre gets a slightly bigger puncture.
Saddle/Seat post
RCR-F carbon offset seat post -15 mm
Length depending on frame sizes:
XXS 268mm
XS 314mm
S 330mm
M 352mm
L 400mm
XL 410mm

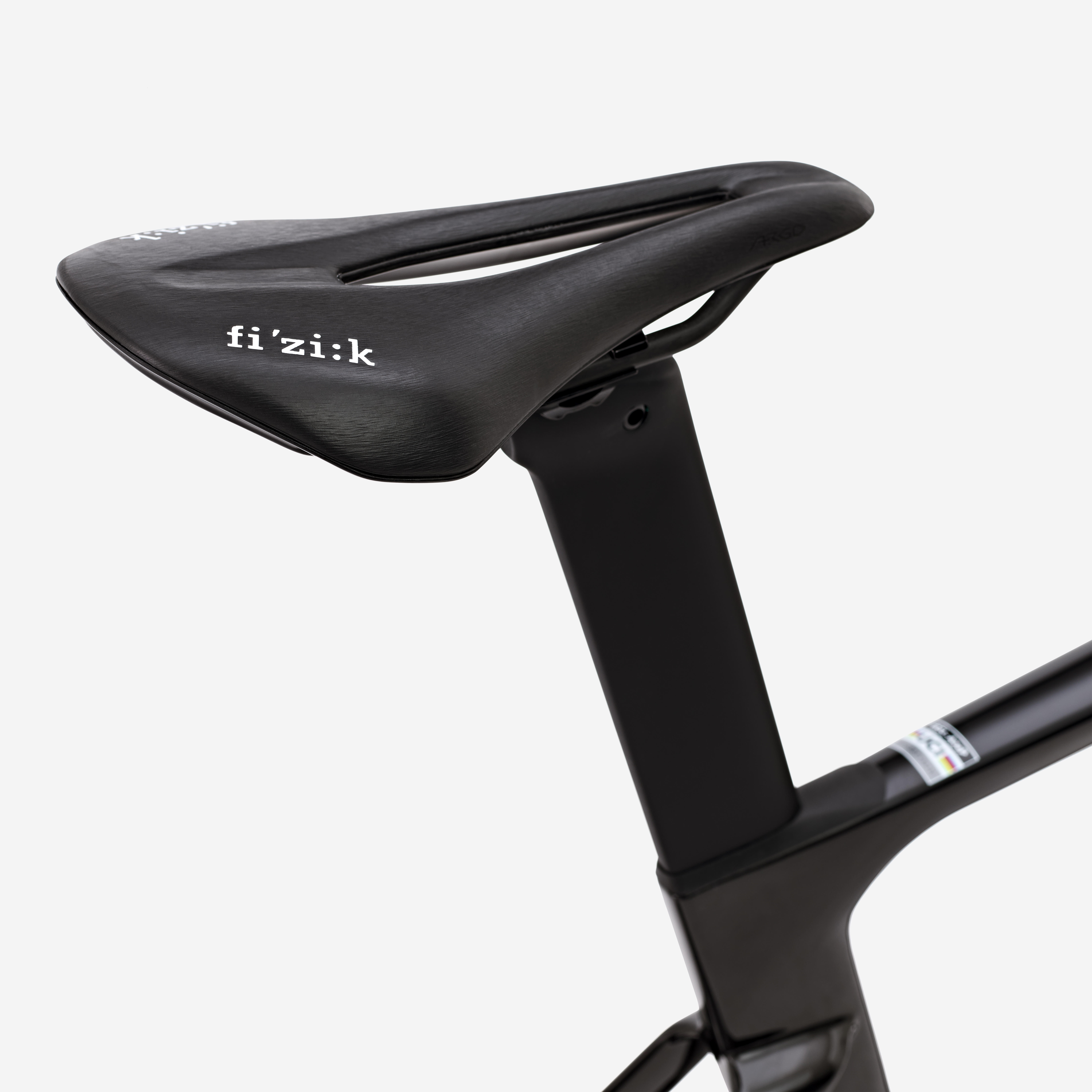

FIZIK ARGO VENTO 00 140mm saddle
CHOOSING YOUR SIZE
The RCR-F is available in sizes XS to XL.

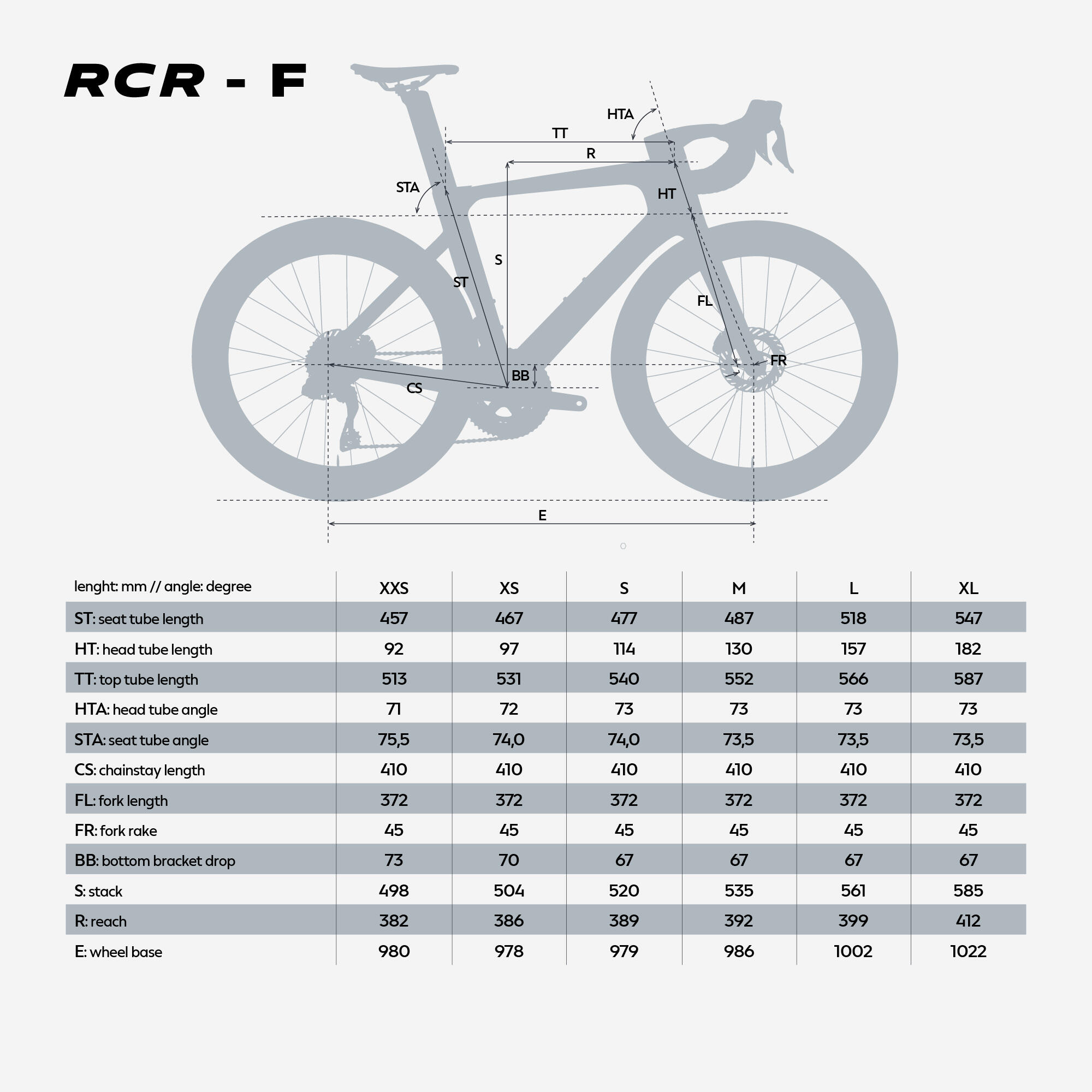

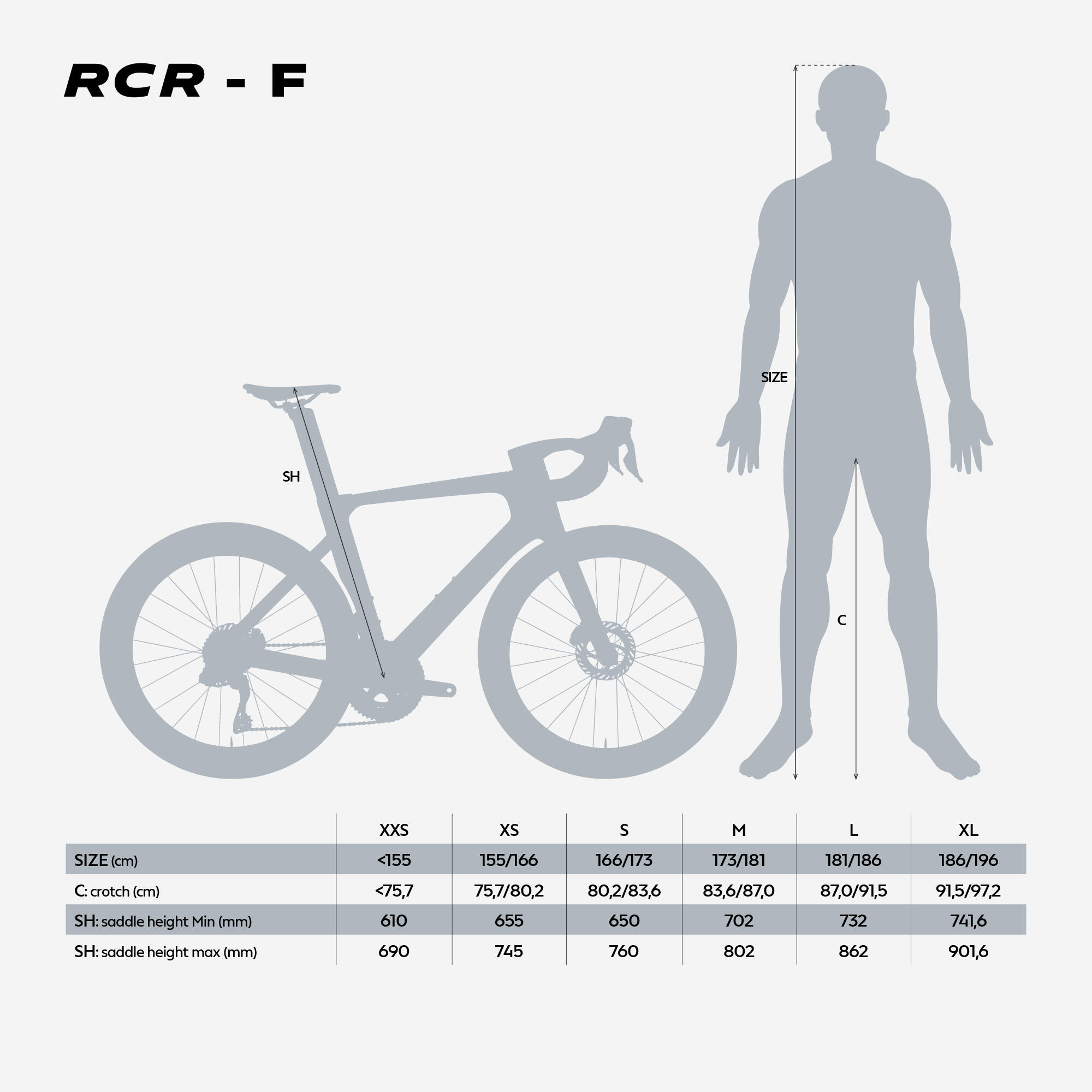

See the geometry information and user size correspondence in the product photos.
Be sure to know your measurements to make the right choice of frame and perfectly adjust your three support points to fully enjoy the RCR-F.
If possible, it is advisable to do a bike fitting before purchasing.
DRIVE TRAIN MAINTENANCE
We want to draw your attention to the need for regular drive train maintenance, particularly if you're riding in difficult conditions (wet and/or dirty roads).
Regular maintenance helps your drive train to last longer. We recommend the use of a bike maintenance and cleaning kit: 8751194.
Regular chain inspections are essential. You can use a chain wear indicator, reference: 8901475
Lifespan of a drive train
When buying a bike, it's important to take into account the cost of servicing it when choosing the drive train.
The figures below are averages given as an indication and may vary depending on the care you take of your drive train.
The average lifespan of a well-maintained chain is 5,000 km.
The average lifespan of a cassette is 10,000-12,000 km.
A badly maintained chain can cause the chain to jump, which could damage the frame.
HYDRAULIC BRAKE MAINTENANCE
Hydraulic brakes function using a closed circuit between the brake lever and the caliper.
There is a hose to maintain the seal.
With time, you'll see a normal loss of pressure in your hoses, leading to a loss of braking efficiency. When your brake guard is too soft or you reach the end of the handlebars, you need to bleed your system. This requires specific tools and knowledge.
WARNING AND ADJUSTMENT
Please note: never squeeze the brakes without a wheel being attached, as you could get the brake pads stuck together.
If the rotor is touching the pads, here's how to realign the wheel and caliper:
- Loosen the brake caliper
- Brake hard and tighten the caliper at the same time
- If the problem persists, go to the nearest store.
GUARANTEE
5 years for frame and fork.
2 years for parts and labour excluding wearing parts.
